34 Series · Plate caster· CasterHQ
Double V-Groove Plate Caster 4 to 5 in. x 2 in. Wheel, 4 x 4-1/2 in. Plate, 1,250 lb
Regular price
$41
Regular price
Sale price
$41
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU 34CS420DVG23R-03- Brand
- CasterHQ
- Series
- 34 Series
- Type
- Swivel
- Load capacity
- 1250 lb per caster
- Wheel diameter
- 4"
- Tread width
- 2"
- Wheel
- Double V-groove semi-steel for angle track
- Wheel color
- Red
- Overall height
- 5-5/8"
- Axle diameter
- 1/2"
- Mounting
- Top plate
- Top plate size
- 4 x 4-1/2"
- Bolt hole spacing
- 2-5/8 x 3-5/8 to 3 x 3"
- Mounting bolt size
- 3/8"
- Bearing
- 3/4 in. roller with spanner bushing
- Swivel radius
- 3-5/16"
- Finish
- Zinc plated
- Warranty
- 1 year, defects in materials and workmanship
Tap to enlarge
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 4" x 2" | 1250 lb | 5-5/8" | $41 |
| 5" x 2" | 1250 lb | 6-1/2" | $41 |
| 4" x 2" | 1250 lb | 5-5/8" | $47 |
| 5" x 2" | 1250 lb | 6-1/2" | $47 |
| 4" x 2" | 1250 lb | 5-5/8" | $18 |
| 5" x 2" | 1250 lb | 6-1/2" | $26 |
Will it carry my load?
Enter your total weight to check the selected size.
2 in. wide caster with a double v-groove semi-steel for angle track wheel. Rated 1,250 to 1,250 lb per caster depending on wheel size.

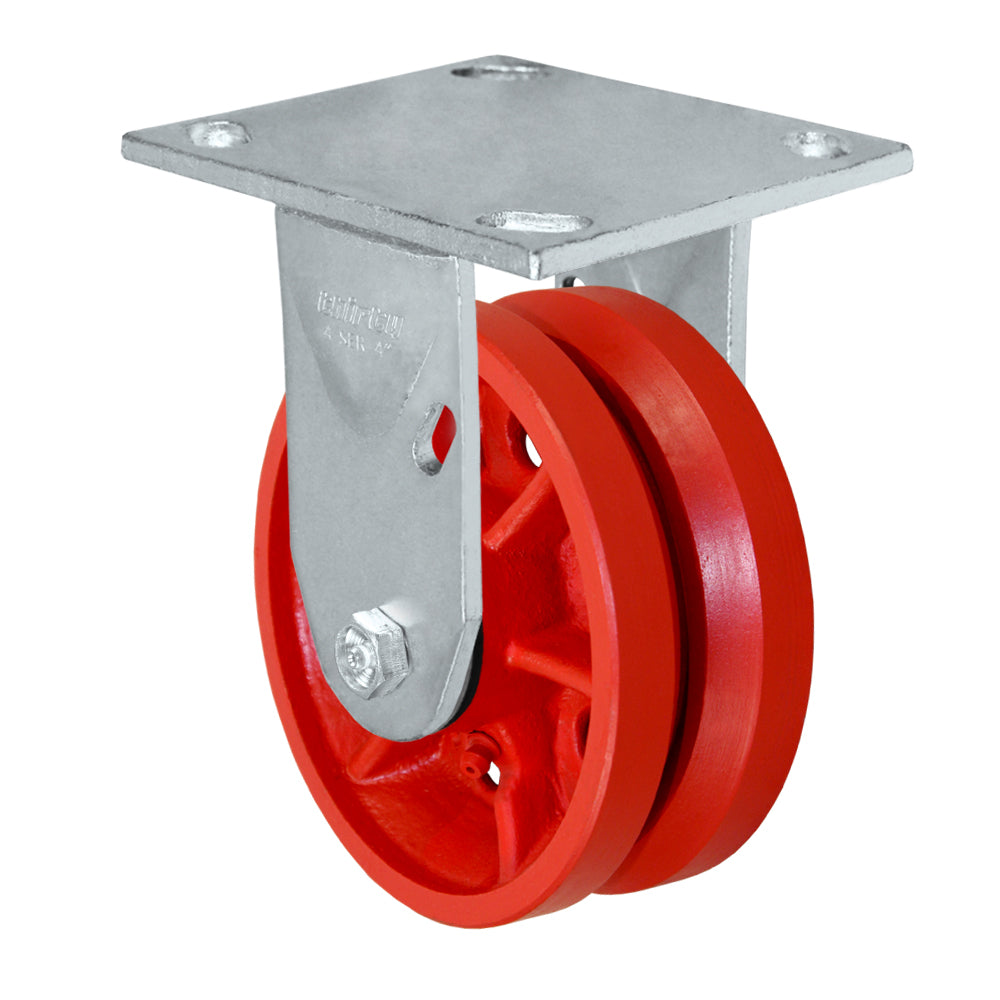

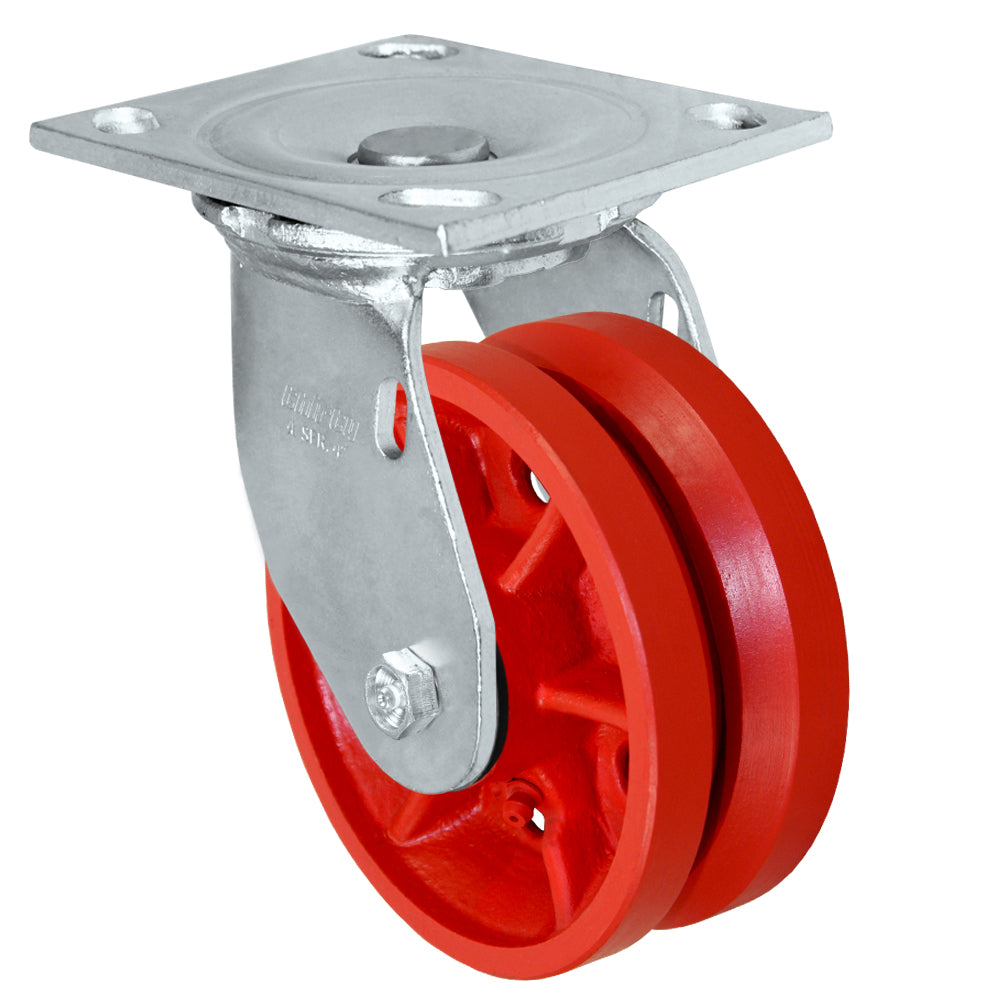

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Where the photo shows a swivel caster, the brake is not pictured. Rigid rolls straight only.
Top plate is 4 x 4-1/2 in. with slotted holes for 2-5/8 x 3-5/8 to 3 x 3 in. bolt patterns, 3/8 in. bolts.
