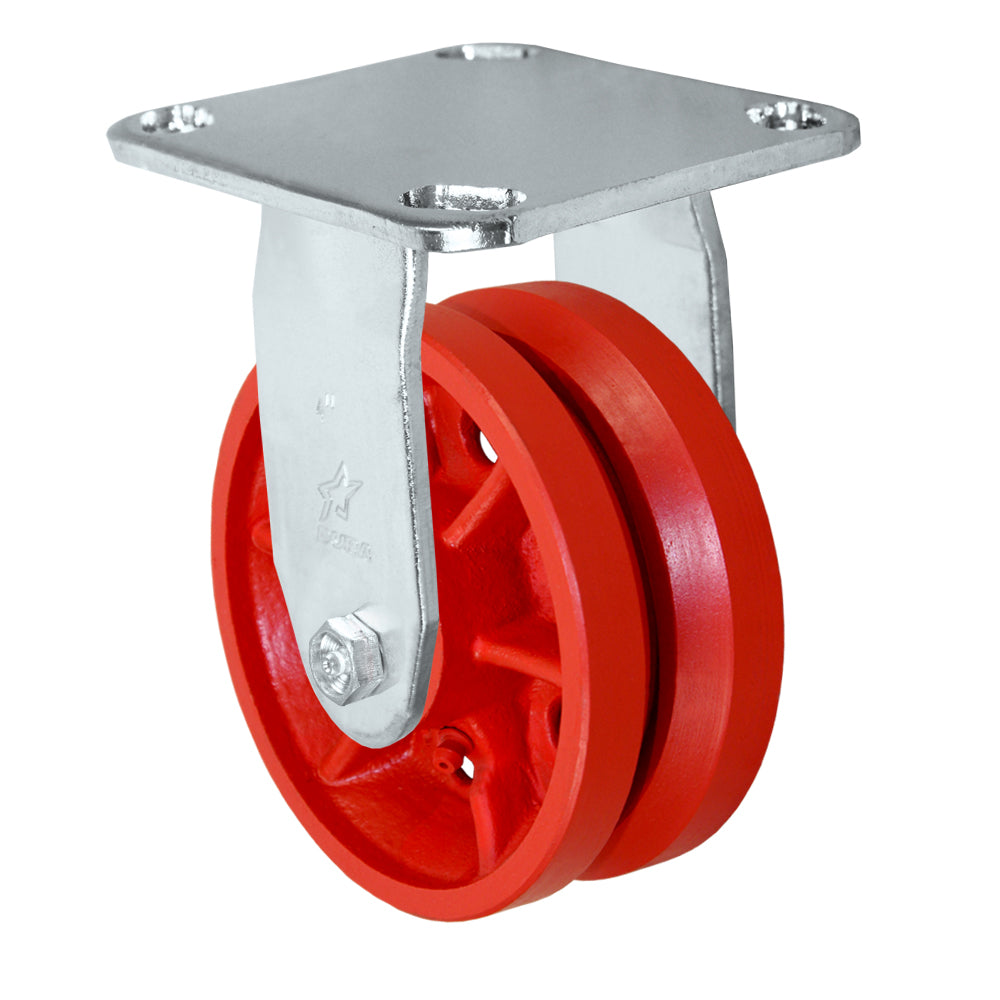

• Rigid caster, 4" x 2" double v-groove wheel, Plate 4 x 4-1/2"
1 1

S30 Series · Plate caster· CasterHQ

Stainless Steel Double V-Groove Plate Caster 4 to 5 in. x 2 in. Wheel, 4 x 4-1/2 in. Plate, 1,250 lb

$38
$38
Sale Sold out
Shipping calculated at checkout.
Type
Wheel size
SpecificationsSKU S30CR420DVG23R-03
Brand
CasterHQ
Series
S30 Series
Type
Rigid
Load capacity
1250 lb per caster
Wheel diameter
4"
Tread width
2"
Wheel
Double V-groove semi-steel for angle track
Wheel color
Red
Overall height
5-5/8"
Axle diameter
1/2"
Mounting
Top plate
Top plate size
4 x 4-1/2"
Bolt hole spacing
2-5/8 x 3-5/8 to 3 x 3"
Mounting bolt size
3/8"
Bearing
3/4 in. roller with spanner bushing
Finish
Stainless steel
Warranty
1 year, defects in materials and workmanship
Top plate 4 x 4-1/2 in. with bolt hole spacing Tap to enlarge
Measure your bolt holes center to center and match them to this plate.
Top plate diagram, full size
Sizes · Rigidcapacity is per caster
SizeCapacityHeightPrice
4" x 2" 1250 lb 5-5/8" $38
5" x 2" 1250 lb 6-1/2" $40

Will it carry my load?

Enter your total weight to check the selected size.

2 in. wide stainless steel caster with a double v-groove semi-steel for angle track wheel. Rated 1,250 to 1,250 lb per caster depending on wheel size.

Rigid rolls straight only.

Top plate is 4 x 4-1/2 in. with slotted holes for 2-5/8 x 3-5/8 to 3 x 3 in. bolt patterns, 3/8 in. bolts.
