X05Heavy Duty Low Profile Casters

CasterHQ · 1-13/16" wide · black oxide

Low profile with more muscle. Up to 1,000 lb at 4-5/32 inch tall.

Wheel sizes
3"
Per caster
500–1,000 lb
Overall height
4-5/32"
Top plate (in.)
3-1/8 x 4-1/8
4 x 4-1/2
Finish
Black oxide

Sold as Swivel, thumb-screw brake, rigid. Top plate mount.

X05 Heavy Duty Low Profile Casters

Four taps

Build your caster.

Wheel size

Wheel

    3 products

    Questions, answered with the numbers.

    The X05 Series is the heavy duty version of the low profile caster: a 3 in. wheel, 1-13/16 in. wide, at 4-5/32 in. overall height, rated 500 to 1,000 lb per caster, with a black oxide finish and 1/2 in. axle. Top plates of 3-1/8 x 4-1/8 or 4 x 4-1/2 in. Sold as swivel, swivel with thumb-screw brake or rigid, in heavy-duty polyolefin, glass-filled nylon and donut polyurethane on aluminum. Choose it when the load is heavy and the space is tight.

    What is a X05 Series caster?

    The X05 Series is CasterHQ's heavy duty low profile caster: 1-13/16 in. wide wheels in 3 in. diameter, rated 500 to 1,000 lb per caster. Low profile with more muscle. Up to 1,000 lb at 4-5/32 inch tall. Sold as swivel, thumb-screw brake and rigid. Top plate 3-1/8 x 4-1/8 in. or 4 x 4-1/2 in. Finish: black oxide.

    What plate size and bolt pattern does the X05 Series use?

    The X05 Series mounts on 2 plate sizes. 3-1/8 x 4-1/8 in. plate: bolt hole spacing 1-3/4 x 2-15/16 to 2-3/8 x 3-3/8 in., 5/16 in. bolts. 4 x 4-1/2 in. plate: bolt hole spacing 2-5/8 x 3-5/8 to 3 x 3 in., 3/8 in. bolts. The holes are slotted, so measure your old plate center to center and match the spacing, not just the plate outline.

    How much weight can a X05 Series caster carry?

    500 to 1,000 lb per caster, depending on wheel diameter and material. By wheel size: 3 in. wheels 500 to 1,000 lb. To size a cart, divide the total weight (cart plus load) by one less than the number of casters, then choose a caster rated at or above that figure.

    How tall is a X05 Series caster?

    Overall height, floor to top of plate: 3 in. wheel 4-5/32 in.

    Which wheel materials come in the X05 Series?

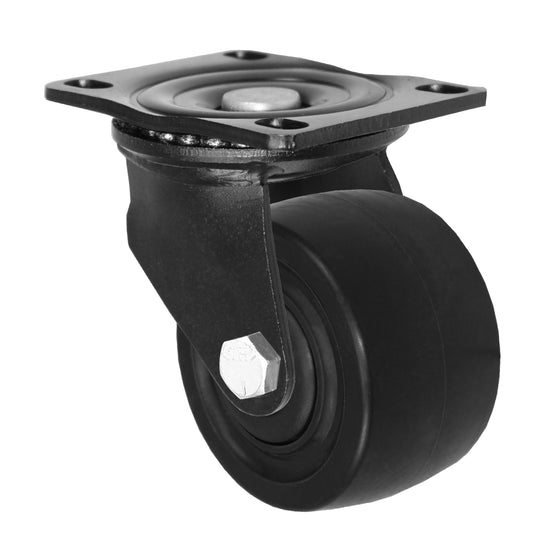

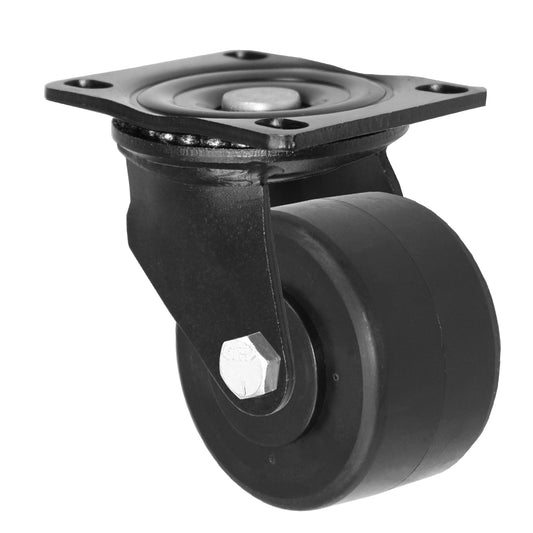

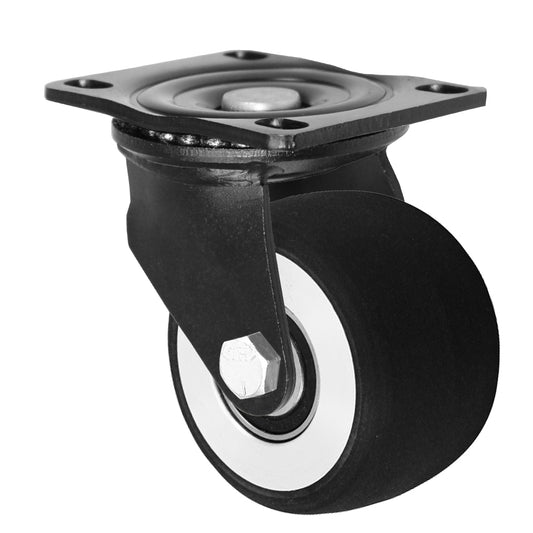

    3 wheel materials: Heavy-duty polyolefin; Sirius heavy-duty donut polyurethane on aluminum core; Glass-filled nylon. Every material is a separate listing with its own photo, capacity and price.

    Does the X05 Series come with a brake?

    Yes. Swivel X05 Series casters are available with a thumb-screw brake that is tightened by hand against the wheel. Rigid casters have no brake.

    What is the swivel radius, axle size and bearing of the X05 Series?

    Swivel radius: 3 in. wheel 2-3/8 in. Axle diameter 1/2 in. Bearings: Plain bore and Precision ball.

    What warranty does the X05 Series carry?

    X05 Series casters carry a 1 year warranty against defects in materials and workmanship from the date of purchase. Normal wear, overloading, misuse and improper installation are not covered. Returns are accepted within 30 days of delivery.

    What is the difference between the X05 Series and the 04 Series?

    Compared with the X05 Series, the 04 Series is the standard low profile caster, rated up to 700 lb per caster, with more plate and stem options.
