34 Series ยท Plate caster ยท CasterHQ

V-Groove Plate Caster 4 to 8 in. x 2 in. Wheel, 4 x 4-1/2 in. Plate, 700 to 1,250 lb

Regular price $25
Regular price Sale price $25
Sale Sold out
Shipping calculated at checkout.
FinishZinc plated 34 SeriesStainless steel S30 Series
Type
Wheel size
SpecificationsSKU 34CS420VG23B-03
Brand
CasterHQ
Series
34 Series
Type
Swivel
Load capacity
700 lb per caster
Wheel diameter
4"
Tread width
2"
Wheel
V-groove semi-steel for inverted angle track
Wheel color
Black
Overall height
5-5/8"
Axle diameter
1/2"
Mounting
Top plate
Top plate size
4 x 4-1/2"
Bolt hole spacing
2-5/8 x 3-5/8 to 3 x 3"
Mounting bolt size
3/8"
Bearing
3/4 in. roller with spanner bushing
Swivel radius
3-5/16"
Finish
Zinc plated
Approx. weight
7.5 lb each
Warranty
1 year, defects in materials and workmanship
Top plate 4 x 4-1/2 in. with bolt hole spacing Tap to enlarge
Measure your bolt holes center to center and match them to this plate.
Top plate diagram, full size
Sizes ยท Swivelcapacity is per caster
SizeCapacityHeightWeightPrice
4" x 2" 700 lb 5-5/8" 7.5 lb $25
5" x 2" 1000 lb 6-1/2" 7.25 lb $29
6" x 2" 1200 lb 7-1/2" 10.5 lb $33
8" x 2" 1250 lb 9-1/2" 9.25 lb $50

Will it carry my load?

Enter your total weight to check the selected size.

2 in. wide caster with a v-groove semi-steel for inverted angle track wheel. Rated 700 to 1,250 lb per caster depending on wheel size.

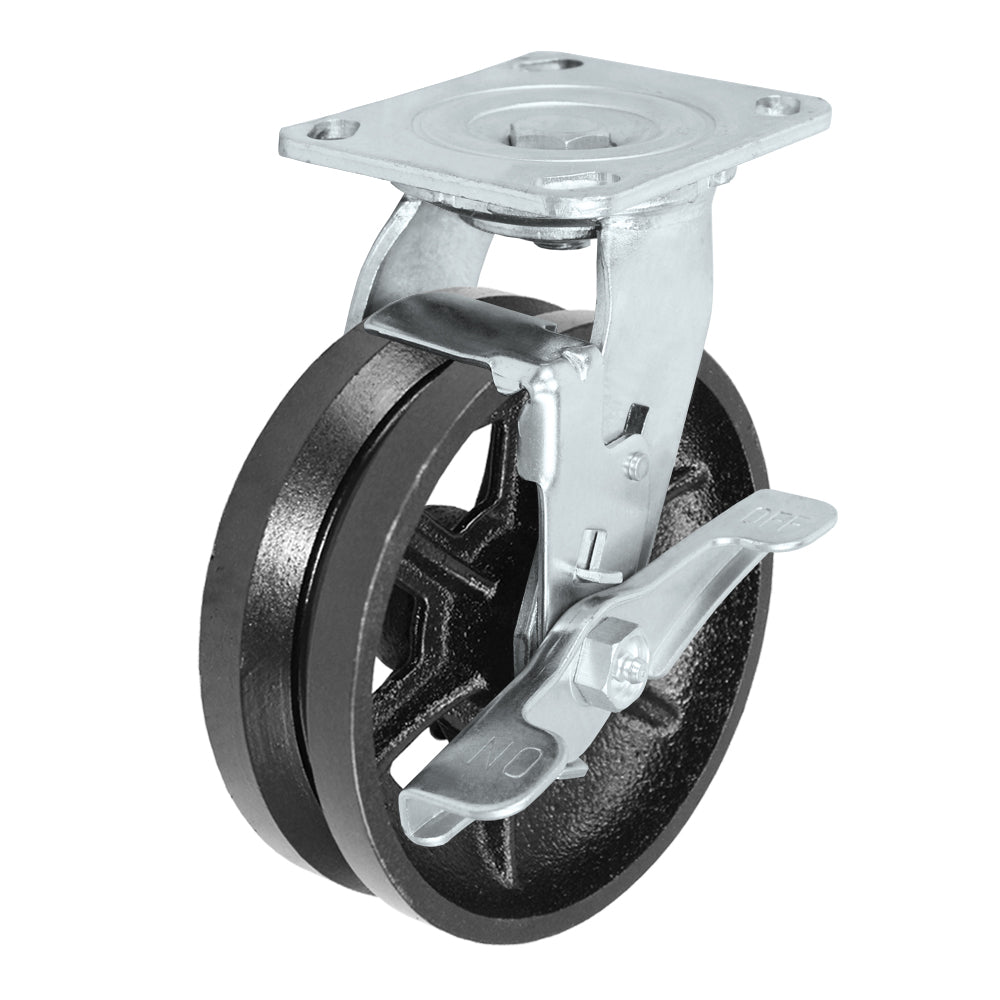

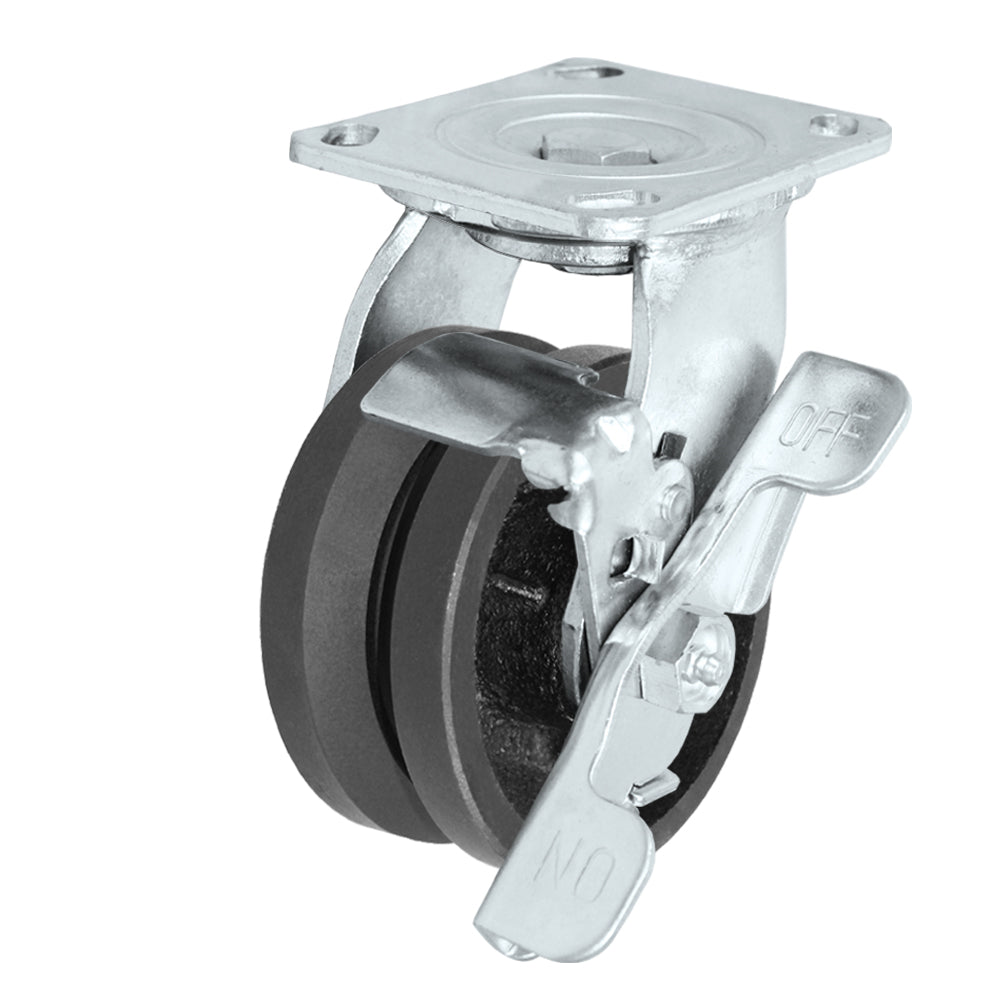

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Rigid rolls straight only.

Top plate is 4 x 4-1/2 in. with slotted holes for 2-5/8 x 3-5/8 to 3 x 3 in. bolt patterns, 3/8 in. bolts.
