S24 Series · Grip ring stem caster· CasterHQ

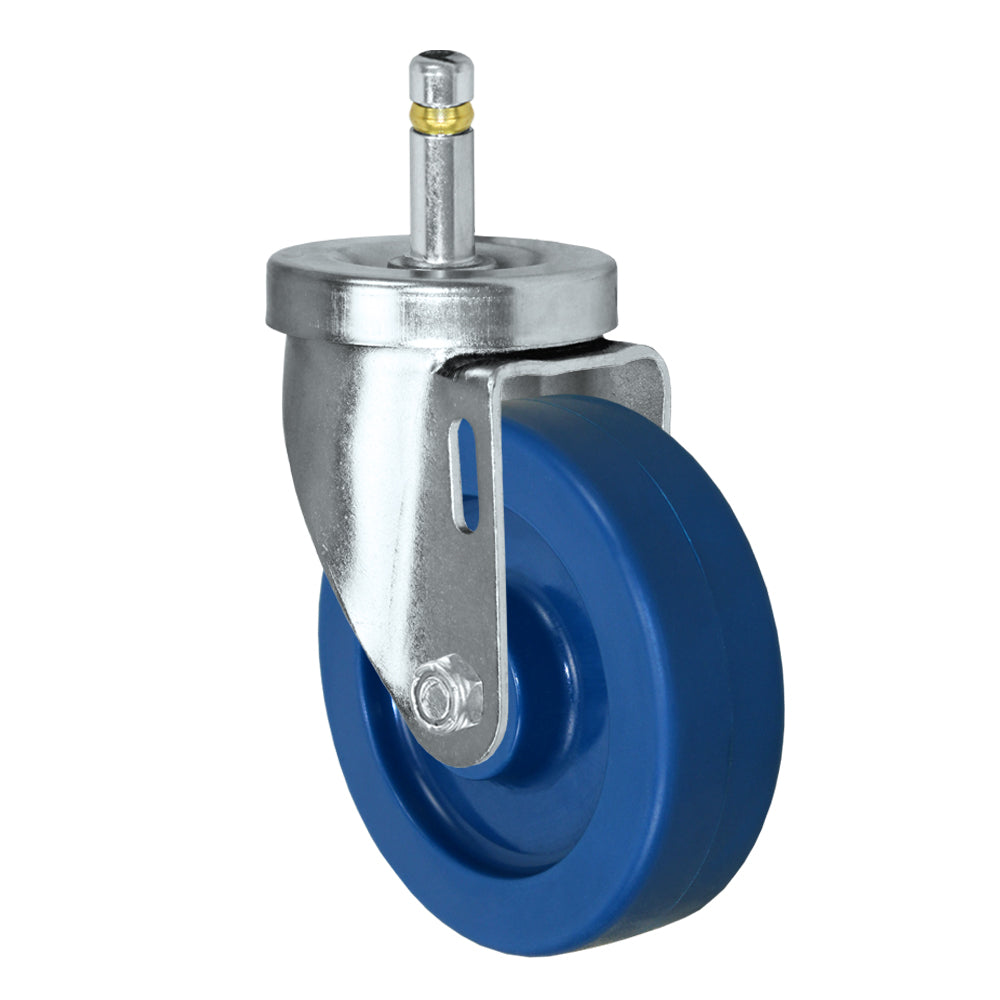

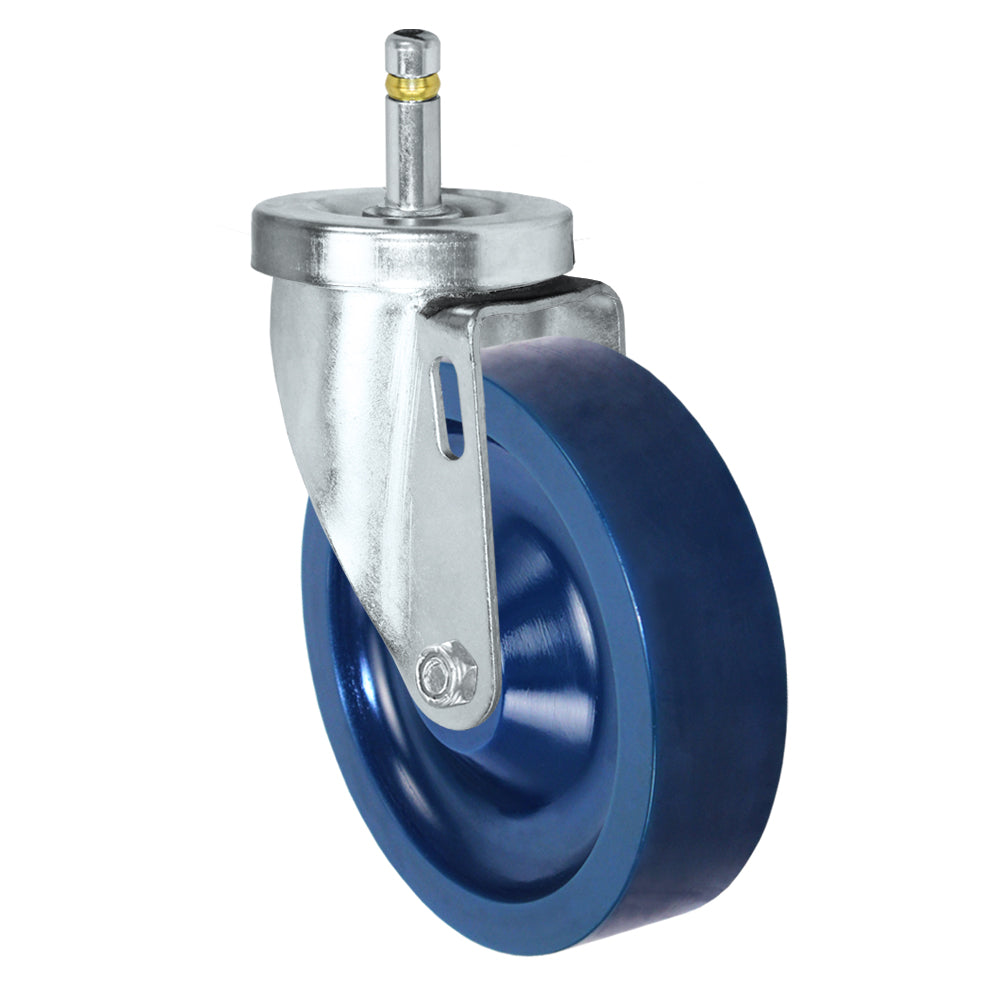

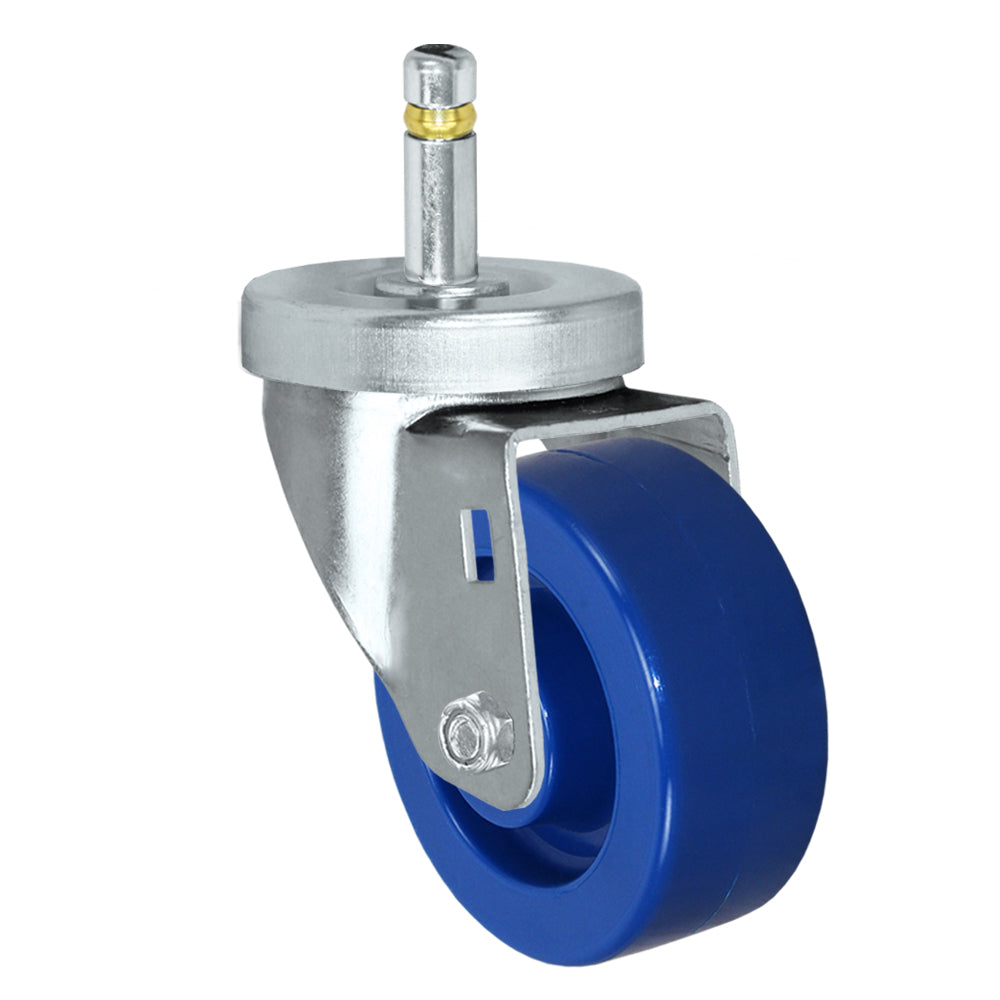

Stainless Steel Solid Polyurethane Grip Ring Stem Caster 3 to 5 in. x 1-1/4 in. Wheel, 7/16 x 1-3/8 in. Stem, 300 to 350 lb
Regular price
$31
Regular price
Sale price
$31
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU S24CS314SPU83L-72- Brand
- CasterHQ
- Series
- S24 Series
- Type
- Swivel
- Load capacity
- 300 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-1/4"
- Wheel
- Solid polyurethane
- Wheel color
- Blue
- Height, less stem
- 4-3/16"
- Axle diameter
- 3/8"
- Mounting
- Grip ring stem
- Stem size
- 7/16 x 1-3/8"
- Bearing
- Plain bore with bushing
- Swivel radius
- 2-21/32"
- Finish
- Stainless steel
- Warranty
- 1 year, defects in materials and workmanship
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 3" x 1-1/4" | 300 lb | 4-3/16" | $31 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | $34 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $39 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | $37 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | $40 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $45 |
Will it carry my load?
Enter your total weight to check the selected size.
1-1/4 in. wide stainless steel caster with a solid polyurethane wheel. Rated 300 to 350 lb per caster depending on wheel size.
Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Where the photo shows a swivel caster, the brake is not pictured.
Grip ring stem: press into a 7/16 in. socket. Match stem diameter and length. Stem casters come in the types shown.
