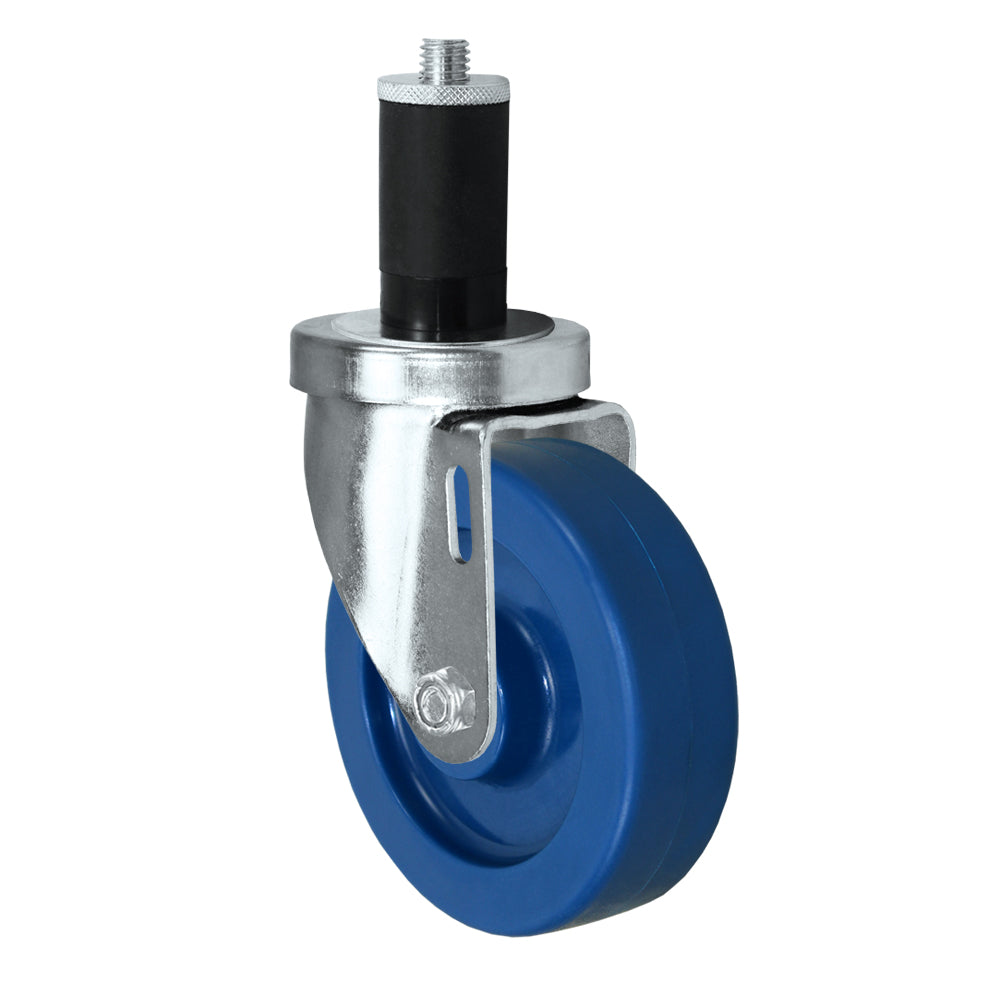

S24CS314SPU83L-90Stainless Steel Solid Polyurethane Expandable Stem Caster CAD model (S24CS314SPU83L-90): free STEP, IGES, DWG, DXF and STL downloads plus a 3D GLB model and a dimensioned drawing (PDF). No login, no email.
Browse all caster CAD models ›Loading 3D model…
Drag to rotate. Tap a dimension to see it on the model and drawing.
Stem 3/4"
OverstockCasters.com
Part S24CS314SPU83L-90
Model OSC-CAD-swivel-3x1_1_4-expandable-stem-122360
Units in · third-angle · NTS
© 2026 OverstockCasters.com. Free for design use. Redistribution or resale prohibited.
Download CADSTEP, IGES, DWG, DXF, STL, GLB, PDF · Free, no login
Free · No login, no email
More CAD in the builder
Model matched to this part by spec: wheel diameter, tread width, overall height, mount and swivel geometry. Model height adjusted to this part's overall height. The model's wheel material or color can differ. Reference only, not for fabrication.
