S30 Series · Plate caster· CasterHQ
Stainless Steel Rubber on Steel Plate Caster 4 to 8 in. x 2 in. Wheel, 4 x 4-1/2 in. Plate, 400 to 600 lb
Regular price
$47
Regular price
Sale price
$47
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU S30CS420RS23B-03- Brand
- CasterHQ
- Series
- S30 Series
- Type
- Swivel
- Load capacity
- 400 lb per caster
- Wheel diameter
- 4"
- Tread width
- 2"
- Wheel
- Mold-on rubber tread on steel core
- Wheel color
- Black
- Overall height
- 5-5/8"
- Axle diameter
- 1/2"
- Mounting
- Top plate
- Top plate size
- 4 x 4-1/2"
- Bolt hole spacing
- 2-5/8 x 3-5/8 to 3 x 3"
- Mounting bolt size
- 3/8"
- Bearing
- 3/4 in. roller with spanner bushing
- Swivel radius
- 3-1/4"
- Finish
- Stainless steel
- Warranty
- 1 year, defects in materials and workmanship
Tap to enlarge
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 4" x 2" | 400 lb | 5-5/8" | $47 |
| 5" x 2" | 450 lb | 6-1/2" | $50 |
| 6" x 2" | 550 lb | 7-1/2" | $56 |
| 8" x 2" | 600 lb | 9-1/2" | $61 |
| 4" x 2" | 400 lb | 5-5/8" | $56 |
| 5" x 2" | 450 lb | 6-1/2" | $59 |
| 6" x 2" | 550 lb | 7-1/2" | $65 |
| 8" x 2" | 600 lb | 9-1/2" | $70 |
| 4" x 2" | 400 lb | 5-5/8" | $36 |
| 5" x 2" | 450 lb | 6-1/2" | $39 |
| 6" x 2" | 550 lb | 7-1/2" | $44 |
| 8" x 2" | 600 lb | 9-1/2" | $49 |
Will it carry my load?
Enter your total weight to check the selected size.

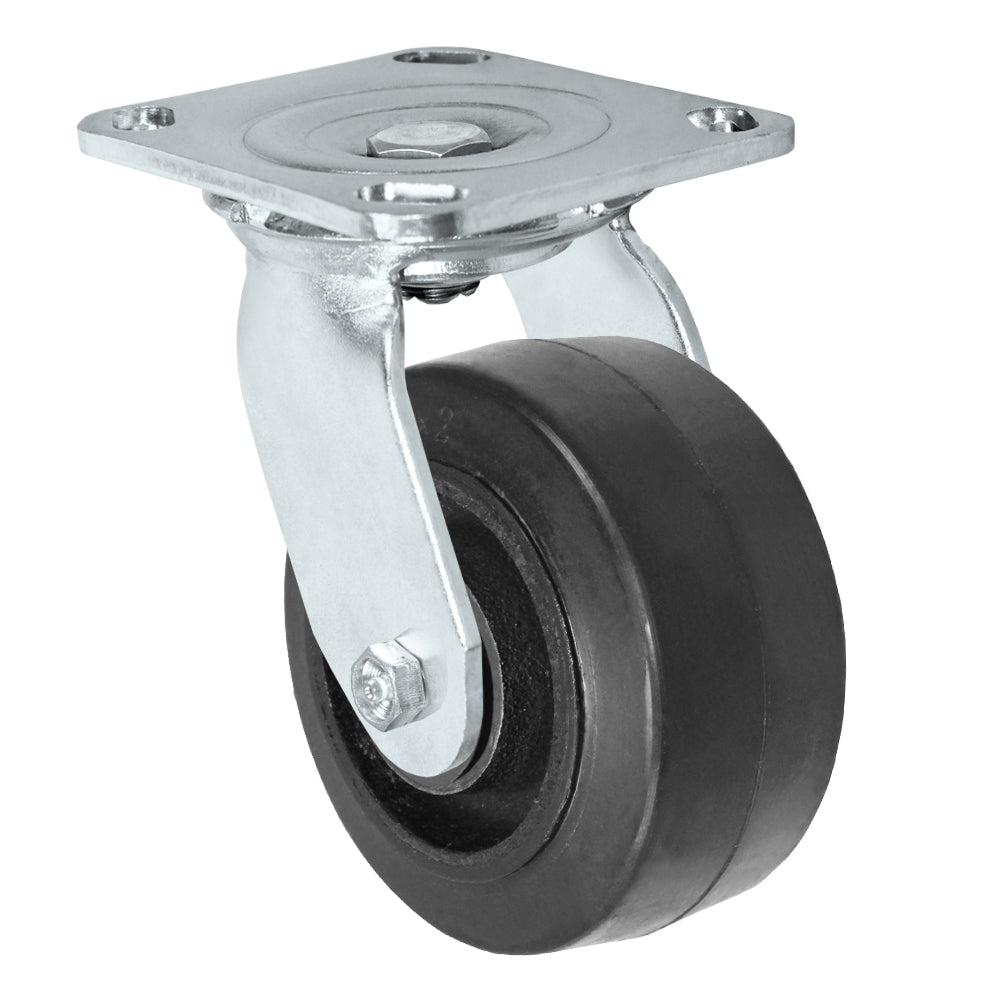

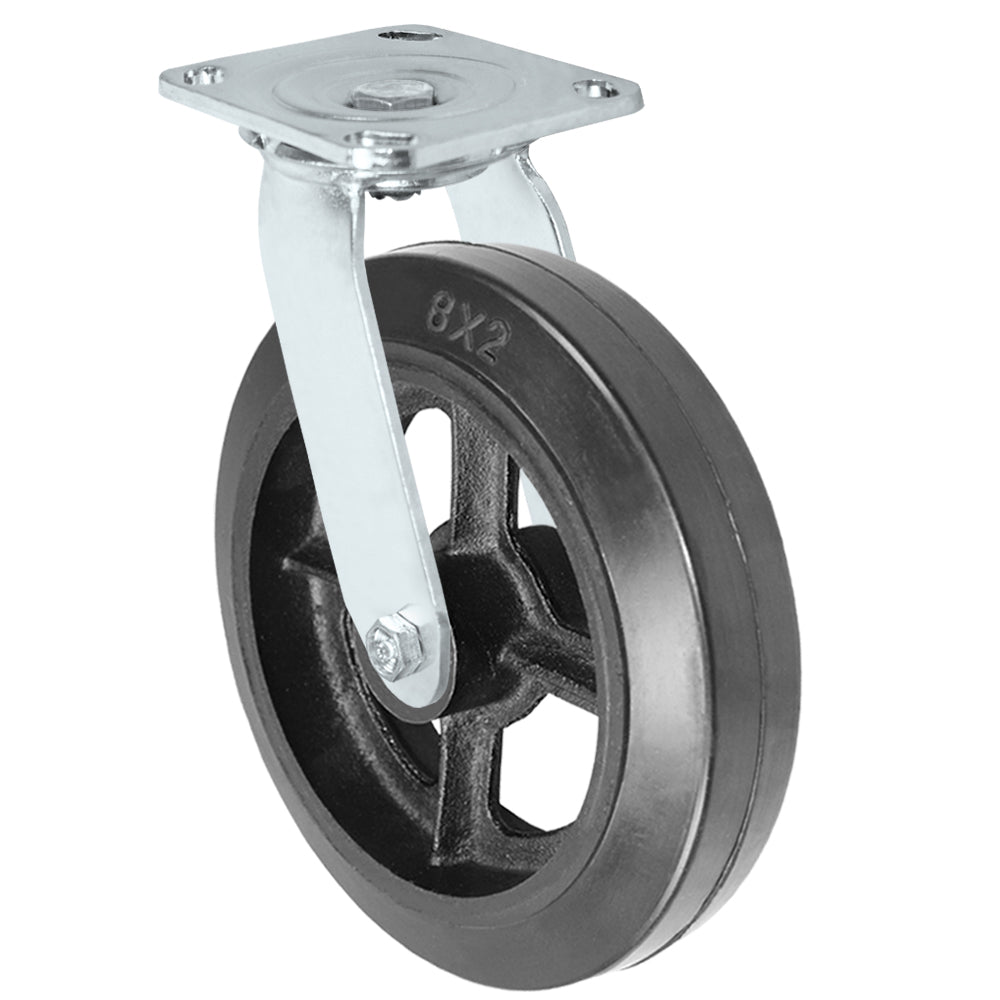

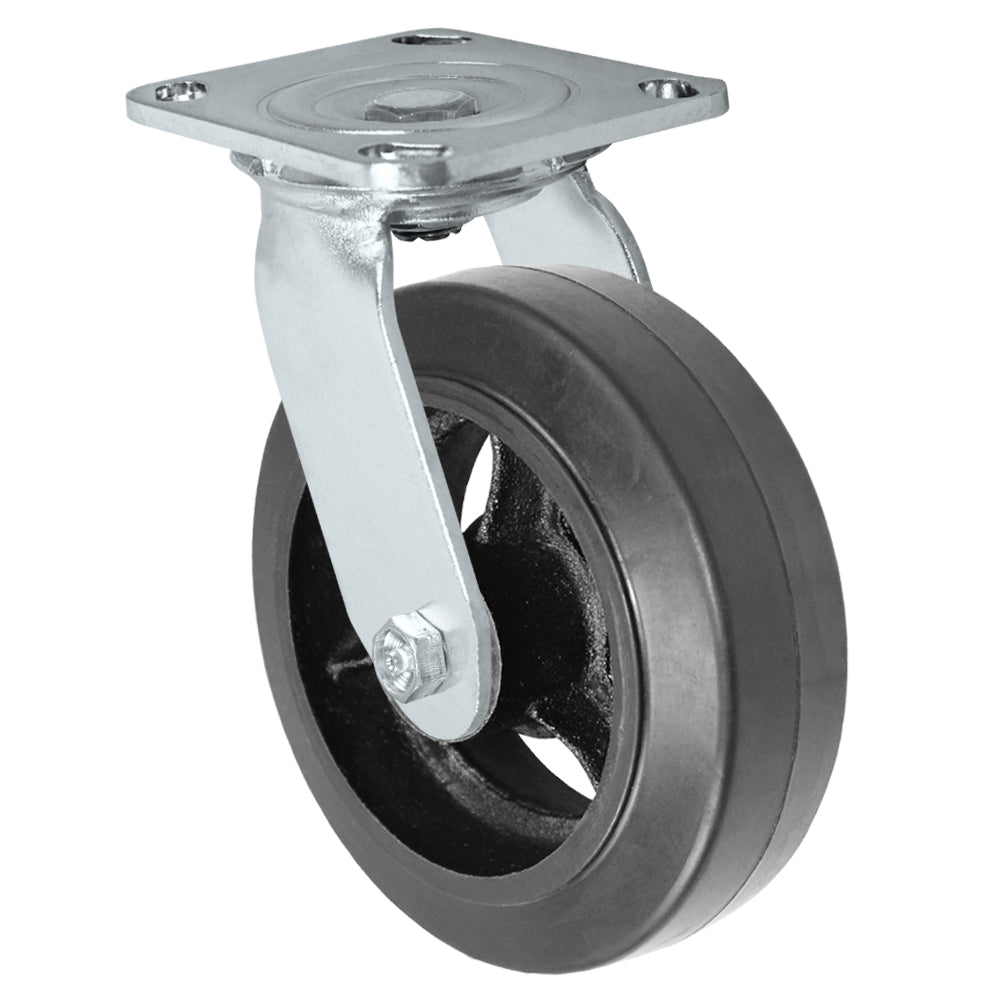

2 in. wide stainless steel caster with a mold-on rubber tread on steel core wheel. Rated 400 to 600 lb per caster depending on wheel size.

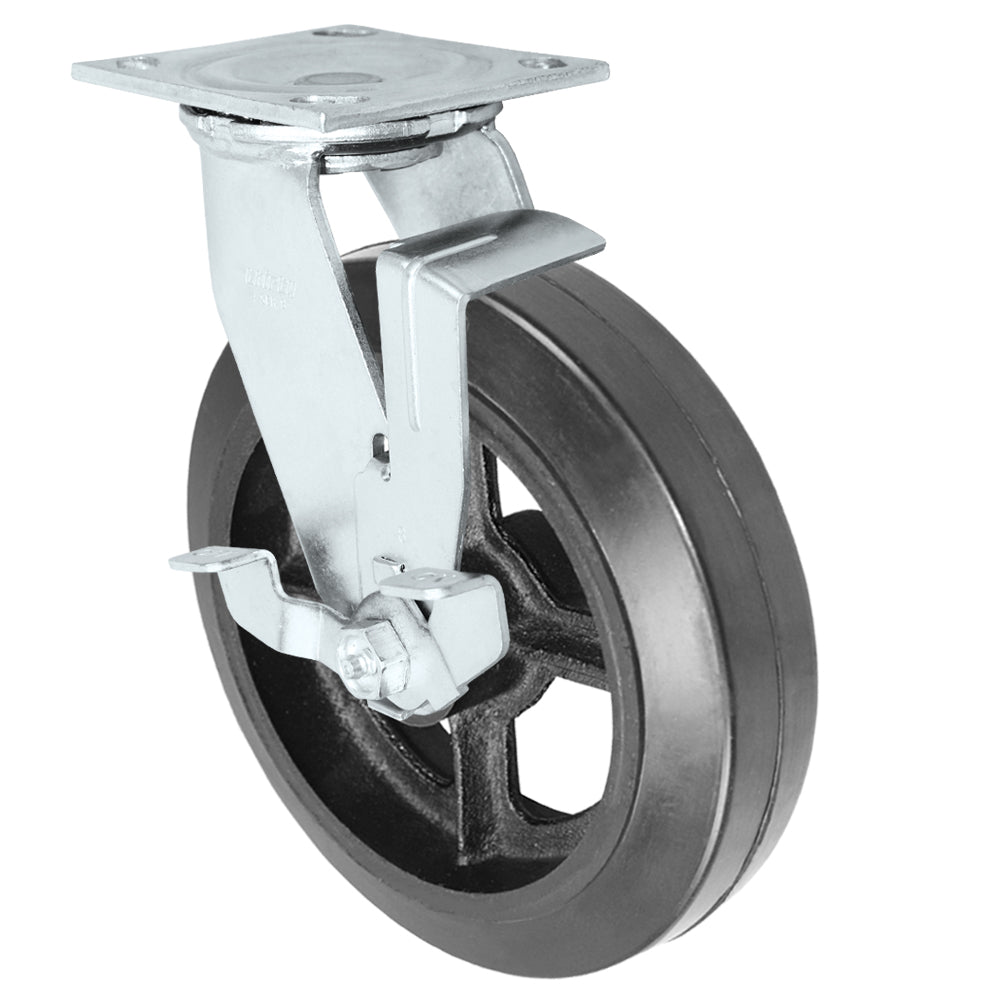

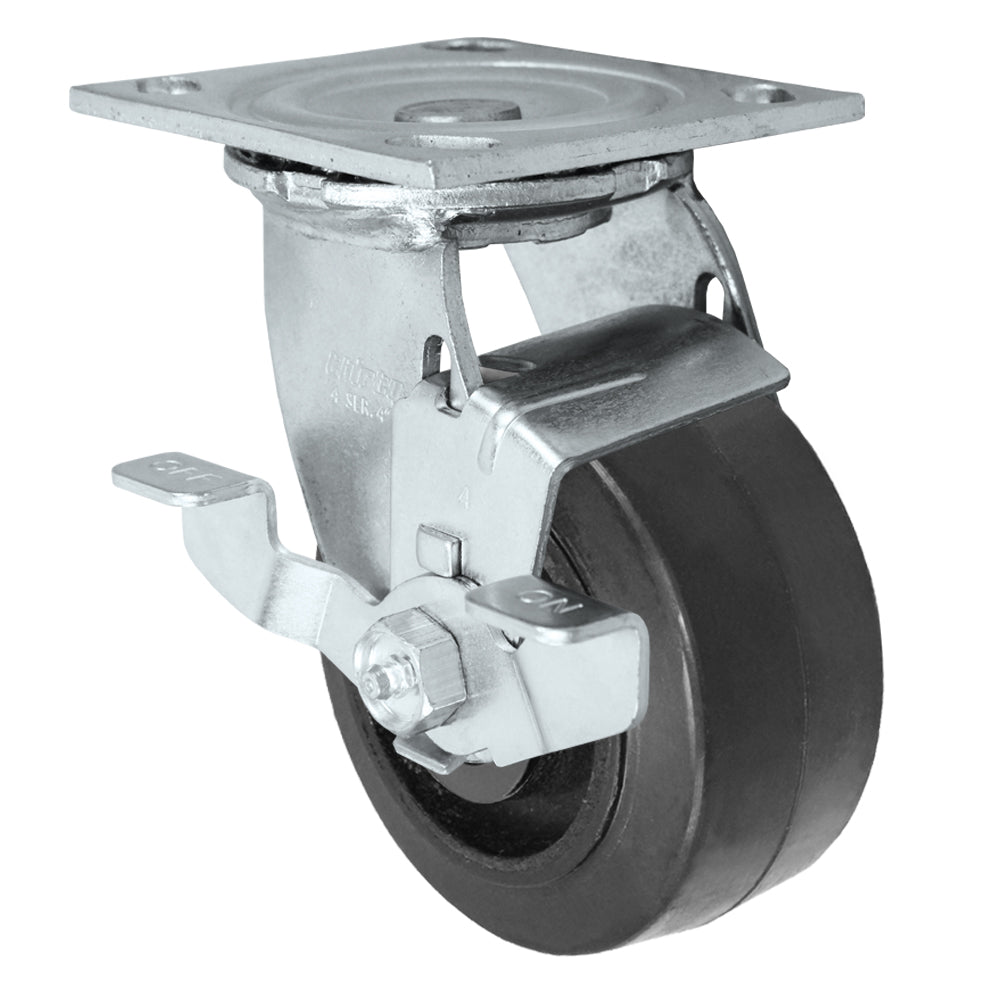

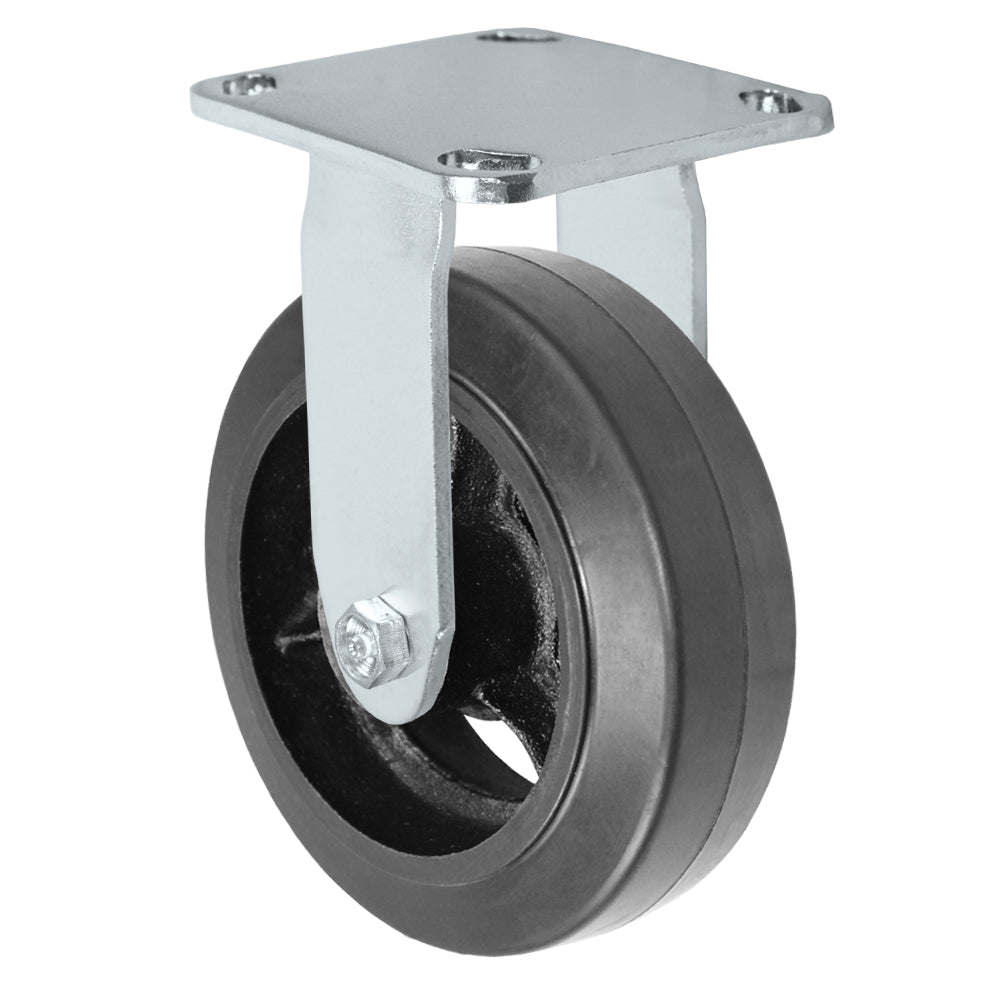

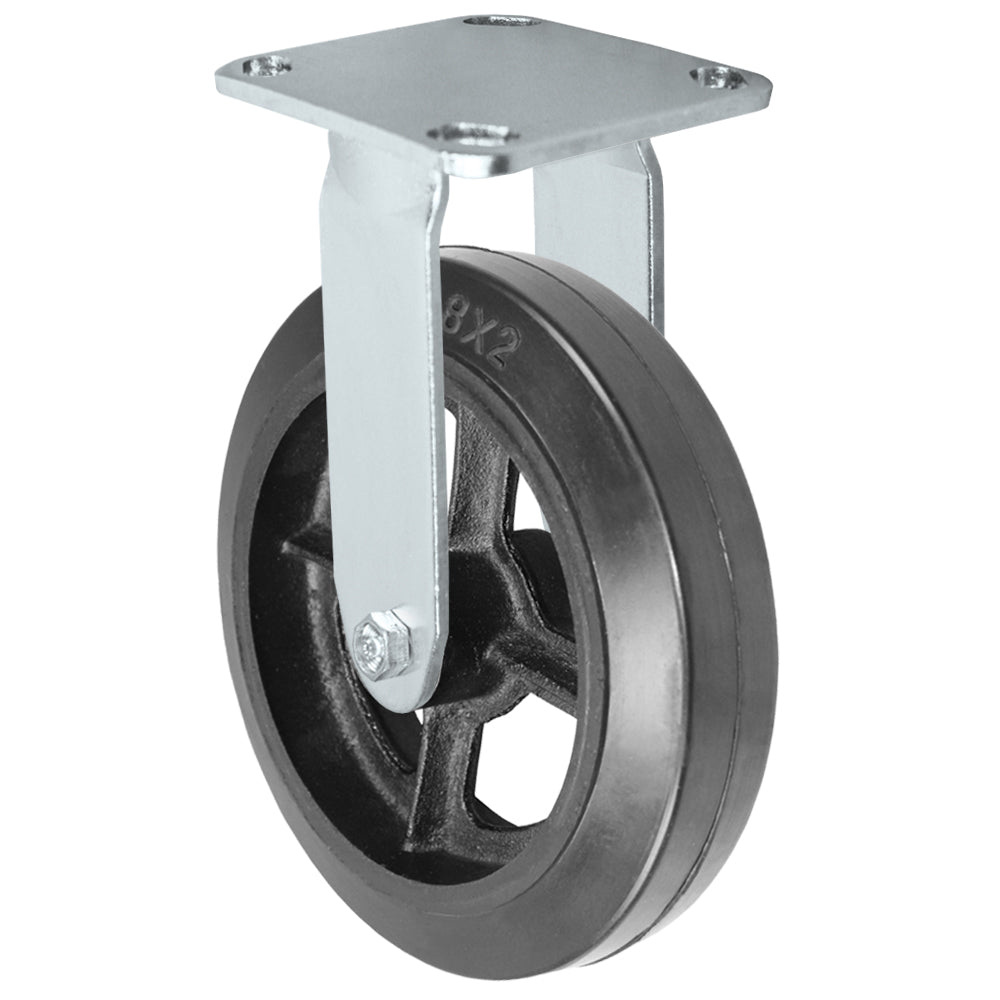

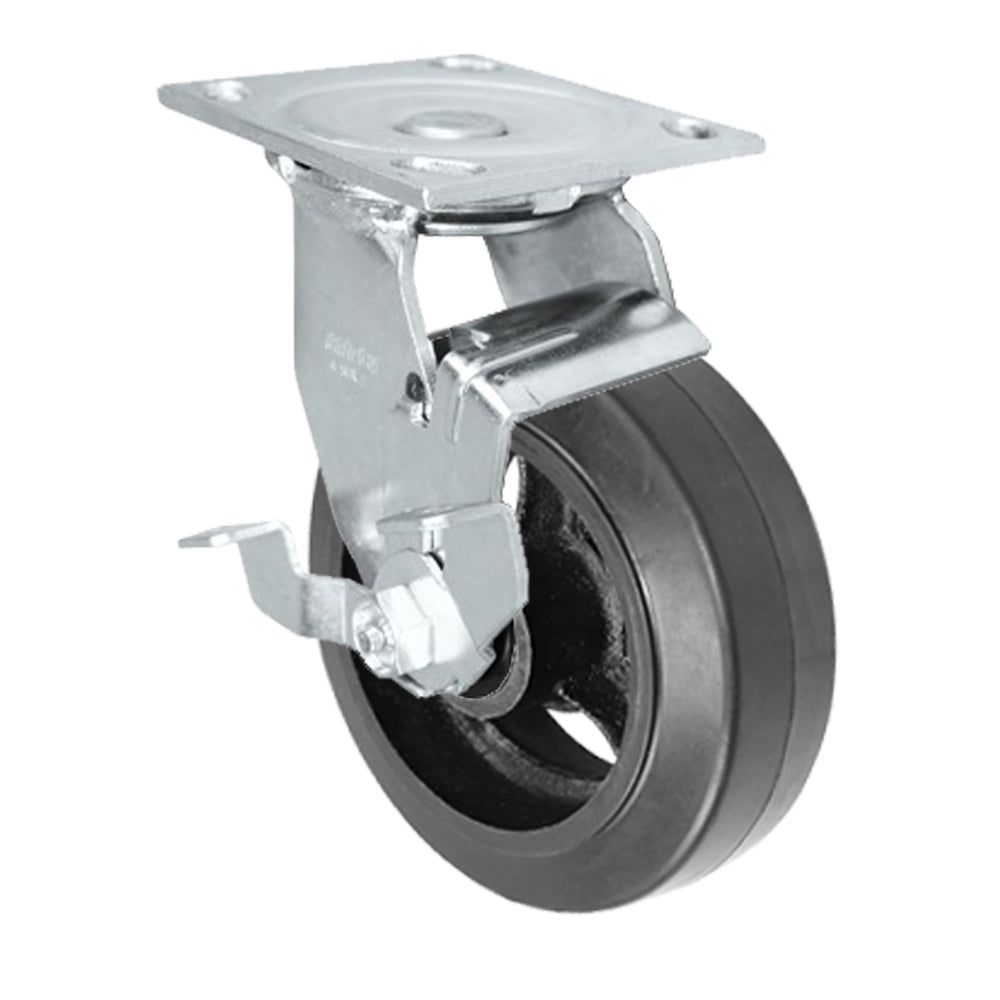

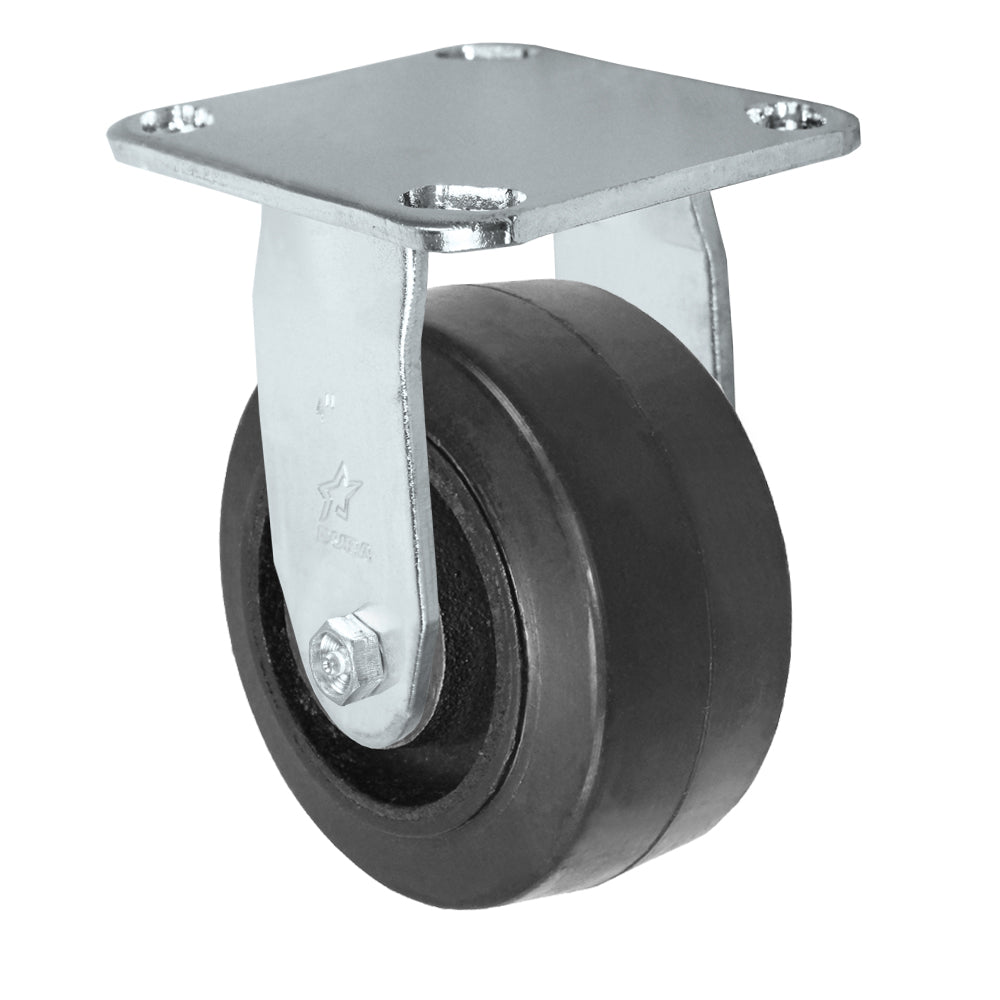

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Brake photos are from the matching zinc-plated caster; this caster is stainless. Rigid rolls straight only.
Top plate is 4 x 4-1/2 in. with slotted holes for 2-5/8 x 3-5/8 to 3 x 3 in. bolt patterns, 3/8 in. bolts.
