S30 Series · Plate caster · CasterHQ
Stainless Steel Polyurethane on Glass-Filled Nylon Plate Caster 4 to 8 in. x 2 in. Wheel, 4 x 4-1/2 in. Plate, 800 to 1,250 lb
Regular price
$47
Regular price
Sale price
$47
Unit price
per
Shipping calculated at checkout.
- In stock. Ships same or next business day from Kansas City, MO or Dallas, TX.
- Any quantity, no minimum. Shipping · 30-day returns · 1-year warranty
Specifications
SKU S30CS420MU23G-03
- Brand
- CasterHQ
- Series
- S30 Series
- Type
- Swivel
- Load capacity
- 800 lb per caster
- Wheel diameter
- 4"
- Tread width
- 2"
- Wheel
- Polyurethane tread on glass-filled nylon core
- Wheel color
- Green/Black
- Overall height
- 5-5/8"
- Axle diameter
- 1/2"
- Mounting
- Top plate
- Top plate size
- 4 x 4-1/2"
- Bolt hole spacing
- 2-5/8 x 3-5/8 to 3 x 3"
- Mounting bolt size
- 3/8"
- Bearing
- 3/4 in. roller with spanner bushing
- Swivel radius
- 3-1/4"
- Finish
- Stainless steel
- Approx. weight
- 6.5 lb each
- Warranty
- 1 year, defects in materials and workmanship
Tap to enlarge
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Weight | Price |
|---|---|---|---|---|

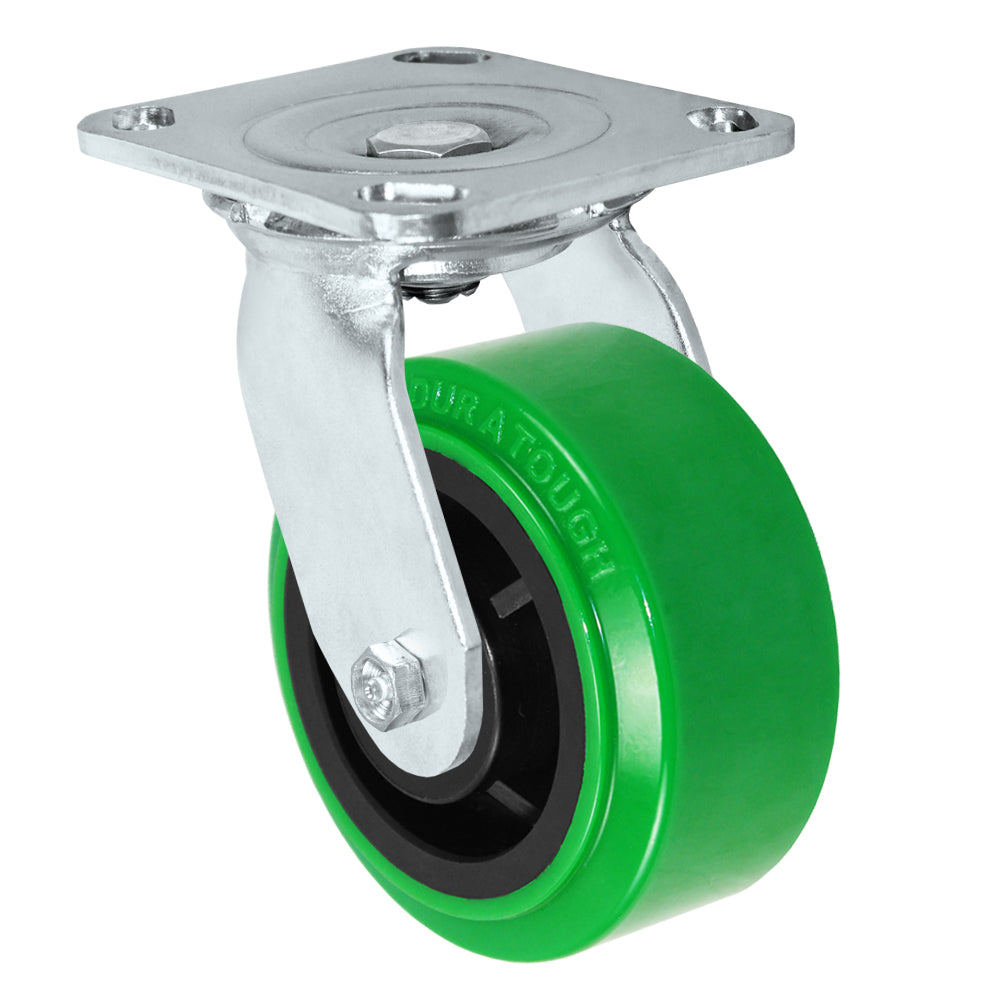

| 4" x 2" | 800 lb | 5-5/8" | 6.5 lb | $47 |
| 5" x 2" | 1000 lb | 6-1/2" | 7.75 lb | $50 |

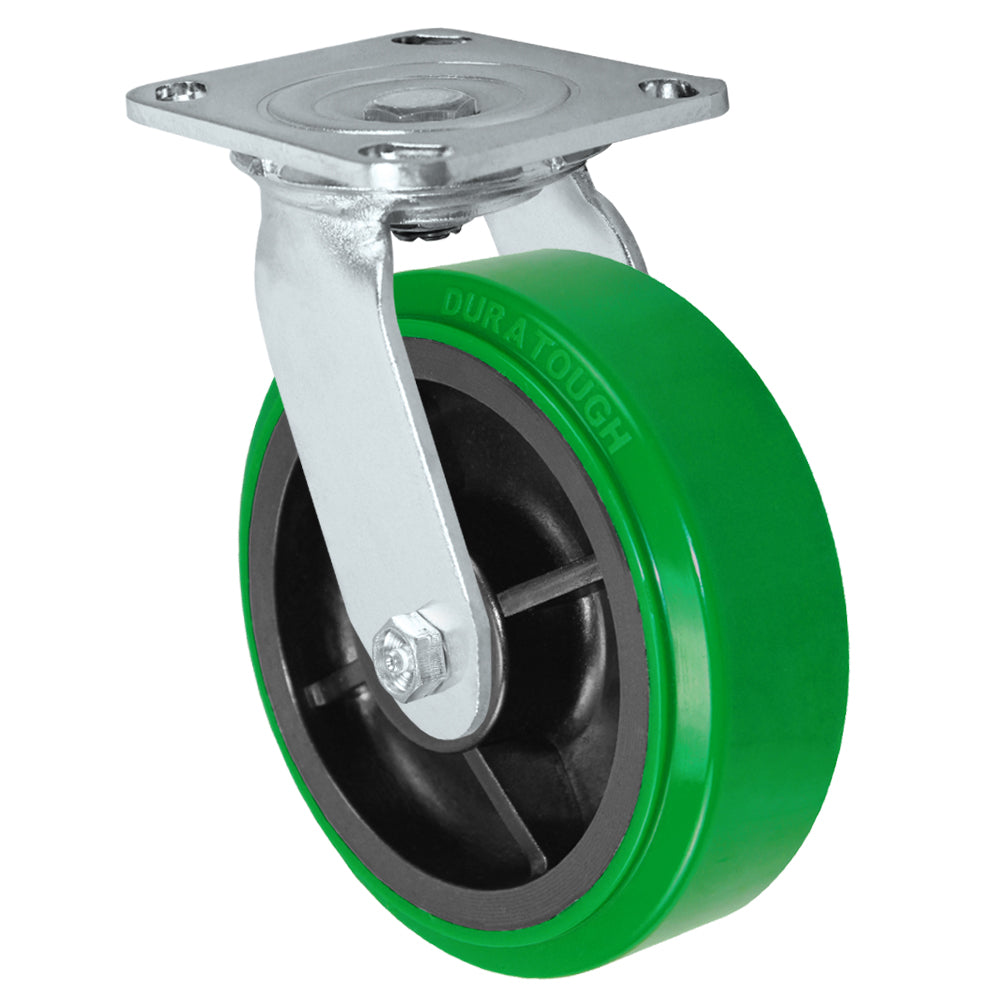

| 6" x 2" | 1200 lb | 7-1/2" | 8.75 lb | $56 |
| 8" x 2" | 1250 lb | 9-1/2" | 9.75 lb | $60 |
| 4" x 2" | 800 lb | 5-5/8" | 7.5 lb | $56 |
| 5" x 2" | 1000 lb | 6-1/2" | 8.75 lb | $59 |
| 6" x 2" | 1200 lb | 7-1/2" | 9.75 lb | $65 |
| 8" x 2" | 1250 lb | 9-1/2" | 10.75 lb | $69 |
| 4" x 2" | 800 lb | 5-5/8" | 5.75 lb | $37 |
| 5" x 2" | 1000 lb | 6-1/2" | 6.75 lb | $39 |
| 6" x 2" | 1200 lb | 7-1/2" | 8 lb | $41 |
| 8" x 2" | 1250 lb | 9-1/2" | 9 lb | $47 |
Will it carry my load?
Enter your total weight to check the selected size.
2 in. wide stainless steel caster with a polyurethane tread on glass-filled nylon core wheel. Rated 800 to 1,250 lb per caster depending on wheel size.

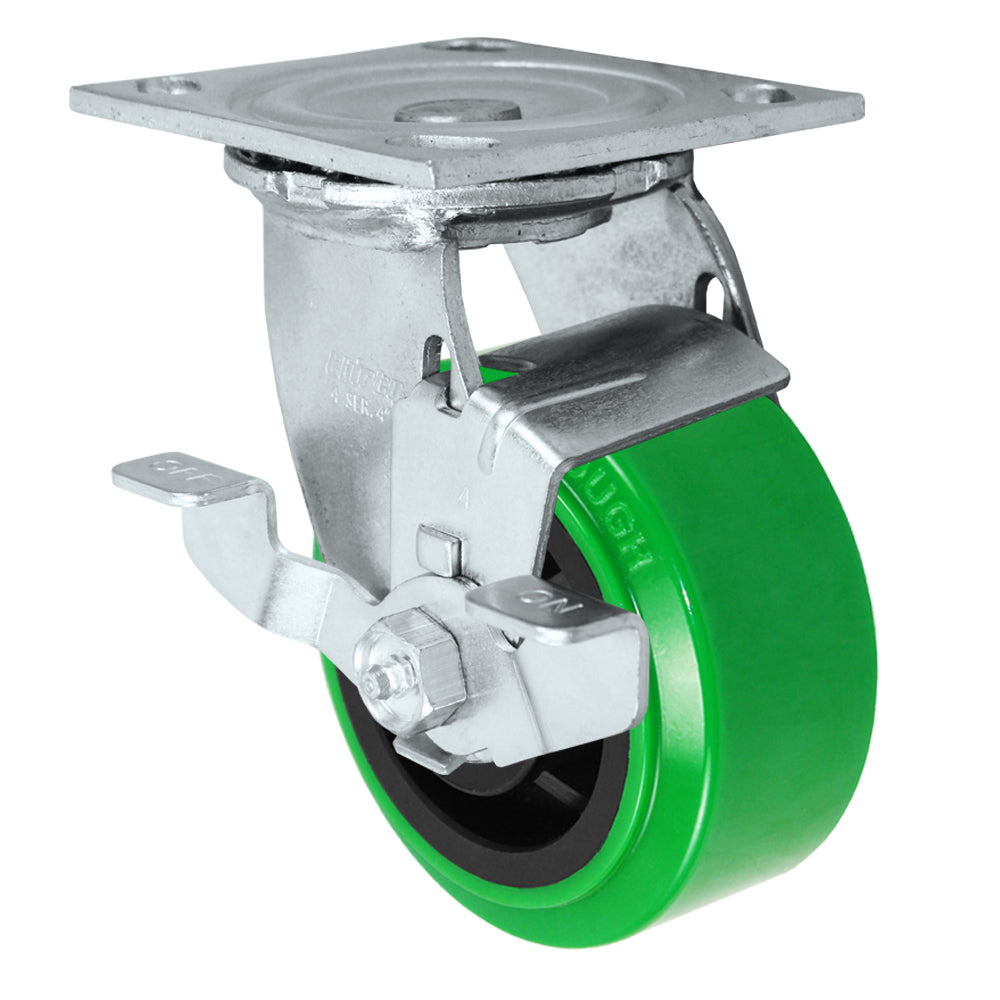

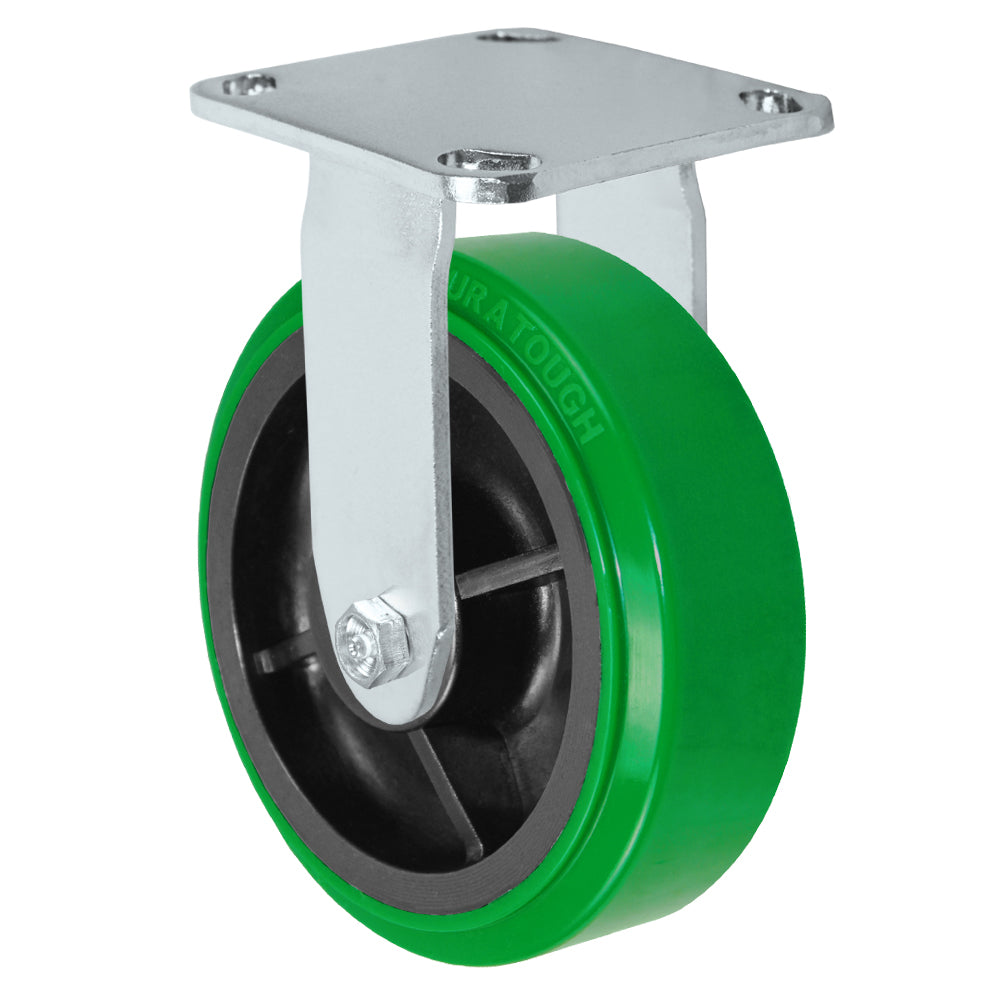

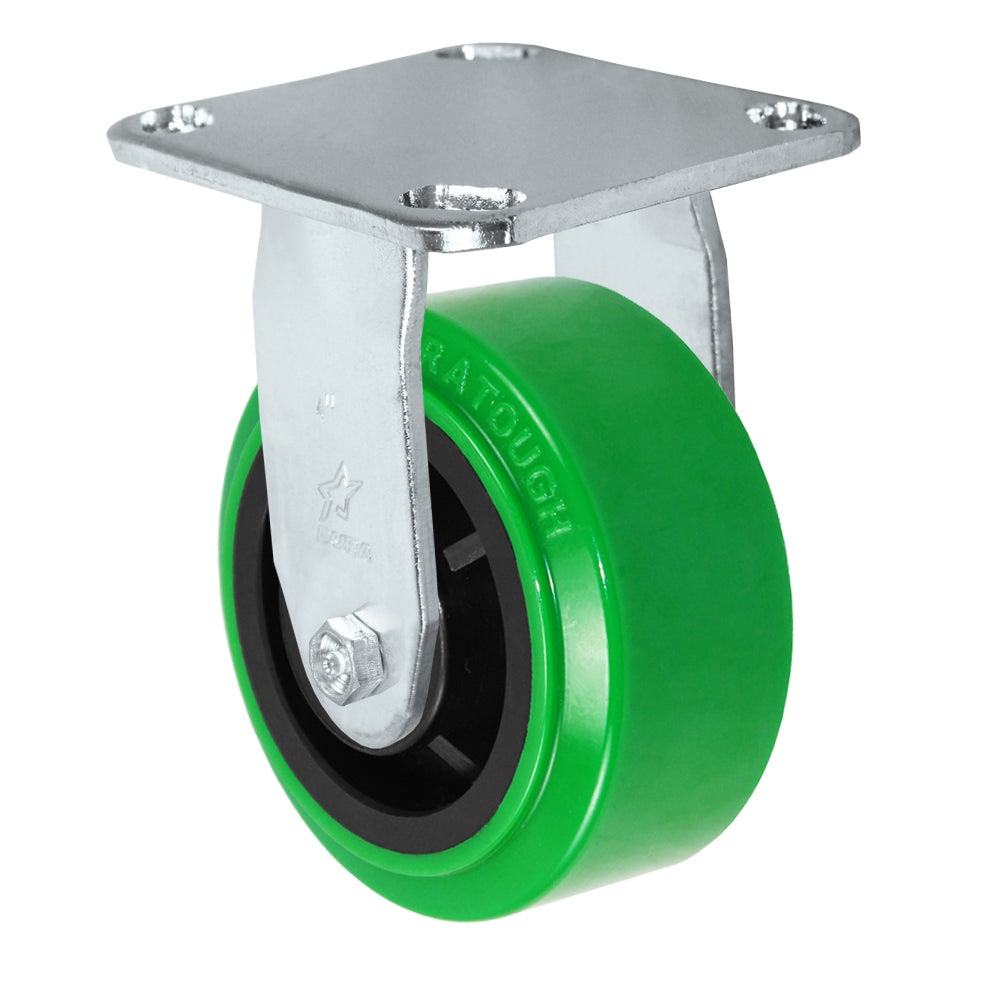

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Brake photos are from the matching zinc-plated caster; this caster is stainless. Rigid rolls straight only.
Top plate is 4 x 4-1/2 in. with slotted holes for 2-5/8 x 3-5/8 to 3 x 3 in. bolt patterns, 3/8 in. bolts.
