S24 Series · Threaded stem caster · CasterHQ

Stainless Steel Polyolefin Threaded Stem Caster 3 to 5 in. x 1-1/4 in. Wheel, 1/2-13 x 1-1/2 in. Stem, 250 to 325 lb

Regular price $24
Regular price Sale price $24
Sale Sold out
Shipping calculated at checkout.
FinishZinc plated 24 SeriesStainless steel S24 Series
Type
Wheel size
SpecificationsSKU S24CS314PO82B-43
Brand
CasterHQ
Series
S24 Series
Type
Swivel
Load capacity
250 lb per caster
Wheel diameter
3"
Tread width
1-1/4"
Wheel
Polyolefin
Wheel color
Black
Height, less stem
4-3/16"
Axle diameter
3/8"
Mounting
Threaded stem
Stem size
1/2-13 x 1-1/2"
Bearing
Plain bore
Swivel radius
2-21/32"
Finish
Stainless steel
Approx. weight
2 lb each
Warranty
1 year, defects in materials and workmanship
Top plate diagram, full size
Sizes · Swivelcapacity is per caster
SizeCapacityHeightWeightPrice

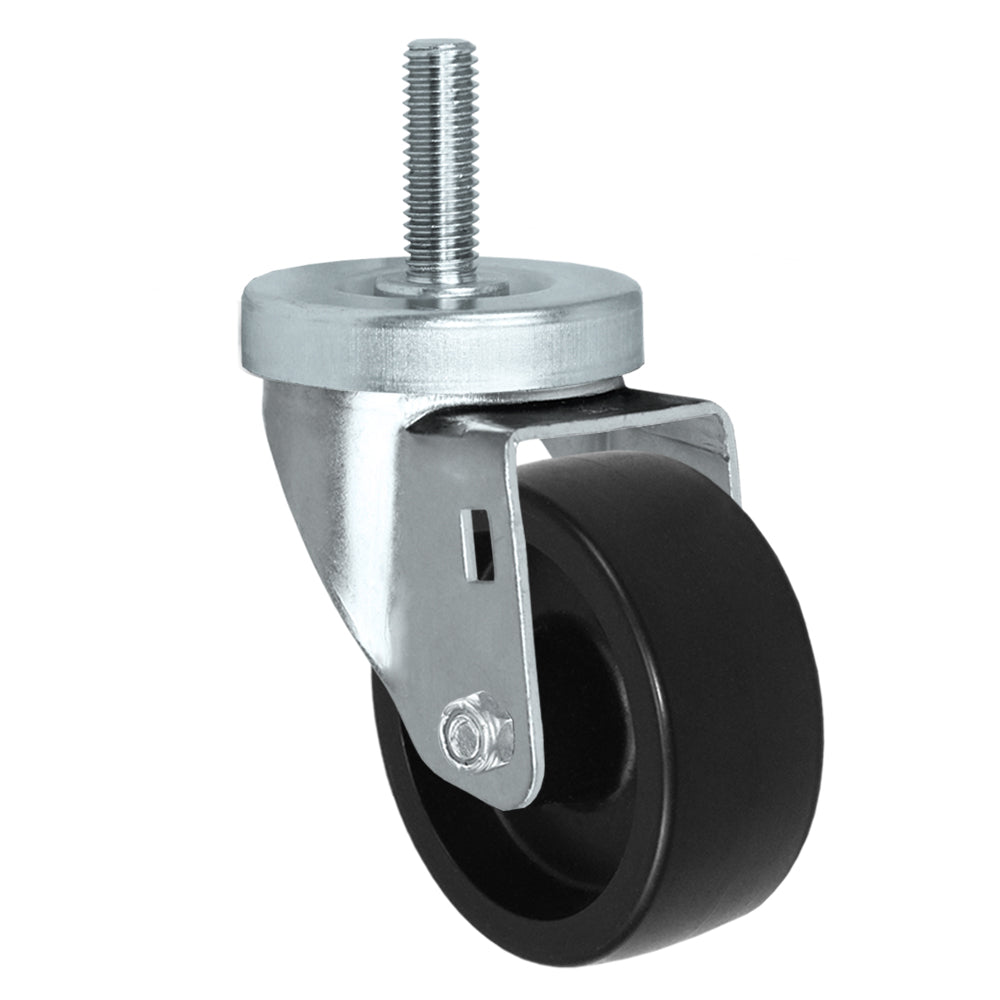

3" x 1-1/4" 250 lb 4-3/16" 2 lb $24

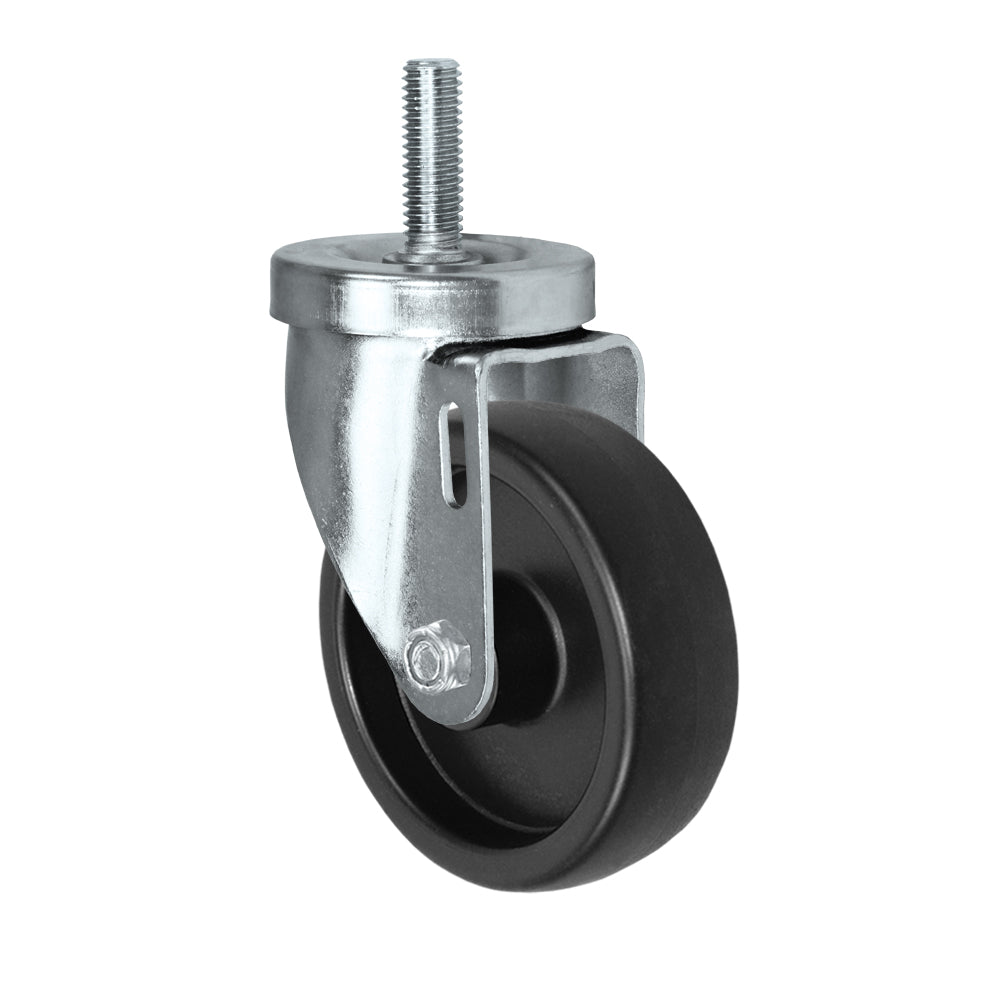

4" x 1-1/4" 300 lb 5-1/8" 2.5 lb $27

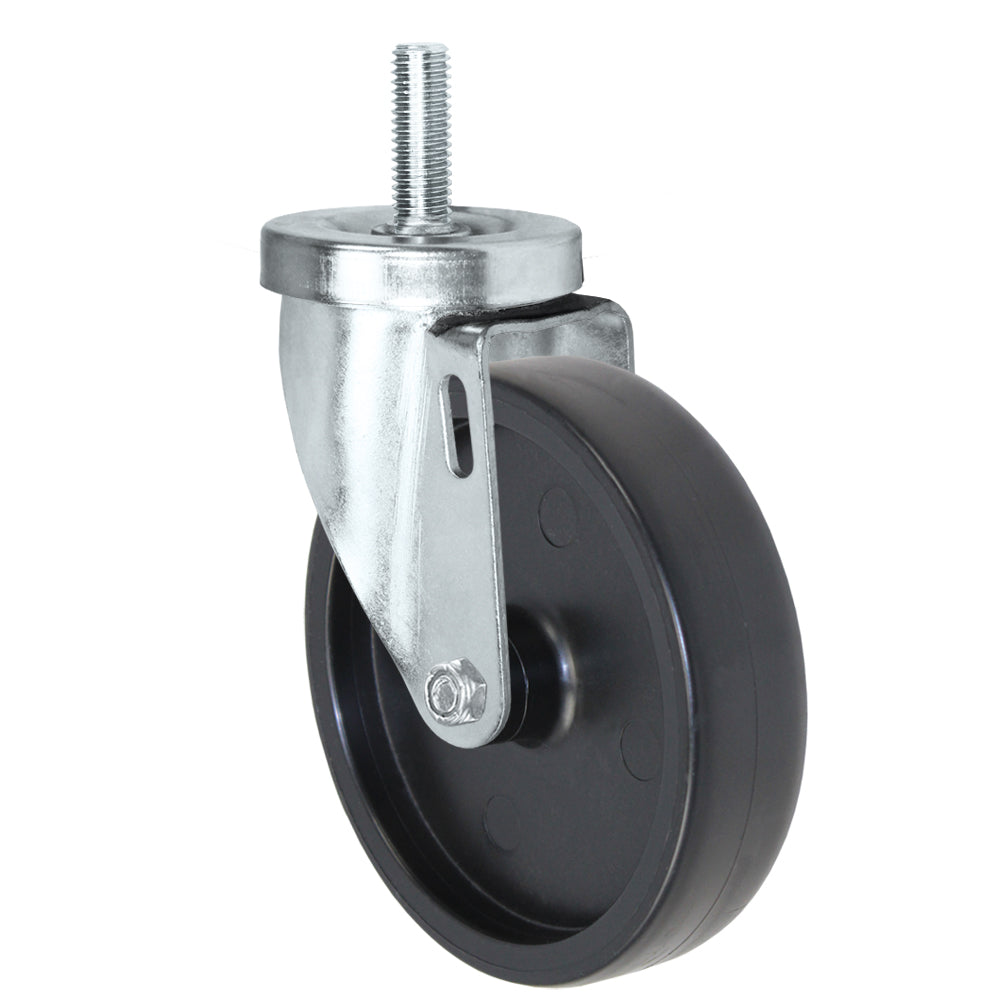

5" x 1-1/4" 325 lb 6-1/4" 3 lb $28

Will it carry my load?

Enter your total weight to check the selected size.

1-1/4 in. wide stainless steel caster with a polyolefin wheel. Rated 250 to 325 lb per caster depending on wheel size.

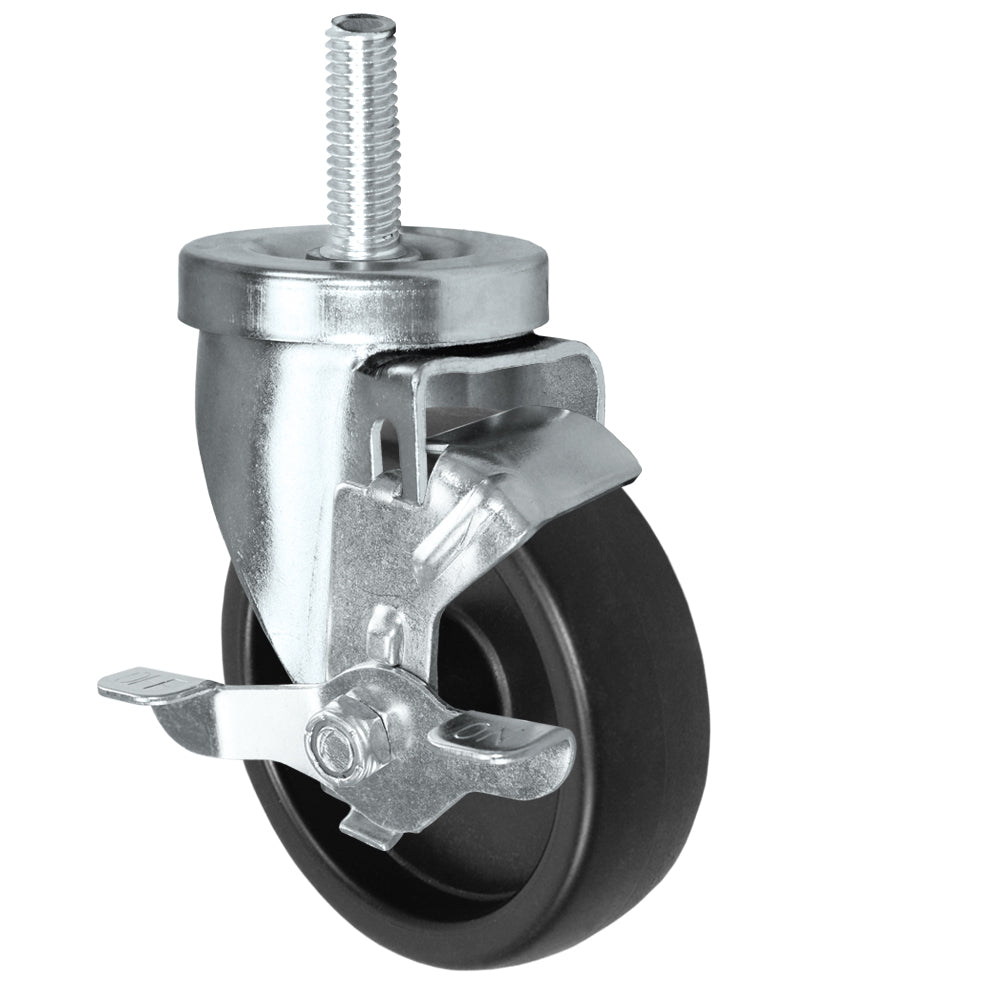

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake.

Threaded stem mounts: thread into a tapped hole or nut. Match thread size and length. Stem casters come in the types shown.

View full details

Free CAD & 3D model

S24CS314PO82B-43

Stainless Steel Polyolefin Threaded Stem Caster CAD model (S24CS314PO82B-43): free STEP, IGES, DWG, DXF and STL downloads plus a 3D GLB model and a dimensioned drawing (PDF). No login, no email.

Browse all caster CAD models ›
Loading 3D model…

Drag to rotate. Tap a dimension to see it on the model and drawing.

Side elevation
OAH 4-3/16"DIA 3"DIA 3"
Front elevation
WIDTH 1-1/4"
Stem
LENGTH 1-1/2" 1/2"-13
Stem 1/2"-13 x 1-1/2"
OverstockCasters.com Part S24CS314PO82B-43 Model OSC-CAD-swivel-3x1_1_4-threaded-stem-7b3743 Units in · third-angle · NTS © 2026 OverstockCasters.com. Free for design use. Redistribution or resale prohibited.
Download CADSTEP, IGES, DWG, DXF, STL, GLB, PDF · Free, no login

Free · No login, no email More CAD in the builder

Model matched to this part by spec: wheel diameter, tread width, overall height, mount and swivel geometry. The model's wheel material or color can differ. Reference only, not for fabrication.
