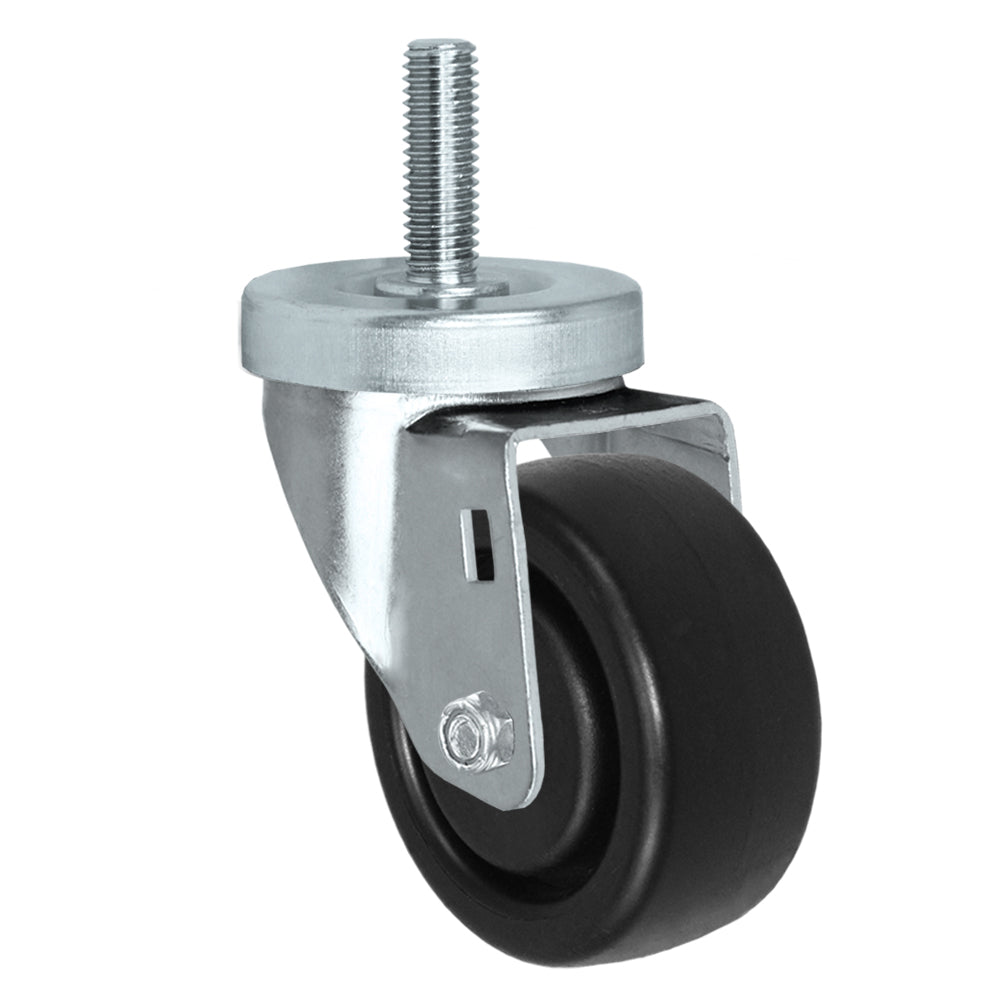

Stainless Steel HD Polyolefin Threaded Stem Caster 3 in. x 1-1/4 in. Wheel, 1/2-13 x 1-1/2 in. Stem, 300 lb
Regular price
$24
Regular price
Sale price
$24
Unit price
per
Shipping calculated at checkout.
- In stock. Ships same or next business day from Kansas City, MO or Dallas, TX.
- Any quantity, no minimum. Shipping · 30-day returns · 1-year warranty
Specifications
SKU S24CS314HPO82B-43
- Brand
- CasterHQ
- Series
- S24 Series
- Type
- Swivel
- Load capacity
- 300 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-1/4"
- Wheel
- Heavy-duty polyolefin
- Wheel color
- Black
- Height, less stem
- 4-3/16"
- Axle diameter
- 3/8"
- Mounting
- Threaded stem
- Stem size
- 1/2-13 x 1-1/2"
- Bearing
- Plain bore
- Swivel radius
- 2-21/32"
- Finish
- Stainless steel
- Approx. weight
- 2 lb each
- Warranty
- 1 year, defects in materials and workmanship
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Weight | Price |
|---|---|---|---|---|
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2 lb | $24 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2.5 lb | $30 |
Will it carry my load?
Enter your total weight to check the selected size.
1-1/4 in. wide stainless steel caster with a heavy-duty polyolefin wheel. Rated 300 to 300 lb per caster depending on wheel size.
Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Where the photo shows a swivel caster, the brake is not pictured.
Threaded stem mounts: thread into a tapped hole or nut. Match thread size and length. Stem casters come in the types shown.
