S24 Series · Plate caster· CasterHQ

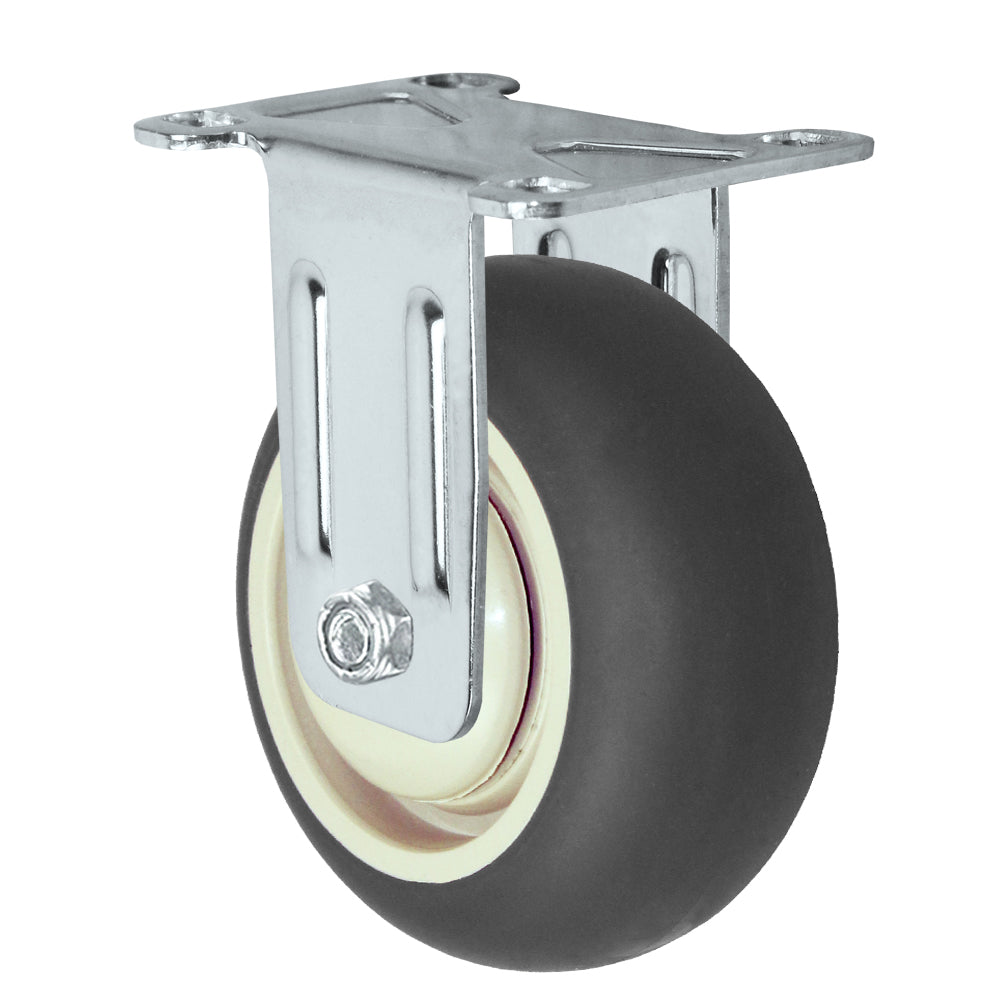

Stainless Steel Donut Thermoplastic Rubber Plate Caster 3 to 5 in. x 1-1/4 in. Wheel, 2-3/8 x 3-5/8 in. Plate, 210 to 300 lb
Regular price
$22
Regular price
Sale price
$22
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU S24CR314DPR35Y-01- Brand
- CasterHQ
- Series
- S24 Series
- Type
- Rigid
- Load capacity
- 210 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-1/4"
- Wheel
- Thermoplastic rubber, crowned donut tread
- Wheel color
- Gray/Beige
- Overall height
- 4-3/16"
- Axle diameter
- 3/8"
- Mounting
- Top plate
- Top plate size
- 2-3/8 x 3-5/8"
- Bolt hole spacing
- 1-3/4 x 2-7/8 to 3"
- Mounting bolt size
- 5/16"
- Bearing
- Precision ball
- Swivel radius
- "
- Finish
- Stainless steel
- Warranty
- 1 year, defects in materials and workmanship
Tap to enlarge
Sizes · Rigid
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 3" x 1-1/4" | 210 lb | 4-3/16" | $22 |
| 3-1/2" x 1-1/4" | 230 lb | 4-5/8" | $23 |
| 4" x 1-1/4" | 250 lb | 5-1/8" | $24 |
| 5" x 1-1/4" | 300 lb | 6-1/4" | $25 |
Will it carry my load?
Enter your total weight to check the selected size.
1-1/4 in. wide stainless steel caster with a thermoplastic rubber, crowned donut tread wheel. Rated 210 to 325 lb per caster depending on wheel size.
Rigid rolls straight only.
Top plate is 2-3/8 x 3-5/8 in. with slotted holes for 1-3/4 x 2-7/8 to 3 in. bolt patterns, 5/16 in. bolts.
