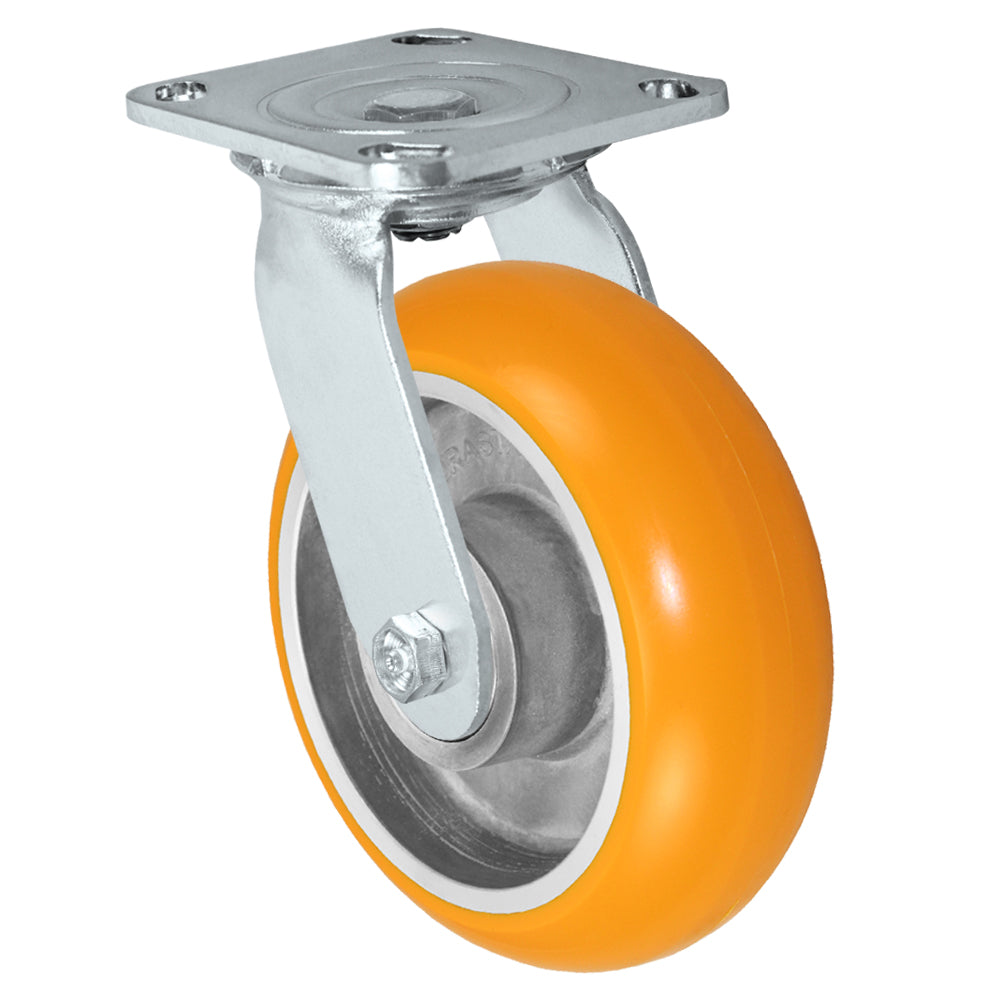

• Swivel caster, 6" x 2" donut polyurethane on aluminum wheel, Plate 4 x 4-1/2"
1 1

S30 Series · Plate caster· CasterHQ

Stainless Steel Donut Polyurethane on Aluminum Plate Caster 4 to 8 in. x 2 in. Wheel, 4 x 4-1/2 in. Plate, 1,000 to 1,250 lb

$56
$56
Sale Sold out
Shipping calculated at checkout.
Type
Wheel size
SpecificationsSKU S30CS420DUA63M-03
Brand
CasterHQ
Series
S30 Series
Type
Swivel
Load capacity
1000 lb per caster
Wheel diameter
4"
Tread width
2"
Wheel
Sirius heavy-duty donut polyurethane on aluminum core
Wheel color
Yellow
Overall height
5-5/8"
Axle diameter
1/2"
Mounting
Top plate
Top plate size
4 x 4-1/2"
Bolt hole spacing
2-5/8 x 3-5/8 to 3 x 3"
Mounting bolt size
3/8"
Bearing
Precision ball
Swivel radius
3-1/4"
Finish
Stainless steel
Warranty
1 year, defects in materials and workmanship
Top plate 4 x 4-1/2 in. with bolt hole spacing Tap to enlarge
Measure your bolt holes center to center and match them to this plate.
Top plate diagram, full size
Sizes · Swivelcapacity is per caster
SizeCapacityHeightPrice
4" x 2" 1000 lb 5-5/8" $56
5" x 2" 1200 lb 6-1/2" $56

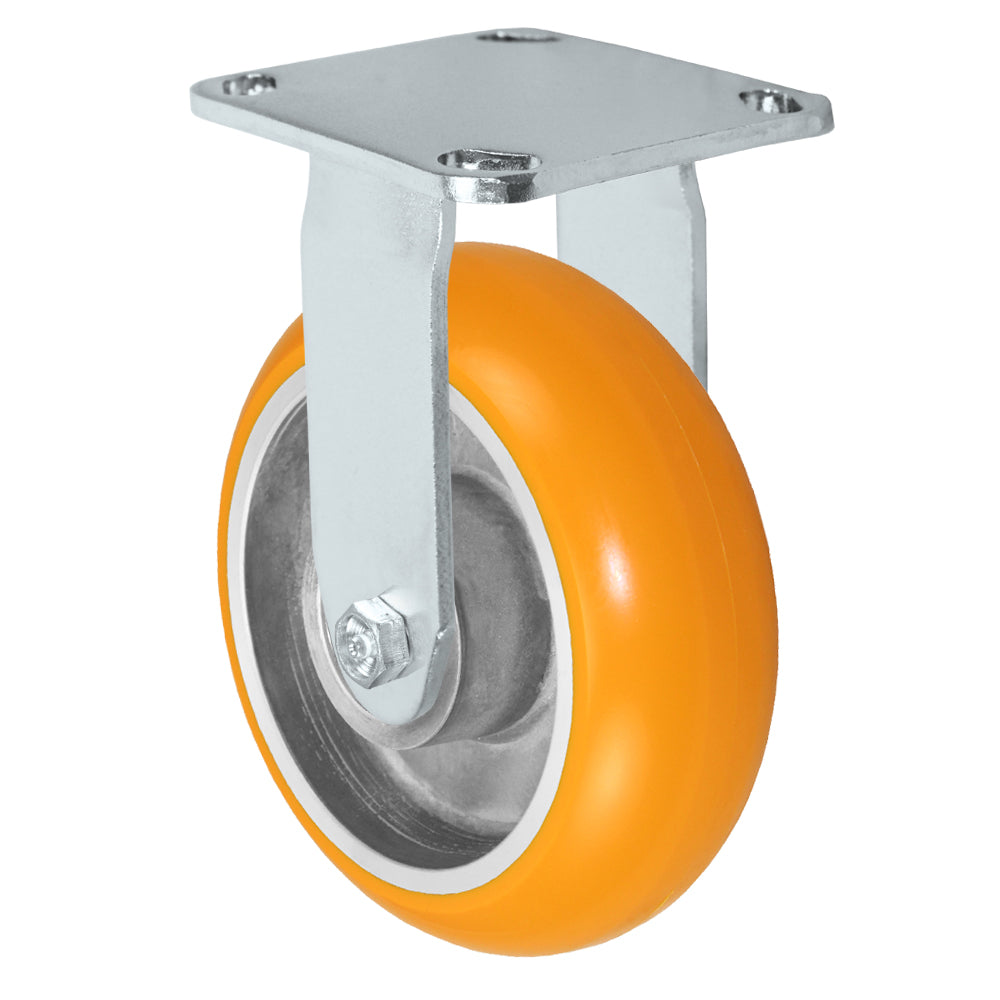

6" x 2" 1250 lb 7-1/2" $78

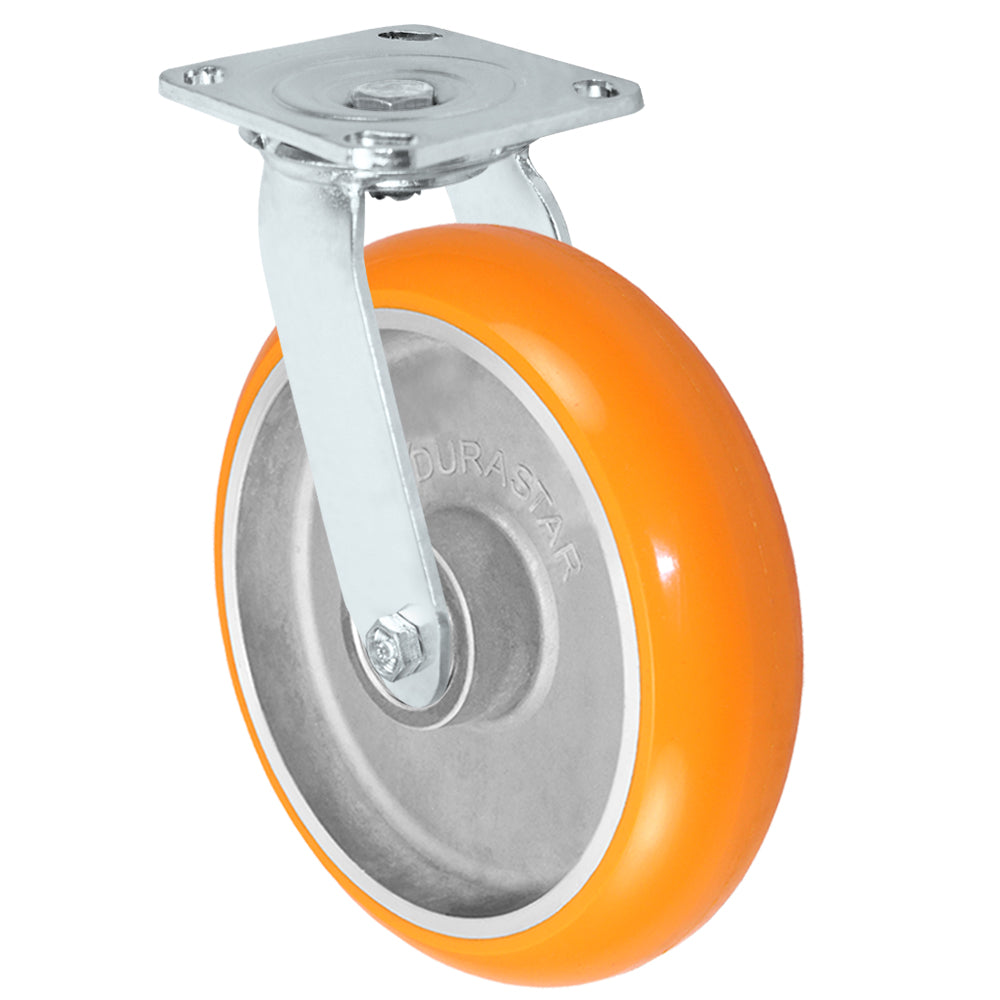

8" x 2" 1250 lb 9-1/2" $87

Will it carry my load?

Enter your total weight to check the selected size.

2 in. wide stainless steel caster with a sirius heavy-duty donut polyurethane on aluminum core wheel. Rated 1,000 to 1,250 lb per caster depending on wheel size.

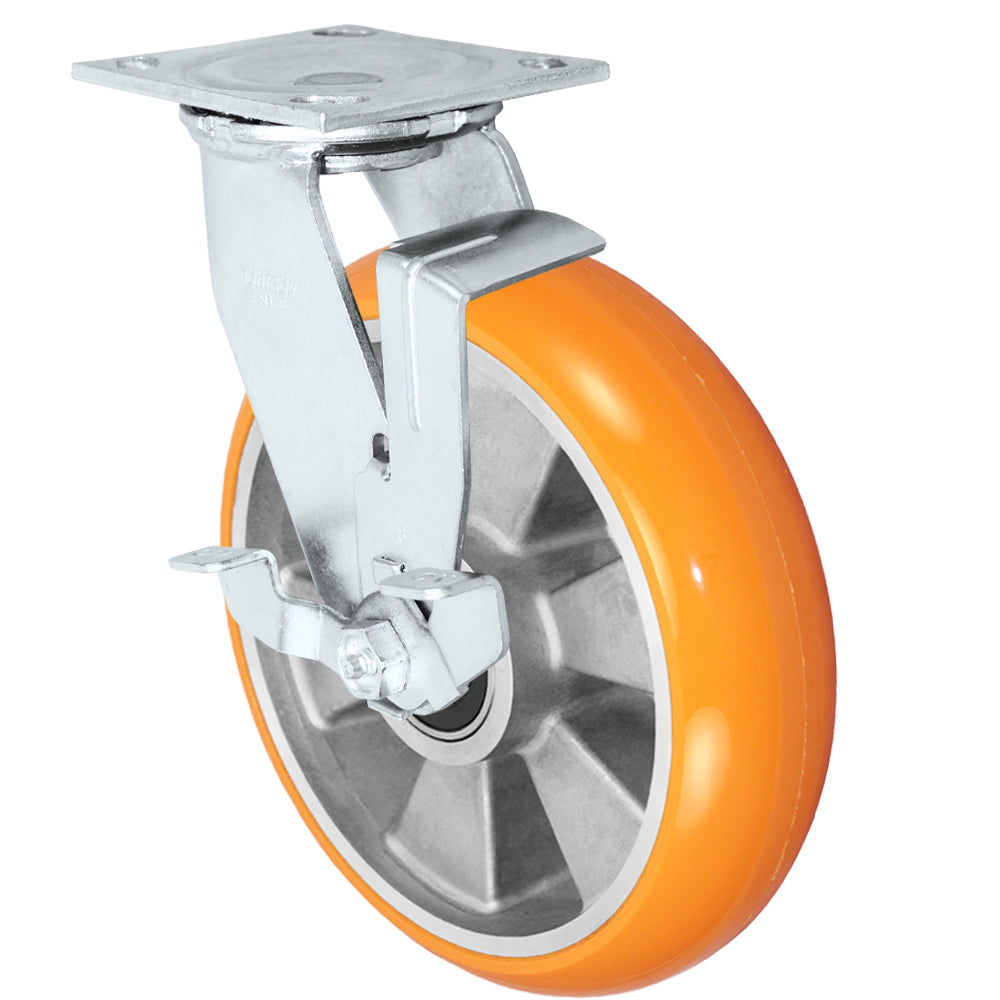

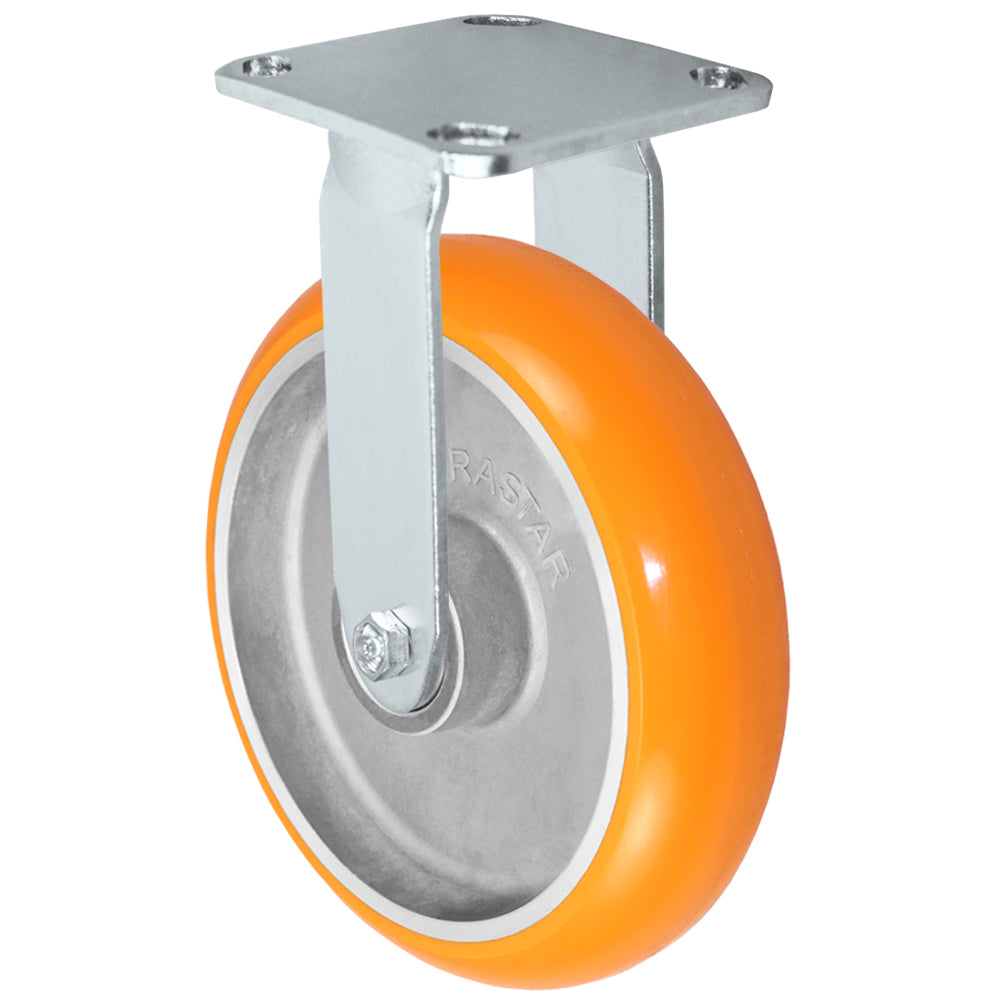

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Brake photos are from the matching zinc-plated caster; this caster is stainless. Rigid rolls straight only.

Top plate is 4 x 4-1/2 in. with slotted holes for 2-5/8 x 3-5/8 to 3 x 3 in. bolt patterns, 3/8 in. bolts.
