S24 Series ยท Expandable stem caster ยท CasterHQ
Stainless Steel Donut Polyolefin Expandable Stem Caster 3 to 5 in. x 1-1/4 in. Wheel, Fits 3/4 to 1-7/8 in. Tube, 300 to 350 lb
- In stock. Ships same or next business day from Kansas City, MO or Dallas, TX.
- Any quantity, no minimum. Shipping · 30-day returns · 1-year warranty
SKU S24CS314DPO83B-90
- Brand
- CasterHQ
- Series
- S24 Series
- Type
- Swivel
- Load capacity
- 300 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-1/4"
- Wheel
- Polyolefin, crowned donut tread
- Wheel color
- Black
- Height, less stem
- 4-3/16"
- Axle diameter
- 3/8"
- Mounting
- Expandable rubber stem
- Stem size
- Fits 3/4" tube, 0.720 to 0.851" ID
- Tube fit
- Round or square tubing, sized by the inside dimension
- Bearing
- Plain bore with bushing
- Swivel radius
- 2-21/32"
- Finish
- Stainless steel
- Approx. weight
- 2 lb each
- Warranty
- 1 year, defects in materials and workmanship
capacity is per caster| Size | Capacity | Height | Weight | Price |
|---|---|---|---|---|
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2 lb | $24 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2 lb | $24 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2 lb | $24 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2 lb | $24 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2 lb | $24 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2 lb | $24 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2 lb | $24 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2 lb | $24 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.25 lb | $28 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.25 lb | $28 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.25 lb | $28 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.25 lb | $28 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.25 lb | $28 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.25 lb | $28 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.25 lb | $28 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.25 lb | $28 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 2.5 lb | $29 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 2.5 lb | $29 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 2.5 lb | $29 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 2.5 lb | $29 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 2.5 lb | $29 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 2.5 lb | $29 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 2.5 lb | $29 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 2.5 lb | $29 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3 lb | $30 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3 lb | $30 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3 lb | $30 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3 lb | $30 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3 lb | $30 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3 lb | $30 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3 lb | $30 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3 lb | $30 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2.5 lb | $30 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2.5 lb | $30 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2.5 lb | $30 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2.5 lb | $30 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2.5 lb | $30 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2.5 lb | $30 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2.5 lb | $30 |
| 3" x 1-1/4" | 300 lb | 4-3/16" | 2.5 lb | $30 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.75 lb | $34 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.75 lb | $34 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.75 lb | $34 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.75 lb | $34 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.75 lb | $34 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.75 lb | $34 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.75 lb | $34 |
| 3-1/2" x 1-1/4" | 325 lb | 4-5/8" | 2.75 lb | $34 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 3 lb | $35 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 3 lb | $35 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 3 lb | $35 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 3 lb | $35 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 3 lb | $35 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 3 lb | $35 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 3 lb | $35 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | 3 lb | $35 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3.5 lb | $36 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3.5 lb | $36 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3.5 lb | $36 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3.5 lb | $36 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $36 | |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $36 | |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $36 | |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $36 |
Will it carry my load?
Enter your total weight to check the selected size.

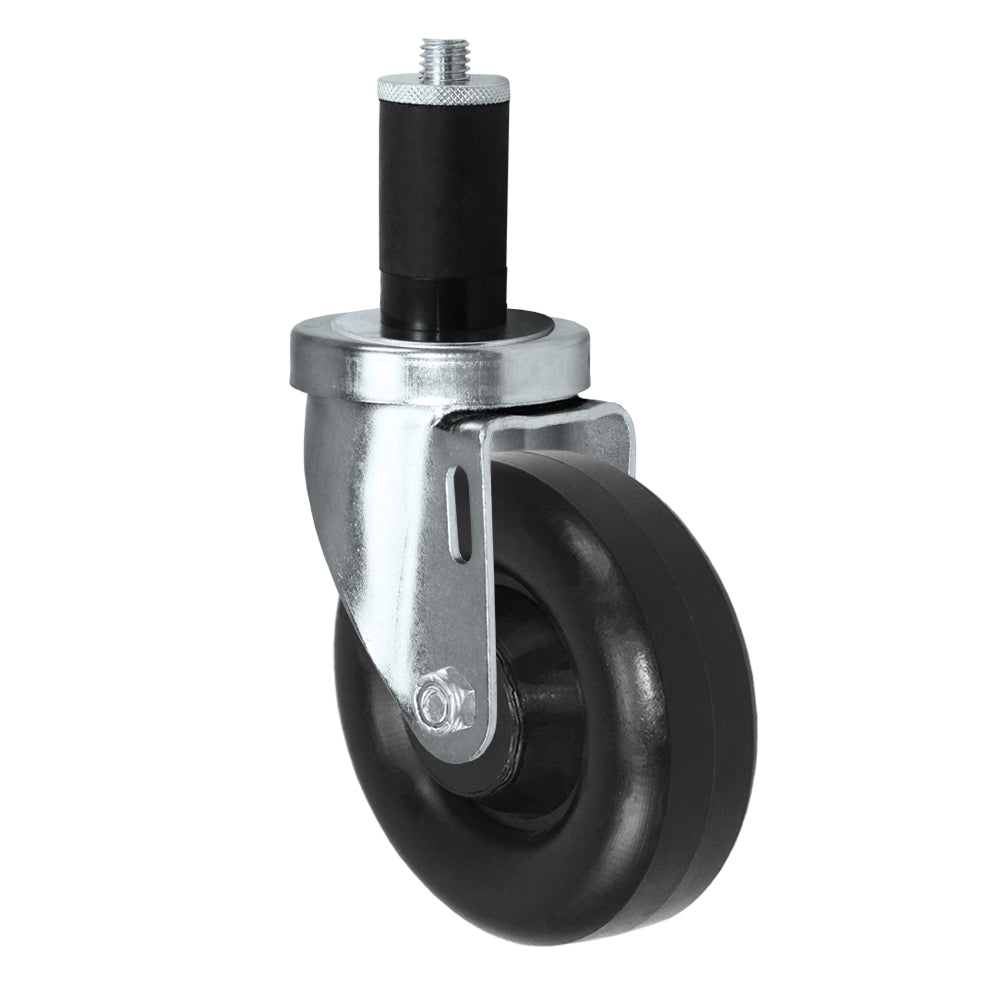

1-1/4 in. wide stainless steel caster with a polyolefin, crowned donut tread wheel. Rated 300 to 350 lb per caster depending on wheel size.
Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Where the photo shows a swivel caster, the brake is not pictured.
Expandable rubber stem: slides into round or square tubing and expands against the inside walls when tightened, so one round stem fits both. Pick the size that matches the inside of your tube (inside diameter for round, inside width for square). A round expanding stem holds square tube better than a square adapter, which has to match the inside dimension exactly and sit square. Stem casters come in the types shown.
