24 Series · Plate caster · CasterHQ

Solid Polyurethane Plate Caster 3 to 5 in. x 1-1/4 in. Wheel, 2 Plate Sizes, 300 to 350 lb

Regular price $14
Regular price Sale price $14
Sale Sold out
Shipping calculated at checkout.
FinishZinc plated 24 SeriesStainless steel S24 Series
Type
Wheel size
Plate size
SpecificationsSKU 24CS314SPU83L-01
Brand
CasterHQ
Series
24 Series
Type
Swivel
Load capacity
300 lb per caster
Wheel diameter
3"
Tread width
1-1/4"
Wheel
Solid polyurethane
Wheel color
Blue
Overall height
4-3/16"
Axle diameter
3/8"
Mounting
Top plate
Top plate size
2-3/8 x 3-5/8"
Bolt hole spacing
1-3/4 x 2-7/8 to 3"
Mounting bolt size
5/16"
Bearing
Plain bore with bushing
Swivel radius
2-21/32"
Finish
Zinc plated
Approx. weight
2 lb each
Warranty
1 year, defects in materials and workmanship

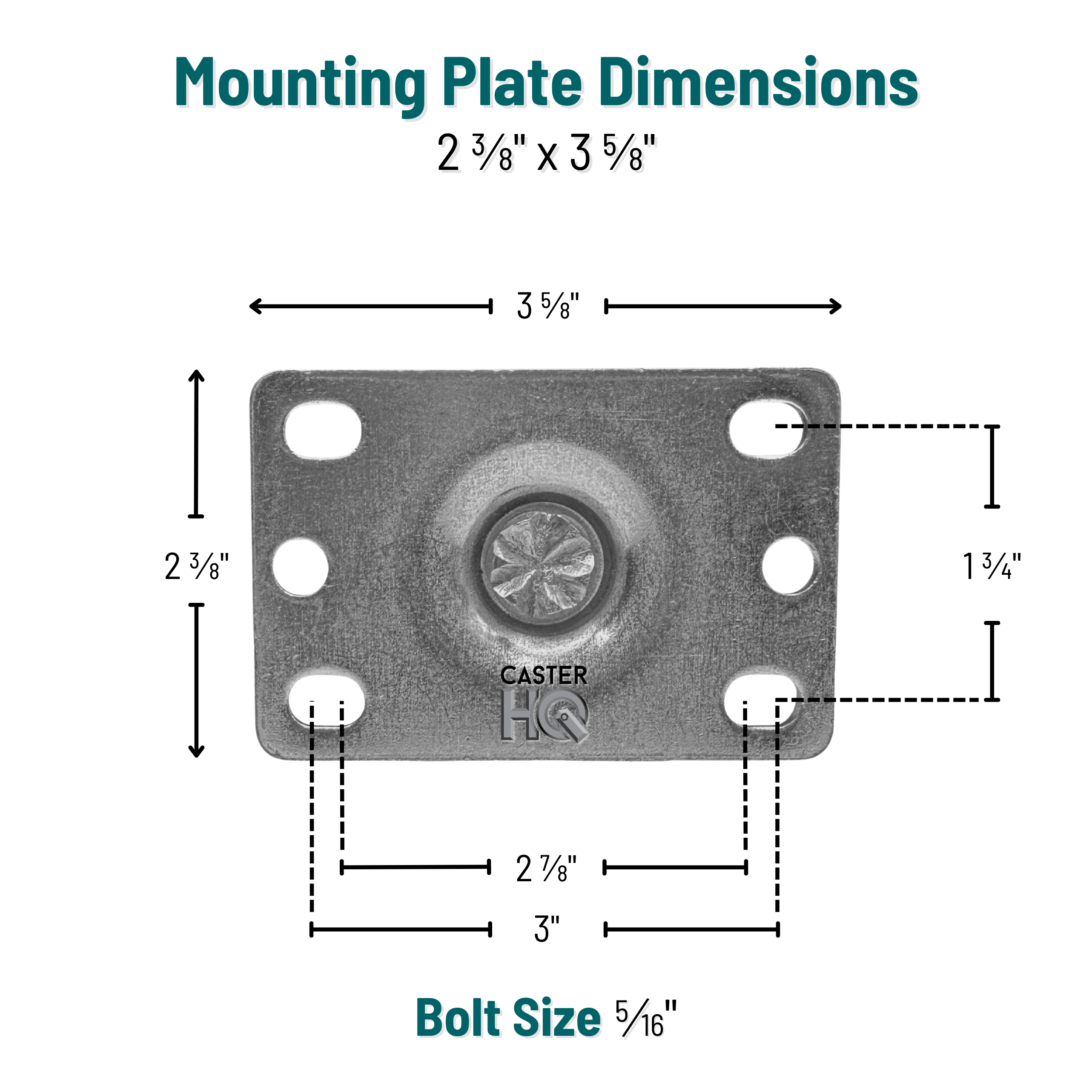

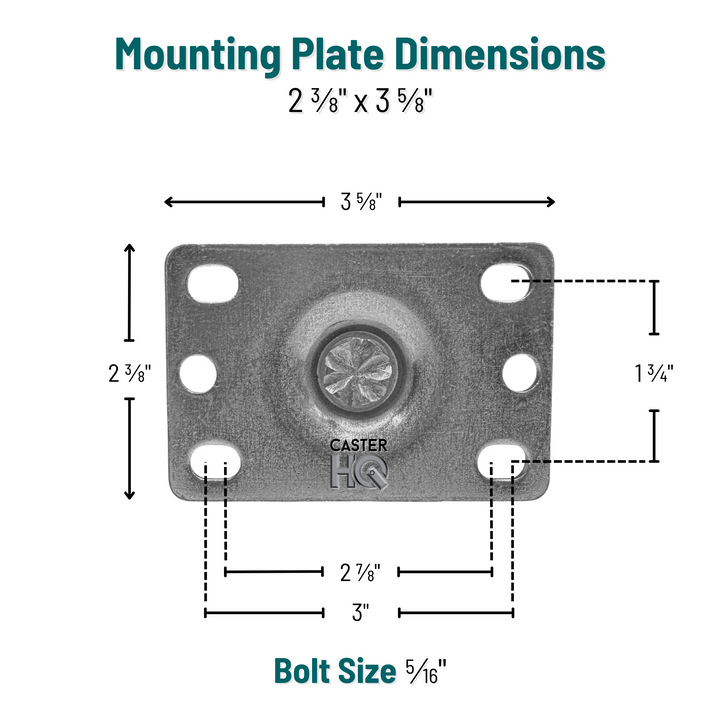

Top plate 2-3/8 x 3-5/8 in. with bolt hole spacing Tap to enlarge
Measure your bolt holes center to center and match them to this plate.
Top plate diagram, full size
Sizes · Swivelcapacity is per caster
SizeCapacityHeightWeightPrice

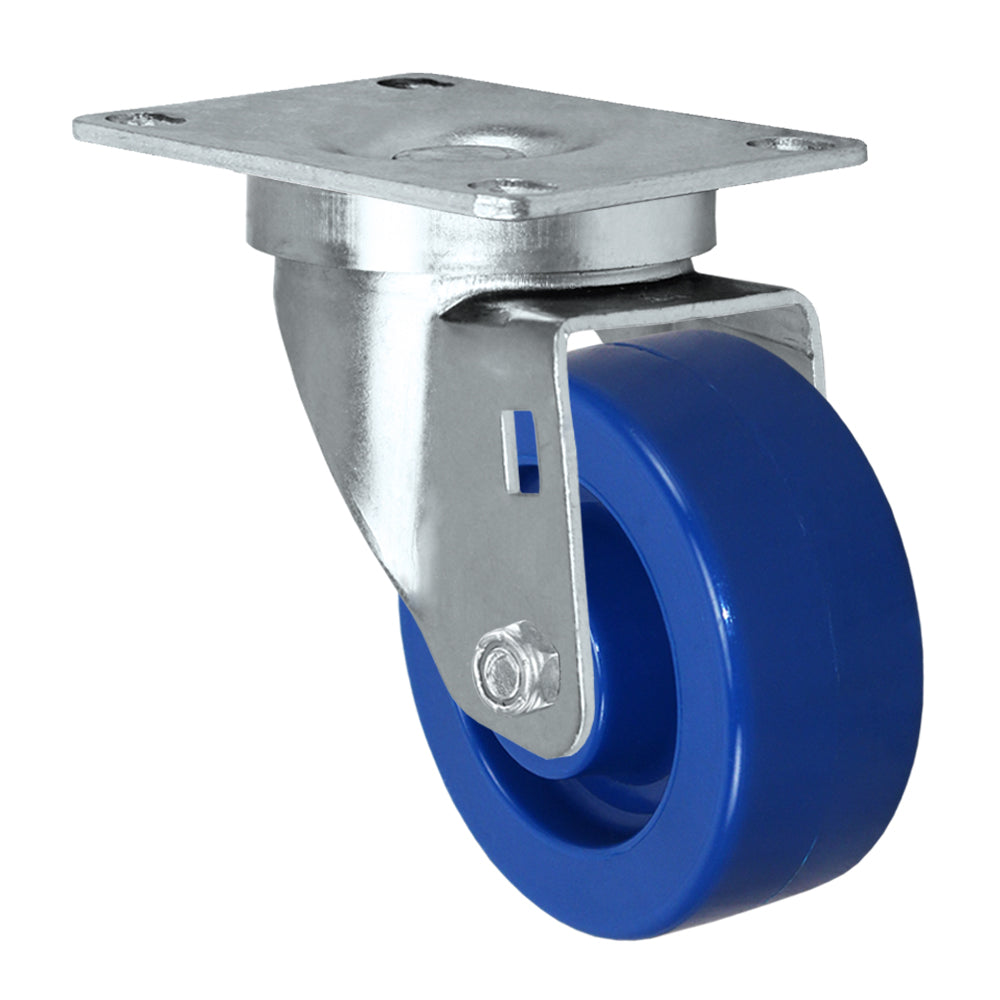

3" x 1-1/4" 300 lb 4-3/16" 2 lb $14

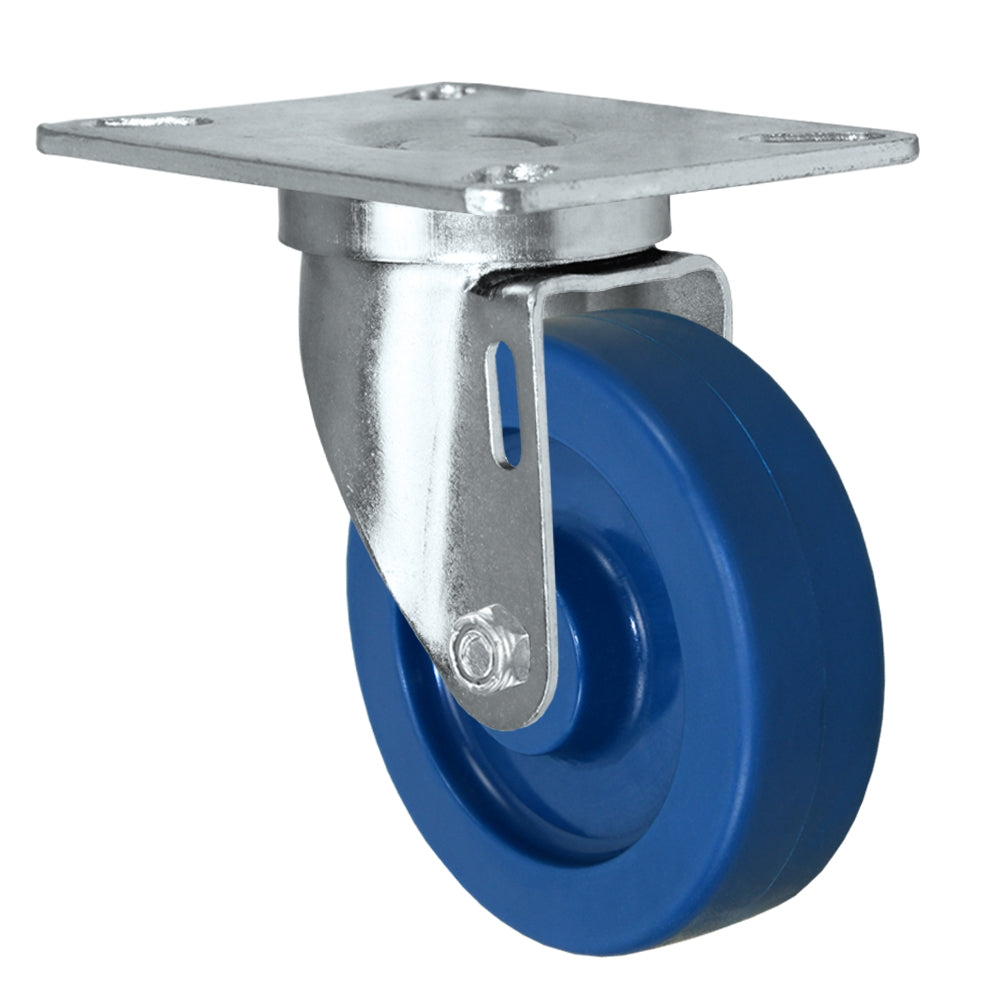

4" x 1-1/4" 350 lb 5-1/8" 2.5 lb $16

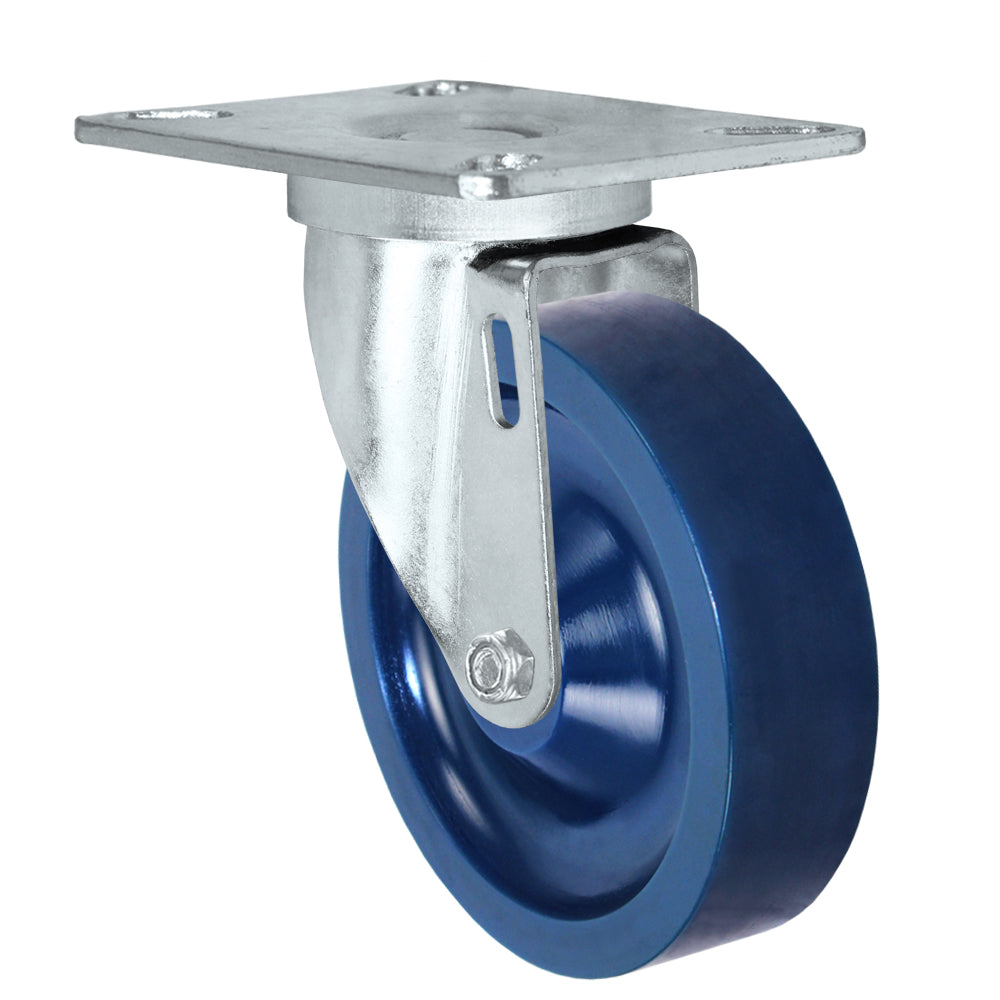

5" x 1-1/4" 350 lb 6-1/4" 3 lb $20

Will it carry my load?

Enter your total weight to check the selected size.

1-1/4 in. wide caster with a solid polyurethane wheel. Rated 300 to 350 lb per caster depending on wheel size.

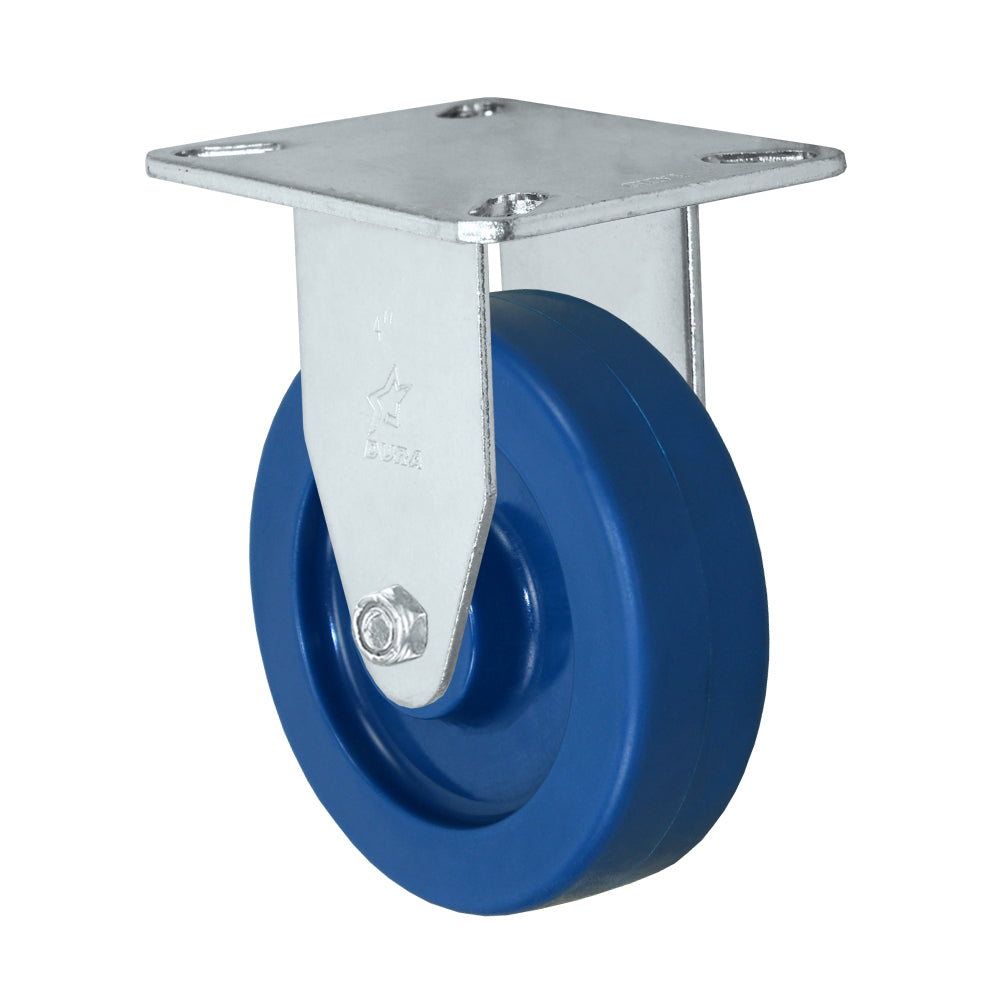

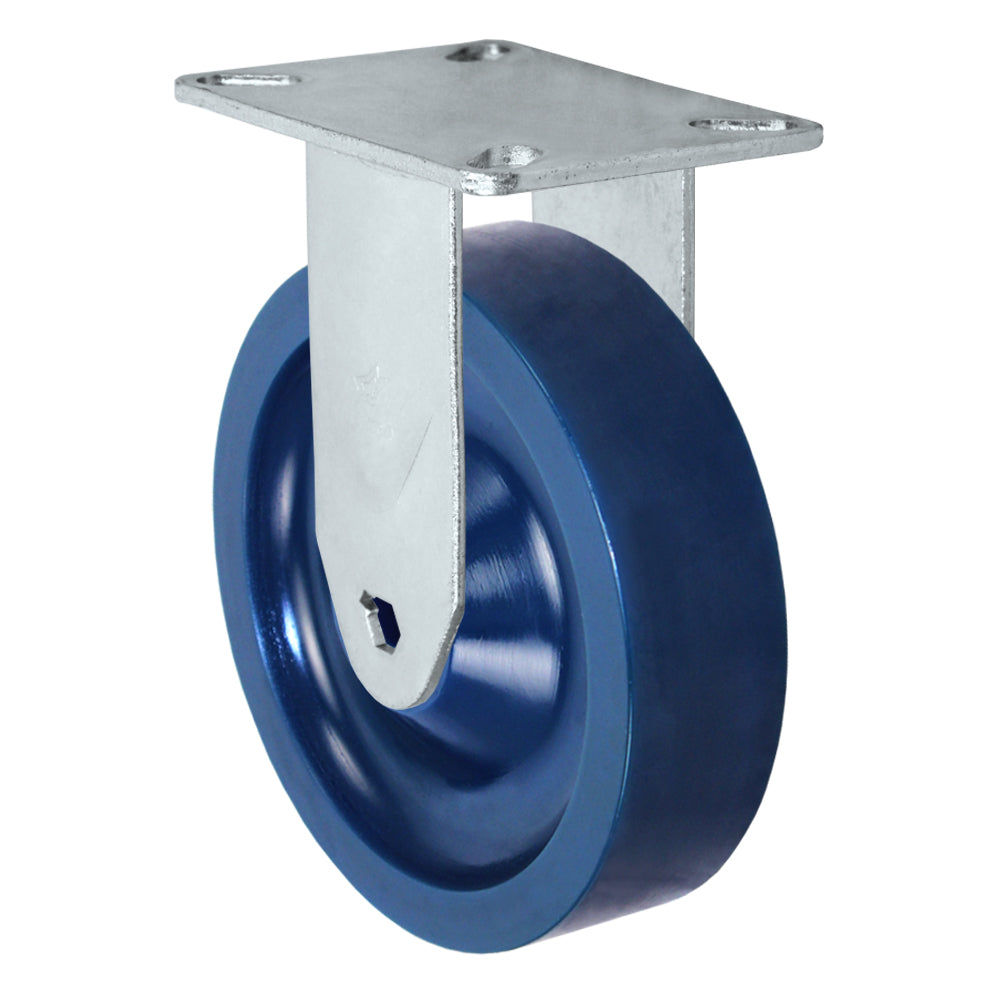

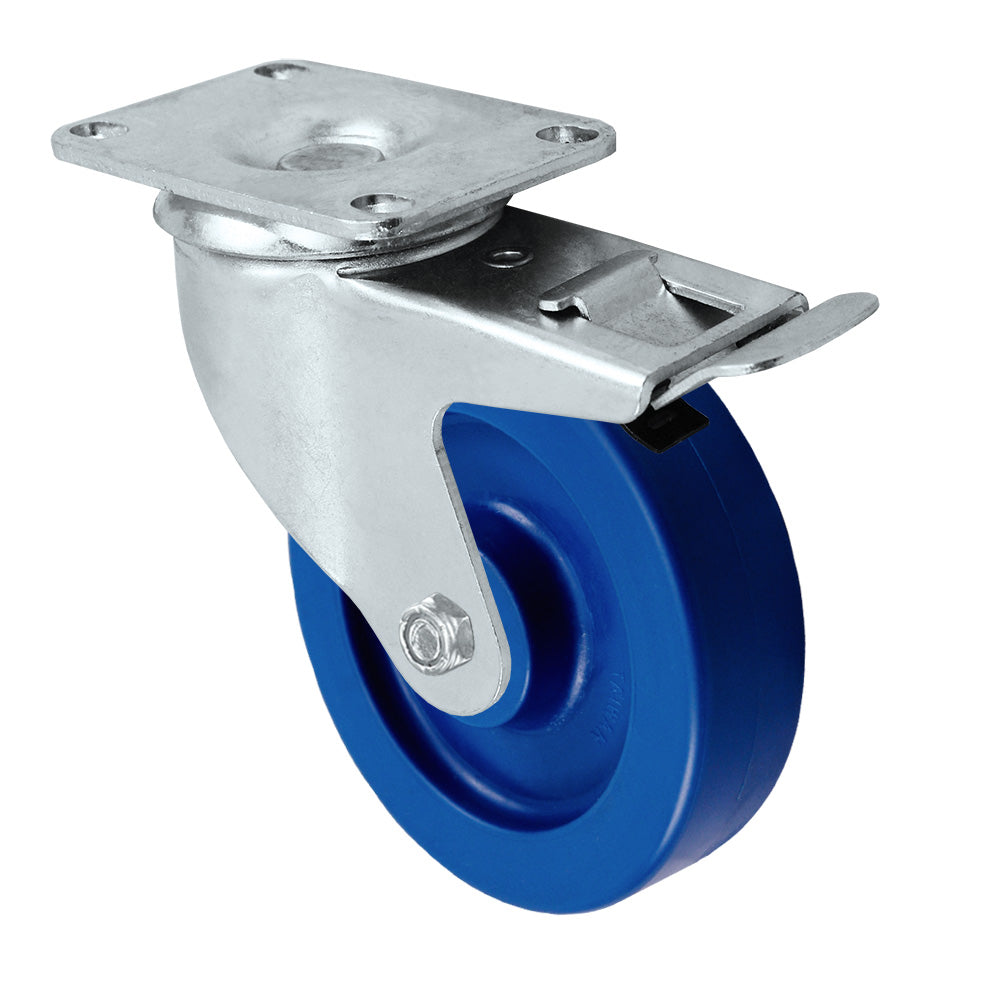

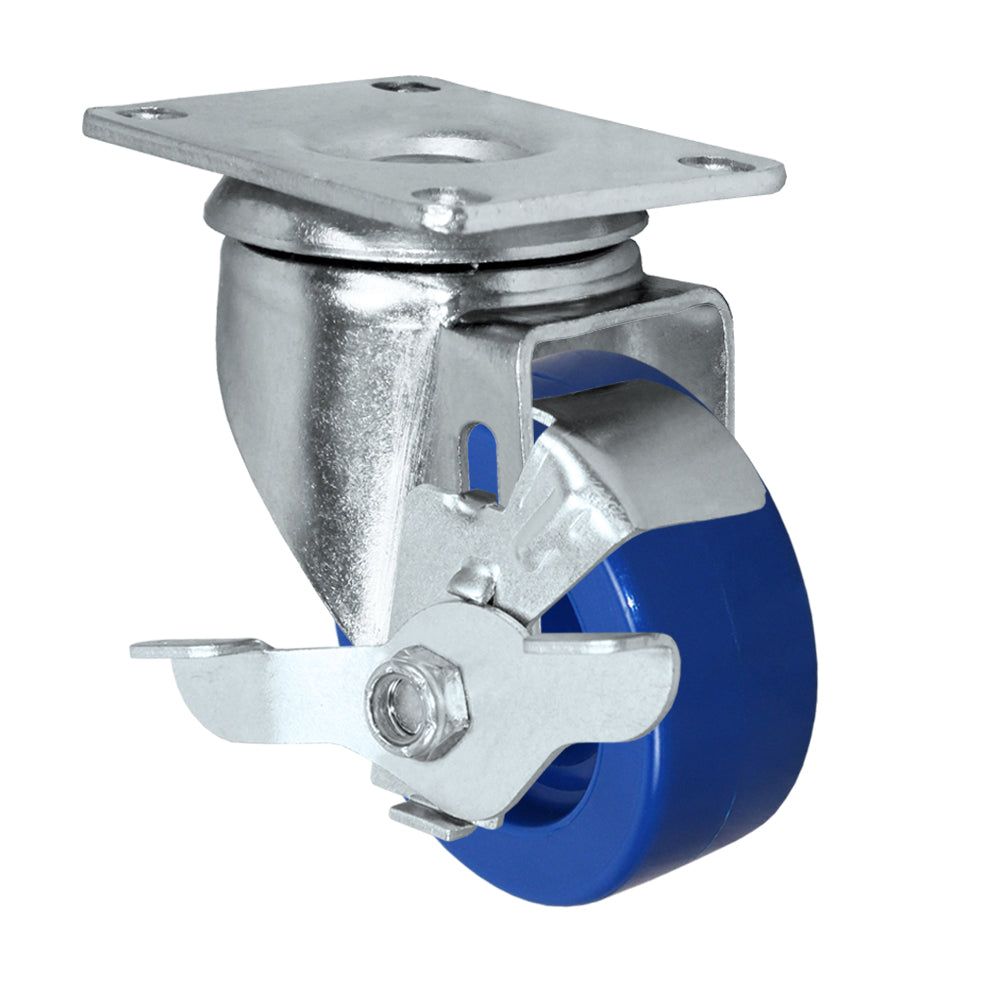

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Total lock locks the wheel and the swivel together with one pedal. Rigid rolls straight only.

Choose your plate: 2-3/8 x 3-5/8 in. (bolts 1-3/4 x 2-7/8 to 3, 5/16 in.); 3-1/8 x 4-1/8 in. (bolts 1-3/4 x 2-15/16 to 2-3/8 x 3-3/8, 5/16 in.).

View full details

Free CAD & 3D model

24CS314SPU83L-01

Solid Polyurethane Plate Caster CAD model (24CS314SPU83L-01): free STEP, IGES, DWG, DXF and STL downloads plus a 3D GLB model and a dimensioned drawing (PDF). No login, no email.

Browse all caster CAD models ›
Loading 3D model…

Drag to rotate. Tap a dimension to see it on the model and drawing.

Side elevation
OAH 4-3/16"DIA 3"DIA 3"
Front elevation
WIDTH 1-1/4"
Top plate
2-3/8 2-3/8PLATE 3-5/8 2-7/8 1-3/4SLOTTED TO 3
BHP 1-3/4 x 2-7/8 to 3
OverstockCasters.com Part 24CS314SPU83L-01 Model OSC-CAD-swivel-3x1_1_4-plate-fc9c85 Units in · third-angle · NTS © 2026 OverstockCasters.com. Free for design use. Redistribution or resale prohibited.
Download CADSTEP, IGES, DWG, DXF, STL, GLB, PDF · Free, no login

Free · No login, no email More CAD in the builder

Model matched to this part by spec: wheel diameter, tread width, overall height, mount and swivel geometry. Reference only, not for fabrication.
