24 Series · Threaded stem caster· CasterHQ

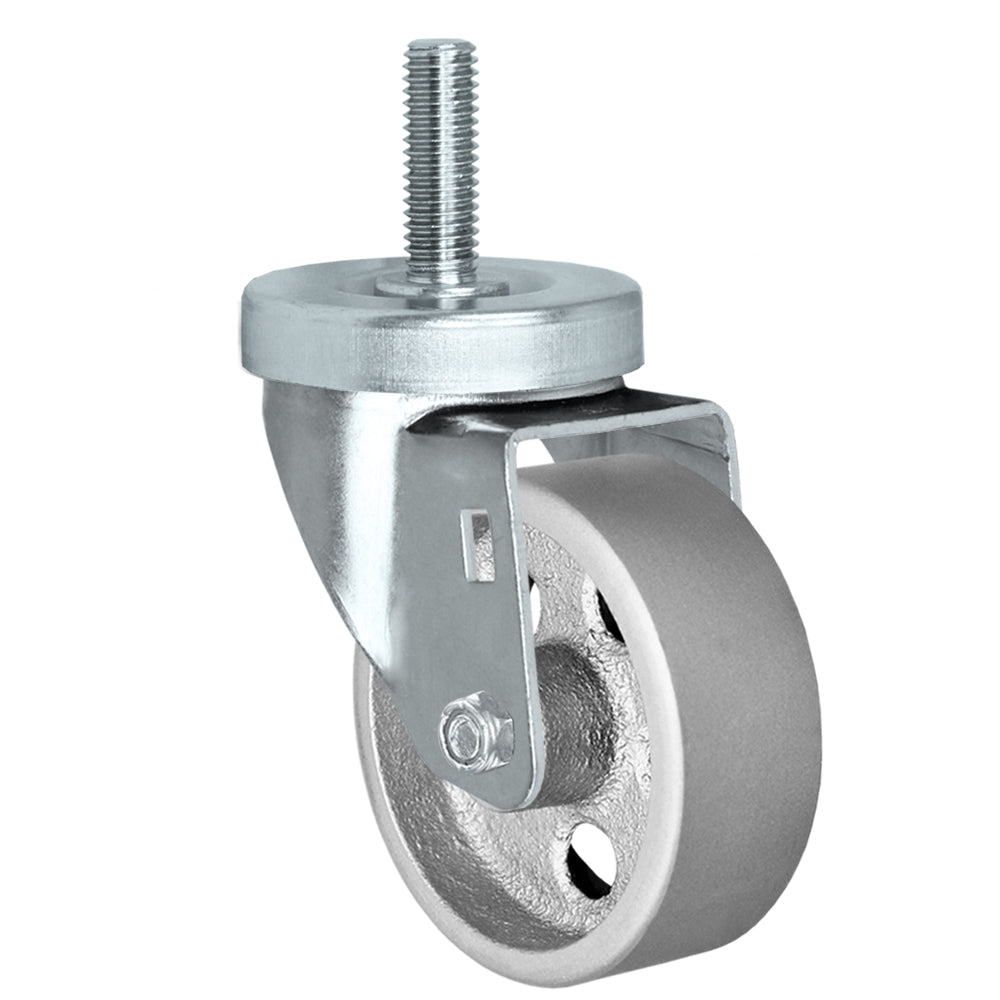

Semi-Steel Threaded Stem Caster 3 to 4 in. x 1-1/4 in. Wheel, 1/2-13 x 1-1/2 in. Stem, 350 lb
Regular price
$12
Regular price
Sale price
$12
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU 24CS314SS82S-43- Brand
- CasterHQ
- Series
- 24 Series
- Type
- Swivel
- Load capacity
- 350 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-1/4"
- Wheel
- Semi-steel (cast iron)
- Wheel color
- Silver
- Height, less stem
- 4-3/16"
- Axle diameter
- 3/8"
- Mounting
- Threaded stem
- Stem size
- 1/2-13 x 1-1/2"
- Bearing
- Plain bore
- Swivel radius
- 2-21/32"
- Finish
- Zinc plated
- Warranty
- 1 year, defects in materials and workmanship
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 3" x 1-1/4" | 350 lb | 4-3/16" | $12 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | $13 |
| 3" x 1-1/4" | 350 lb | 4-3/16" | $18 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | $19 |
Will it carry my load?
Enter your total weight to check the selected size.
1-1/4 in. wide caster with a semi-steel (cast iron) wheel. Rated 350 to 350 lb per caster depending on wheel size.
Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Where the photo shows a swivel caster, the brake is not pictured.
Threaded stem mounts: thread into a tapped hole or nut. Match thread size and length. Stem casters come in the types shown.
