24 Series · Plate caster· CasterHQ
Phenolic Plate Caster 3 to 5 in. x 1-1/4 in. Wheel, 2 Plate Sizes, 350 lb
Regular price
$16
Regular price
Sale price
$16
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU 24CS314PH21B-01- Brand
- CasterHQ
- Series
- 24 Series
- Type
- Swivel
- Load capacity
- 350 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-1/4"
- Wheel
- Phenolic resin
- Wheel color
- Black
- Overall height
- 4-3/16"
- Axle diameter
- 3/8"
- Mounting
- Top plate
- Top plate size
- 2-3/8 x 3-5/8"
- Bolt hole spacing
- 1-3/4 x 2-7/8 to 3"
- Mounting bolt size
- 5/16"
- Bearing
- 1/2 in. roller with spanner bushing
- Swivel radius
- 2-21/32"
- Finish
- Zinc plated
- Warranty
- 1 year, defects in materials and workmanship
Tap to enlarge
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 3" x 1-1/4" | 350 lb | 4-3/16" | $16 |
| 3" x 1-1/4" | 350 lb | 4-3/16" | $16 |
| 3-1/2" x 1-1/4" | 350 lb | 4-5/8" | $17 |
| 3-1/2" x 1-1/4" | 350 lb | 4-5/8" | $17 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | $17 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | $17 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $17 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $17 |
| 3" x 1-1/4" | 350 lb | 4-3/16" | $22 |
| 3" x 1-1/4" | 350 lb | 4-3/16" | $22 |
| 3-1/2" x 1-1/4" | 350 lb | 4-5/8" | $23 |
| 3-1/2" x 1-1/4" | 350 lb | 4-5/8" | $23 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | $23 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | $23 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $23 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $23 |
| 3" x 1-1/4" | 350 lb | 4-3/16" | $14 |
| 3" x 1-1/4" | 350 lb | 4-3/16" | $14 |
| 3-1/2" x 1-1/4" | 350 lb | 4-5/8" | $15 |
| 3-1/2" x 1-1/4" | 350 lb | 4-5/8" | $15 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | $15 |
| 4" x 1-1/4" | 350 lb | 5-1/8" | $15 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $15 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | $16 |
Will it carry my load?
Enter your total weight to check the selected size.
1-1/4 in. wide caster with a phenolic resin wheel. Rated 350 to 350 lb per caster depending on wheel size.

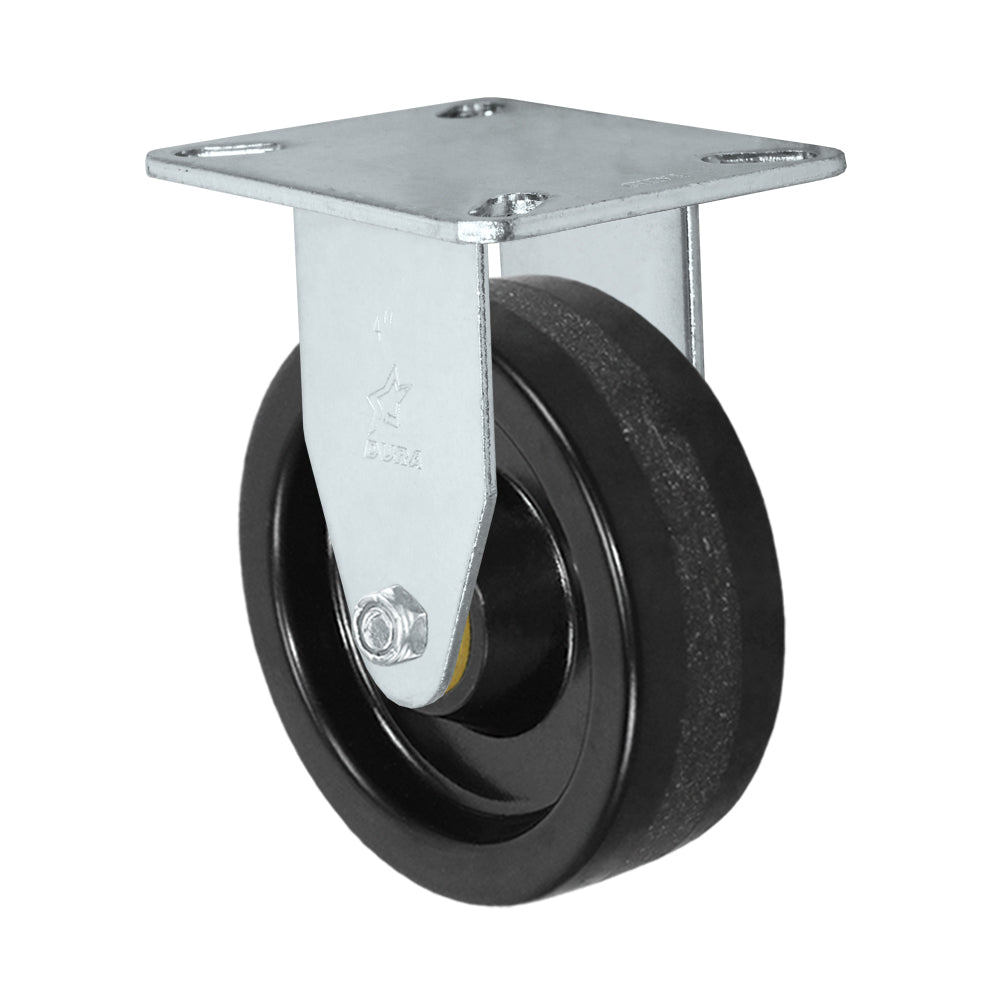

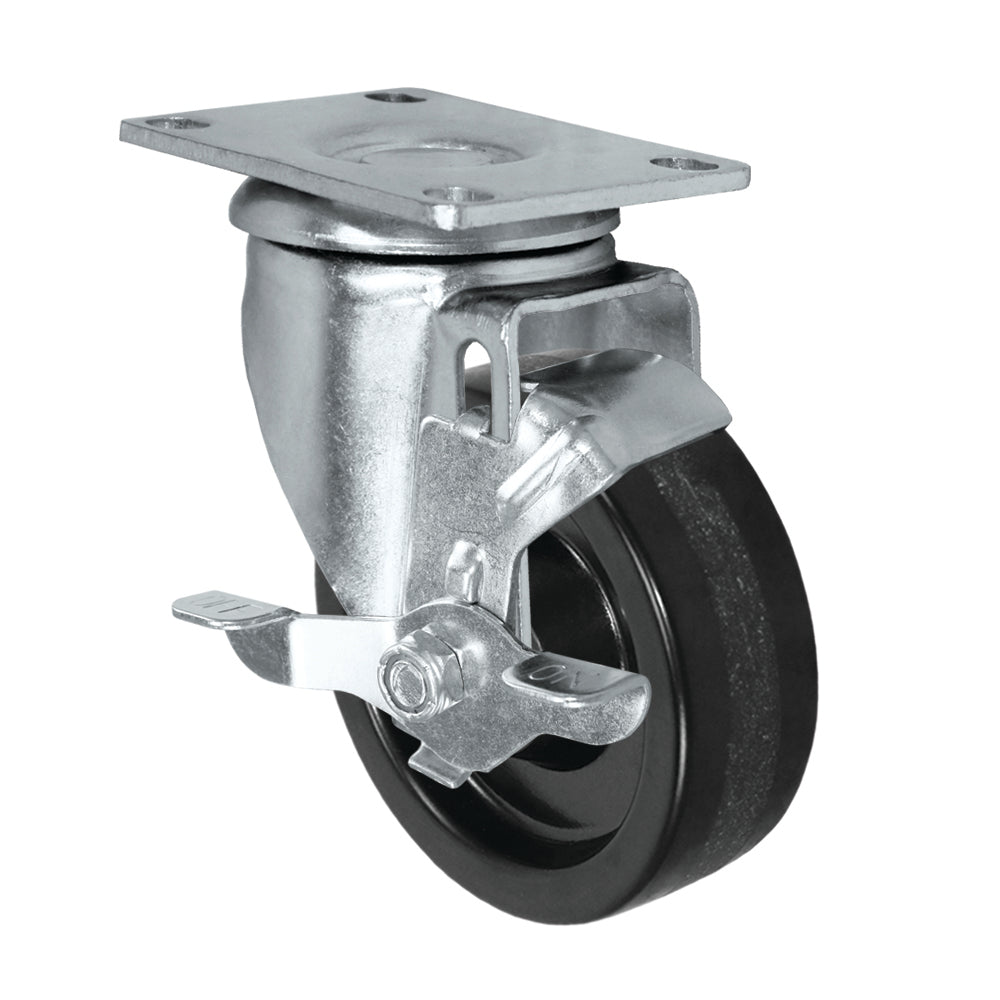

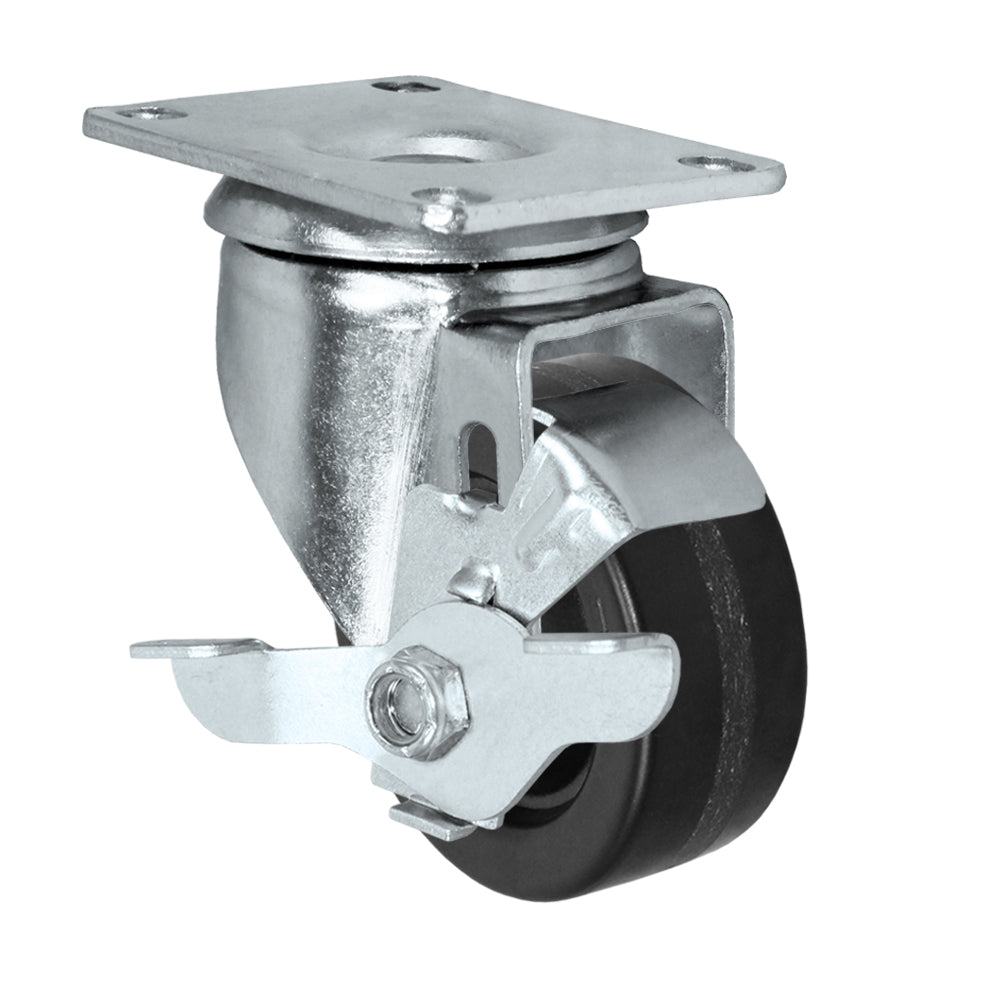

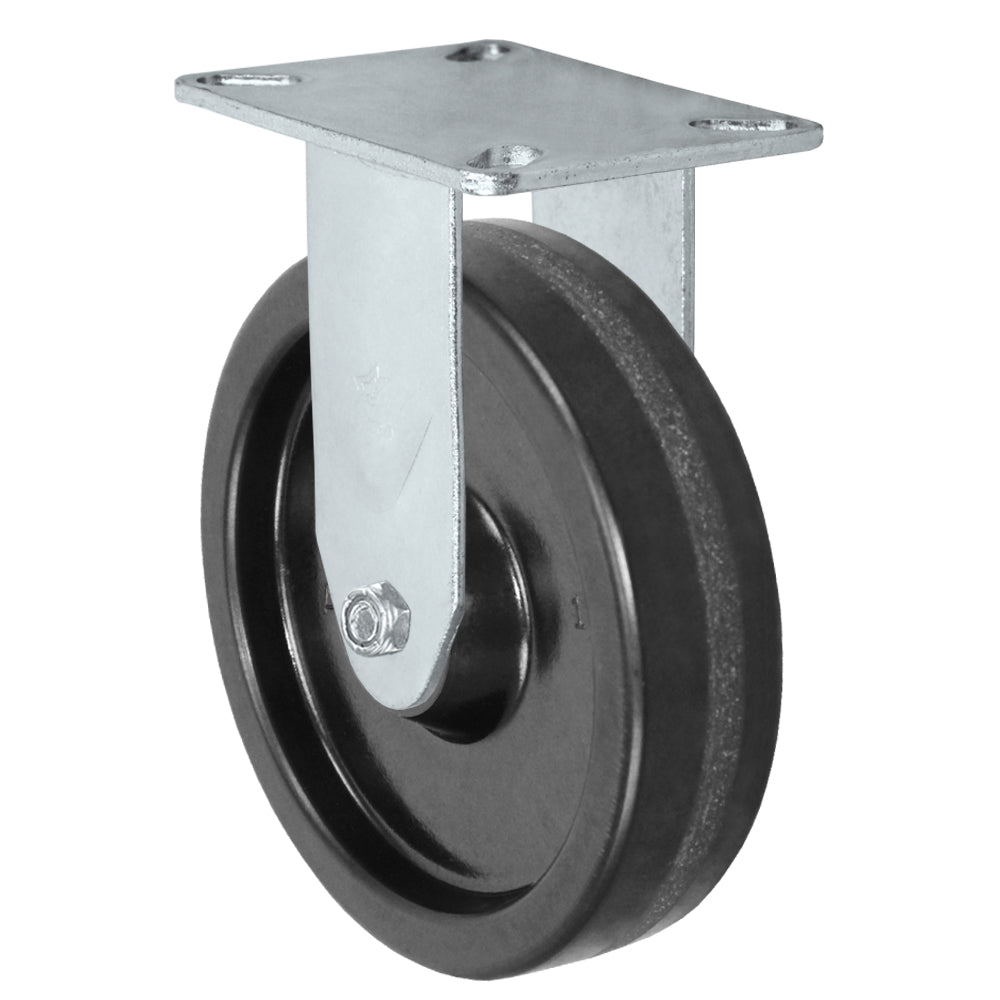

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Rigid rolls straight only.

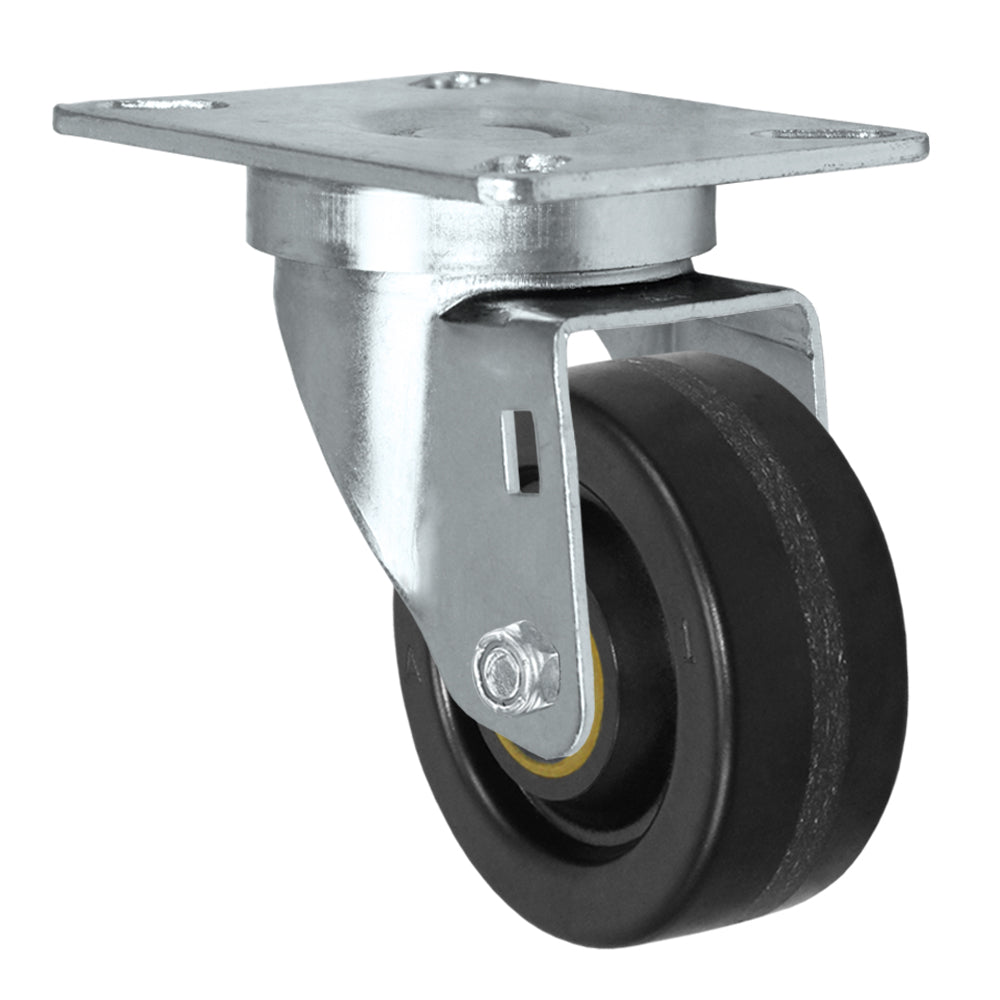

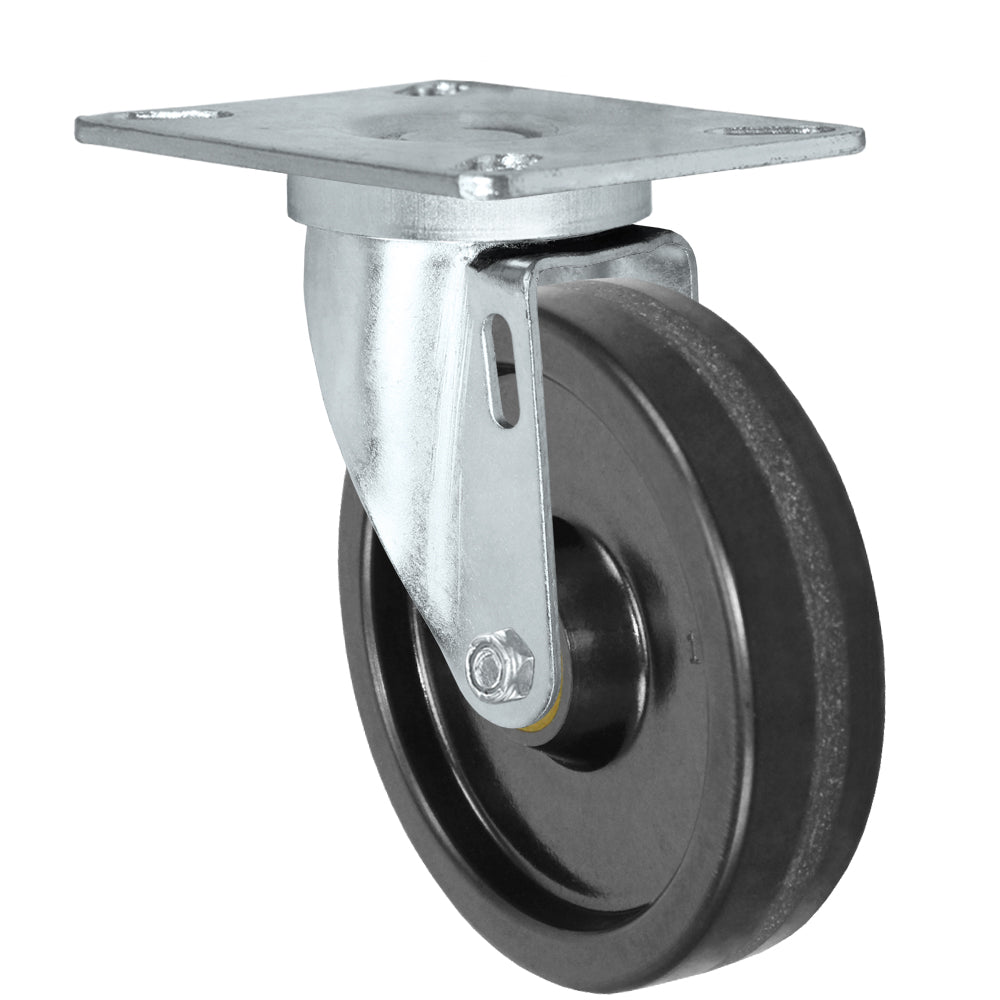

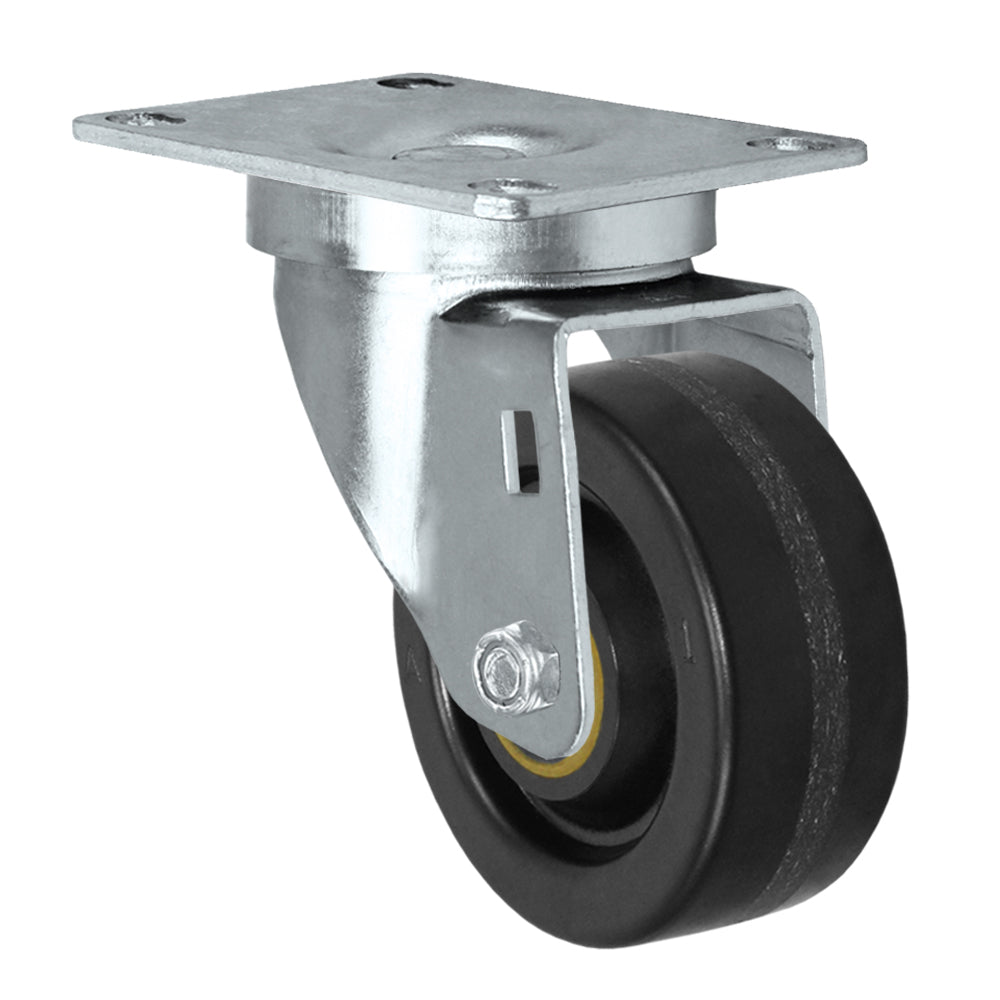

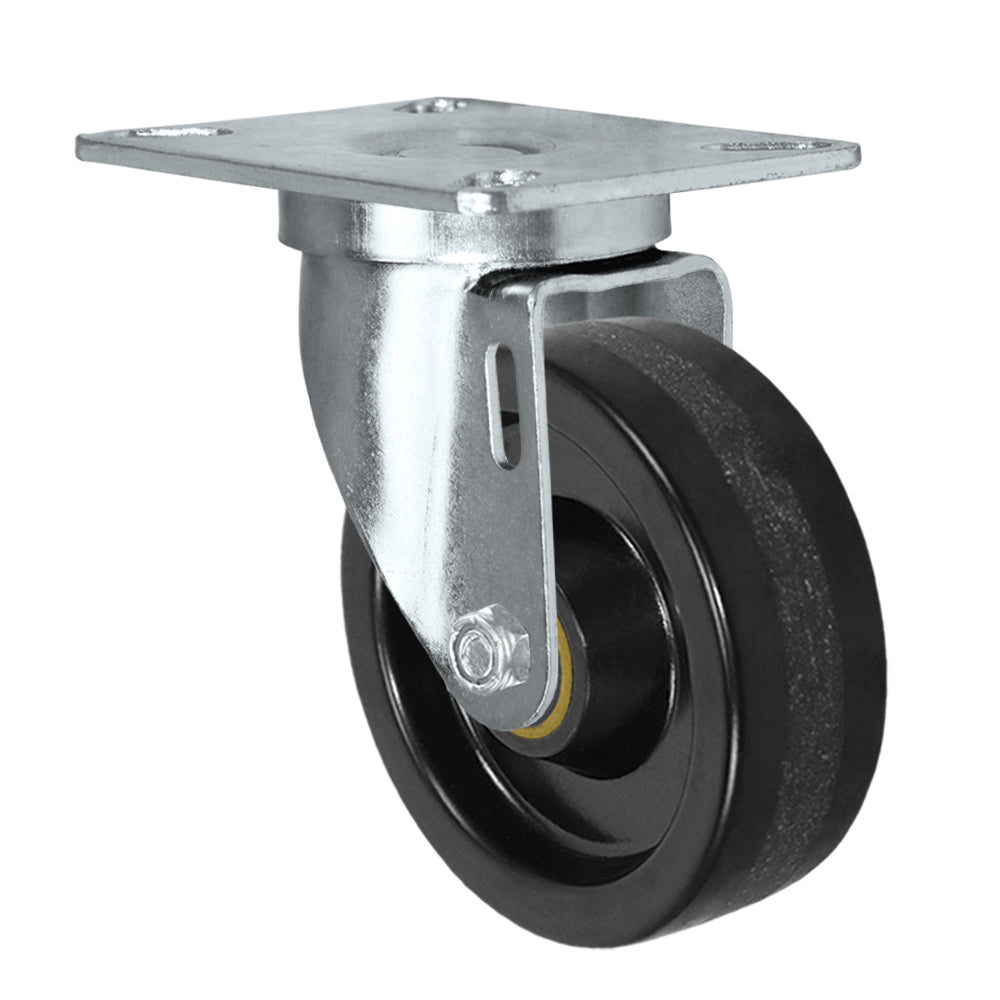

Choose your plate: 2-3/8 x 3-5/8 in. (bolts 1-3/4 x 2-7/8 to 3, 5/16 in.); 3-1/8 x 4-1/8 in. (bolts 1-3/4 x 2-15/16 to 2-3/8 x 3-3/8, 5/16 in.).
