X05 Series · Plate caster · CasterHQ

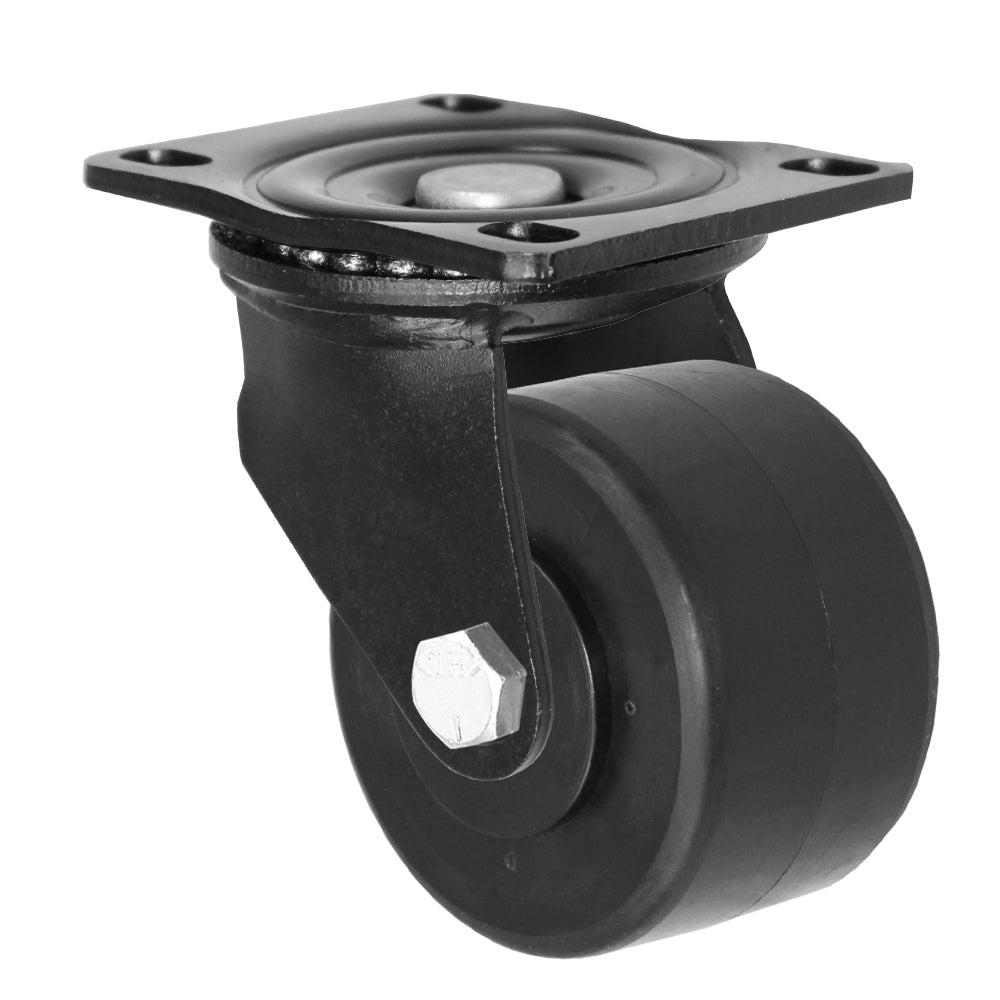

Heavy Duty Low Profile HD Polyolefin Plate Caster 3 in. x 1-13/16 in. Wheel, 2 Plate Sizes, 500 lb
Regular price
$32
Regular price
Sale price
$32
Unit price
per
Shipping calculated at checkout.
- In stock. Ships same or next business day from Kansas City, MO or Dallas, TX.
- Any quantity, no minimum. Shipping · 30-day returns · 1-year warranty
Specifications
SKU X05CS3113HPO91B-02B
- Brand
- CasterHQ
- Series
- X05 Series
- Type
- Swivel
- Load capacity
- 500 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-13/16"
- Wheel
- Heavy-duty polyolefin
- Wheel color
- Black
- Overall height
- 4-5/32"
- Axle diameter
- 1/2"
- Mounting
- Top plate
- Top plate size
- 3-1/8 x 4-1/8"
- Bolt hole spacing
- 1-3/4 x 2-15/16 to 2-3/8 x 3-3/8"
- Mounting bolt size
- 5/16"
- Bearing
- Plain bore
- Swivel radius
- 2-3/8"
- Finish
- Black oxide
- Approx. weight
- 4 lb each
- Warranty
- 1 year, defects in materials and workmanship
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Weight | Price |
|---|---|---|---|---|
| 3" x 1-13/16" | 500 lb | 4-5/32" | 4 lb | $32 |
| 3" x 1-13/16" | 500 lb | 4-5/32" | 4.25 lb | $32 |
| 3" x 1-13/16" | 500 lb | 4-5/32" | 4.5 lb | $42 |
| 3" x 1-13/16" | 500 lb | 4-5/32" | 4.75 lb | $42 |
| 3" x 1-13/16" | 500 lb | 4-5/32" | 3.75 lb | $27 |
| 3" x 1-13/16" | 500 lb | 4-5/32" | 4 lb | $27 |
Will it carry my load?
Enter your total weight to check the selected size.
1-13/16 in. wide caster with a heavy-duty polyolefin wheel. Rated 500 to 500 lb per caster depending on wheel size.

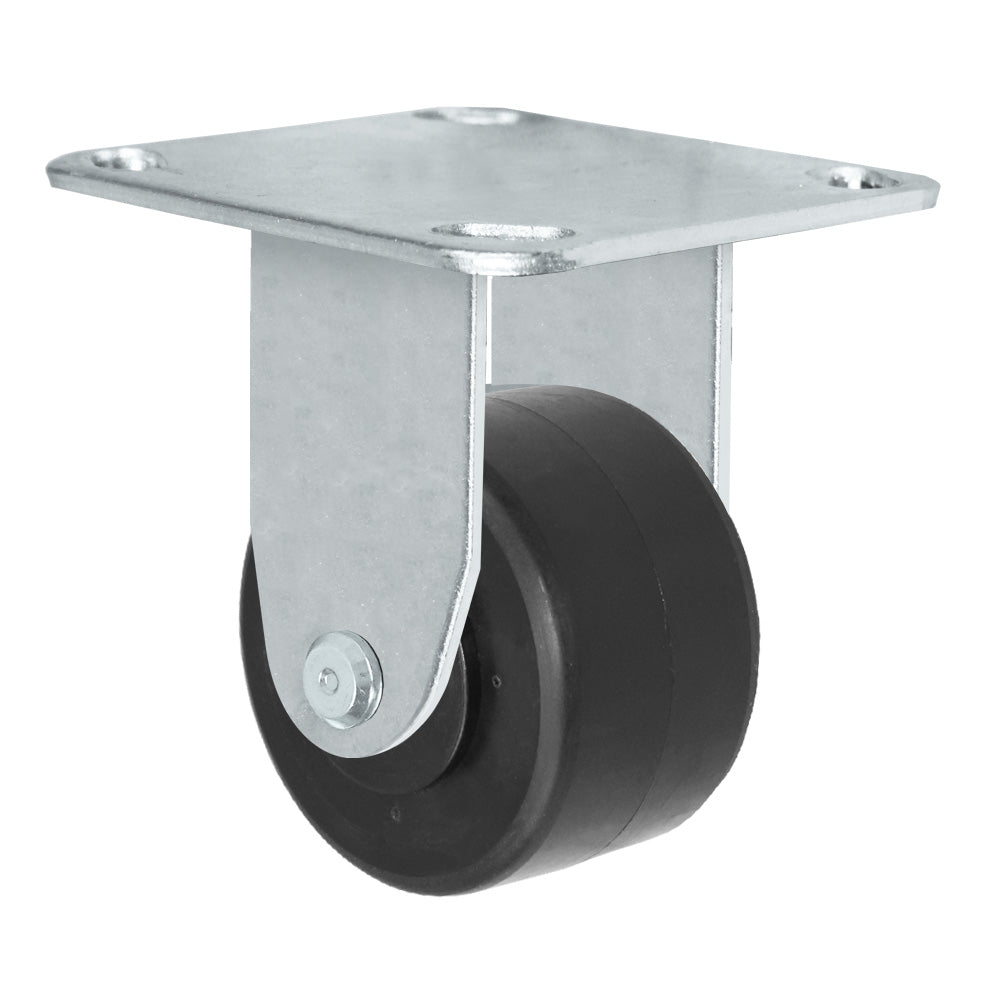

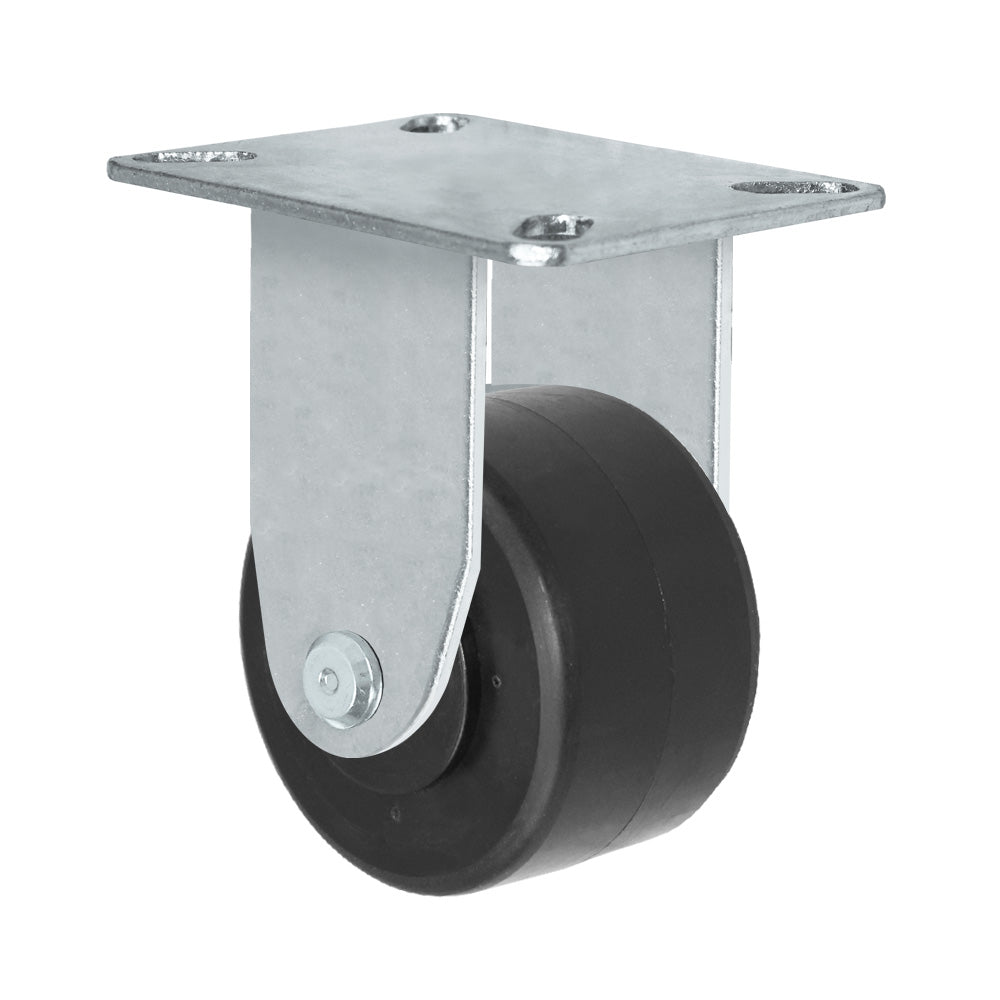

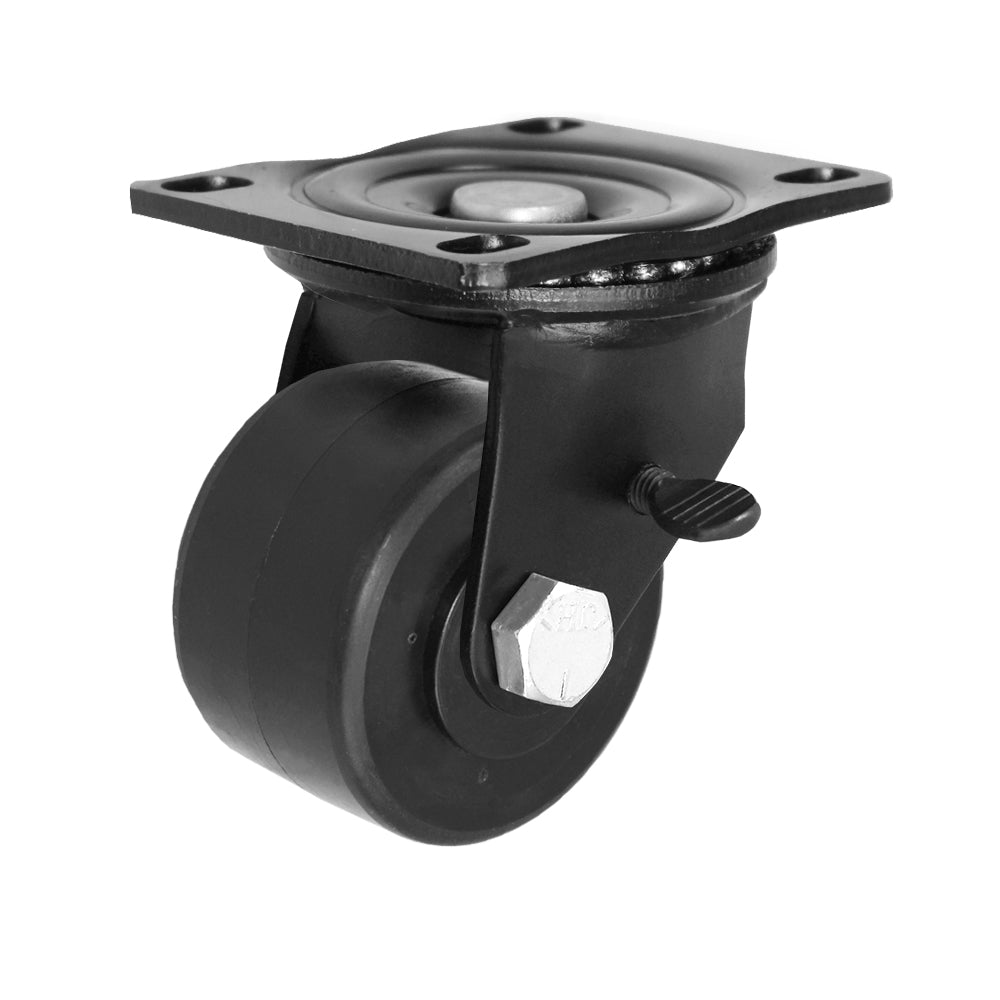

Swivel turns 360 degrees. Swivel + thumb-screw brake locks the wheel with a hand-tightened screw. Rigid rolls straight only.

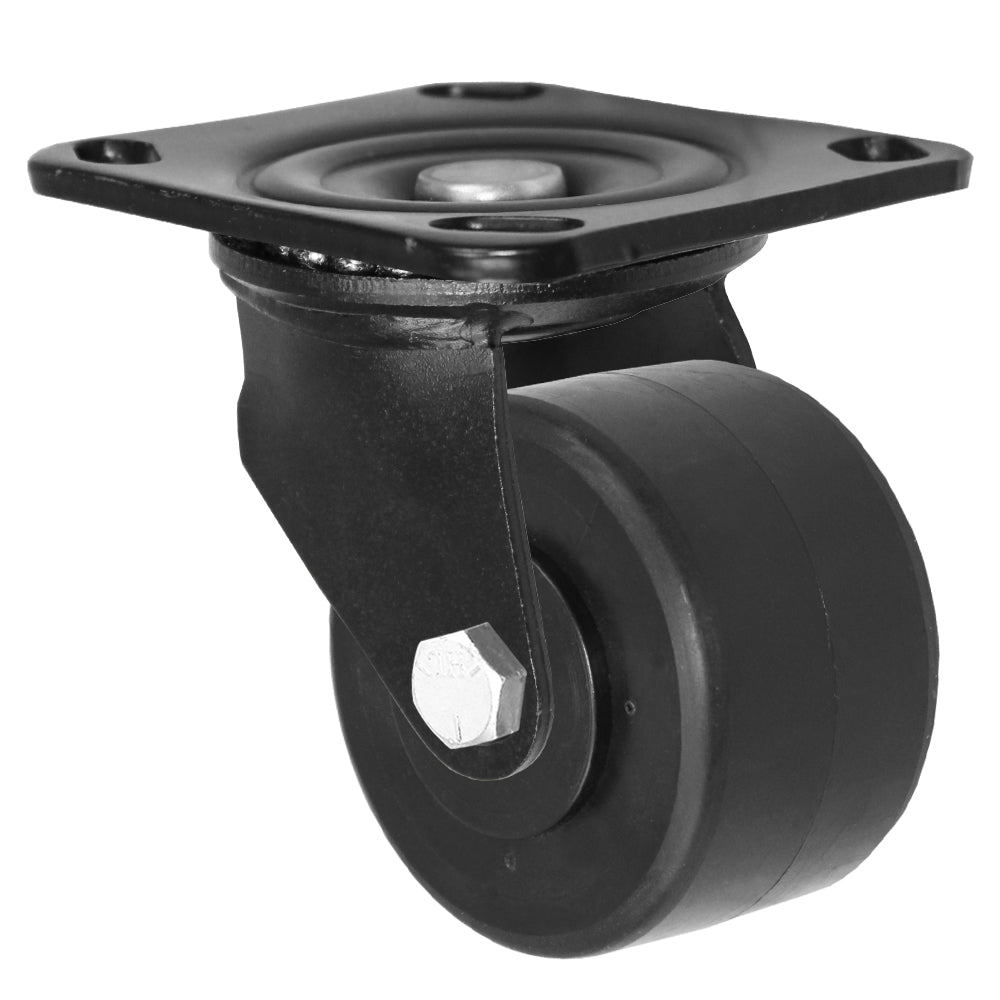

Choose your plate: 3-1/8 x 4-1/8 in. (bolts 1-3/4 x 2-15/16 to 2-3/8 x 3-3/8, 5/16 in.); 4 x 4-1/2 in. (bolts 2-5/8 x 3-5/8 to 3 x 3, 3/8 in.).
