91 Series ยท Plate caster ยท CasterHQ

Heavy Duty Kingpinless V-Groove Plate Caster 6 to 12 in. x 3 in. Wheel, 4-1/2 x 6-1/4 in. Plate, 2,500 to 3,000 lb

Regular price $120
Regular price Sale price $120
Sale Sold out
Shipping calculated at checkout.
Type
Wheel size
SpecificationsSKU 91CS630VG25R-04
Brand
CasterHQ
Series
91 Series
Type
Swivel
Load capacity
2500 lb per caster
Wheel diameter
6"
Tread width
3"
Wheel
V-groove semi-steel for inverted angle track
Wheel color
Red
Overall height
7-1/2"
Axle diameter
3/4"
Mounting
Top plate
Top plate size
4-1/2 x 6-1/4"
Bolt hole spacing
2-7/16 x 4-15/16 to 3-3/8 x 5-1/4"
Mounting bolt size
1/2"
Bearing
1 in. roller with spanner bushing
Swivel radius
4-5/16"
Finish
Zinc plated
Approx. weight
27 lb each
Warranty
3 years, defects in materials and workmanship
Top plate 4-1/2 x 6-1/4 in. with bolt hole spacing Tap to enlarge
Measure your bolt holes center to center and match them to this plate.
Top plate diagram, full size
Sizes ยท Swivelcapacity is per caster
SizeCapacityHeightWeightPrice
6" x 3" 2500 lb 7-1/2" 27 lb $120
8" x 3" 2500 lb 10-1/8" 29.25 lb $128
10" x 3" 3000 lb 11-1/2" 29.25 lb $150
12" x 3" 3000 lb 13-1/2" 32.5 lb $163

Will it carry my load?

Enter your total weight to check the selected size.

3 in. wide kingpinless caster with a v-groove semi-steel for inverted angle track wheel. Rated 2,500 to 3,000 lb per caster depending on wheel size.

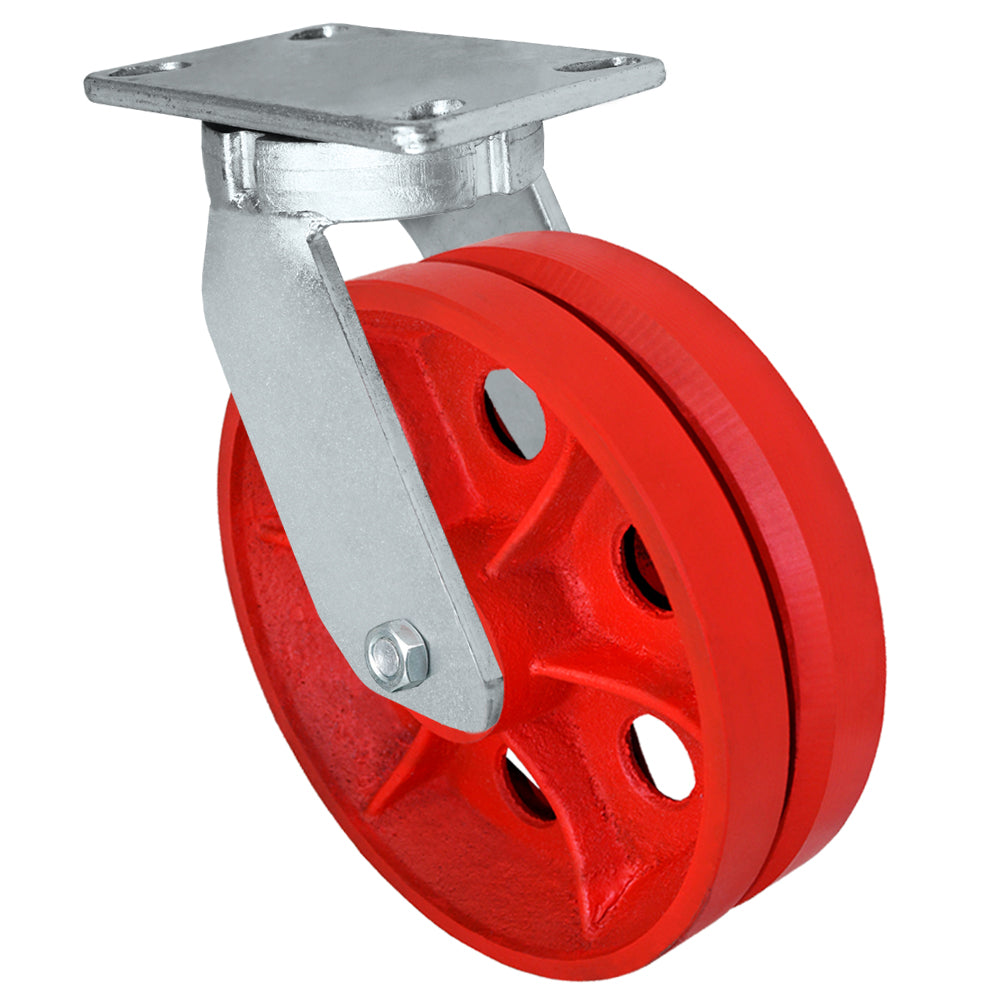

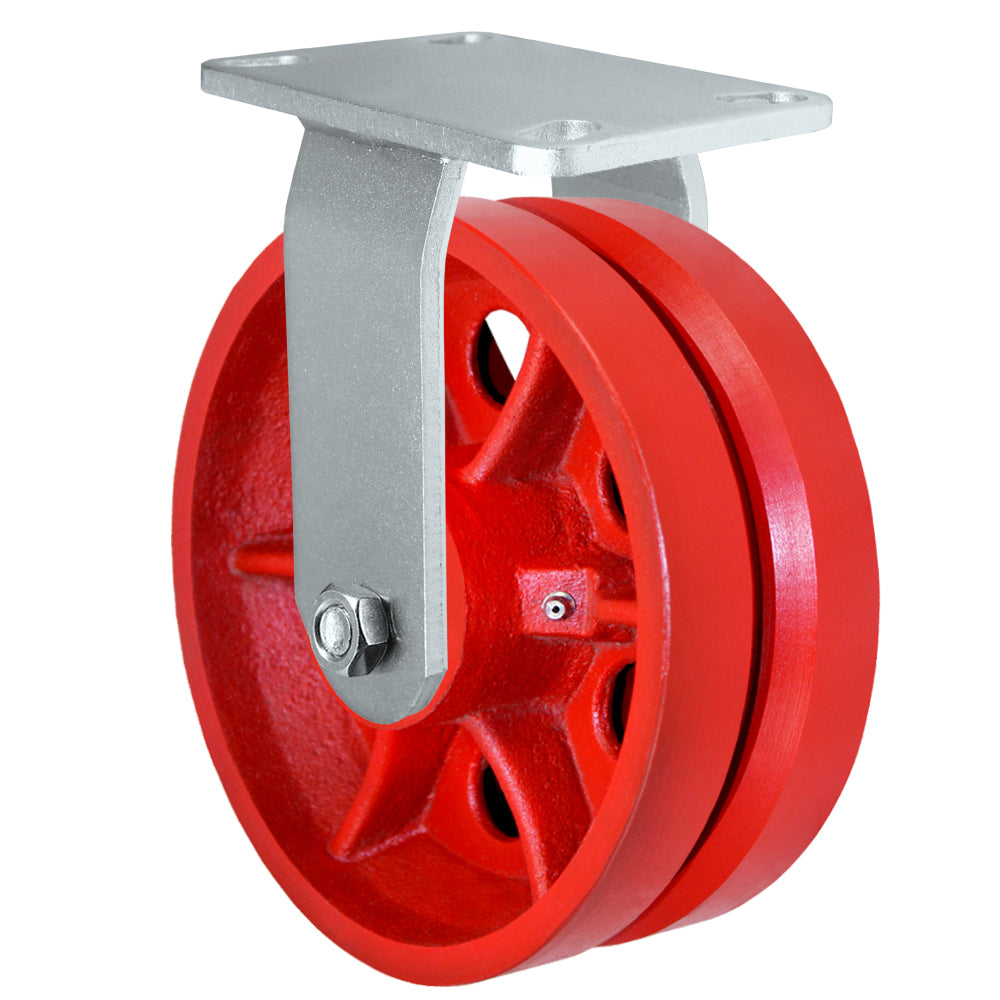

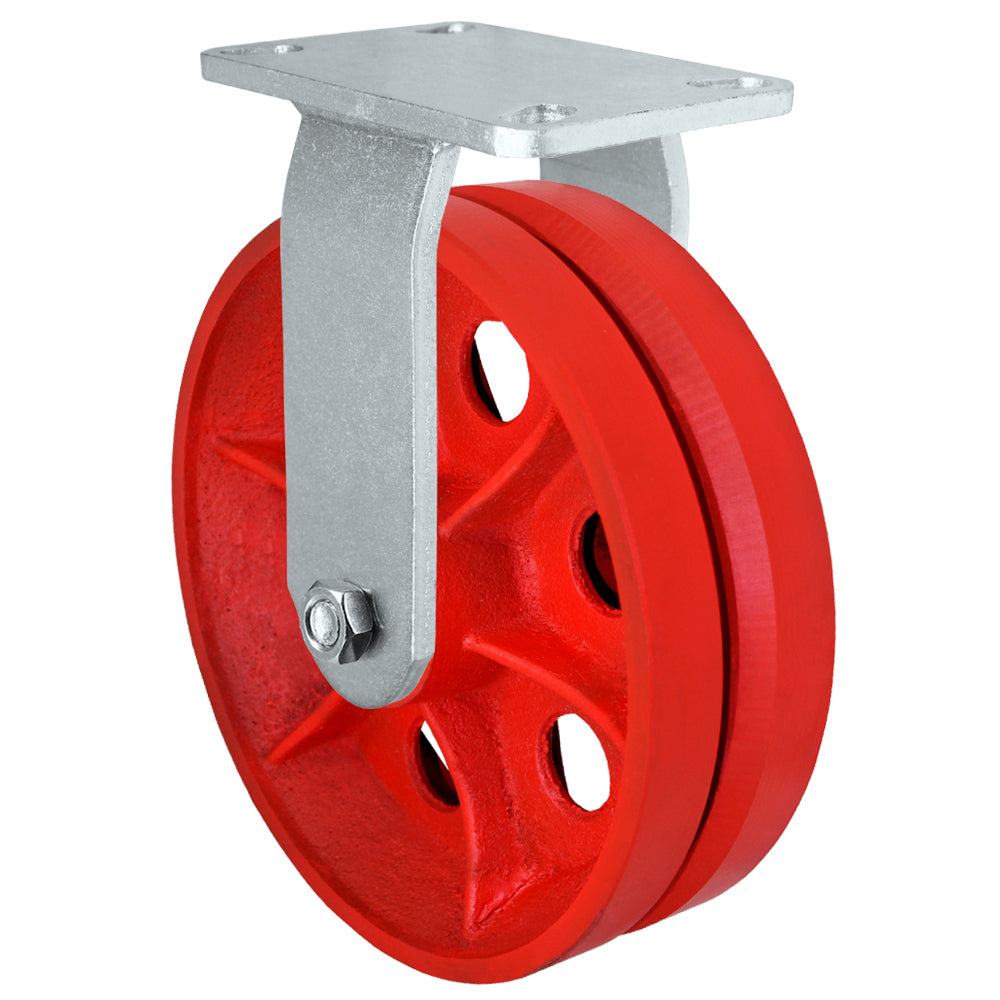

Swivel turns 360 degrees. Swivel + face-contact brake adds a foot-operated brake that presses on the wheel face. The brake is not shown in the photo. Where the photo shows a swivel caster, the brake is not pictured. Rigid rolls straight only.

Top plate is 4-1/2 x 6-1/4 in. with slotted holes for 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4 in. bolt patterns, 1/2 in. bolts.
