Heavy Duty Kingpinless Semi-Steel Plate Caster 6 to 12 in. x 3 in. Wheel, 4-1/2 x 6-1/4 in. Plate, 2,500 to 3,500 lb
Regular price
$120
Regular price
Sale price
$120
Unit price
per
Shipping calculated at checkout.
- In stock. Ships same or next business day from Kansas City, MO or Dallas, TX.
- Any quantity, no minimum. Shipping · 30-day returns · 3-year warranty
Specifications
SKU 91CS630SS25S-04
- Brand
- CasterHQ
- Series
- 91 Series
- Type
- Swivel
- Load capacity
- 2500 lb per caster
- Wheel diameter
- 6"
- Tread width
- 3"
- Wheel
- Semi-steel (cast iron)
- Wheel color
- Silver
- Overall height
- 7-1/2"
- Axle diameter
- 3/4"
- Mounting
- Top plate
- Top plate size
- 4-1/2 x 6-1/4"
- Bolt hole spacing
- 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4"
- Mounting bolt size
- 1/2"
- Bearing
- 1 in. roller with spanner bushing
- Swivel radius
- 4-5/16"
- Finish
- Zinc plated
- Approx. weight
- 29.25 lb each
- Warranty
- 3 years, defects in materials and workmanship
Tap to enlarge
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Weight | Price |
|---|---|---|---|---|
| 6" x 3" | 2500 lb | 7-1/2" | 29.25 lb | $120 |
| 8" x 3" | 2500 lb | 10-1/8" | 31.5 lb | $133 |
| 10" x 3" | 3000 lb | 11-1/2" | 35.75 lb | $159 |
| 12" x 3" | 3500 lb | 13-1/2" | 41.25 lb | $163 |
| 6" x 3" | 2500 lb | 7-1/2" | 27.75 lb | $102 |
| 8" x 3" | 2500 lb | 10-1/8" | 29.75 lb | $113 |
| 10" x 3" | 3000 lb | 11-1/2" | 34.25 lb | $135 |
| 12" x 3" | 3500 lb | 13-1/2" | 39.5 lb | $139 |
| 6" x 3" | 2500 lb | 7-1/2" | 31.5 lb | $194 |
| 8" x 3" | 2500 lb | 10-1/8" | 33.5 lb | $207 |
| 10" x 3" | 3000 lb | 11-1/2" | 38 lb | $233 |
| 12" x 3" | 3500 lb | 13-1/2" | 43.25 lb | $237 |
Will it carry my load?
Enter your total weight to check the selected size.

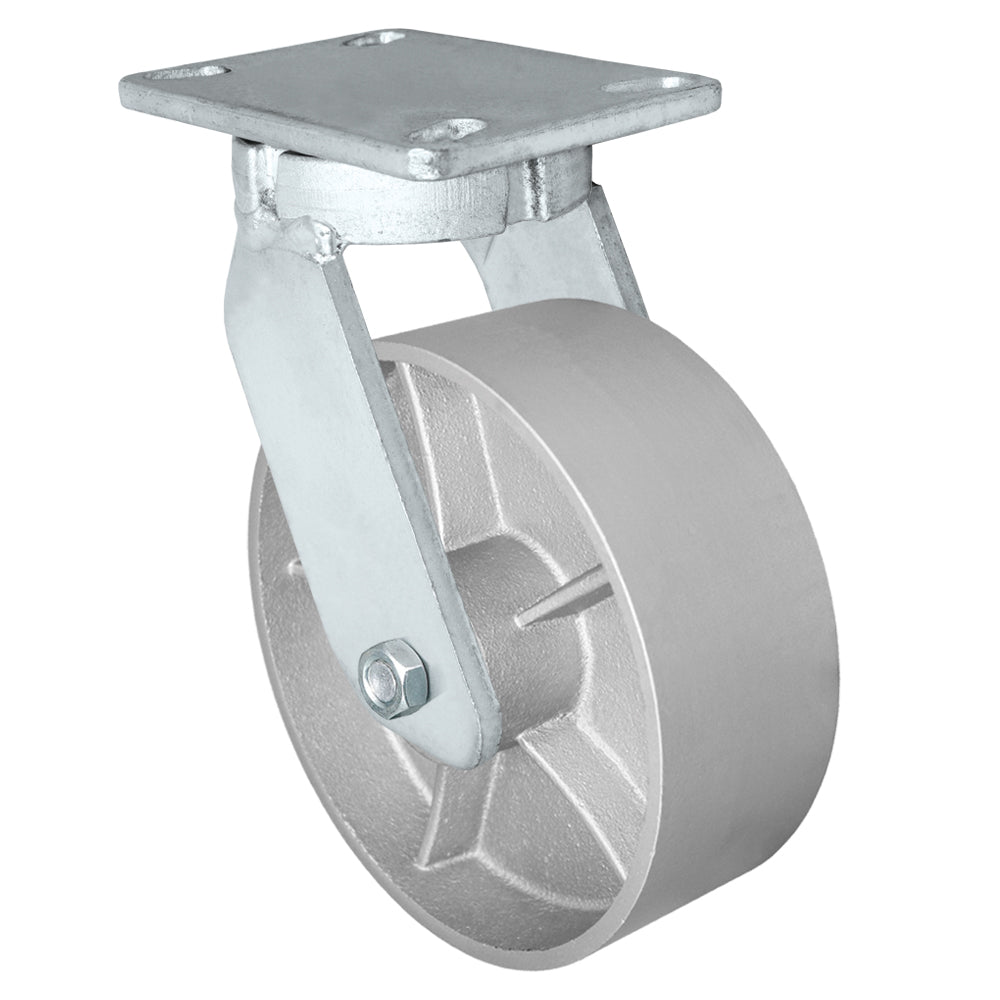

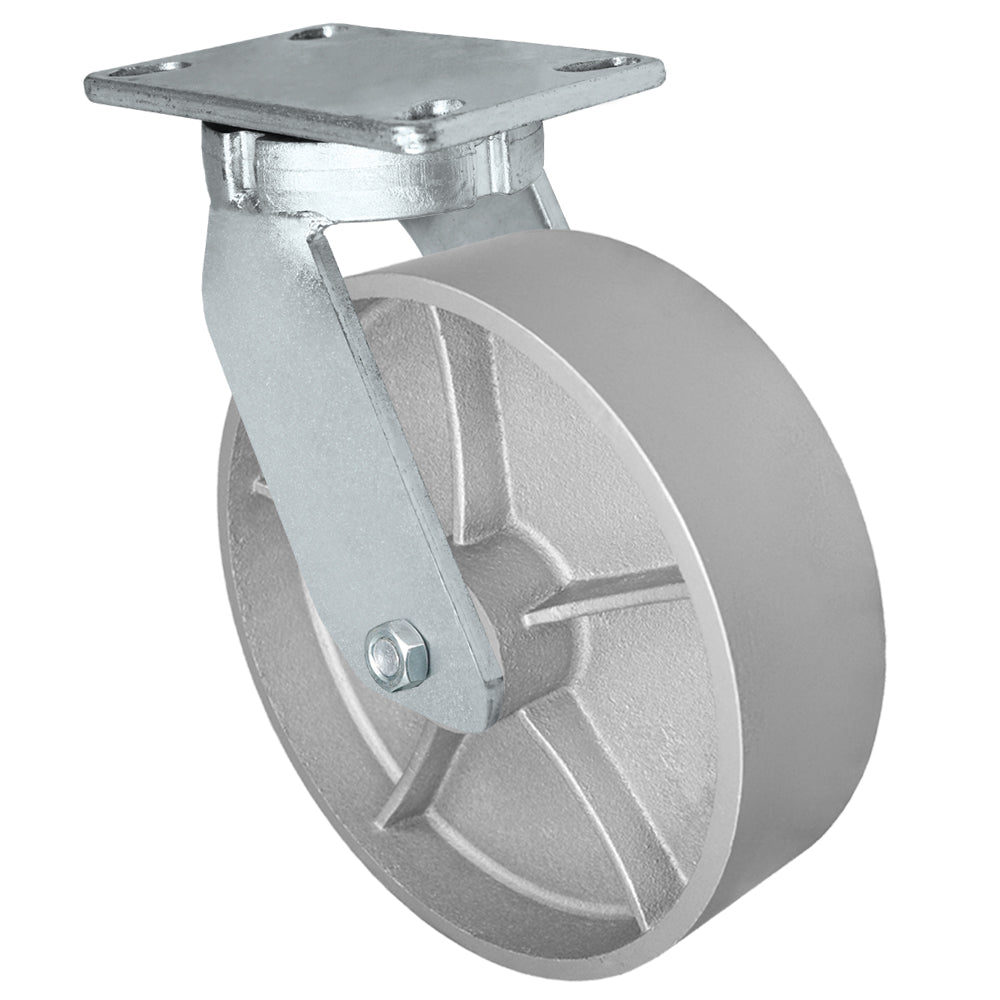

3 in. wide kingpinless caster with a semi-steel (cast iron) wheel. Rated 2,500 to 3,500 lb per caster depending on wheel size.

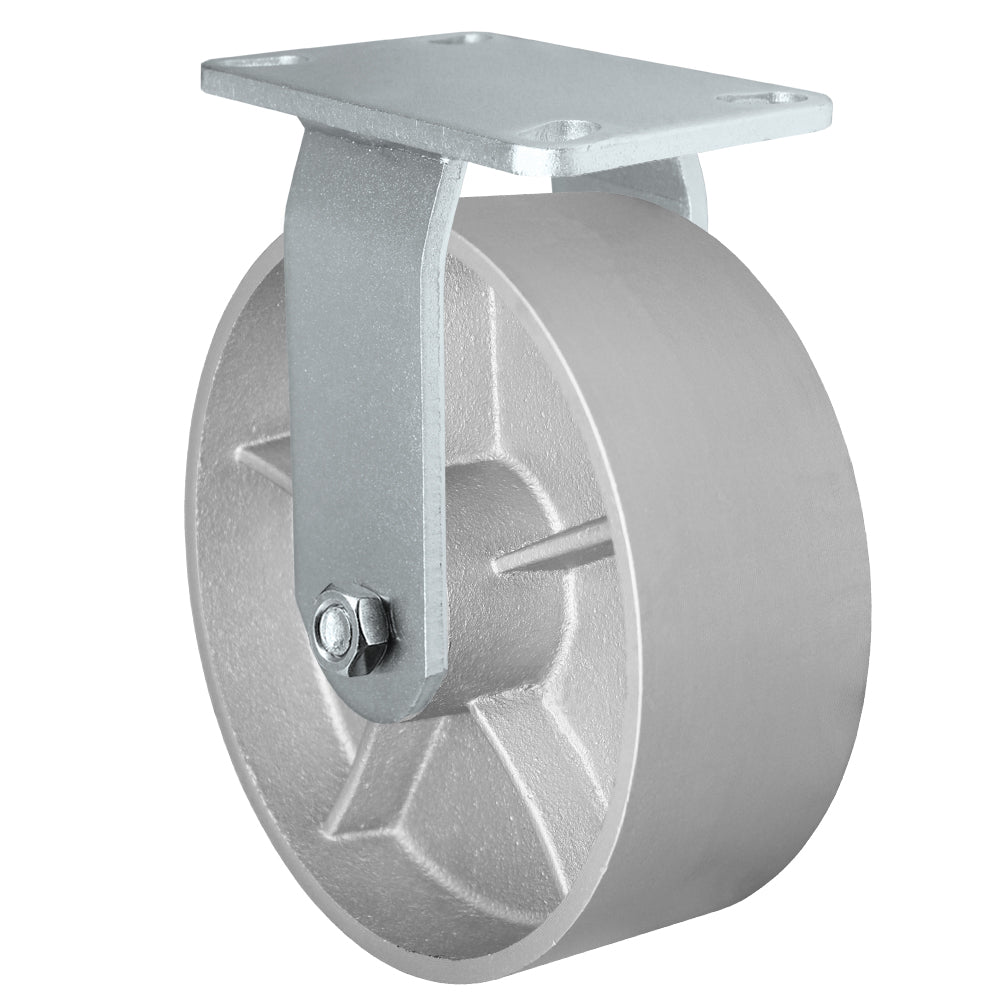

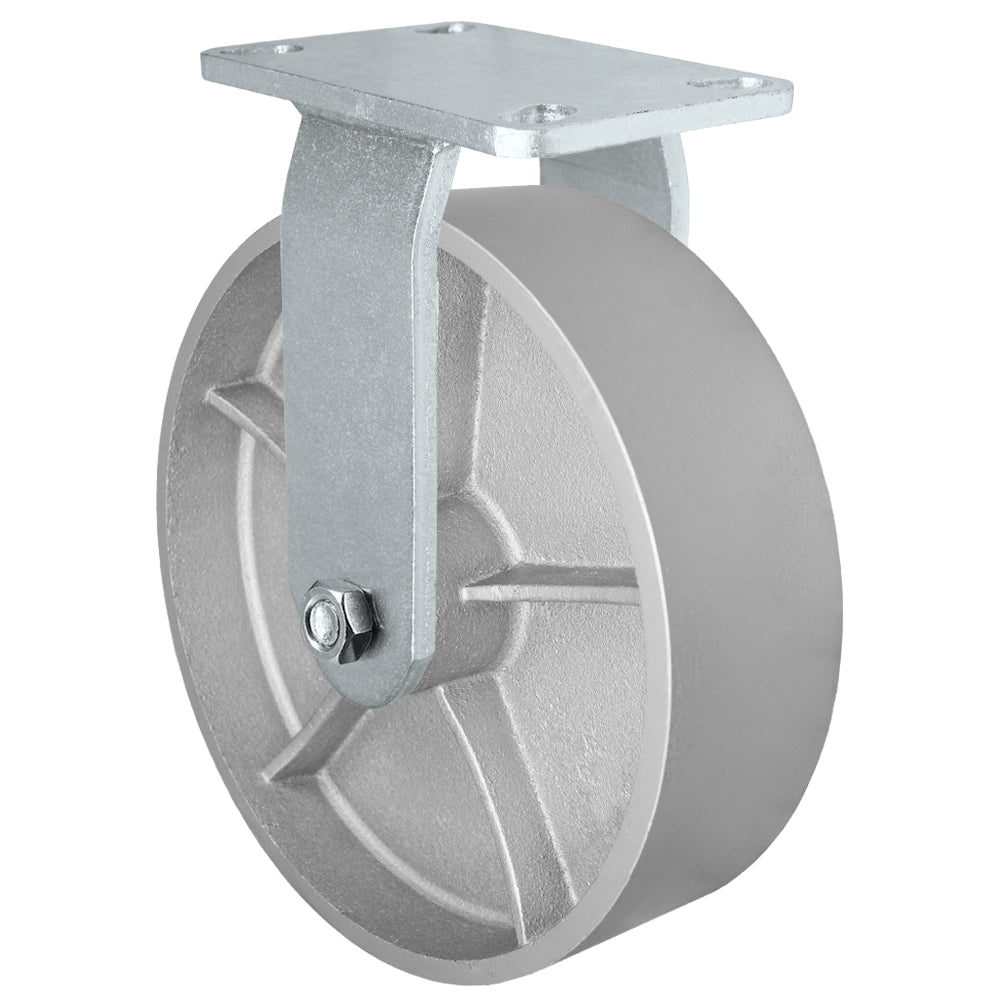

Swivel turns 360 degrees. Swivel + face-contact brake adds a foot-operated brake that presses on the wheel face. The brake is not shown in the photo. Where the photo shows a swivel caster, the brake is not pictured. Rigid rolls straight only.
Top plate is 4-1/2 x 6-1/4 in. with slotted holes for 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4 in. bolt patterns, 1/2 in. bolts.
