45 Series · Plate caster · CasterHQ

Heavy Duty Kingpinless Semi-Steel Plate Caster 4 to 8 in. x 2 in. Wheel, 2 Plate Sizes, 700 to 1,400 lb

Regular price $52
Regular price Sale price $52
Sale Sold out
Shipping calculated at checkout.
Type
Wheel size
Plate size
SpecificationsSKU 45CS420SS23S-03
Brand
CasterHQ
Series
45 Series
Type
Swivel
Load capacity
700 lb per caster
Wheel diameter
4"
Tread width
2"
Wheel
Semi-steel (cast iron)
Wheel color
Silver
Overall height
5-5/8"
Axle diameter
1/2"
Mounting
Top plate
Top plate size
4 x 4-1/2"
Bolt hole spacing
2-5/8 x 3-5/8 to 3 x 3"
Mounting bolt size
3/8"
Bearing
3/4 in. roller with spanner bushing
Swivel radius
3-1/8"
Finish
Zinc plated
Approx. weight
10.5 lb each
Warranty
1 year, defects in materials and workmanship
Top plate 4 x 4-1/2 in. with bolt hole spacing Tap to enlarge
Measure your bolt holes center to center and match them to this plate.
Top plate diagram, full size
Sizes · Swivelcapacity is per caster
SizeCapacityHeightWeightPrice

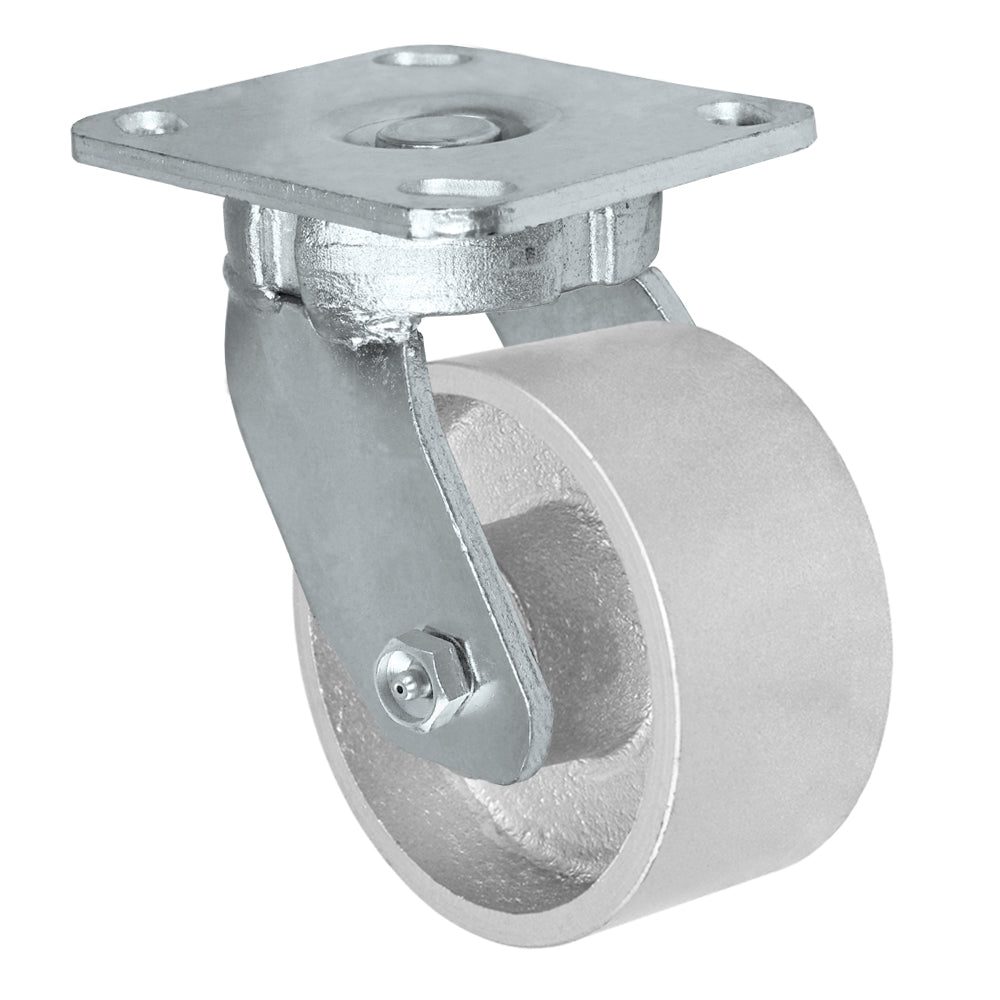

4" x 2" 700 lb 5-5/8" 10.5 lb $52
5" x 2" 1000 lb 6-1/2" 12.5 lb $58

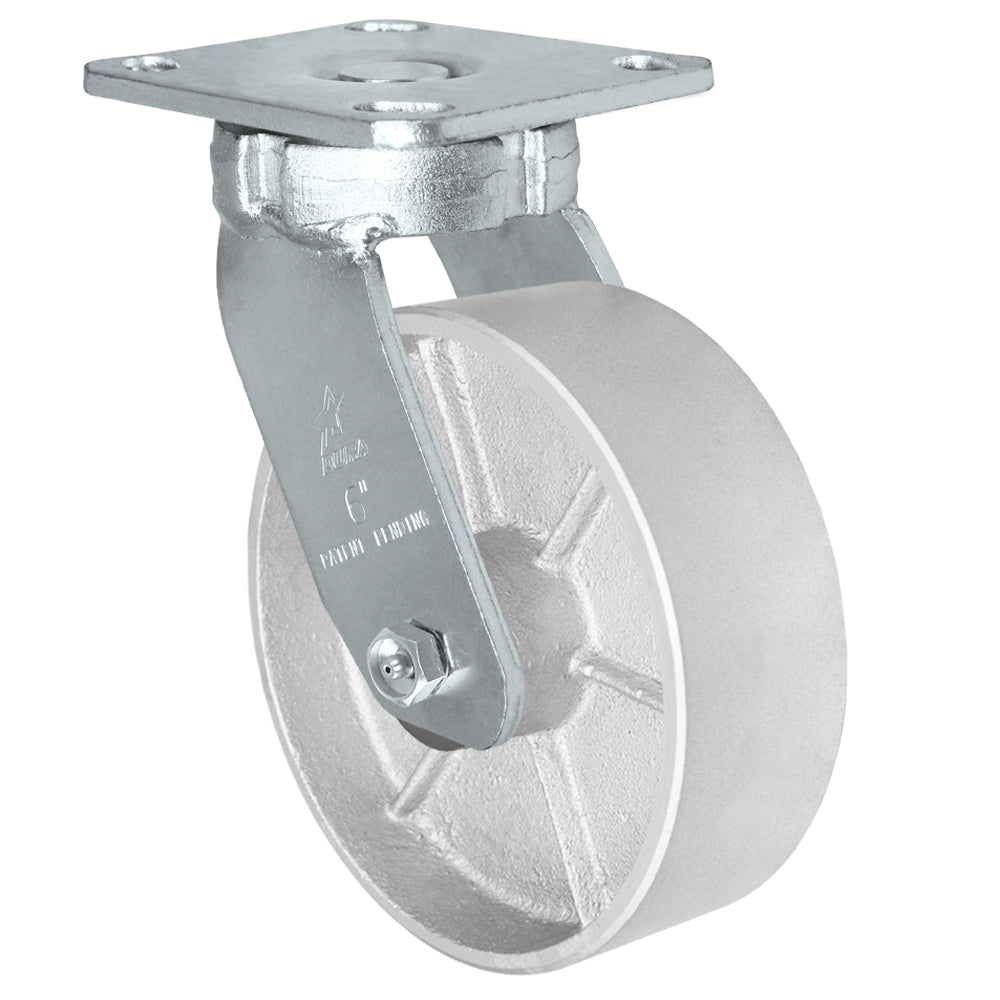

6" x 2" 1200 lb 7-1/2" 13 lb $59

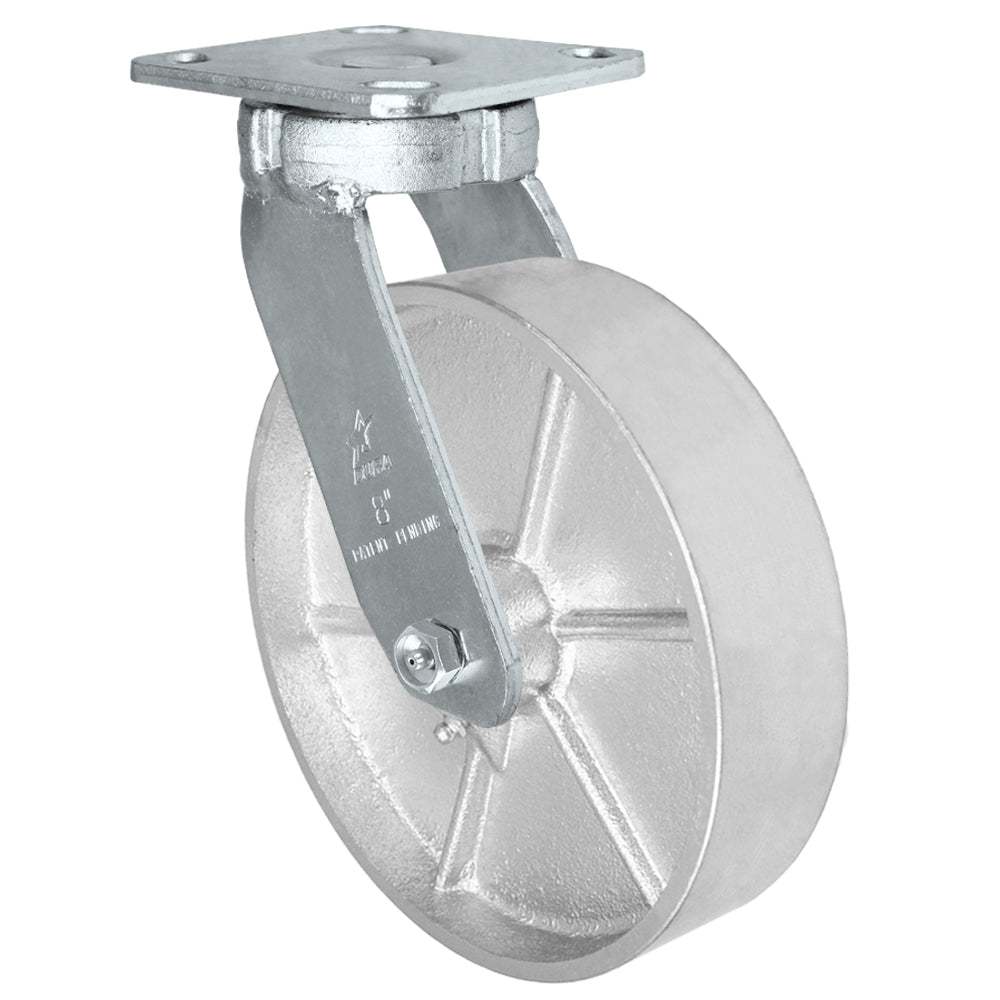

8" x 2" 1400 lb 9-1/2" 15.75 lb $61

Will it carry my load?

Enter your total weight to check the selected size.

2 in. wide kingpinless caster with a semi-steel (cast iron) wheel. Rated 700 to 1,400 lb per caster depending on wheel size.

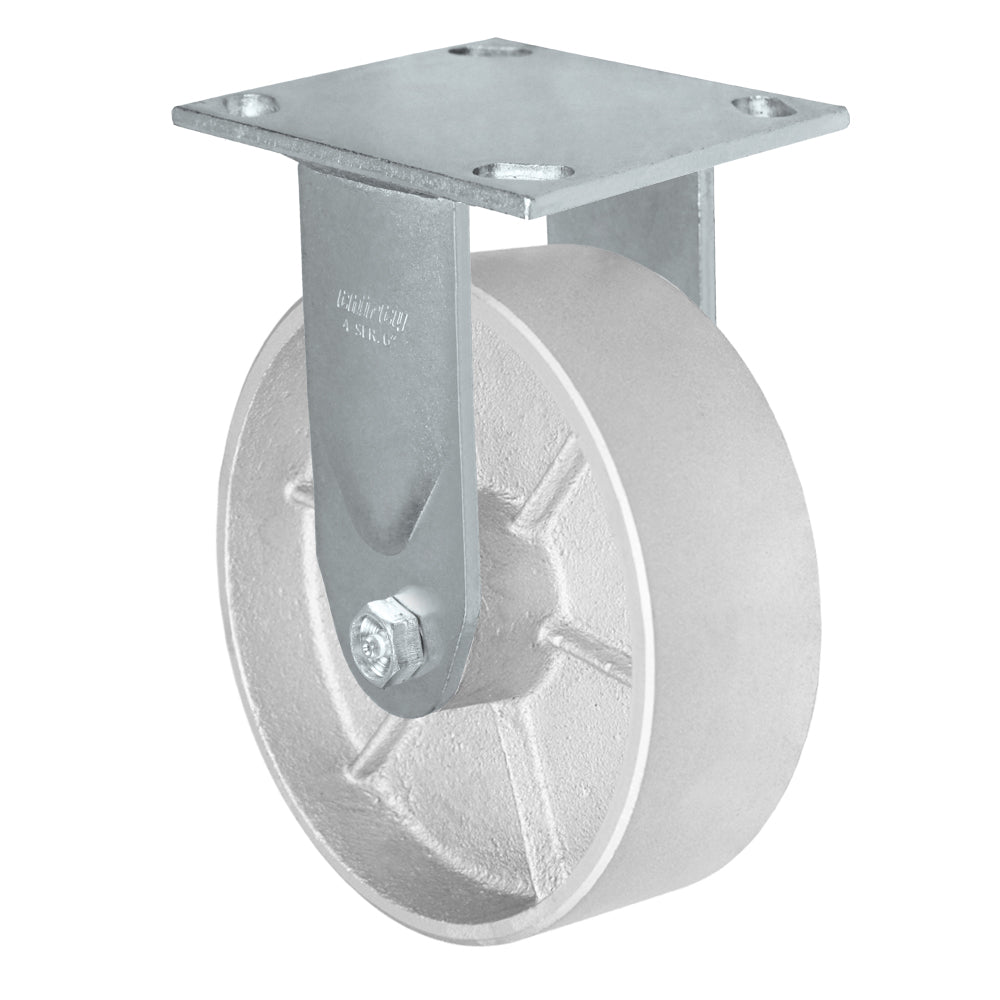

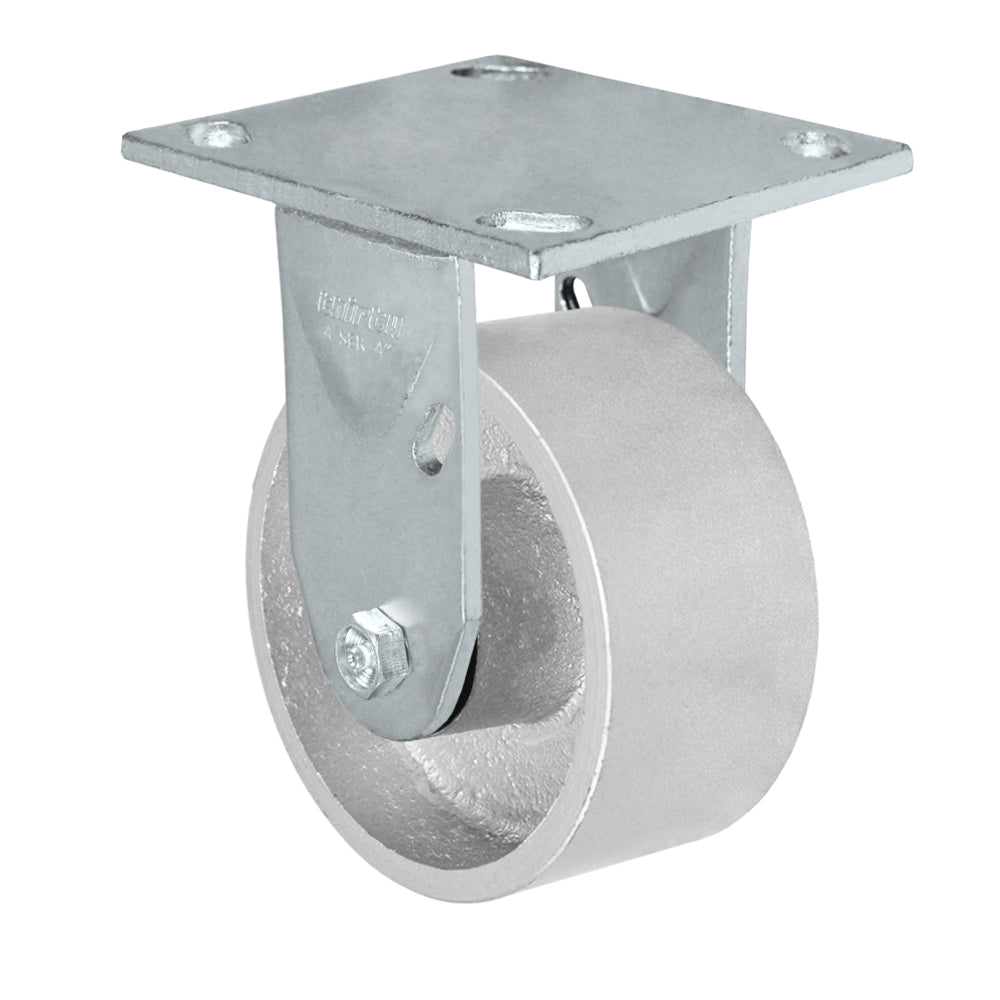

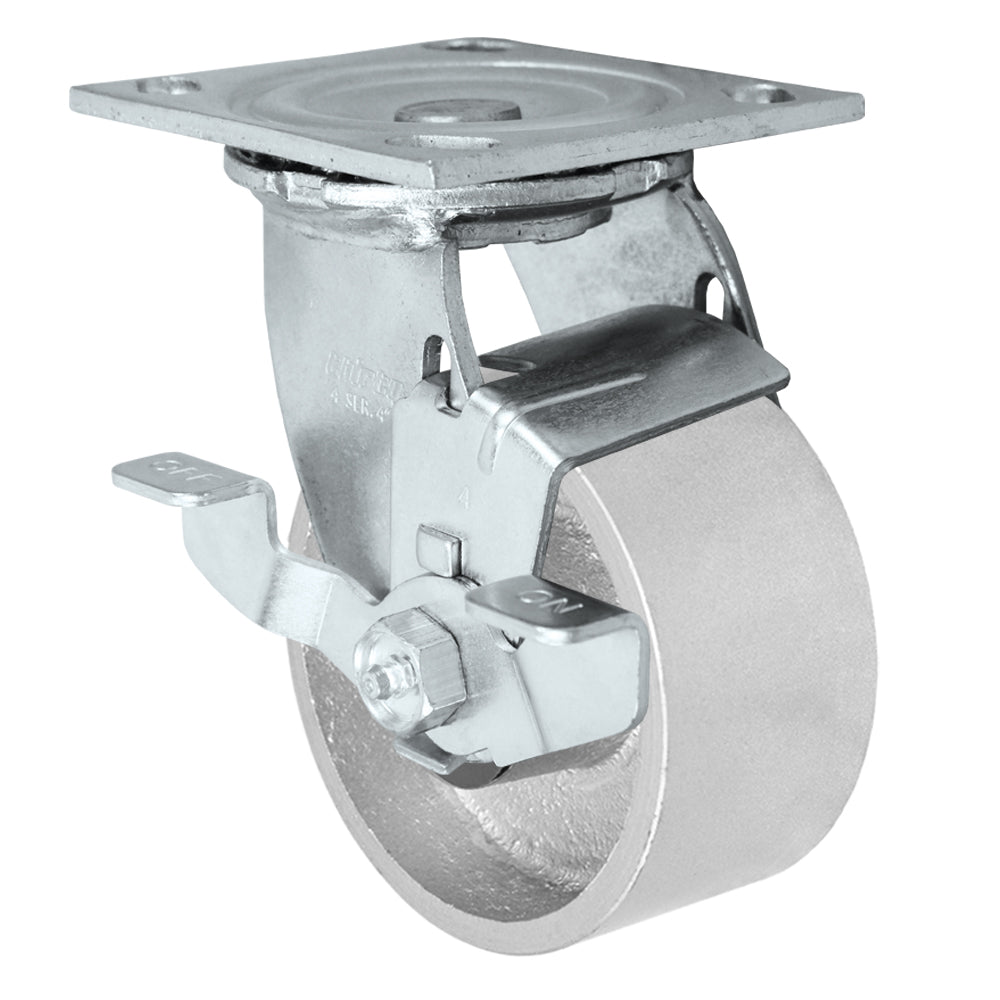

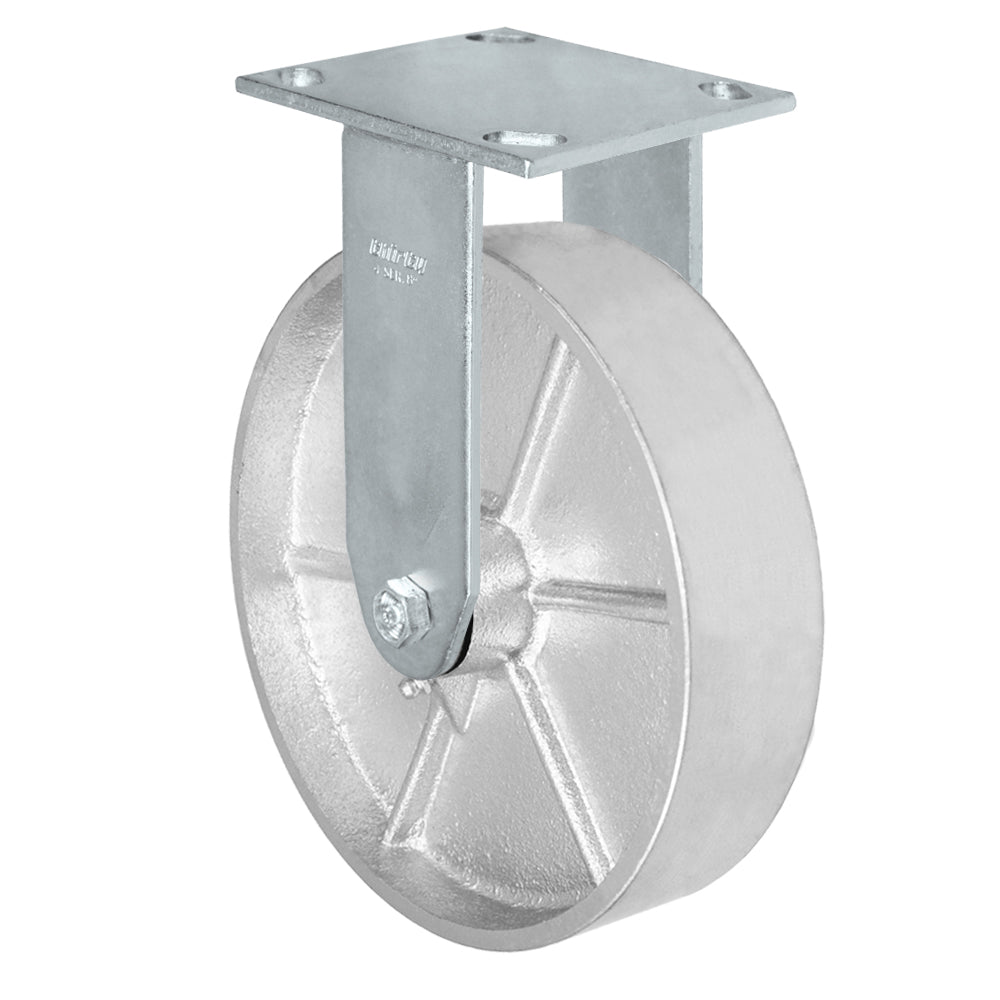

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Rigid rolls straight only.

Choose your plate: 4 x 4-1/2 in. (bolts 2-5/8 x 3-5/8 to 3 x 3, 3/8 in.); 4-1/2 x 6-1/4 in. (bolts 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4, 1/2 in.). Photos show the 4 x 4-1/2 in. plate.

View full details

Free CAD & 3D model

45CS420SS23S-03

Heavy Duty Kingpinless Semi-Steel Plate Caster CAD model (45CS420SS23S-03): free STEP, IGES, DWG, DXF and STL downloads plus a 3D GLB model and a dimensioned drawing (PDF). No login, no email.

Browse all caster CAD models ›
Loading 3D model…

Drag to rotate. Tap a dimension to see it on the model and drawing.

Side elevation
OAH 5-5/8"DIA 4"DIA 4"
Front elevation
WIDTH 2"
Top plate
4 4PLATE 4-1/2 3-5/8 2-5/8SLOTTED TO 3 x 3
BHP 2-5/8 x 3-5/8 to 3 x 3
OverstockCasters.com Part 45CS420SS23S-03 Model OSC-CAD-swivel-4x2-plate-0f0f61 Units in · third-angle · NTS © 2026 OverstockCasters.com. Free for design use. Redistribution or resale prohibited.
Download CADSTEP, IGES, DWG, DXF, STL, GLB, PDF · Free, no login

Free · No login, no email More CAD in the builder

Model matched to this part by spec: wheel diameter, tread width, overall height, mount and swivel geometry. The model's wheel material or color can differ. Reference only, not for fabrication.
