92 Series · Plate caster · CasterHQ

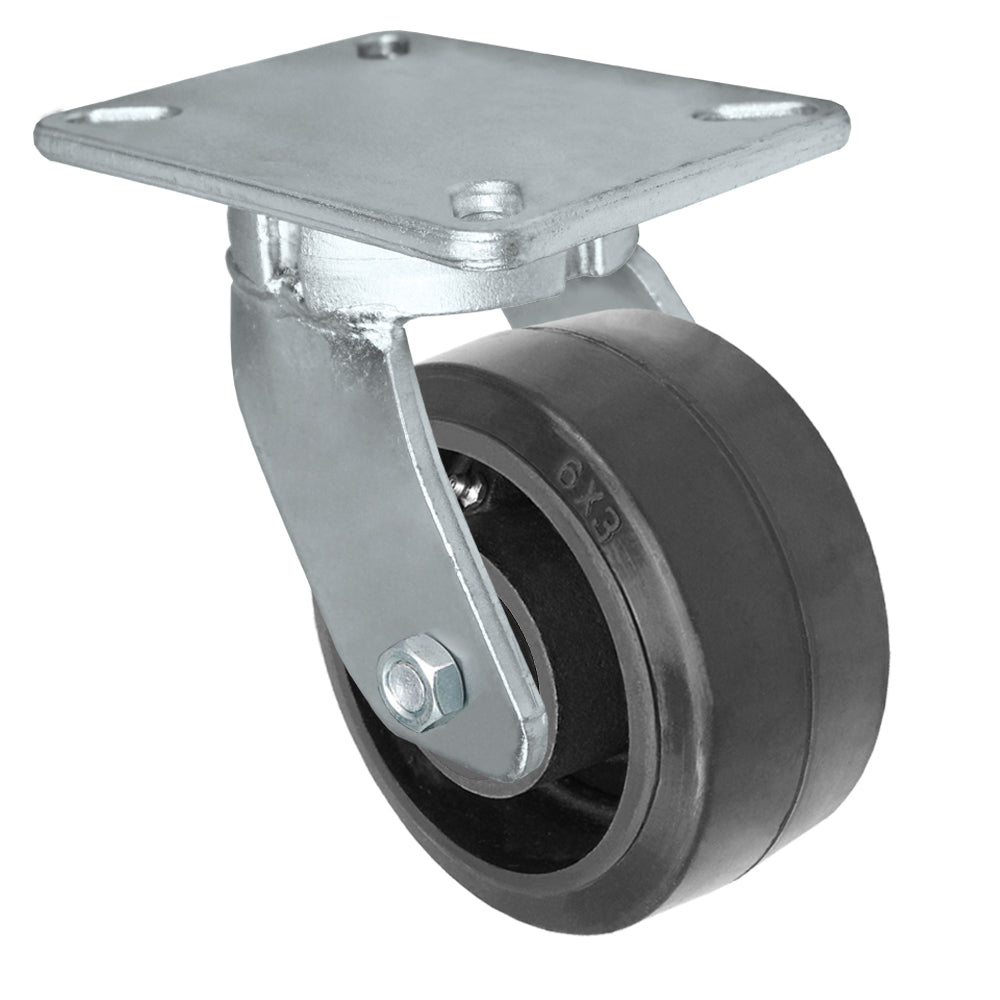

Heavy Duty Kingpinless Rubber on Steel Plate Caster 6 to 12 in. x 3 in. Wheel, 5-1/4 x 7-1/4 in. Plate, 750 to 1,300 lb

Regular price $109
Regular price Sale price $109
Sale Sold out
Shipping calculated at checkout.
Type
Wheel size
SpecificationsSKU 92CS630RS25B-06
Brand
CasterHQ
Series
92 Series
Type
Swivel
Load capacity
750 lb per caster
Wheel diameter
6"
Tread width
3"
Wheel
Mold-on rubber tread on steel core
Wheel color
Black
Overall height
8"
Axle diameter
3/4"
Mounting
Top plate
Top plate size
5-1/4 x 7-1/4"
Bolt hole spacing
3-3/8 x 5-1/4 to 4-1/8 x 6-1/8"
Mounting bolt size
1/2"
Bearing
1 in. roller with spanner bushing
Swivel radius
4-3/4"
Finish
Zinc plated
Approx. weight
28.25 lb each
Warranty
3 years, defects in materials and workmanship
Top plate diagram, full size
Sizes · Swivelcapacity is per caster
SizeCapacityHeightWeightPrice

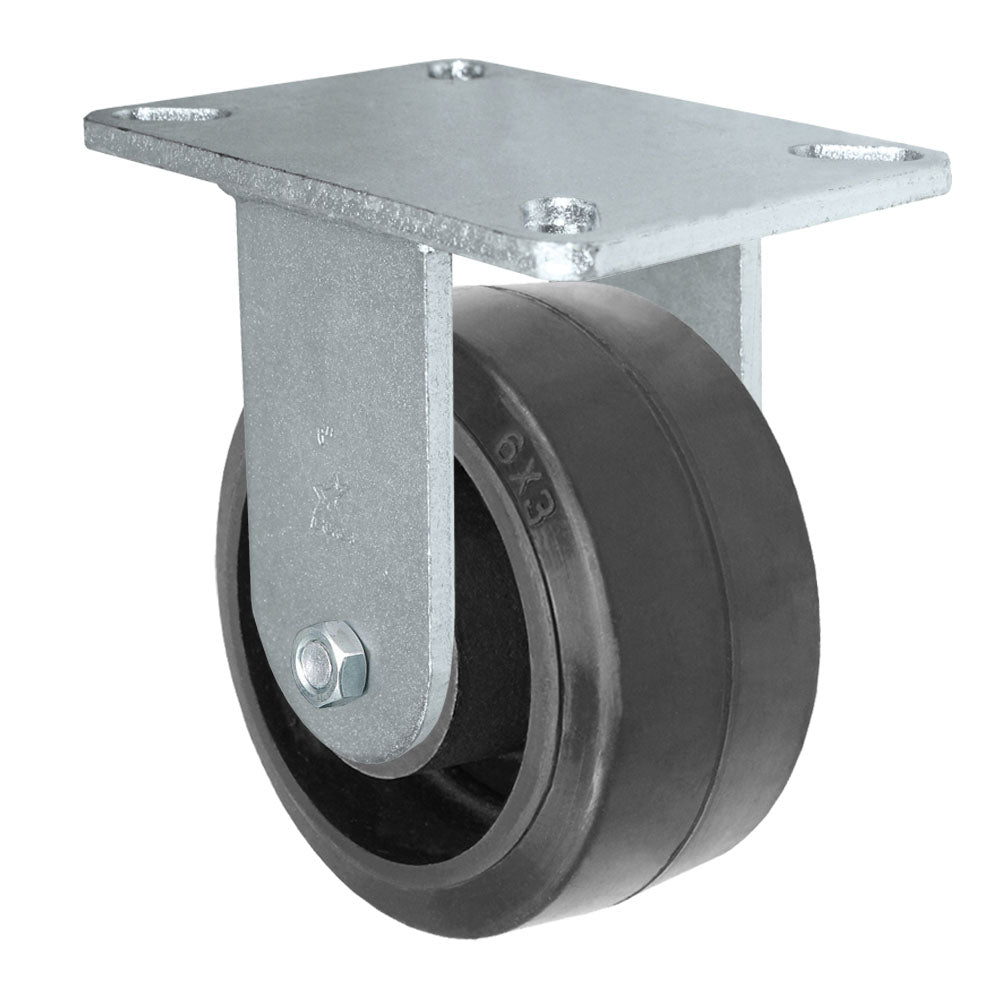

6" x 3" 750 lb 8" 28.25 lb $109

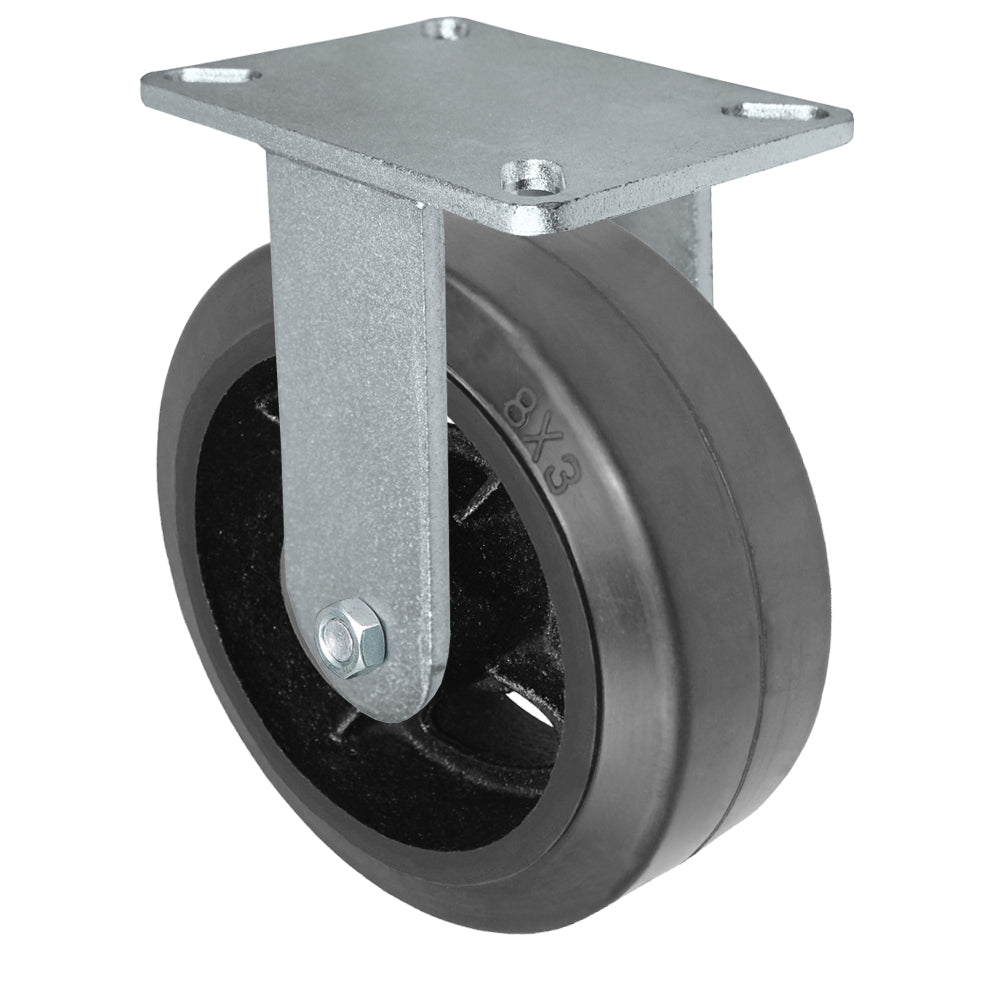

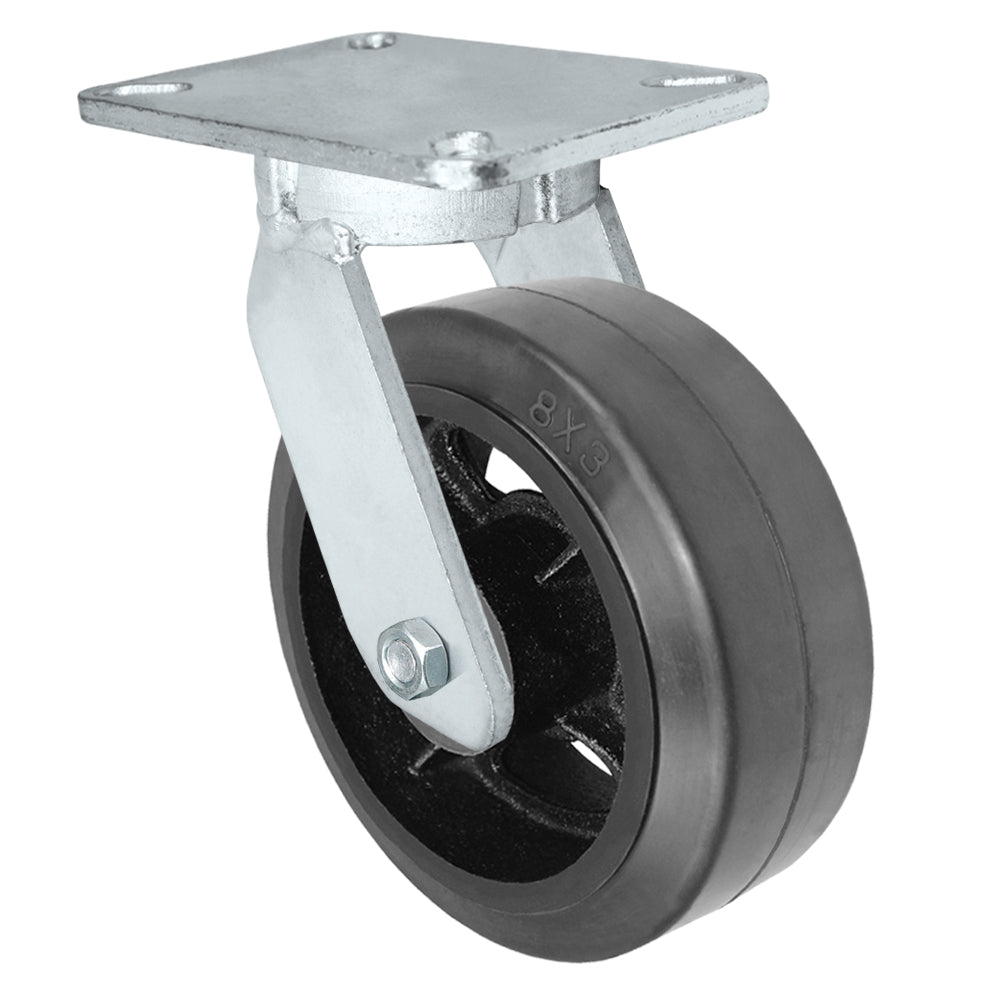

8" x 3" 900 lb 10-1/2" 30.25 lb $110

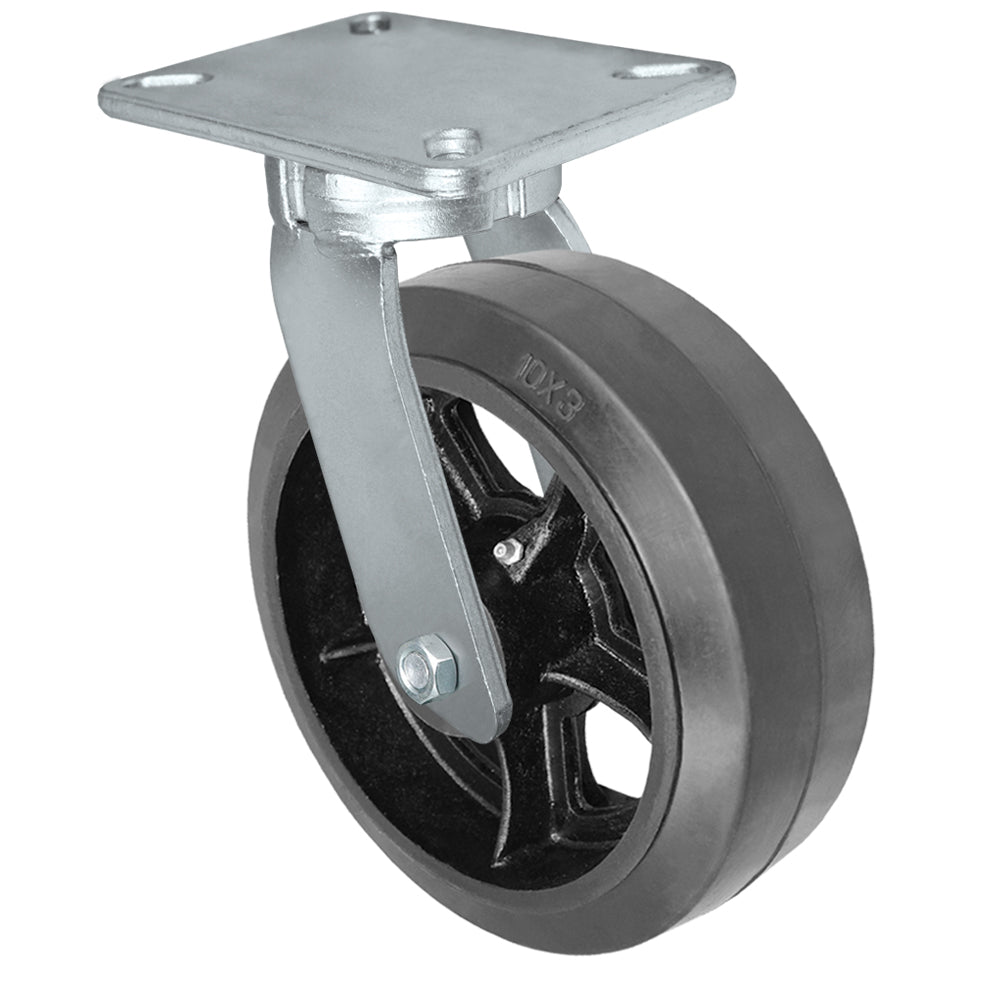

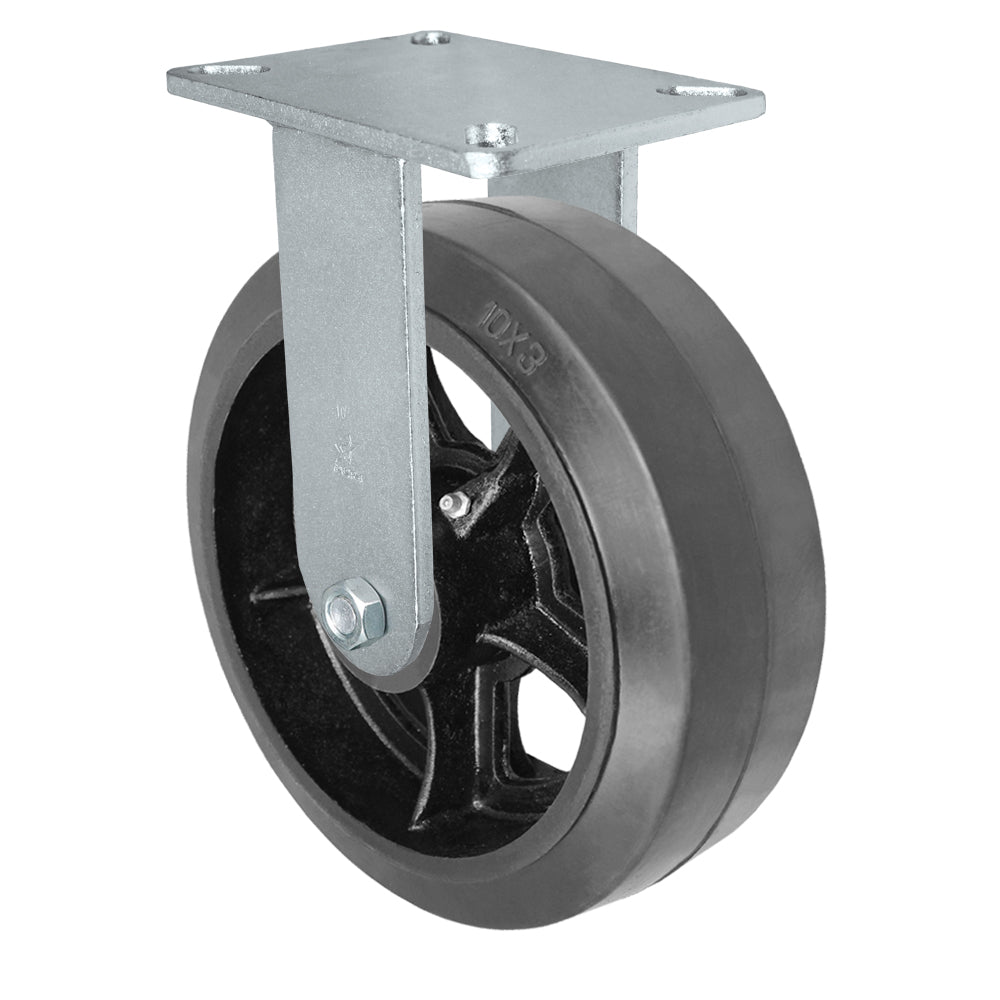

10" x 3" 1100 lb 12-1/2" 32.5 lb $121

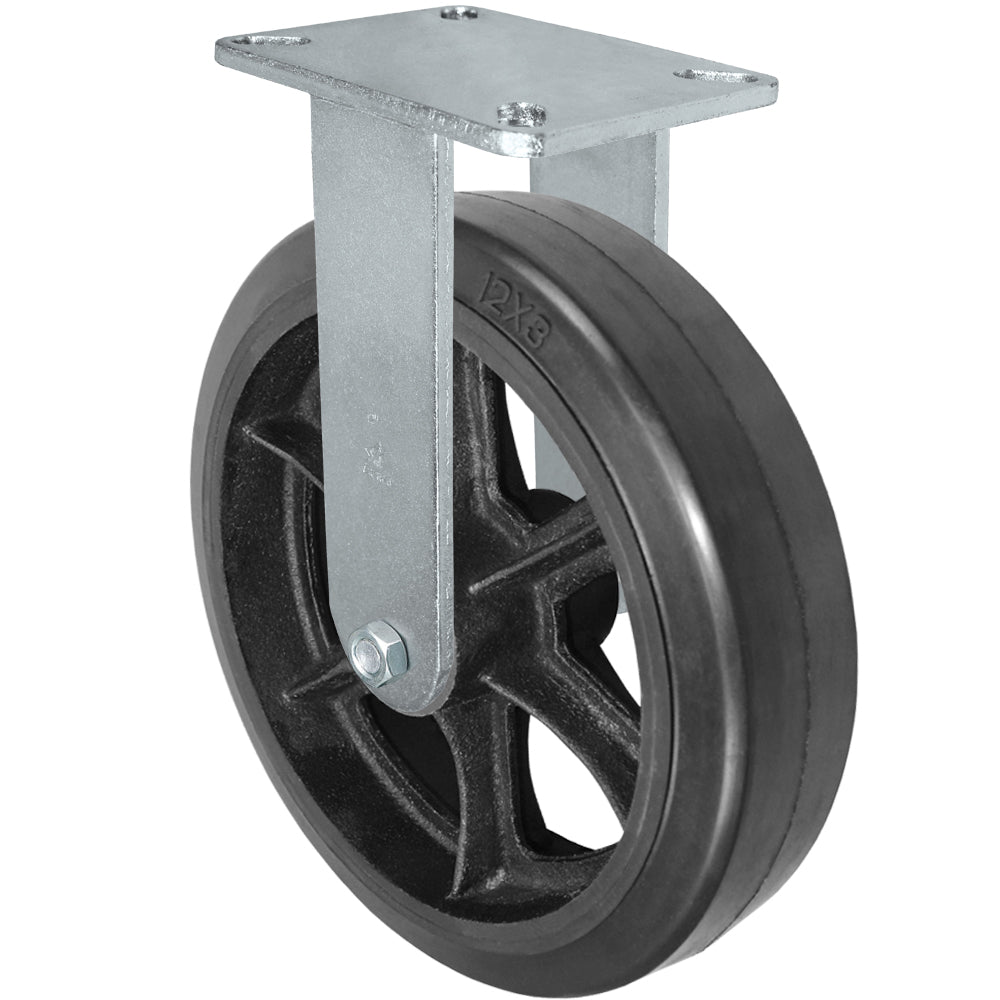

12" x 3" 1300 lb 15-1/2" 35.75 lb $140

Will it carry my load?

Enter your total weight to check the selected size.

3 in. wide kingpinless caster with a mold-on rubber tread on steel core wheel. Rated 750 to 1,300 lb per caster depending on wheel size.

Swivel turns 360 degrees. Swivel + face-contact brake adds a foot-operated brake that presses on the wheel face. The brake is not shown in the photo. Where the photo shows a swivel caster, the brake is not pictured. Rigid rolls straight only.

Top plate is 5-1/4 x 7-1/4 in. with slotted holes for 3-3/8 x 5-1/4 to 4-1/8 x 6-1/8 in. bolt patterns, 1/2 in. bolts.

View full details

Free CAD & 3D model

92CS630RS25B-06

Heavy Duty Kingpinless Rubber on Steel Plate Caster CAD model (92CS630RS25B-06): free STEP, IGES, DWG, DXF and STL downloads plus a 3D GLB model and a dimensioned drawing (PDF). No login, no email.

Browse all caster CAD models ›
Loading 3D model…

Drag to rotate. Tap a dimension to see it on the model and drawing.

Side elevation
OAH 8"DIA 6"DIA 6"
Front elevation
WIDTH 3"
Top plate
5-1/4 5-1/4PLATE 7-1/4 5-1/4 3-3/8SLOTTED TO 4-1/8 x 6-1/8
BHP 3-3/8 x 5-1/4 to 4-1/8 x 6-1/8
OverstockCasters.com Part 92CS630RS25B-06 Model OSC-CAD-swivel-6x3-kpl-ce9e9c Units in · third-angle · NTS © 2026 OverstockCasters.com. Free for design use. Redistribution or resale prohibited.
Download CADSTEP, IGES, DWG, DXF, STL, GLB, PDF · Free, no login

Free · No login, no email More CAD in the builder

Model matched to this part by spec: wheel diameter, tread width, overall height, mount and swivel geometry. Model adjusted to this part's specs (plate and bolt pattern). The model's wheel material or color can differ. Reference only, not for fabrication.
