91 Series · Plate caster · CasterHQ

Heavy Duty Kingpinless Rubber on Steel Plate Caster 6 to 12 in. x 3 in. Wheel, 4-1/2 x 6-1/4 in. Plate, 750 to 1,300 lb

Regular price $109
Regular price Sale price $109
Sale Sold out
Shipping calculated at checkout.
Type
Wheel size
SpecificationsSKU 91CS630RS25B-04
Brand
CasterHQ
Series
91 Series
Type
Swivel
Load capacity
750 lb per caster
Wheel diameter
6"
Tread width
3"
Wheel
Mold-on rubber tread on steel core
Wheel color
Black
Overall height
7-1/2"
Axle diameter
3/4"
Mounting
Top plate
Top plate size
4-1/2 x 6-1/4"
Bolt hole spacing
2-7/16 x 4-15/16 to 3-3/8 x 5-1/4"
Mounting bolt size
1/2"
Bearing
1 in. roller with spanner bushing
Swivel radius
4-5/16"
Finish
Zinc plated
Approx. weight
26 lb each
Warranty
3 years, defects in materials and workmanship
Top plate 4-1/2 x 6-1/4 in. with bolt hole spacing Tap to enlarge
Measure your bolt holes center to center and match them to this plate.
Top plate diagram, full size
Sizes · Swivelcapacity is per caster
SizeCapacityHeightWeightPrice

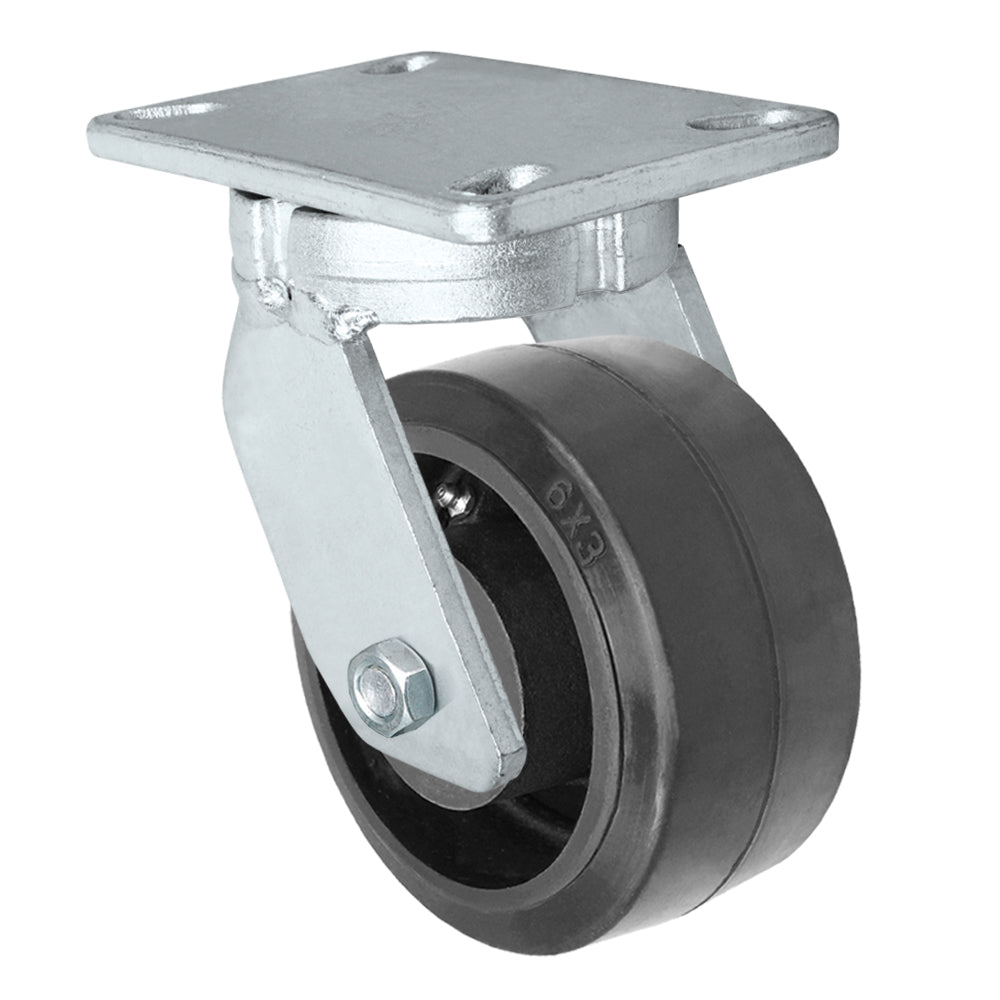

6" x 3" 750 lb 7-1/2" 26 lb $109
8" x 3" 900 lb 10-1/8" 28.25 lb $110

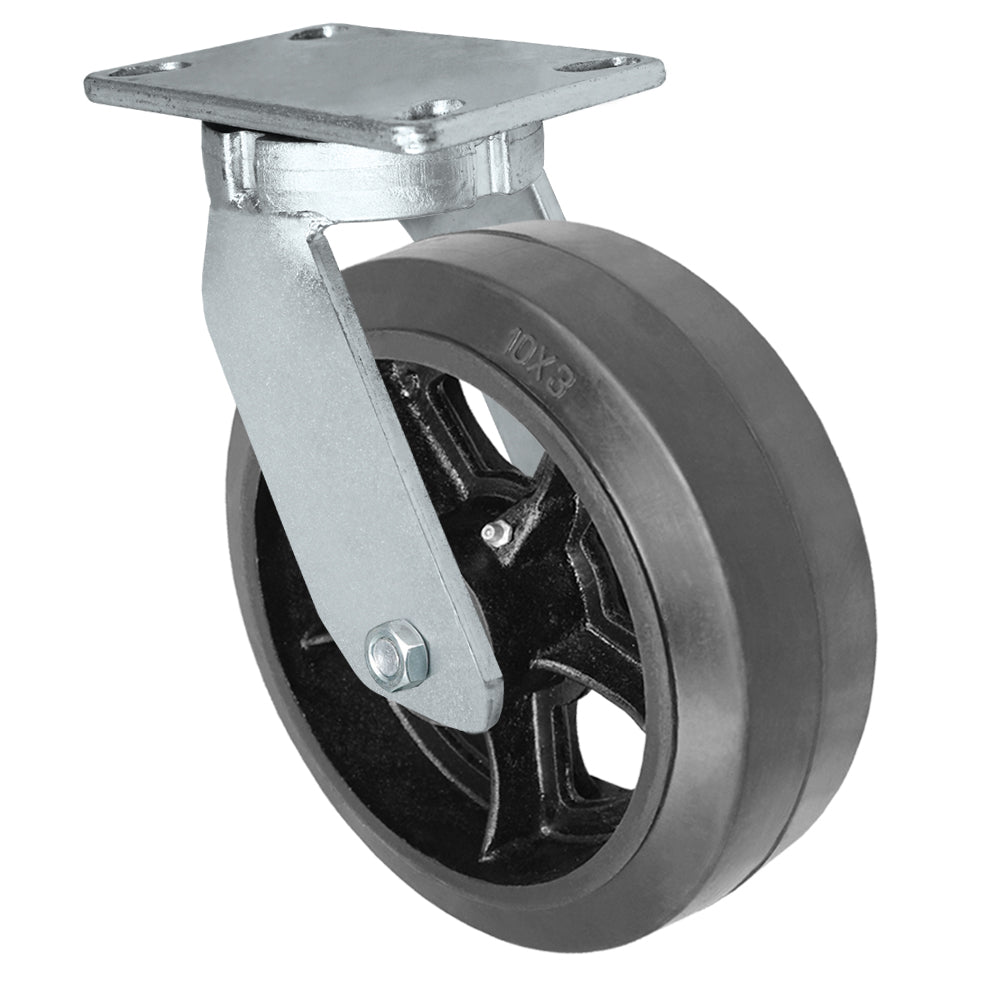

10" x 3" 1100 lb 11-1/2" 28.25 lb $121

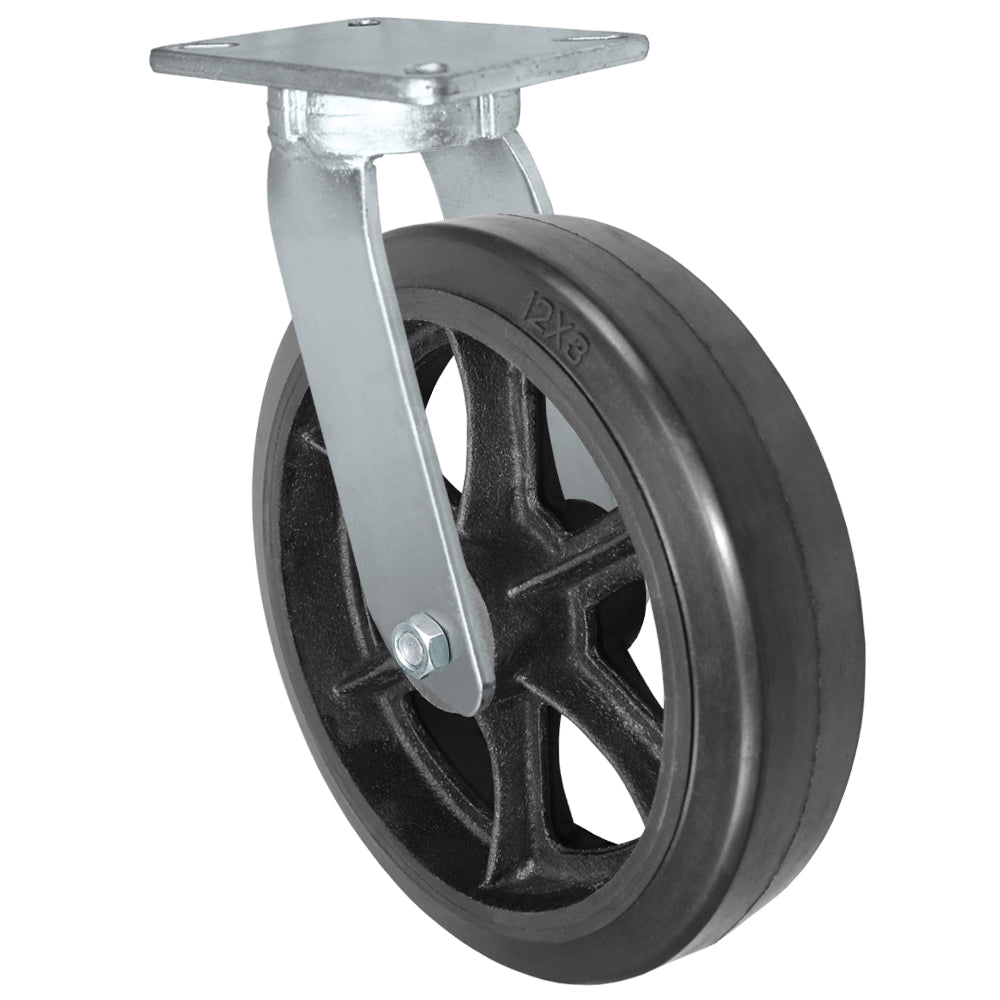

12" x 3" 1300 lb 13-1/2" 32.5 lb $140

Will it carry my load?

Enter your total weight to check the selected size.

3 in. wide kingpinless caster with a mold-on rubber tread on steel core wheel. Rated 750 to 1,300 lb per caster depending on wheel size.

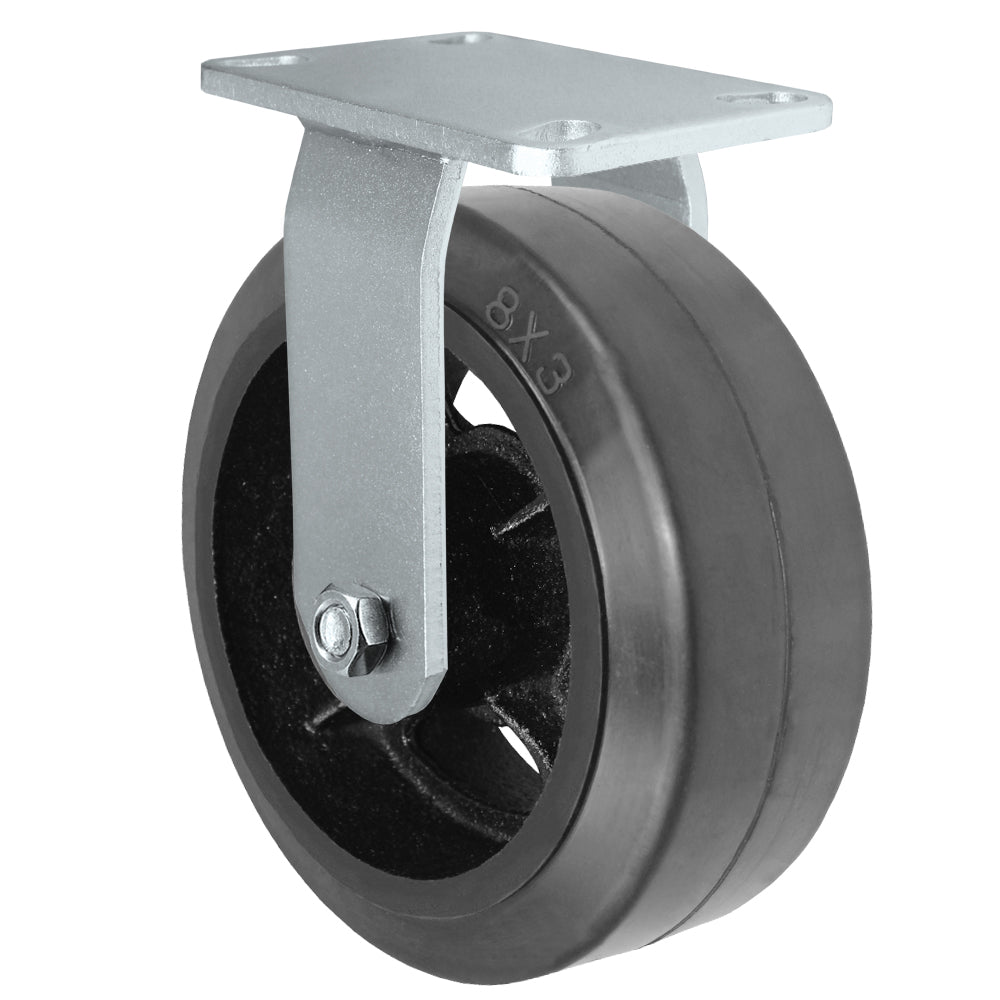

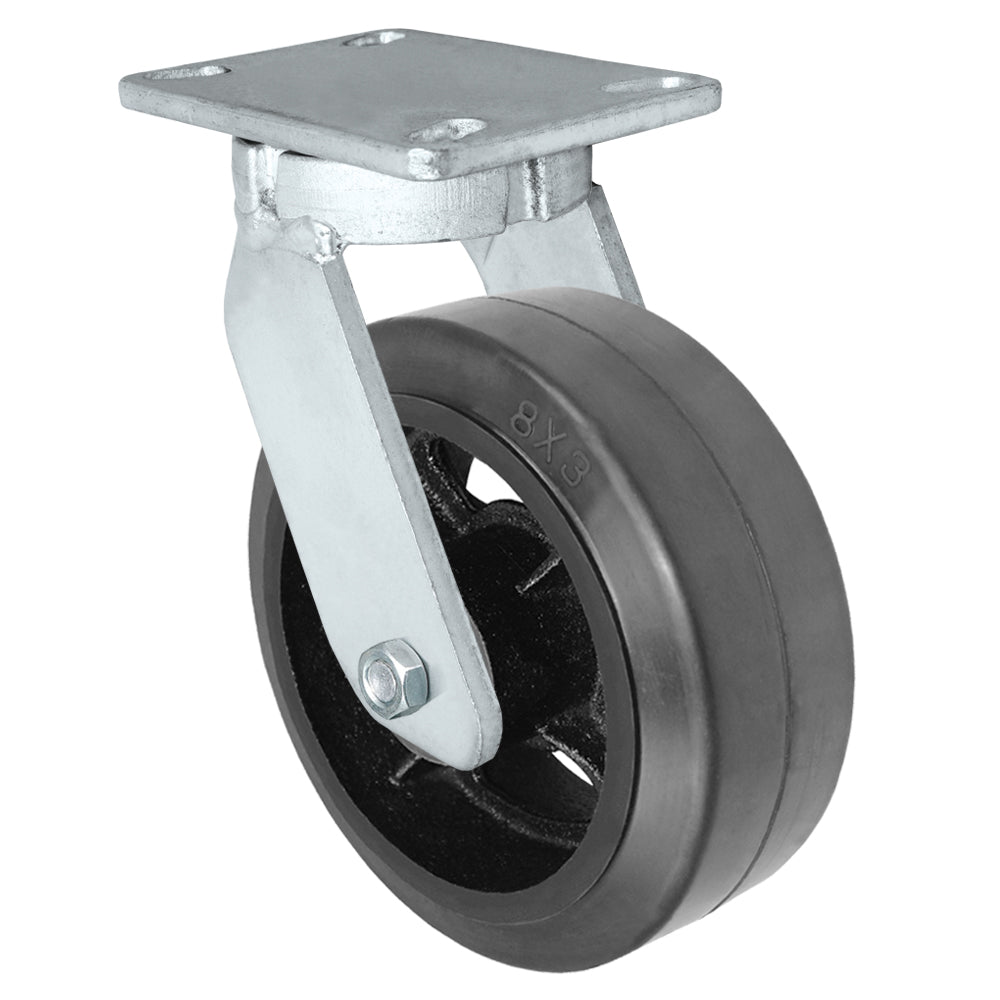

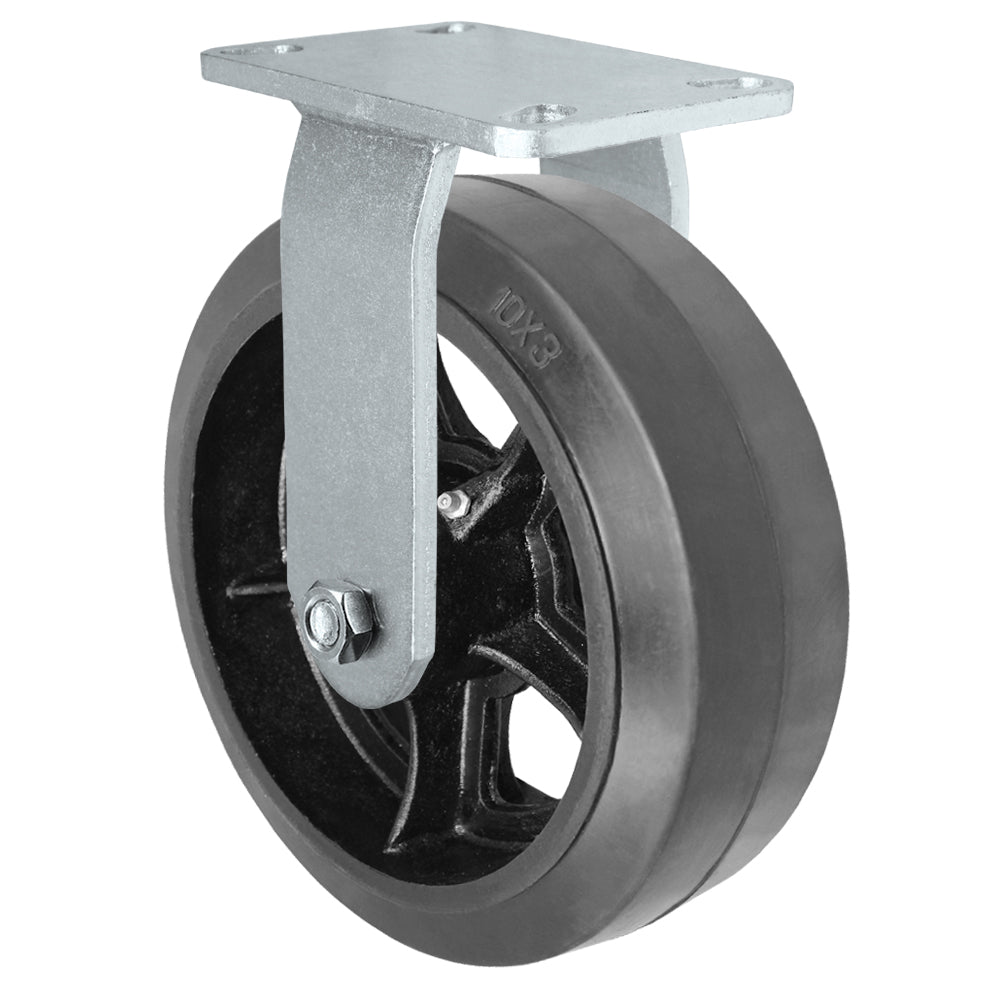

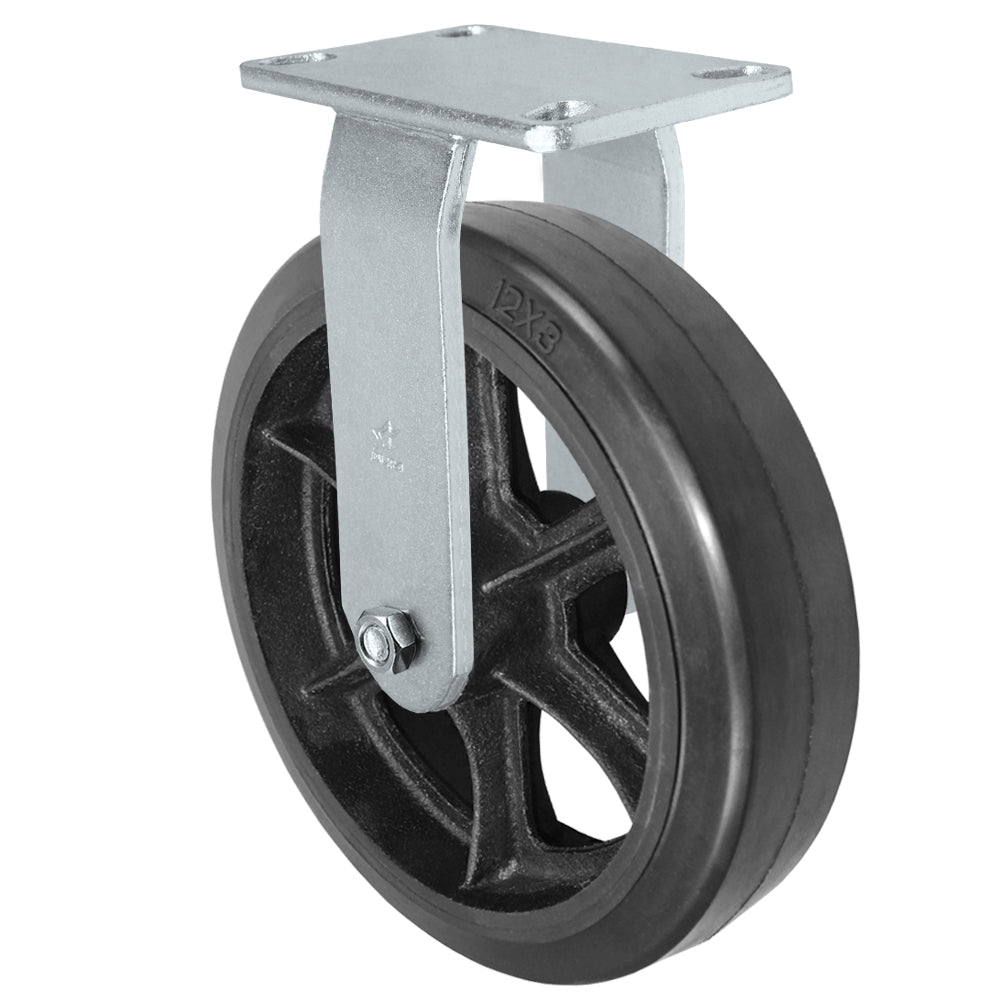

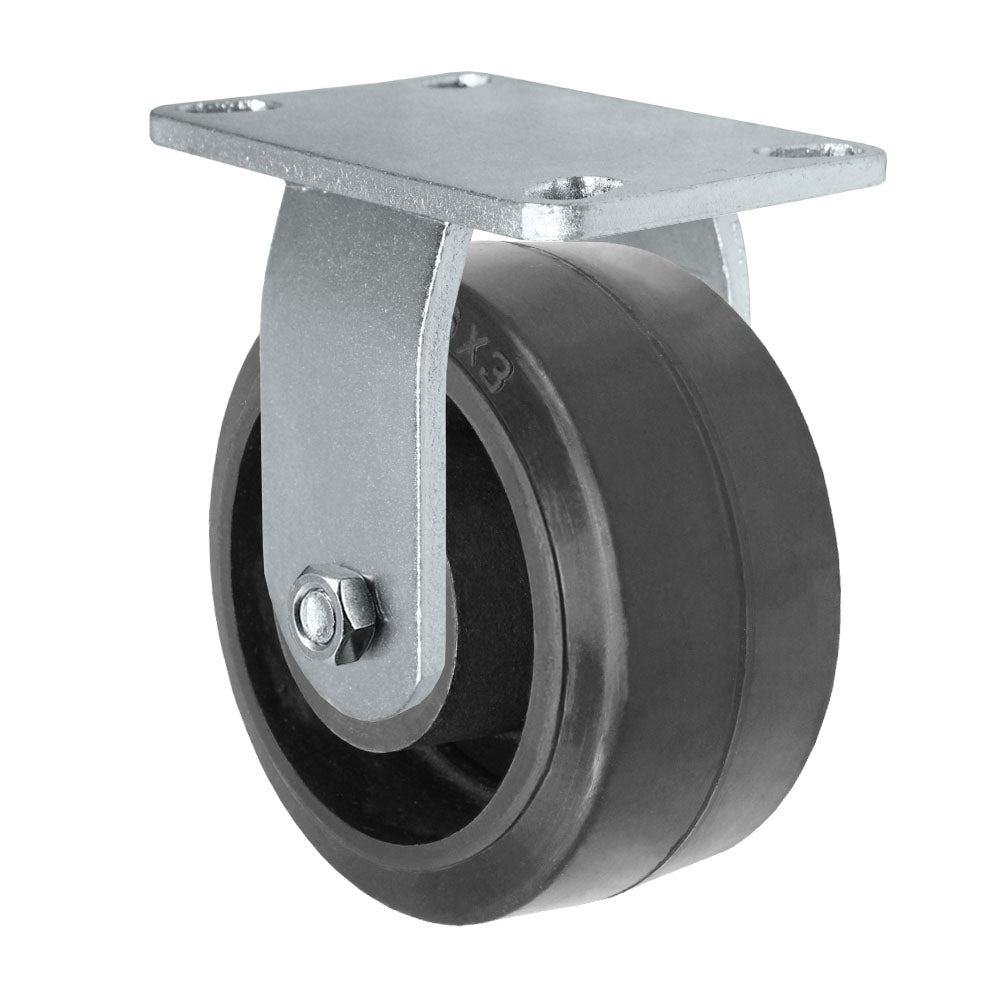

Swivel turns 360 degrees. Swivel + face-contact brake adds a foot-operated brake that presses on the wheel face. The brake is not shown in the photo. Where the photo shows a swivel caster, the brake is not pictured. Rigid rolls straight only.

Top plate is 4-1/2 x 6-1/4 in. with slotted holes for 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4 in. bolt patterns, 1/2 in. bolts.

View full details

Free CAD & 3D model

91CS630RS25B-04

Heavy Duty Kingpinless Rubber on Steel Plate Caster CAD model (91CS630RS25B-04): free STEP, IGES, DWG, DXF and STL downloads plus a 3D GLB model and a dimensioned drawing (PDF). No login, no email.

Browse all caster CAD models ›
Loading 3D model…

Drag to rotate. Tap a dimension to see it on the model and drawing.

Side elevation
OAH 7-1/2"DIA 6"DIA 6"
Front elevation
WIDTH 3"
Top plate
4-1/2 4-1/2PLATE 6-1/4 4-15/16 2-7/16SLOTTED TO 3-3/8 x 5-1/4
BHP 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4
OverstockCasters.com Part 91CS630RS25B-04 Model OSC-CAD-swivel-6x3-plate-cdd753 Units in · third-angle · NTS © 2026 OverstockCasters.com. Free for design use. Redistribution or resale prohibited.
Download CADSTEP, IGES, DWG, DXF, STL, GLB, PDF · Free, no login

Free · No login, no email More CAD in the builder

Model matched to this part by spec: wheel diameter, tread width, overall height, mount and swivel geometry. The model's wheel material or color can differ. Reference only, not for fabrication.
