92 Series · Plate caster · CasterHQ

Heavy Duty Kingpinless Phenolic Plate Caster 6 to 12 in. x 3 in. Wheel, 5-1/4 x 7-1/4 in. Plate, 2,000 to 3,500 lb

Regular price $121
Regular price Sale price $121
Sale Sold out
Shipping calculated at checkout.
Type
Wheel size
SpecificationsSKU 92CS630PH25B-06
Brand
CasterHQ
Series
92 Series
Type
Swivel
Load capacity
2000 lb per caster
Wheel diameter
6"
Tread width
3"
Wheel
Phenolic resin
Wheel color
Black
Overall height
8"
Axle diameter
3/4"
Mounting
Top plate
Top plate size
5-1/4 x 7-1/4"
Bolt hole spacing
3-3/8 x 5-1/4 to 4-1/8 x 6-1/8"
Mounting bolt size
1/2"
Bearing
1 in. roller with spanner bushing
Swivel radius
4-3/4"
Finish
Zinc plated
Approx. weight
20.75 lb each
Warranty
3 years, defects in materials and workmanship
Top plate diagram, full size
Sizes · Swivelcapacity is per caster
SizeCapacityHeightWeightPrice
6" x 3" 2000 lb 8" 20.75 lb $121
8" x 3" 2500 lb 10-1/2" 24 lb $128
10" x 3" 2900 lb 12-1/2" 27 lb $150
12" x 3" 3500 lb 15-1/2" 30.25 lb $163

Will it carry my load?

Enter your total weight to check the selected size.

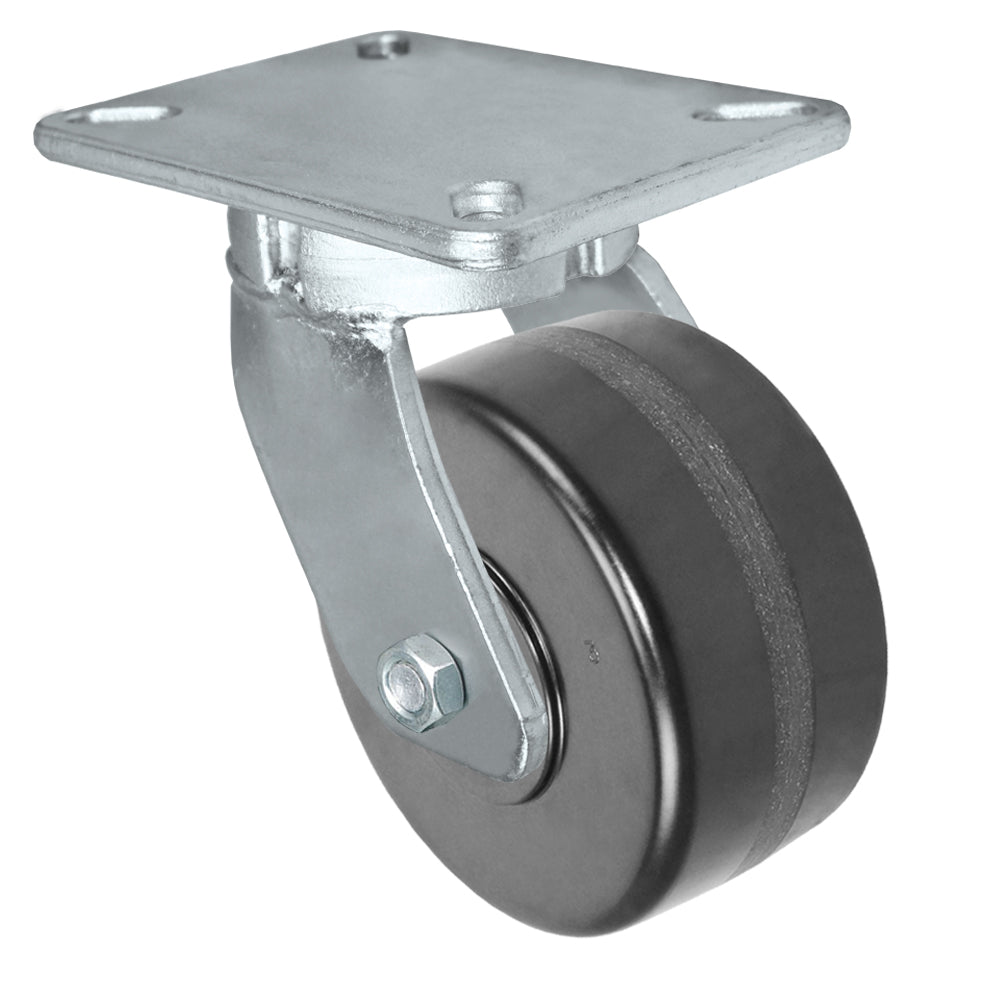

3 in. wide kingpinless caster with a phenolic resin wheel. Rated 2,000 to 3,500 lb per caster depending on wheel size.

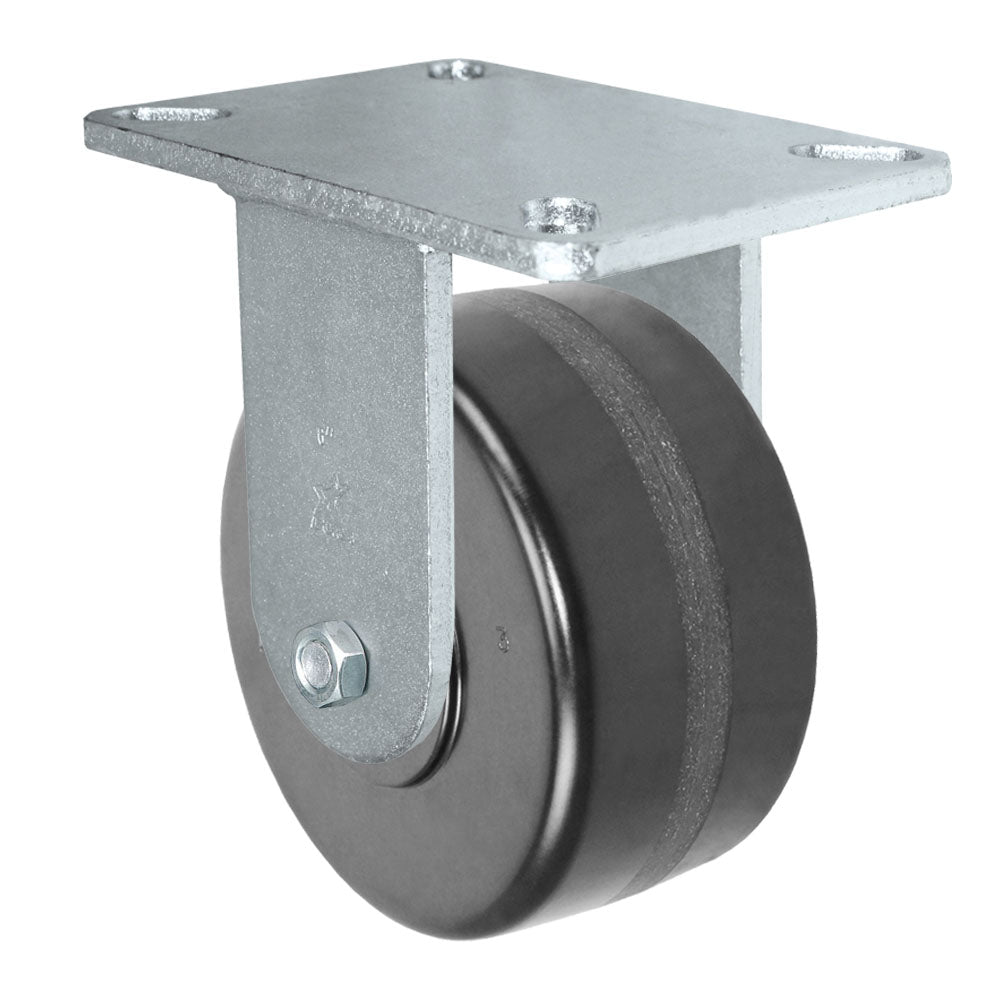

Swivel turns 360 degrees. Swivel + face-contact brake adds a foot-operated brake that presses on the wheel face. The brake is not shown in the photo. Where the photo shows a swivel caster, the brake is not pictured. Rigid rolls straight only.

Top plate is 5-1/4 x 7-1/4 in. with slotted holes for 3-3/8 x 5-1/4 to 4-1/8 x 6-1/8 in. bolt patterns, 1/2 in. bolts.

View full details

Free CAD & 3D model

92CS630PH25B-06

Heavy Duty Kingpinless Phenolic Plate Caster CAD model (92CS630PH25B-06): free STEP, IGES, DWG, DXF and STL downloads plus a 3D GLB model and a dimensioned drawing (PDF). No login, no email.

Browse all caster CAD models ›
Loading 3D model…

Drag to rotate. Tap a dimension to see it on the model and drawing.

Side elevation
OAH 8"DIA 6"DIA 6"
Front elevation
WIDTH 3"
Top plate
5-1/4 5-1/4PLATE 7-1/4 5-1/4 3-3/8SLOTTED TO 4-1/8 x 6-1/8
BHP 3-3/8 x 5-1/4 to 4-1/8 x 6-1/8
OverstockCasters.com Part 92CS630PH25B-06 Model OSC-CAD-swivel-6x3-kpl-ce9e9c Units in · third-angle · NTS © 2026 OverstockCasters.com. Free for design use. Redistribution or resale prohibited.
Download CADSTEP, IGES, DWG, DXF, STL, GLB, PDF · Free, no login

Free · No login, no email More CAD in the builder

Model matched to this part by spec: wheel diameter, tread width, overall height, mount and swivel geometry. Model adjusted to this part's specs (plate and bolt pattern). The model's wheel material or color can differ. Reference only, not for fabrication.
