45 Series · Plate caster · CasterHQ

Heavy Duty Kingpinless Duratek Donut Rubber Plate Caster 4 to 8 in. x 2 in. Wheel, 2 Plate Sizes, 450 to 675 lb

Regular price $47
Regular price Sale price $47
Sale Sold out
Shipping calculated at checkout.
Type
Wheel size
Plate size
SpecificationsSKU 45CS420DTR23X-03
Brand
CasterHQ
Series
45 Series
Type
Swivel
Load capacity
450 lb per caster
Wheel diameter
4"
Tread width
2"
Wheel
Duratek high-tech rubber, crowned donut tread
Wheel color
Gray
Overall height
5-5/8"
Axle diameter
1/2"
Mounting
Top plate
Top plate size
4 x 4-1/2"
Bolt hole spacing
2-5/8 x 3-5/8 to 3 x 3"
Mounting bolt size
3/8"
Bearing
3/4 in. roller with spanner bushing
Swivel radius
3-1/8"
Finish
Zinc plated
Approx. weight
6.5 lb each
Warranty
1 year, defects in materials and workmanship
Top plate 4 x 4-1/2 in. with bolt hole spacing Tap to enlarge
Measure your bolt holes center to center and match them to this plate.
Top plate diagram, full size
Sizes · Swivelcapacity is per caster
SizeCapacityHeightWeightPrice
4" x 2" 450 lb 5-5/8" 6.5 lb $47
5" x 2" 500 lb 6-1/2" 7.75 lb $52
6" x 2" 600 lb 7-1/2" 9.75 lb $55
8" x 2" 675 lb 9-1/2" 12 lb $62

Will it carry my load?

Enter your total weight to check the selected size.

2 in. wide kingpinless caster with a duratek high-tech rubber, crowned donut tread wheel. Rated 450 to 675 lb per caster depending on wheel size.

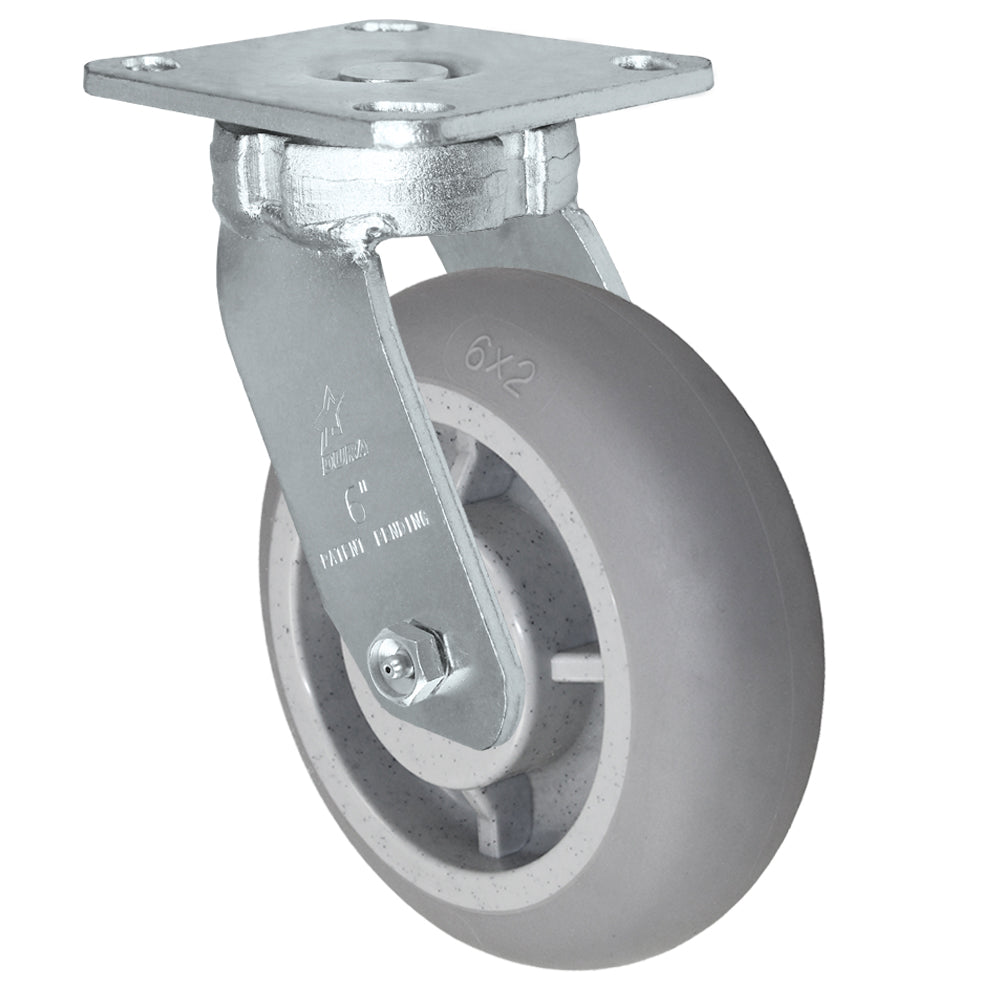

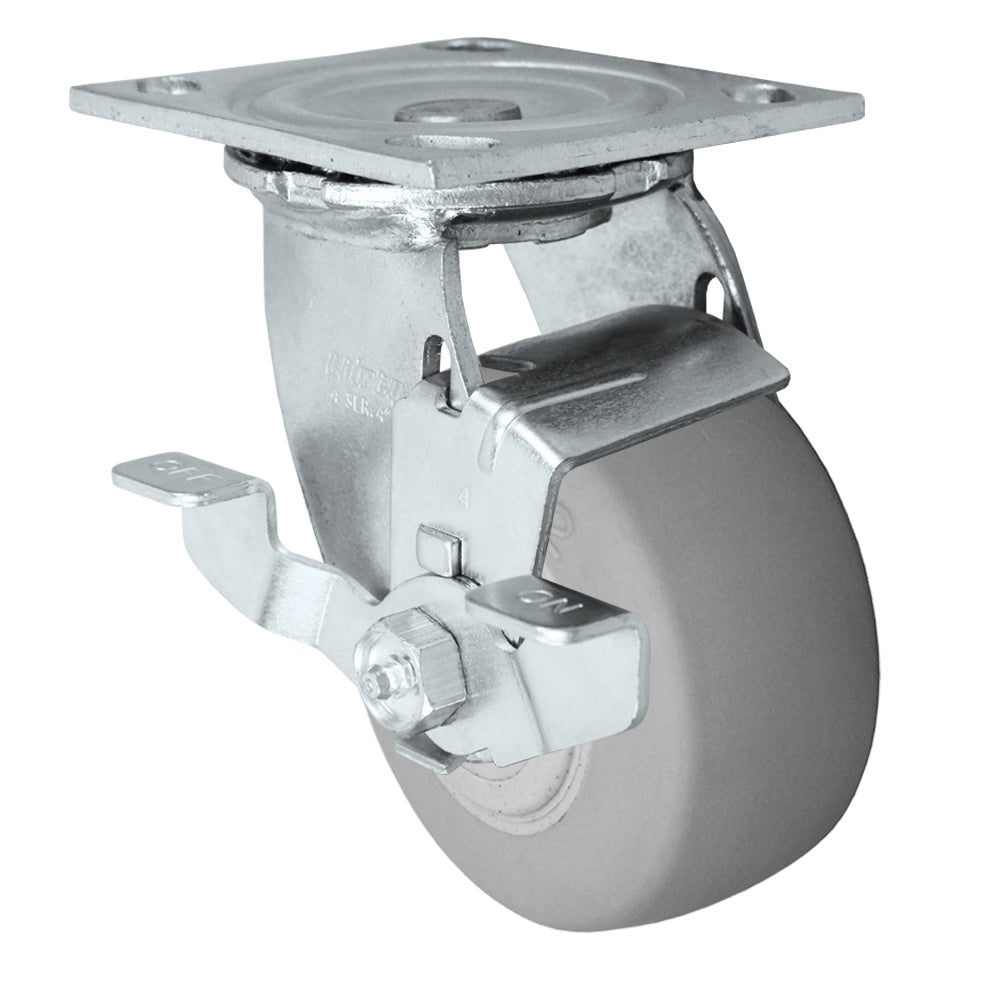

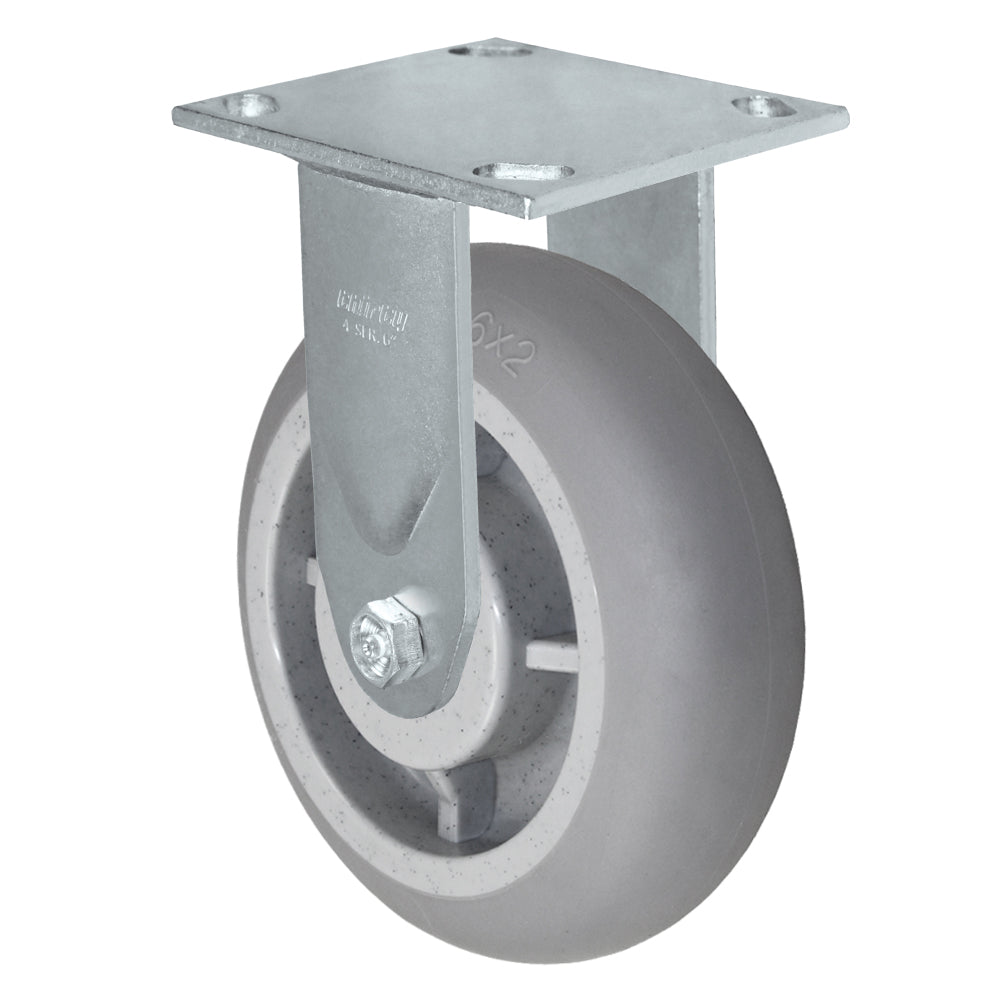

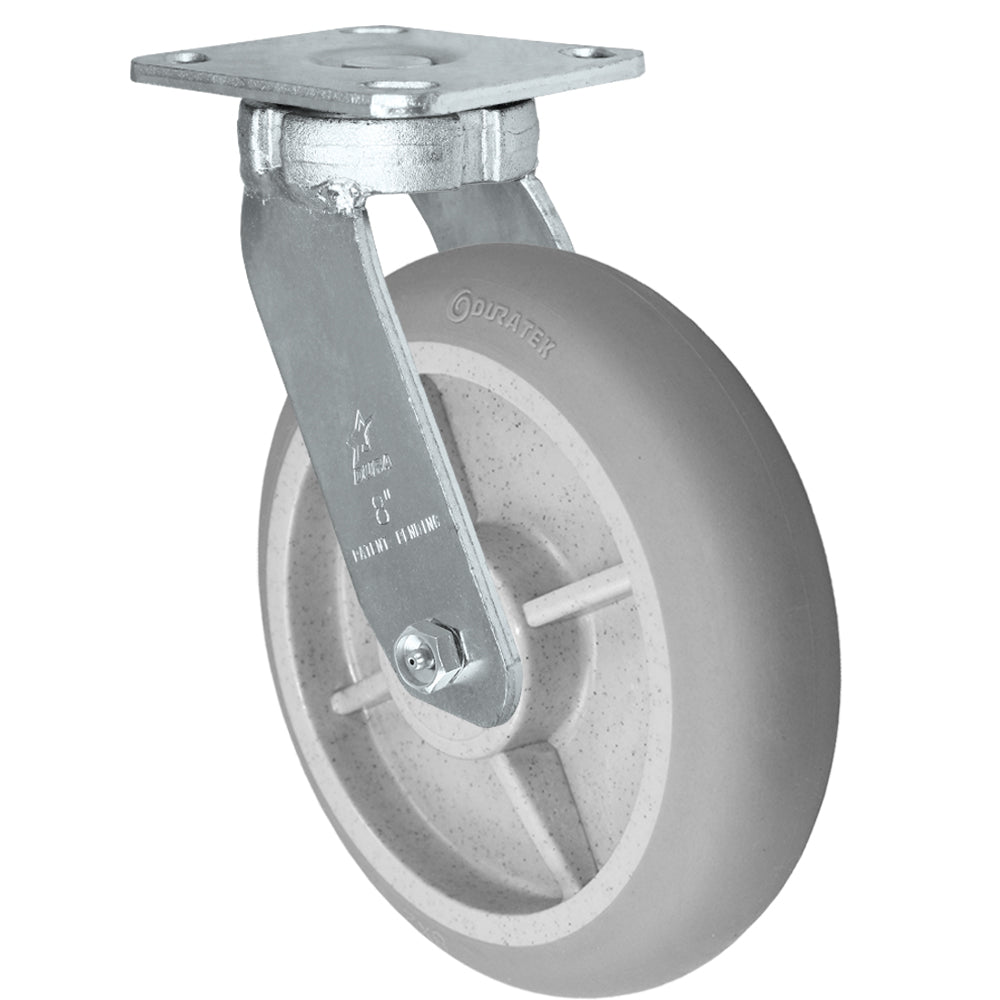

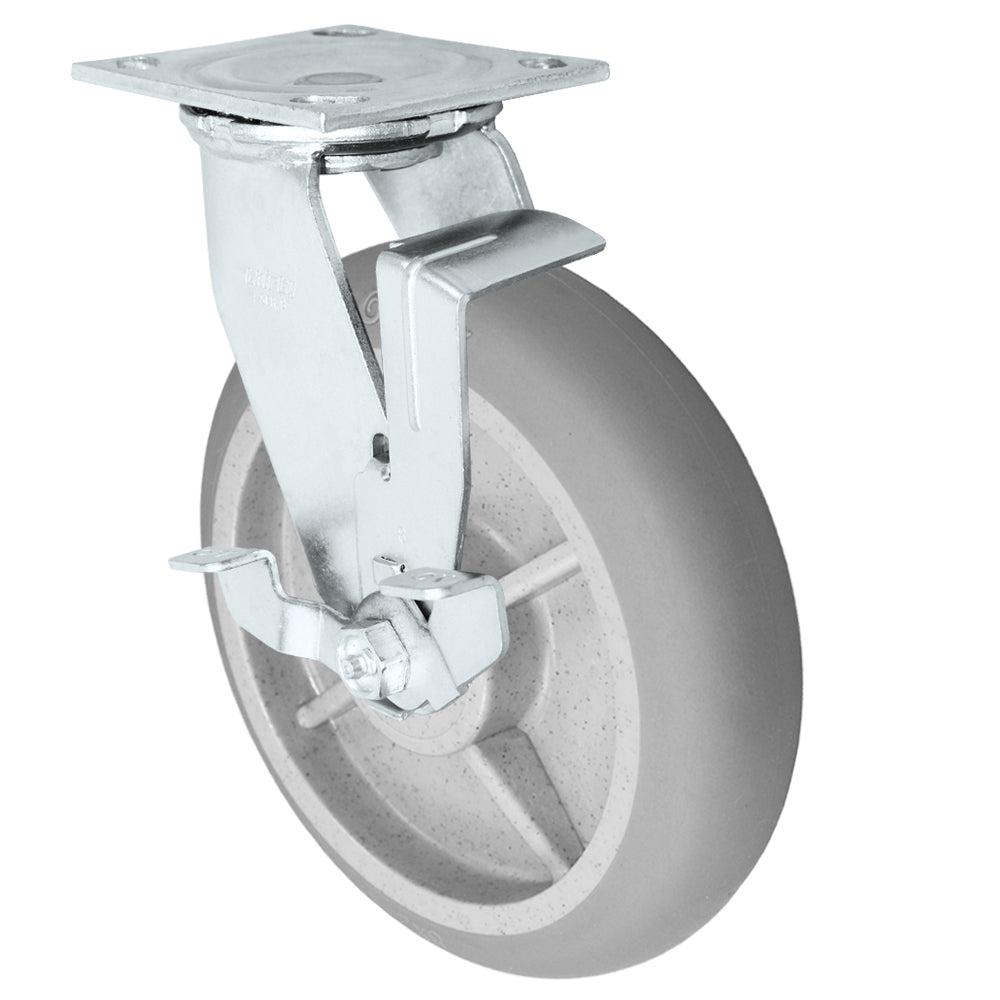

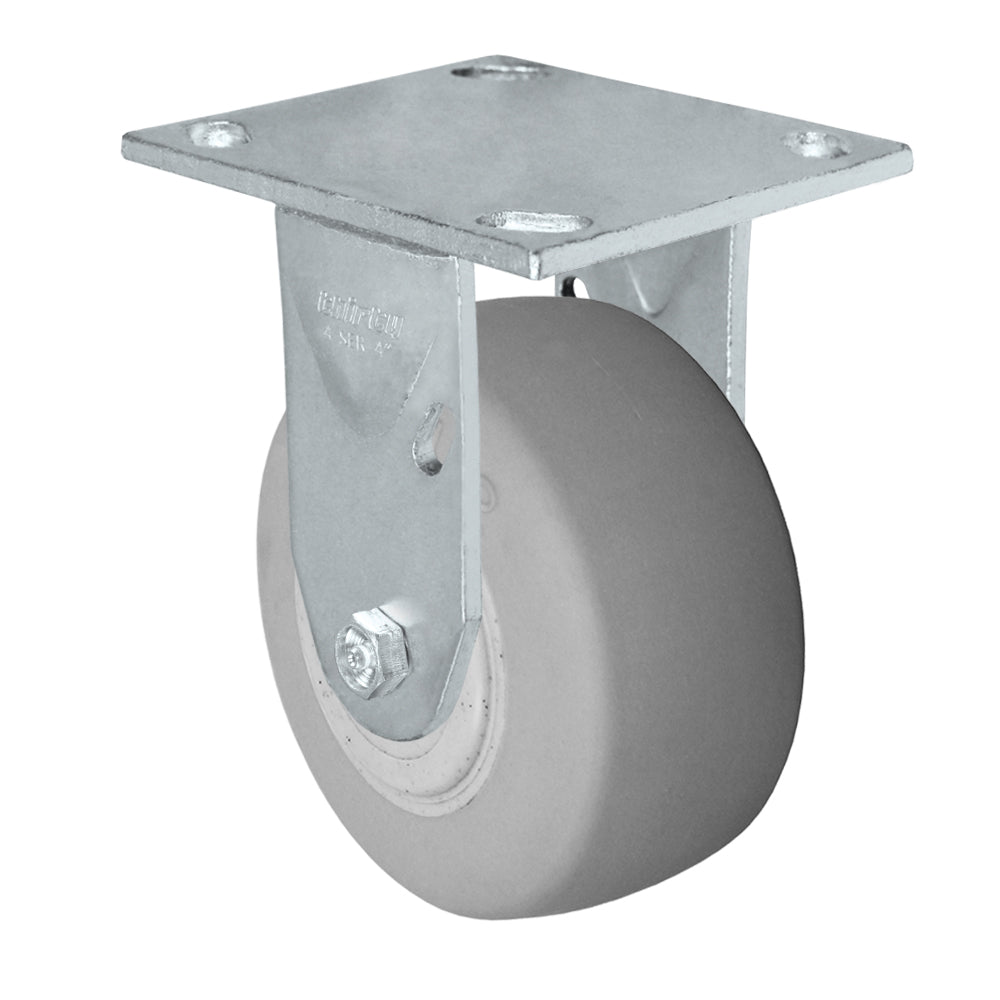

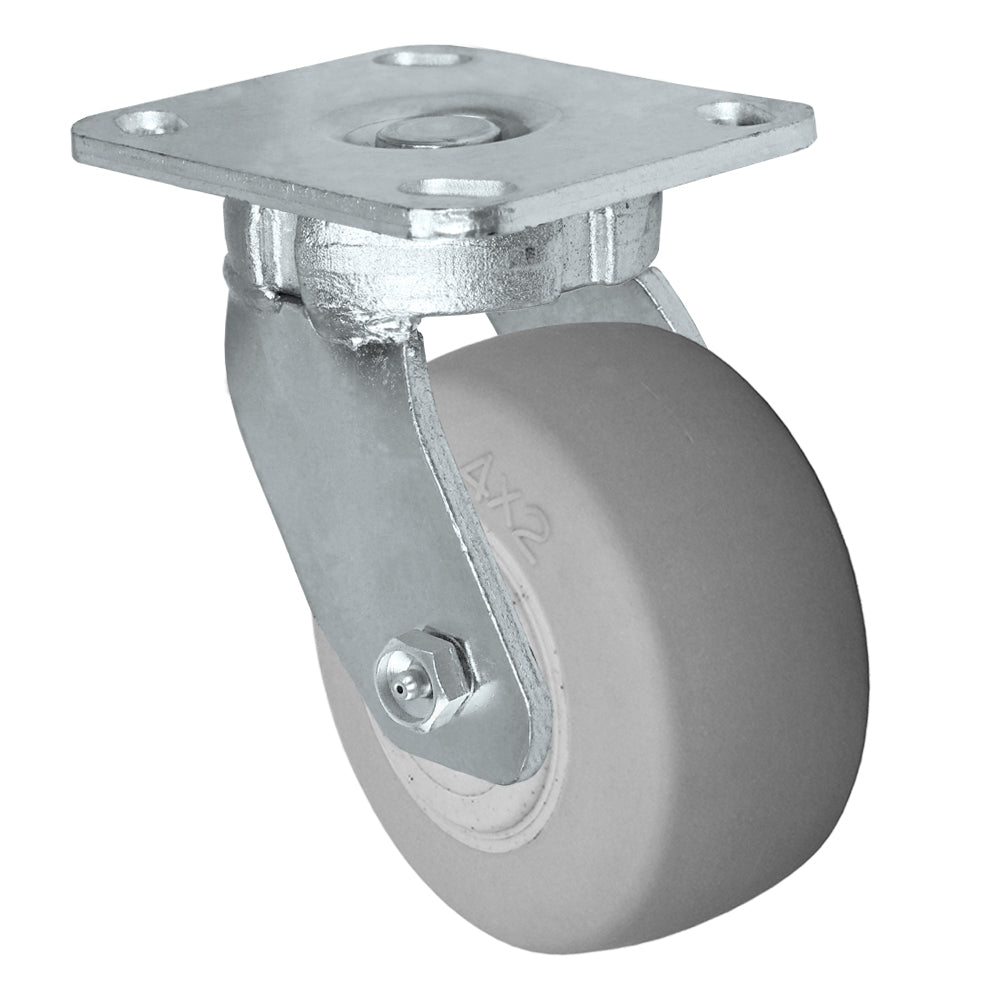

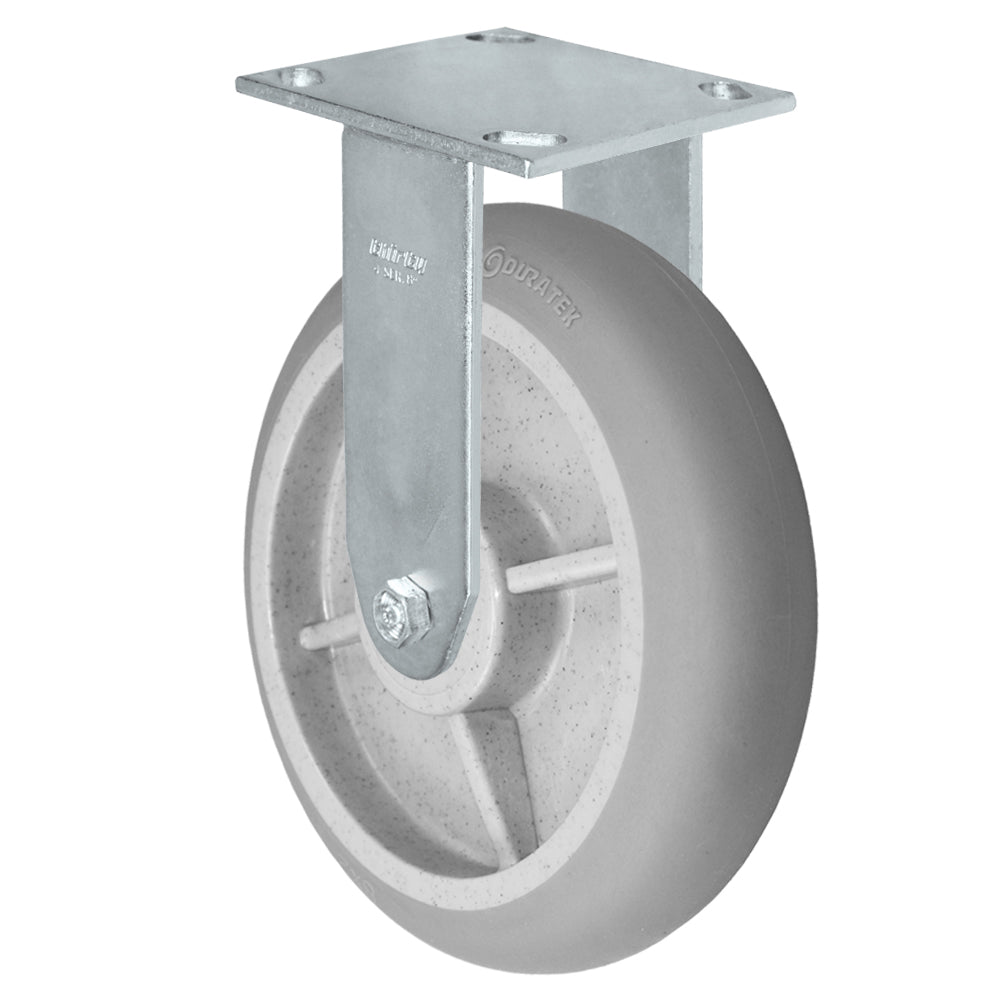

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Rigid rolls straight only.

Choose your plate: 4 x 4-1/2 in. (bolts 2-5/8 x 3-5/8 to 3 x 3, 3/8 in.); 4-1/2 x 6-1/4 in. (bolts 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4, 1/2 in.). Photos show the 4 x 4-1/2 in. plate.

View full details

Free CAD & 3D model

45CS420DTR23X-03

Heavy Duty Kingpinless Duratek Donut Rubber Plate Caster CAD model (45CS420DTR23X-03): free STEP, IGES, DWG, DXF and STL downloads plus a 3D GLB model and a dimensioned drawing (PDF). No login, no email.

Browse all caster CAD models ›
Loading 3D model…

Drag to rotate. Tap a dimension to see it on the model and drawing.

Side elevation
OAH 5-5/8"DIA 4"DIA 4"
Front elevation
WIDTH 2"
Top plate
4 4PLATE 4-1/2 3-5/8 2-5/8SLOTTED TO 3 x 3
BHP 2-5/8 x 3-5/8 to 3 x 3
OverstockCasters.com Part 45CS420DTR23X-03 Model OSC-CAD-swivel-4x2-kpl-baec56 Units in · third-angle · NTS © 2026 OverstockCasters.com. Free for design use. Redistribution or resale prohibited.
Download CADSTEP, IGES, DWG, DXF, STL, GLB, PDF · Free, no login

Free · No login, no email More CAD in the builder

Model matched to this part by spec: wheel diameter, tread width, overall height, mount and swivel geometry. Model adjusted to this part's specs (donut wheel). The model's wheel material or color can differ. Reference only, not for fabrication.
