45 Series · Plate caster · CasterHQ

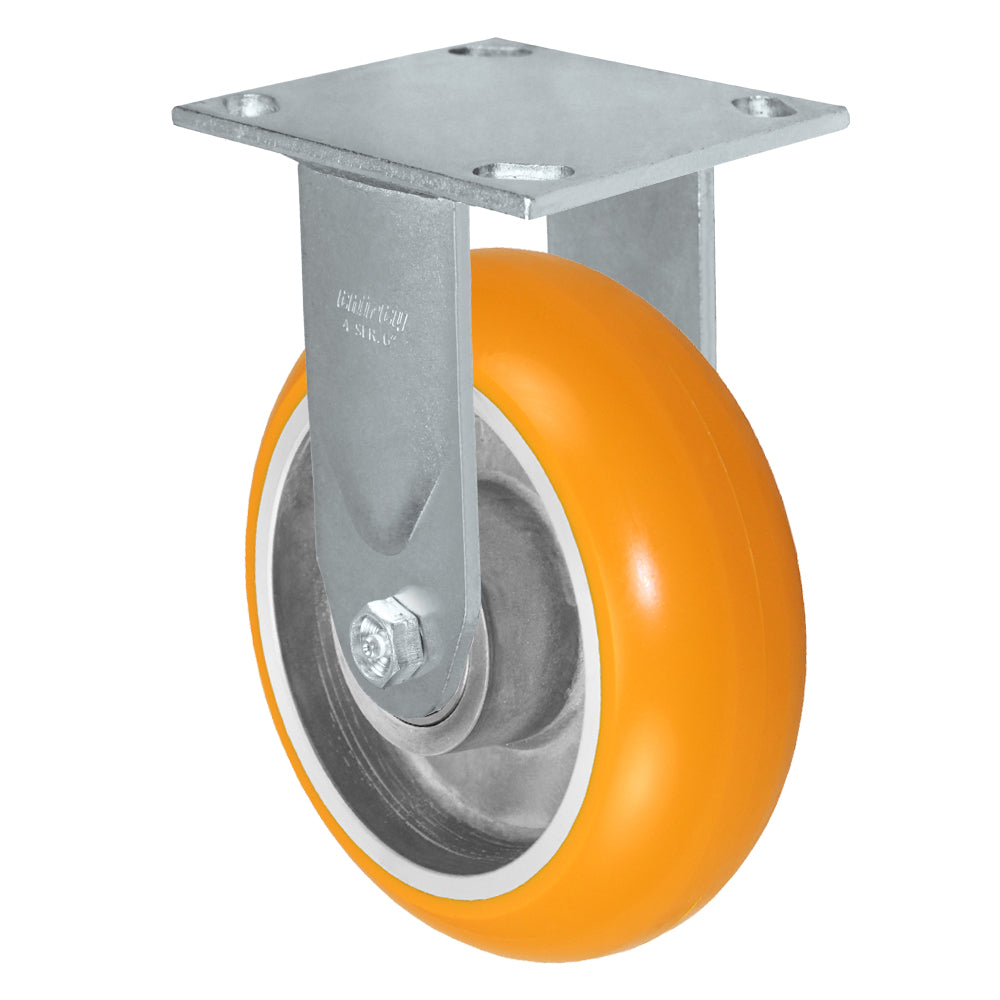

Heavy Duty Kingpinless Donut Polyurethane on Aluminum Plate Caster Rigid · 4" x 2" · 4 x 4-1/2" · 1000 lb per caster
- In stock. Ships same or next business day from Kansas City, MO or Dallas, TX.
- Any quantity, no minimum. Shipping · 30-day returns · 1-year warranty
SKU 45CR420DUA63M-03
- Brand
- CasterHQ
- Series
- 45 Series
- Type
- Rigid
- Load capacity
- 1000 lb per caster
- Wheel diameter
- 4"
- Tread width
- 2"
- Wheel
- Sirius heavy-duty donut polyurethane on aluminum core
- Wheel color
- Yellow
- Overall height
- 5-5/8"
- Axle diameter
- 1/2"
- Mounting
- Top plate
- Top plate size
- 4 x 4-1/2"
- Bolt hole spacing
- 2-5/8 x 3-5/8 to 3 x 3"
- Mounting bolt size
- 3/8"
- Bearing
- Precision ball
- Swivel radius
- "
- Finish
- Zinc plated
- Approx. weight
- 6.5 lb each
- Warranty
- 1 year, defects in materials and workmanship
Tap to enlarge
capacity is per caster| Size | Capacity | Height | Weight | Price |
|---|---|---|---|---|
| 4" x 2" | 1000 lb | 5-5/8" | 7.75 lb | $53 |
| 4" x 2" | 1000 lb | 5-5/8" | 8.5 lb | $58 |
| 5" x 2" | 1200 lb | 6-1/2" | 9.25 lb | $56 |
| 5" x 2" | 1200 lb | 6-1/2" | 10 lb | $61 |
| 6" x 2" | 1500 lb | 7-1/2" | 9.75 lb | $64 |
| 6" x 2" | 1500 lb | 7-1/2" | 10.75 lb | $69 |
| 8" x 2" | 2000 lb | 9-1/2" | 13 lb | $80 |
| 8" x 2" | 2000 lb | 9-1/2" | 14 lb | $85 |
| 4" x 2" | 1000 lb | 5-5/8" | 8.75 lb | $56 |
| 4" x 2" | 1000 lb | 5-5/8" | 9.5 lb | $61 |
| 5" x 2" | 1200 lb | 6-1/2" | 10.5 lb | $62 |
| 5" x 2" | 1200 lb | 6-1/2" | 11.25 lb | $67 |
| 6" x 2" | 1500 lb | 7-1/2" | 11 lb | $81 |
| 6" x 2" | 1500 lb | 7-1/2" | 11.75 lb | $86 |
| 8" x 2" | 2000 lb | 9-1/2" | 14.25 lb | $86 |
| 8" x 2" | 2000 lb | 9-1/2" | 15 lb | $91 |
| 4" x 2" | 1000 lb | 5-5/8" | 6.5 lb | $41 |
| 4" x 2" | 1000 lb | 5-5/8" | 7.5 lb | $46 |
| 5" x 2" | 1200 lb | 6-1/2" | 8.25 lb | $48 |
| 5" x 2" | 1200 lb | 6-1/2" | 9 lb | $53 |
| 6" x 2" | 1500 lb | 7-1/2" | 8.75 lb | $54 |
| 6" x 2" | 1500 lb | 7-1/2" | 9.5 lb | $59 |
| 8" x 2" | 2000 lb | 9-1/2" | 12 lb | $68 |
| 8" x 2" | 2000 lb | 9-1/2" | 12.75 lb | $73 |
Will it carry my load?
Enter your total weight to check the selected size.
2 in. wide kingpinless caster with a sirius heavy-duty donut polyurethane on aluminum core wheel. Rated 1,000 to 2,000 lb per caster depending on wheel size.

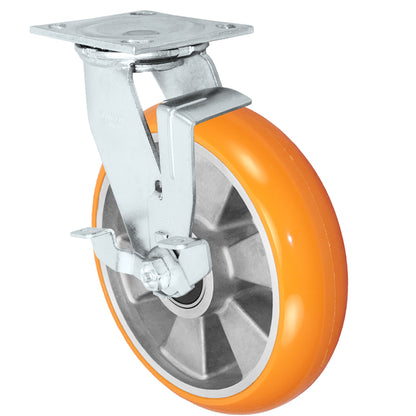

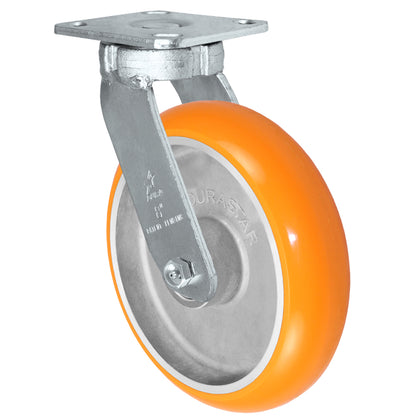

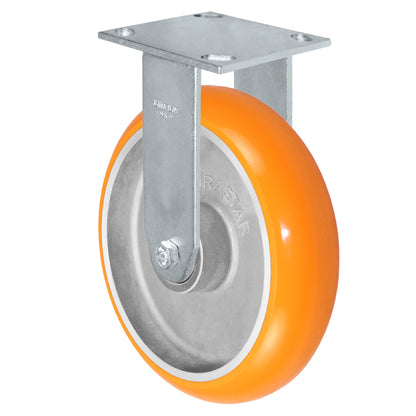

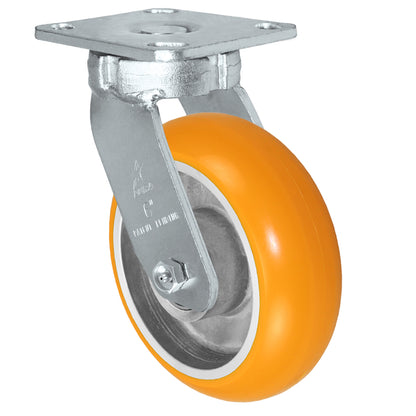

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Rigid rolls straight only.
Choose your plate: 4 x 4-1/2 in. (bolts 2-5/8 x 3-5/8 to 3 x 3, 3/8 in.); 4-1/2 x 6-1/4 in. (bolts 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4, 1/2 in.). Photos show the 4 x 4-1/2 in. plate.
Free CAD & 3D model
45CR420DUA63M-03Heavy Duty Kingpinless Donut Polyurethane on Aluminum Plate Caster CAD model (45CR420DUA63M-03): free STEP, IGES, DWG, DXF and STL downloads plus a 3D GLB model and a dimensioned drawing (PDF). No login, no email.
Browse all caster CAD models ›Drag to rotate. Tap a dimension to see it on the model and drawing.
Download CADSTEP, IGES, DWG, DXF, STL, GLB, PDF · Free, no login
Model matched to this part by spec: wheel diameter, tread width, overall height, mount and swivel geometry. Model adjusted to this part's specs (donut wheel). The model's wheel material or color can differ. Reference only, not for fabrication.
