45 Series · Plate caster · CasterHQ
Heavy Duty Kingpinless Donut Polyurethane on Aluminum Plate Caster 4 to 8 in. x 2 in. Wheel, 2 Plate Sizes, 1,000 to 2,000 lb
Regular price
$53
Regular price
Sale price
$53
Unit price
per
Shipping calculated at checkout.
- In stock. Ships same or next business day from Kansas City, MO or Dallas, TX.
- Any quantity, no minimum. Shipping · 30-day returns · 1-year warranty
Specifications
SKU 45CS420DUA63M-03
- Brand
- CasterHQ
- Series
- 45 Series
- Type
- Swivel
- Load capacity
- 1000 lb per caster
- Wheel diameter
- 4"
- Tread width
- 2"
- Wheel
- Sirius heavy-duty donut polyurethane on aluminum core
- Wheel color
- Yellow
- Overall height
- 5-5/8"
- Axle diameter
- 1/2"
- Mounting
- Top plate
- Top plate size
- 4 x 4-1/2"
- Bolt hole spacing
- 2-5/8 x 3-5/8 to 3 x 3"
- Mounting bolt size
- 3/8"
- Bearing
- Precision ball
- Swivel radius
- 3-1/8"
- Finish
- Zinc plated
- Approx. weight
- 7.75 lb each
- Warranty
- 1 year, defects in materials and workmanship
Tap to enlarge
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Weight | Price |
|---|---|---|---|---|
| 4" x 2" | 1000 lb | 5-5/8" | 7.75 lb | $53 |
| 4" x 2" | 1000 lb | 5-5/8" | 8.5 lb | $58 |
| 5" x 2" | 1200 lb | 6-1/2" | 9.25 lb | $56 |
| 5" x 2" | 1200 lb | 6-1/2" | 10 lb | $61 |
| 6" x 2" | 1500 lb | 7-1/2" | 9.75 lb | $64 |
| 6" x 2" | 1500 lb | 7-1/2" | 10.75 lb | $69 |
| 8" x 2" | 2000 lb | 9-1/2" | 13 lb | $80 |
| 8" x 2" | 2000 lb | 9-1/2" | 14 lb | $85 |
| 4" x 2" | 1000 lb | 5-5/8" | 8.75 lb | $56 |
| 4" x 2" | 1000 lb | 5-5/8" | 9.5 lb | $61 |
| 5" x 2" | 1200 lb | 6-1/2" | 10.5 lb | $62 |
| 5" x 2" | 1200 lb | 6-1/2" | 11.25 lb | $67 |
| 6" x 2" | 1500 lb | 7-1/2" | 11 lb | $81 |
| 6" x 2" | 1500 lb | 7-1/2" | 11.75 lb | $86 |
| 8" x 2" | 2000 lb | 9-1/2" | 14.25 lb | $86 |
| 8" x 2" | 2000 lb | 9-1/2" | 15 lb | $91 |
| 4" x 2" | 1000 lb | 5-5/8" | 6.5 lb | $41 |
| 4" x 2" | 1000 lb | 5-5/8" | 7.5 lb | $46 |
| 5" x 2" | 1200 lb | 6-1/2" | 8.25 lb | $48 |
| 5" x 2" | 1200 lb | 6-1/2" | 9 lb | $53 |
| 6" x 2" | 1500 lb | 7-1/2" | 8.75 lb | $54 |
| 6" x 2" | 1500 lb | 7-1/2" | 9.5 lb | $59 |
| 8" x 2" | 2000 lb | 9-1/2" | 12 lb | $68 |
| 8" x 2" | 2000 lb | 9-1/2" | 12.75 lb | $73 |
Will it carry my load?
Enter your total weight to check the selected size.
2 in. wide kingpinless caster with a sirius heavy-duty donut polyurethane on aluminum core wheel. Rated 1,000 to 2,000 lb per caster depending on wheel size.

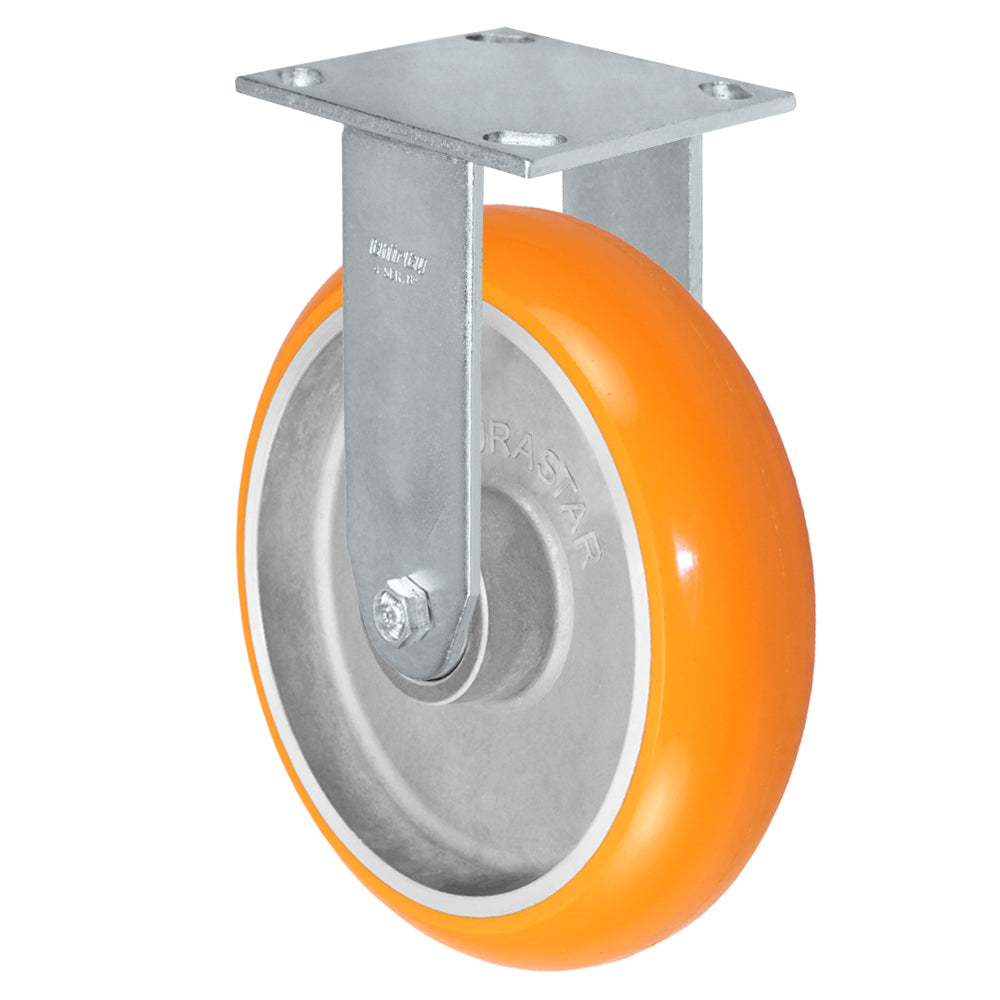

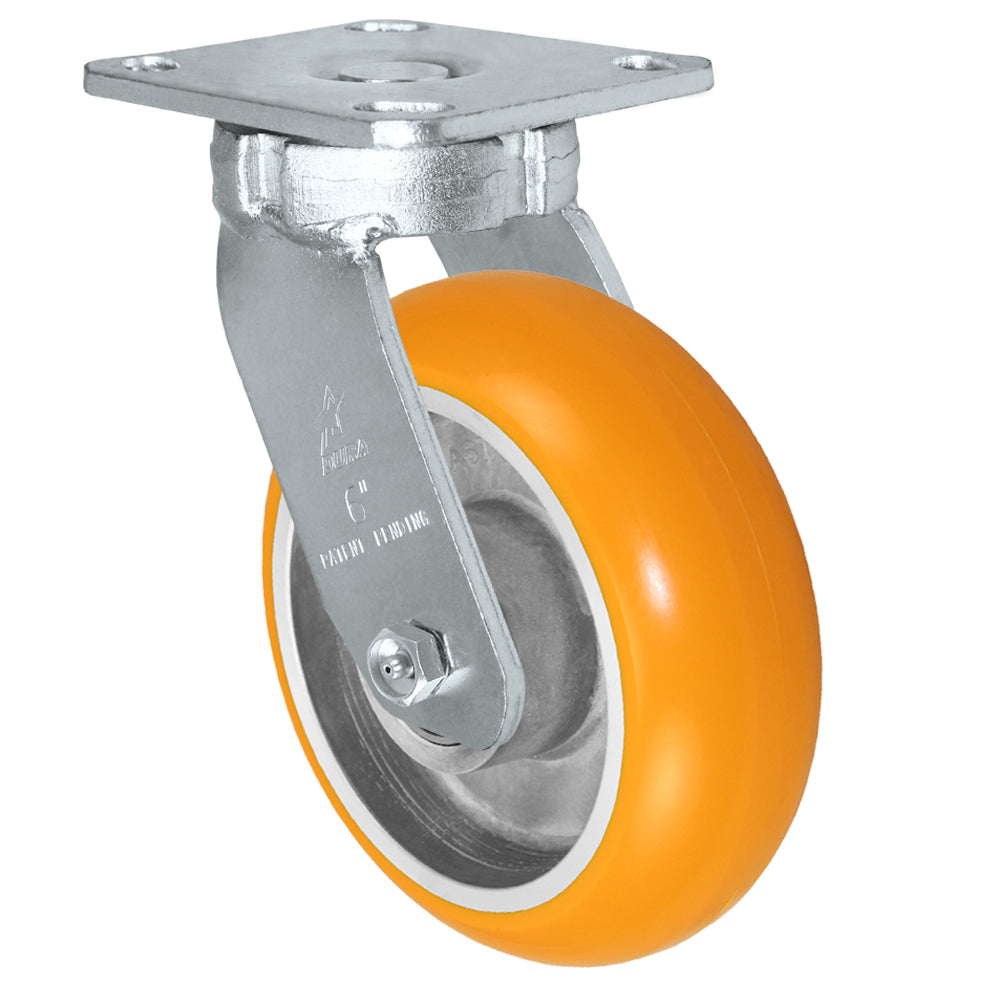

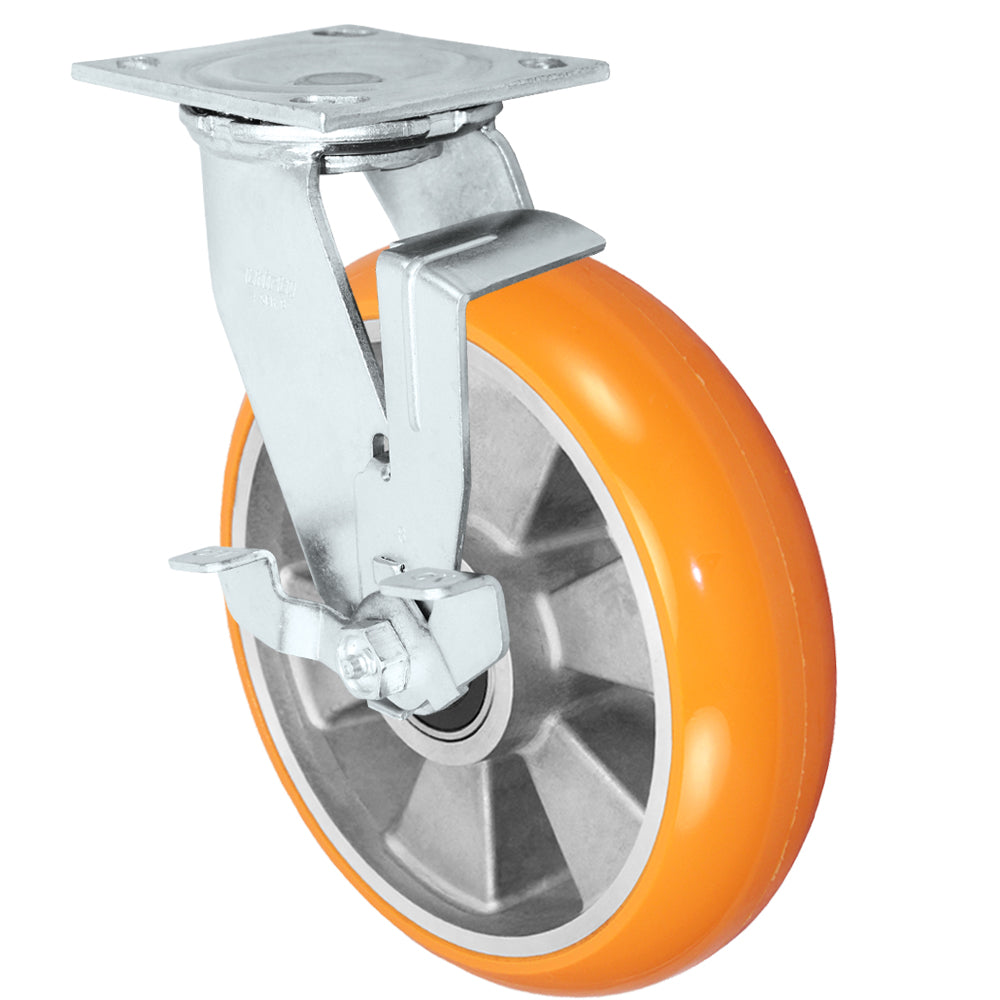

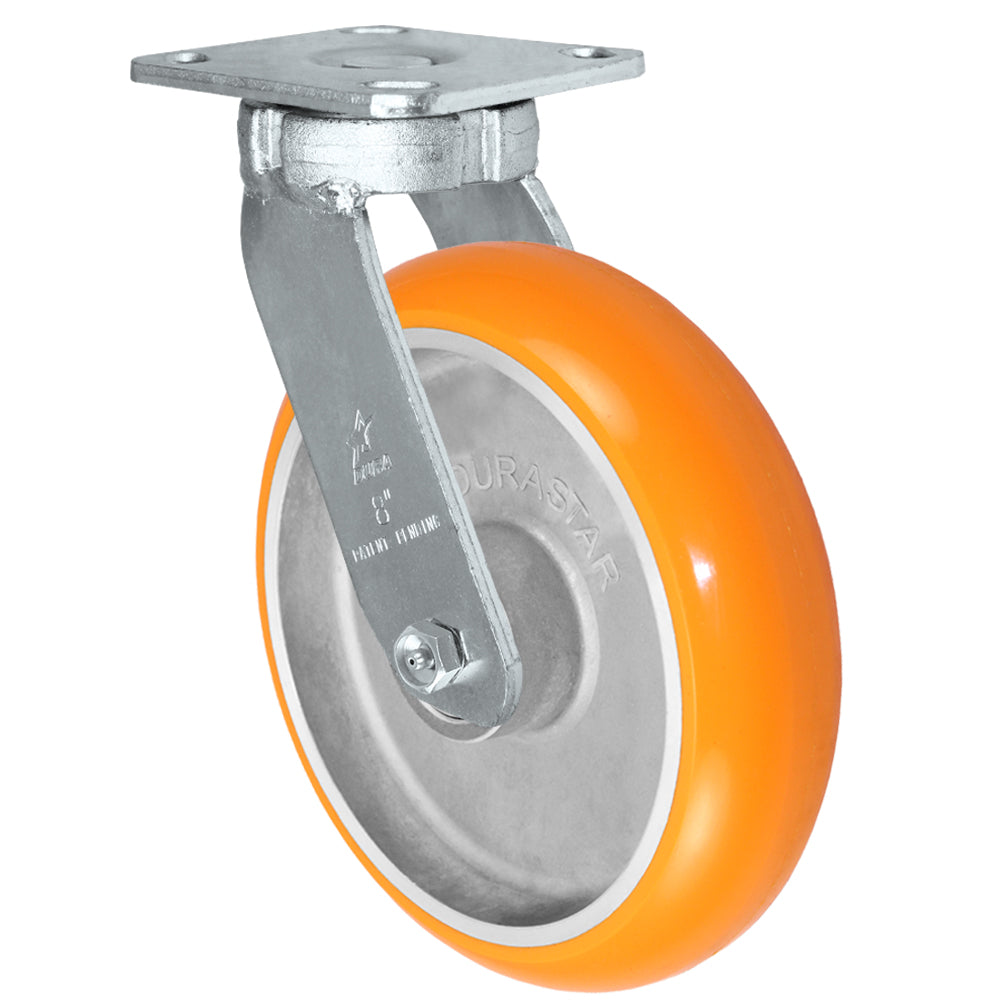

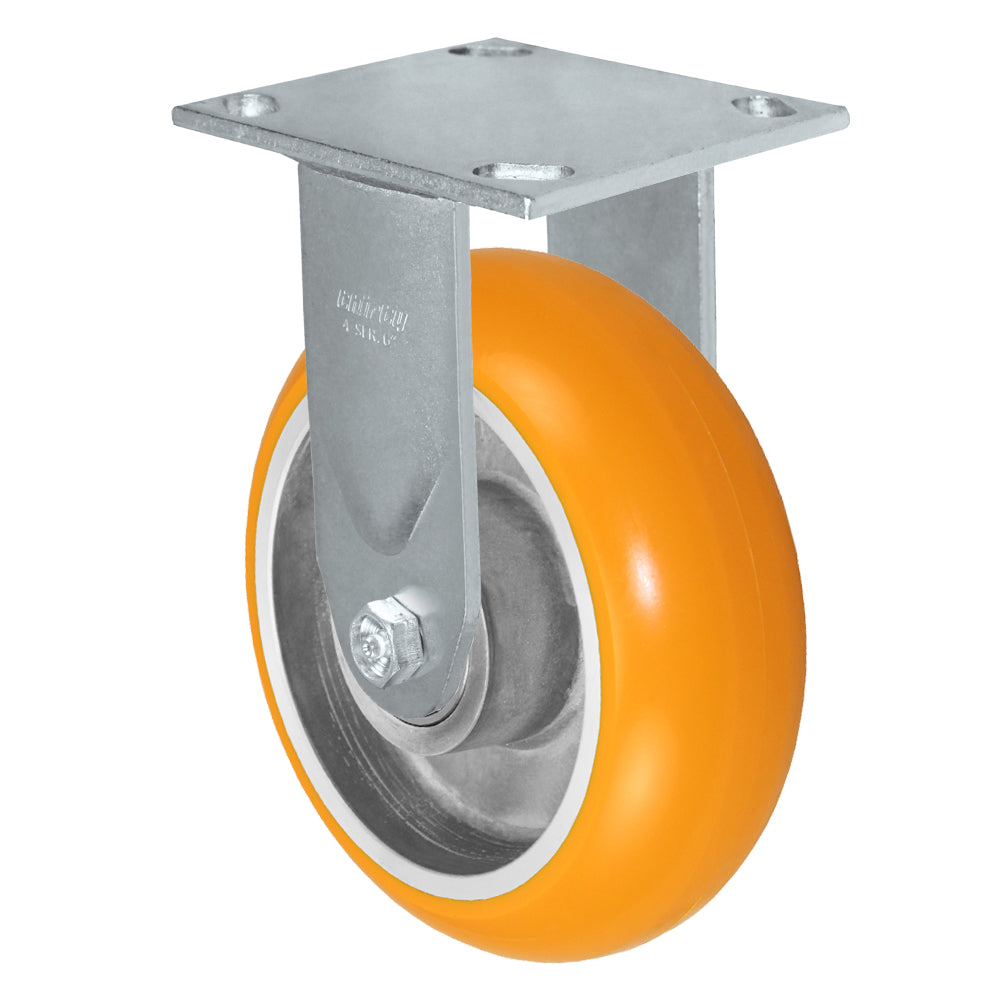

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Rigid rolls straight only.
Choose your plate: 4 x 4-1/2 in. (bolts 2-5/8 x 3-5/8 to 3 x 3, 3/8 in.); 4-1/2 x 6-1/4 in. (bolts 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4, 1/2 in.). Photos show the 4 x 4-1/2 in. plate.
