24 Series · Expandable stem caster· CasterHQ

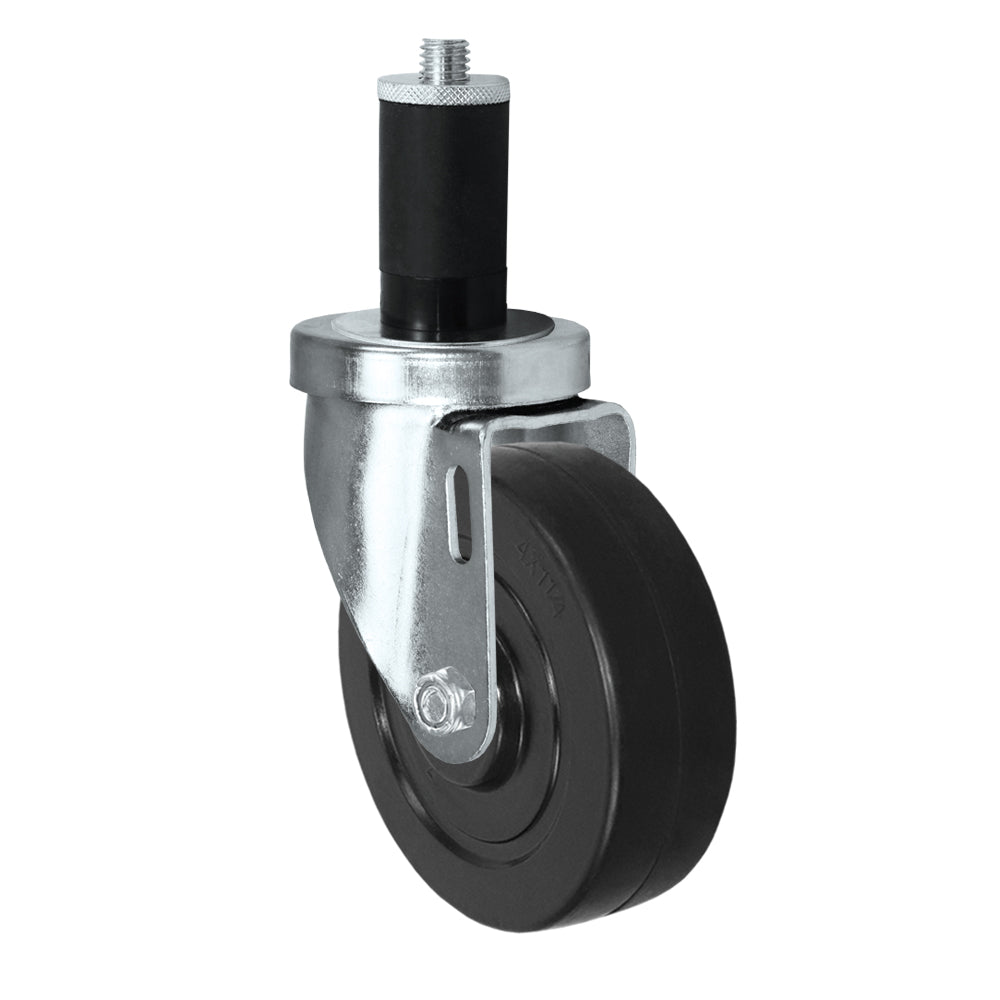

Hard Rubber Expandable Stem Caster 3 to 5 in. x 1-1/4 in. Wheel, Fits 3/4 to 1-7/8 in. Tube, 275 to 325 lb
Regular price
$10
Regular price
Sale price
$10
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU 24CS314HR82B-90- Brand
- CasterHQ
- Series
- 24 Series
- Type
- Swivel
- Load capacity
- 275 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-1/4"
- Wheel
- High-impact molded hard rubber
- Wheel color
- Black
- Height, less stem
- 4-3/16"
- Axle diameter
- 3/8"
- Mounting
- Expandable rubber stem
- Stem size
- Fits 3/4" tube, 0.720 to 0.851" ID
- Bearing
- Plain bore
- Swivel radius
- 2-21/32"
- Finish
- Zinc plated
- Warranty
- 1 year, defects in materials and workmanship
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 3" x 1-1/4" | 275 lb | 4-3/16" | $10 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $10 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $10 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $10 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $10 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $10 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $10 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $10 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $10 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $10 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $10 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $10 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $10 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $10 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $10 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $10 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $13 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $13 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $13 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $13 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $13 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $13 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $13 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $13 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $16 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $16 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $16 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $16 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $16 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $16 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $16 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | $16 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $16 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $16 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $16 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $16 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $16 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $16 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $16 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $16 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $19 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $19 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $19 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $19 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $19 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $19 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $19 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $19 |
Will it carry my load?
Enter your total weight to check the selected size.
1-1/4 in. wide caster with a high-impact molded hard rubber wheel. Rated 275 to 325 lb per caster depending on wheel size.
Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Where the photo shows a swivel caster, the brake is not pictured.
Expandable rubber stem: slides into round tubing and expands to grip when tightened. Pick the size that matches the inside of your tube. Stem casters come in the types shown.
