24 Series · Threaded stem caster · CasterHQ

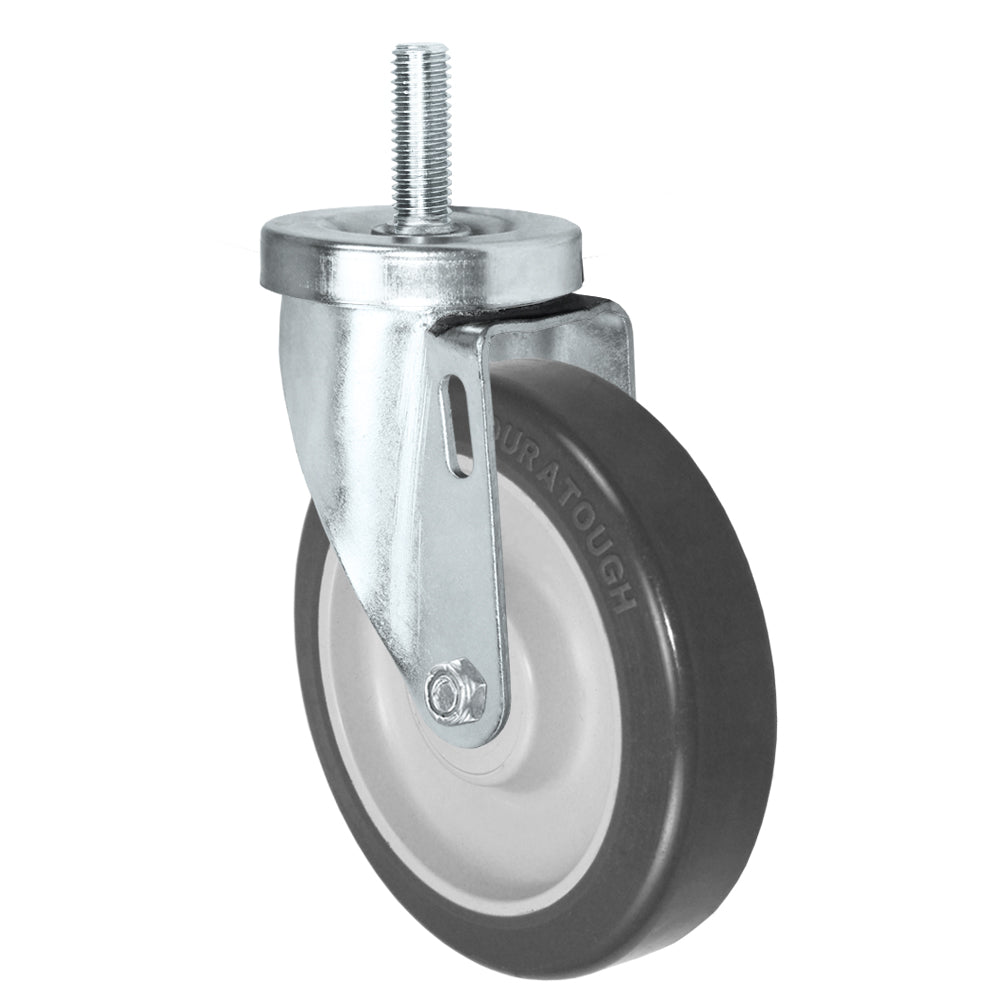

Duratough Polyurethane Threaded Stem Caster 3 to 5 in. x 1-1/4 in. Wheel, 1/2-13 x 1-1/2 in. Stem, 275 to 350 lb
Regular price
$11
Regular price
Sale price
$11
Unit price
per
Shipping calculated at checkout.
- In stock. Ships same or next business day from Kansas City, MO or Dallas, TX.
- Any quantity, no minimum. Shipping · 30-day returns · 1-year warranty
Specifications
SKU 24CS314PTU11X-43
- Brand
- CasterHQ
- Series
- 24 Series
- Type
- Swivel
- Load capacity
- 275 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-1/4"
- Wheel
- Duratough polyurethane on polyolefin core
- Wheel color
- Gray
- Height, less stem
- 4-3/16"
- Axle diameter
- 3/8"
- Mounting
- Threaded stem
- Stem size
- 1/2-13 x 1-1/2"
- Bearing
- Annular ball
- Swivel radius
- 2-21/32"
- Finish
- Zinc plated
- Approx. weight
- 2 lb each
- Warranty
- 1 year, defects in materials and workmanship
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Weight | Price |
|---|---|---|---|---|
| 3" x 1-1/4" | 275 lb | 4-3/16" | 2 lb | $11 |
| 3-1/2" x 1-1/4" | 300 lb | 4-5/8" | 2.25 lb | $11 |
| 4" x 1-1/4" | 325 lb | 5-1/8" | 2.5 lb | $12 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3 lb | $13 |
| 3" x 1-1/4" | 275 lb | 4-3/16" | 2.5 lb | $17 |
| 3-1/2" x 1-1/4" | 300 lb | 4-5/8" | 2.75 lb | $17 |
| 4" x 1-1/4" | 325 lb | 5-1/8" | 3 lb | $18 |
| 5" x 1-1/4" | 350 lb | 6-1/4" | 3.5 lb | $19 |
Will it carry my load?
Enter your total weight to check the selected size.
1-1/4 in. wide caster with a duratough polyurethane on polyolefin core wheel. Rated 275 to 350 lb per caster depending on wheel size.
Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Where the photo shows a swivel caster, the brake is not pictured.
Threaded stem mounts: thread into a tapped hole or nut. Match thread size and length. Stem casters come in the types shown.
