34 Series · Plate caster · CasterHQ

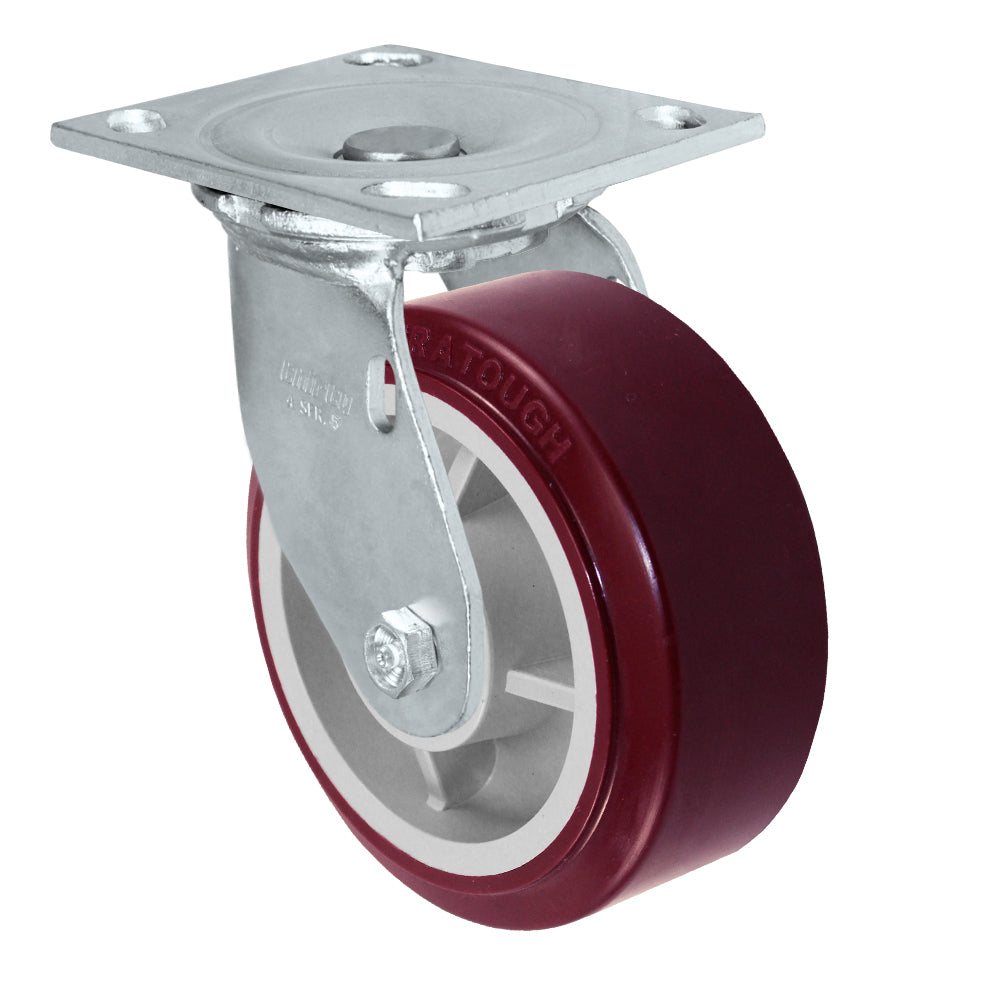

Duratough Polyurethane Plate Caster 4 to 8 in. x 2 in. Wheel, 4 x 4-1/2 in. Plate, 700 to 1,000 lb

Regular price $19
Regular price Sale price $19
Sale Sold out
Shipping calculated at checkout.
FinishZinc plated 34 SeriesStainless steel S30 Series
Type
Wheel size
SpecificationsSKU 34CS420PTU23J-03
Brand
CasterHQ
Series
34 Series
Type
Swivel
Load capacity
700 lb per caster
Wheel diameter
4"
Tread width
2"
Wheel
Duratough polyurethane on polyolefin core
Wheel color
Maroon/Gray
Overall height
5-5/8"
Axle diameter
1/2"
Mounting
Top plate
Top plate size
4 x 4-1/2"
Bolt hole spacing
2-5/8 x 3-5/8 to 3 x 3"
Mounting bolt size
3/8"
Bearing
3/4 in. roller with spanner bushing
Swivel radius
3-5/16"
Finish
Zinc plated
Approx. weight
6.5 lb each
Warranty
1 year, defects in materials and workmanship
Top plate 4 x 4-1/2 in. with bolt hole spacing Tap to enlarge
Measure your bolt holes center to center and match them to this plate.
Top plate diagram, full size
Sizes · Swivelcapacity is per caster
SizeCapacityHeightWeightPrice
4" x 2" 700 lb 5-5/8" 6.5 lb $19
5" x 2" 750 lb 6-1/2" 7.75 lb $20

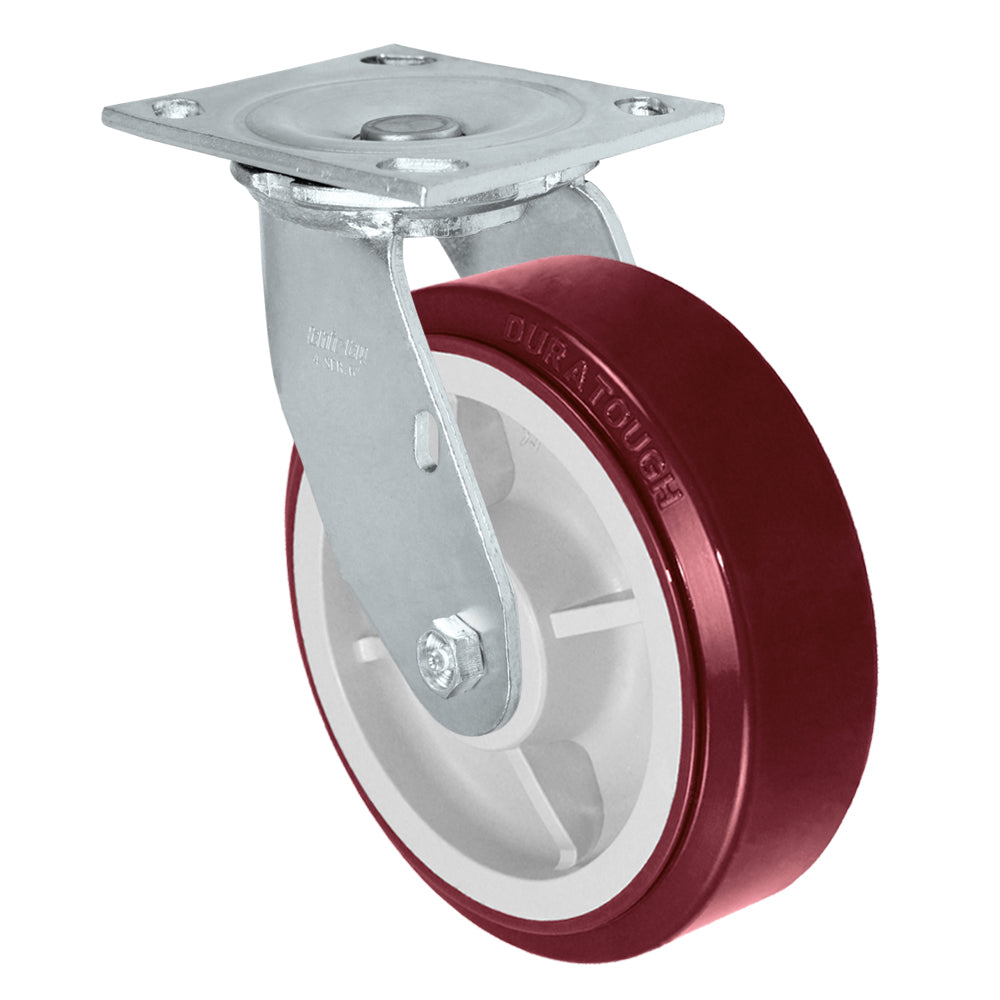

6" x 2" 900 lb 7-1/2" 8.75 lb $24

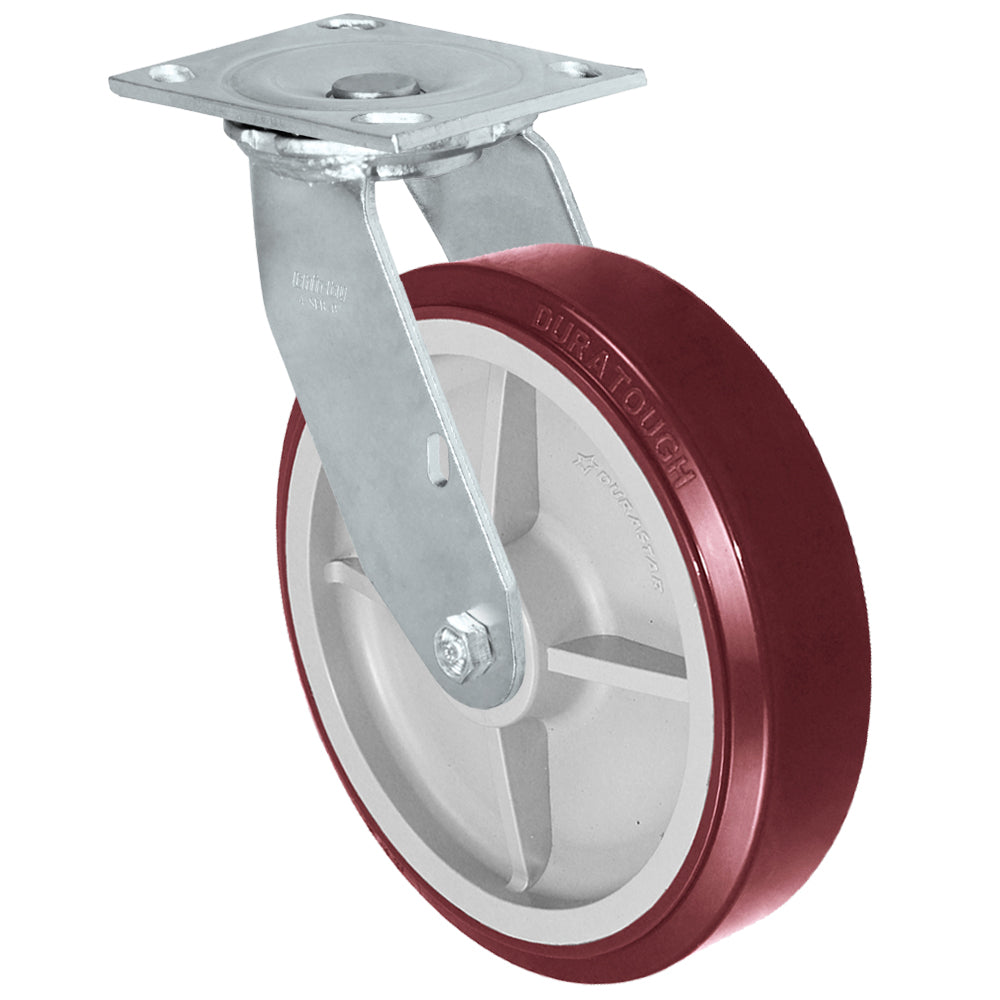

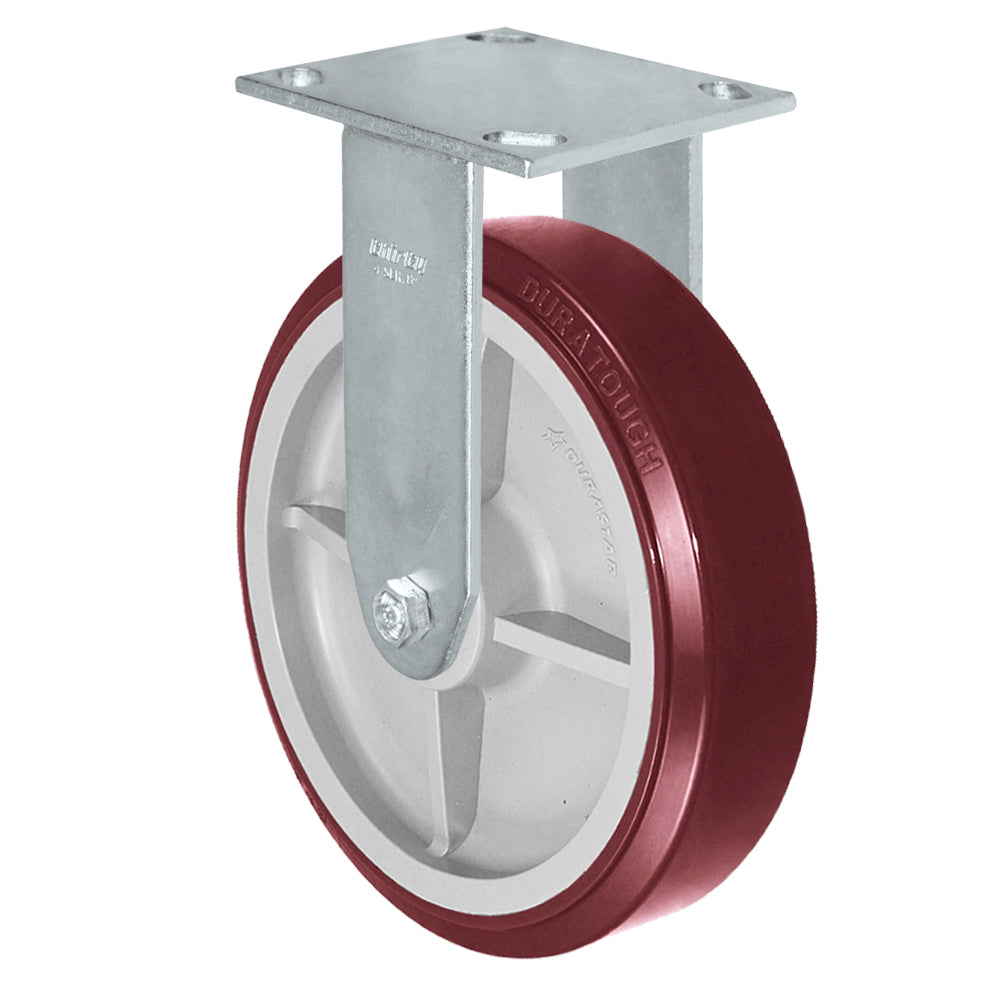

8" x 2" 1000 lb 9-1/2" 9.75 lb $27

Will it carry my load?

Enter your total weight to check the selected size.

2 in. wide caster with a duratough polyurethane on polyolefin core wheel. Rated 700 to 1,000 lb per caster depending on wheel size.

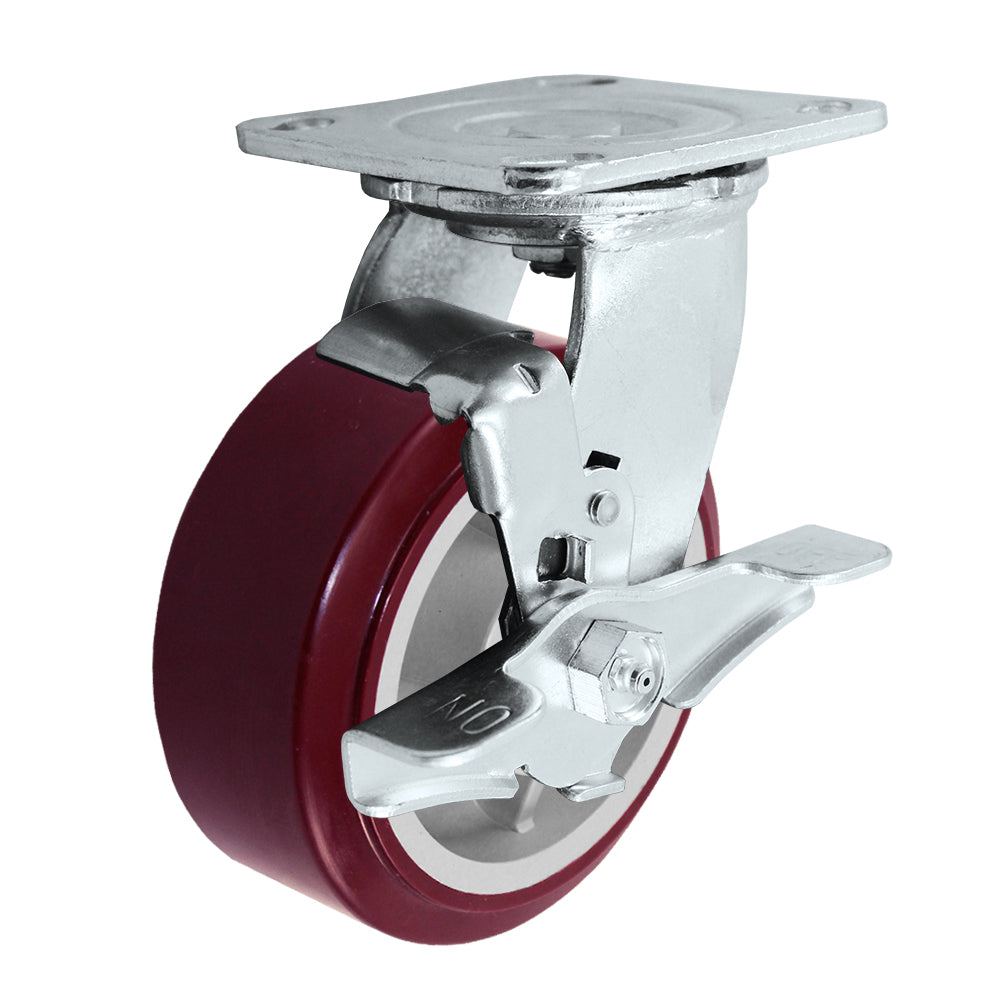

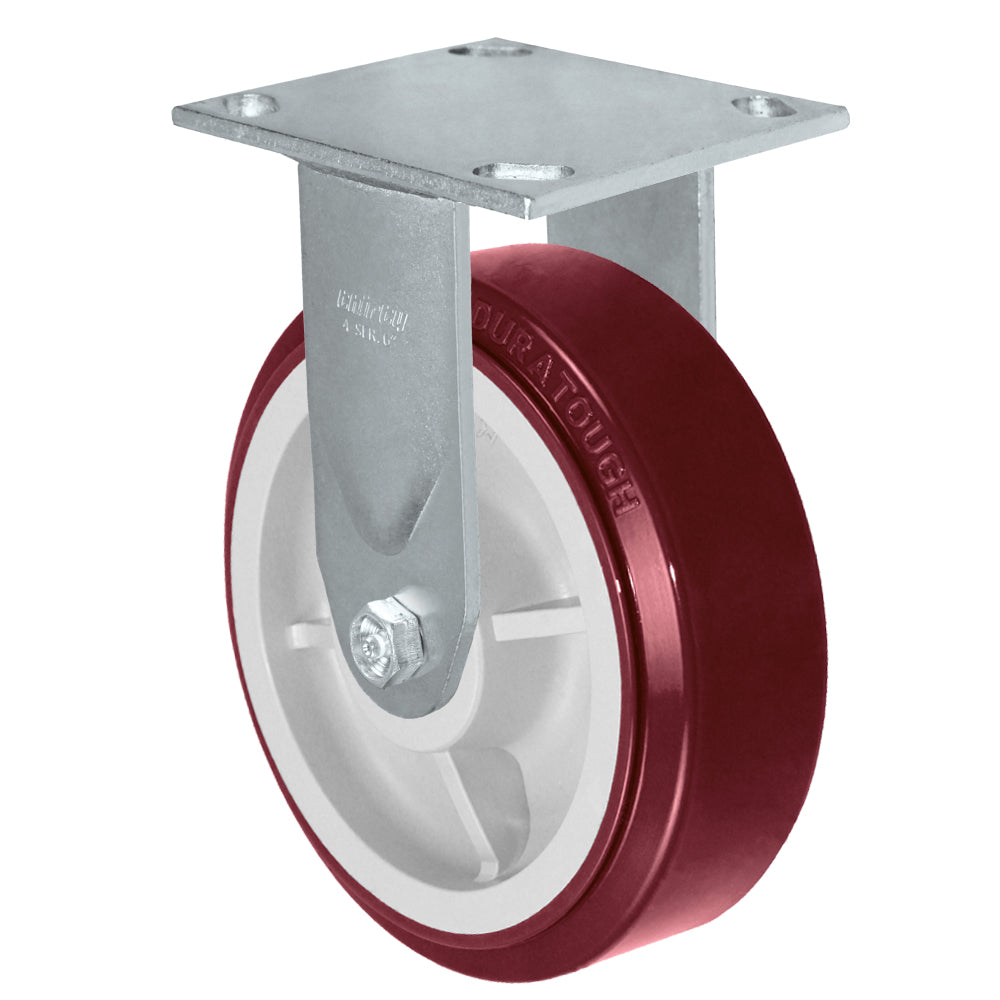

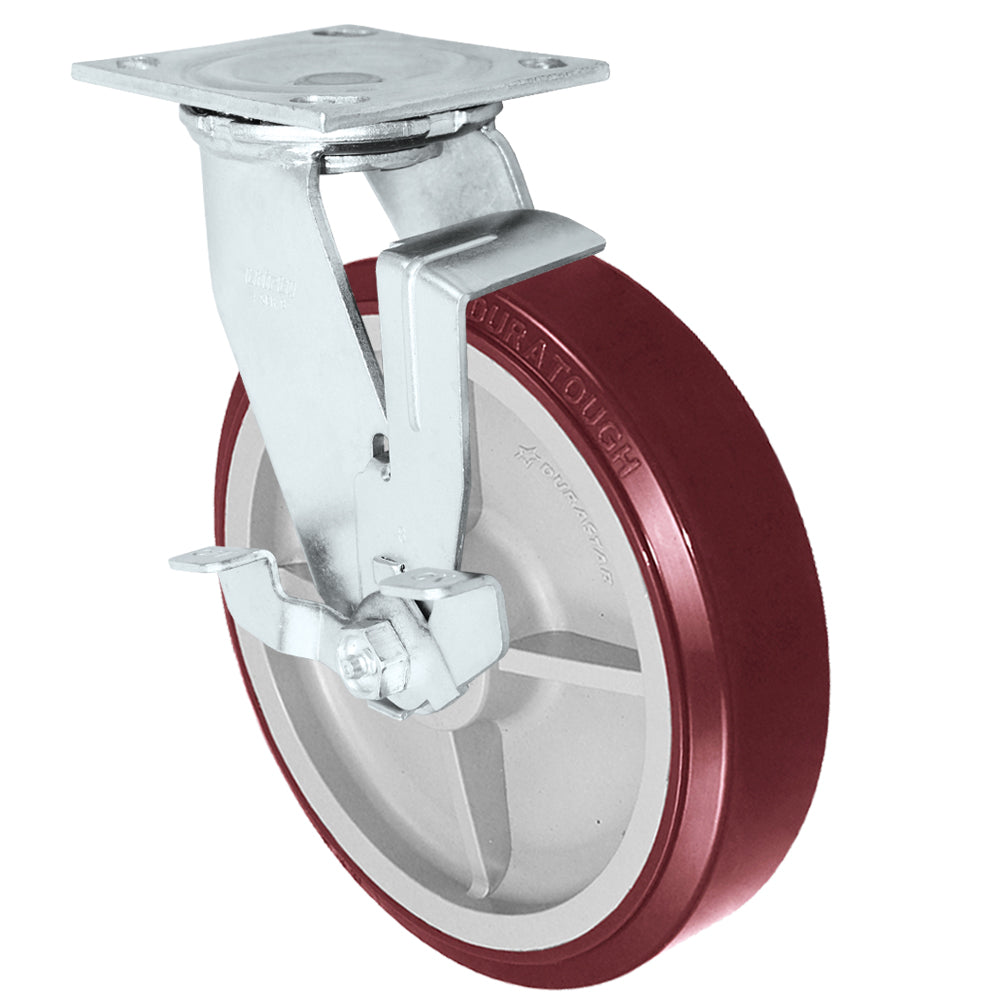

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Rigid rolls straight only.

Top plate is 4 x 4-1/2 in. with slotted holes for 2-5/8 x 3-5/8 to 3 x 3 in. bolt patterns, 3/8 in. bolts.

View full details

Free CAD & 3D model

34CS420PTU23J-03

Duratough Polyurethane Plate Caster CAD model (34CS420PTU23J-03): free STEP, IGES, DWG, DXF and STL downloads plus a 3D GLB model and a dimensioned drawing (PDF). No login, no email.

Browse all caster CAD models ›
Loading 3D model…

Drag to rotate. Tap a dimension to see it on the model and drawing.

Side elevation
OAH 5-5/8"DIA 4"DIA 4"
Front elevation
WIDTH 2"
Top plate
4 4PLATE 4-1/2 3-5/8 2-5/8SLOTTED TO 3 x 3
BHP 2-5/8 x 3-5/8 to 3 x 3
OverstockCasters.com Part 34CS420PTU23J-03 Model OSC-CAD-swivel-4x2-plate-45de55 Units in · third-angle · NTS © 2026 OverstockCasters.com. Free for design use. Redistribution or resale prohibited.
Download CADSTEP, IGES, DWG, DXF, STL, GLB, PDF · Free, no login

Free · No login, no email More CAD in the builder

Model matched to this part by spec: wheel diameter, tread width, overall height, mount and swivel geometry. The model's wheel material or color can differ. Reference only, not for fabrication.
