S24 Series · Plate caster· CasterHQ
Stainless Steel Polyurethane Plate Caster 3 to 5 in. x 1-1/4 in. Wheel, 2-3/8 x 3-5/8 in. Plate, 250 to 325 lb
Regular price
$27
Regular price
Sale price
$27
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU S24CS314PPU56X-01- Brand
- CasterHQ
- Series
- S24 Series
- Type
- Swivel
- Load capacity
- 250 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-1/4"
- Wheel
- Polyurethane tread on polyolefin core
- Wheel color
- Gray
- Overall height
- 4-3/16"
- Axle diameter
- 3/8"
- Mounting
- Top plate
- Top plate size
- 2-3/8 x 3-5/8"
- Bolt hole spacing
- 1-3/4 x 2-7/8 to 3"
- Mounting bolt size
- 5/16"
- Bearing
- 1/2 in. delrin with spanner bushing
- Swivel radius
- 2-21/32"
- Finish
- Stainless steel
- Warranty
- 1 year, defects in materials and workmanship
Tap to enlarge
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 3" x 1-1/4" | 250 lb | 4-3/16" | $27 |
| 3-1/2" x 1-1/4" | 275 lb | 4-5/8" | $28 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $28 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $30 |
| 3" x 1-1/4" | 250 lb | 4-3/16" | $33 |
| 3-1/2" x 1-1/4" | 275 lb | 4-5/8" | $36 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $36 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $38 |
| 3" x 1-1/4" | 250 lb | 4-3/16" | $22 |
| 3-1/2" x 1-1/4" | 275 lb | 4-5/8" | $23 |
| 4" x 1-1/4" | 300 lb | 5-1/8" | $24 |
| 5" x 1-1/4" | 325 lb | 6-1/4" | $25 |
Will it carry my load?
Enter your total weight to check the selected size.
1-1/4 in. wide stainless steel caster with a polyurethane tread on polyolefin core wheel. Rated 250 to 325 lb per caster depending on wheel size.

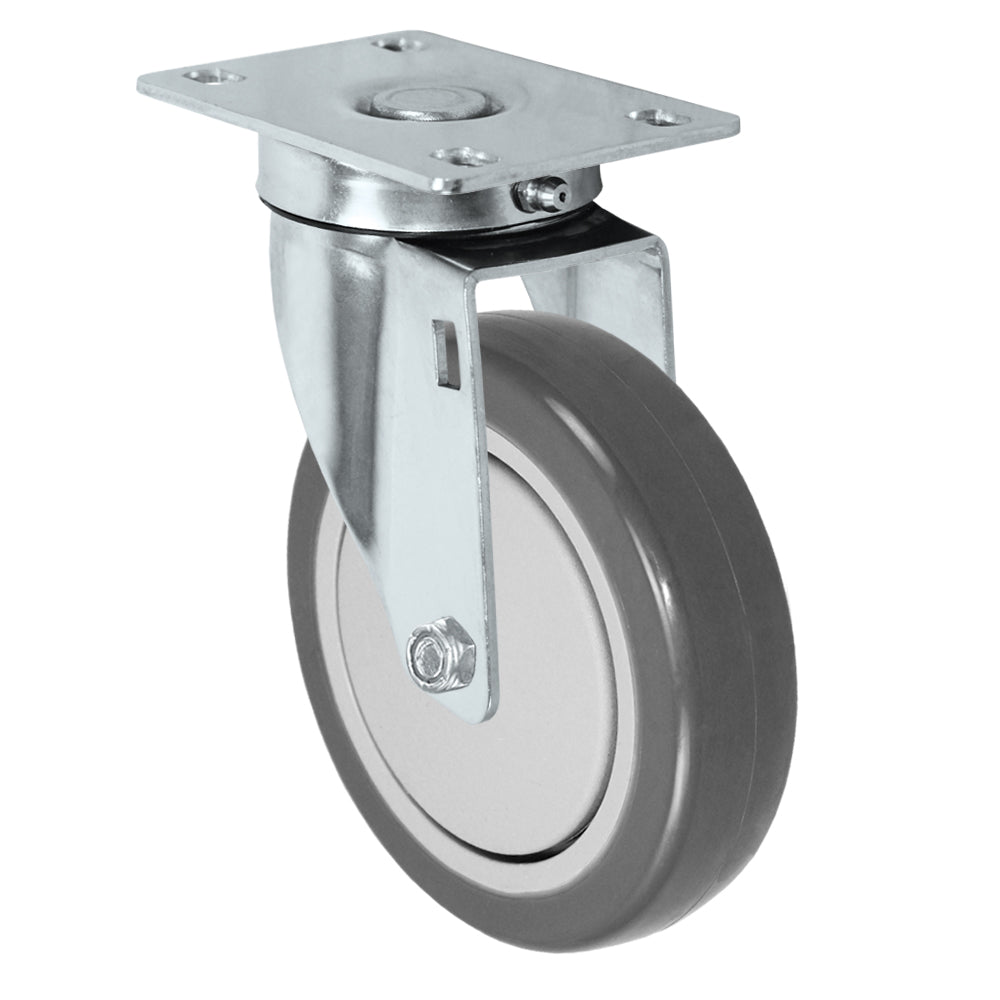

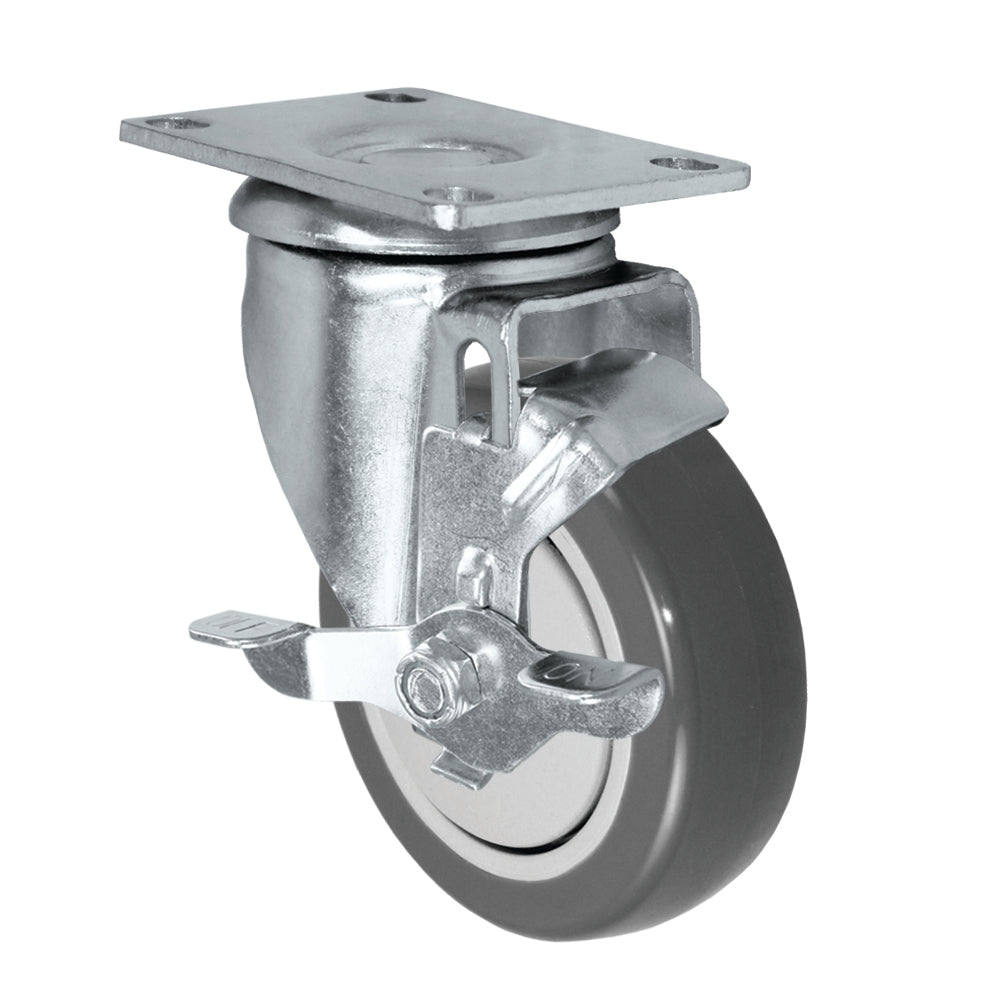

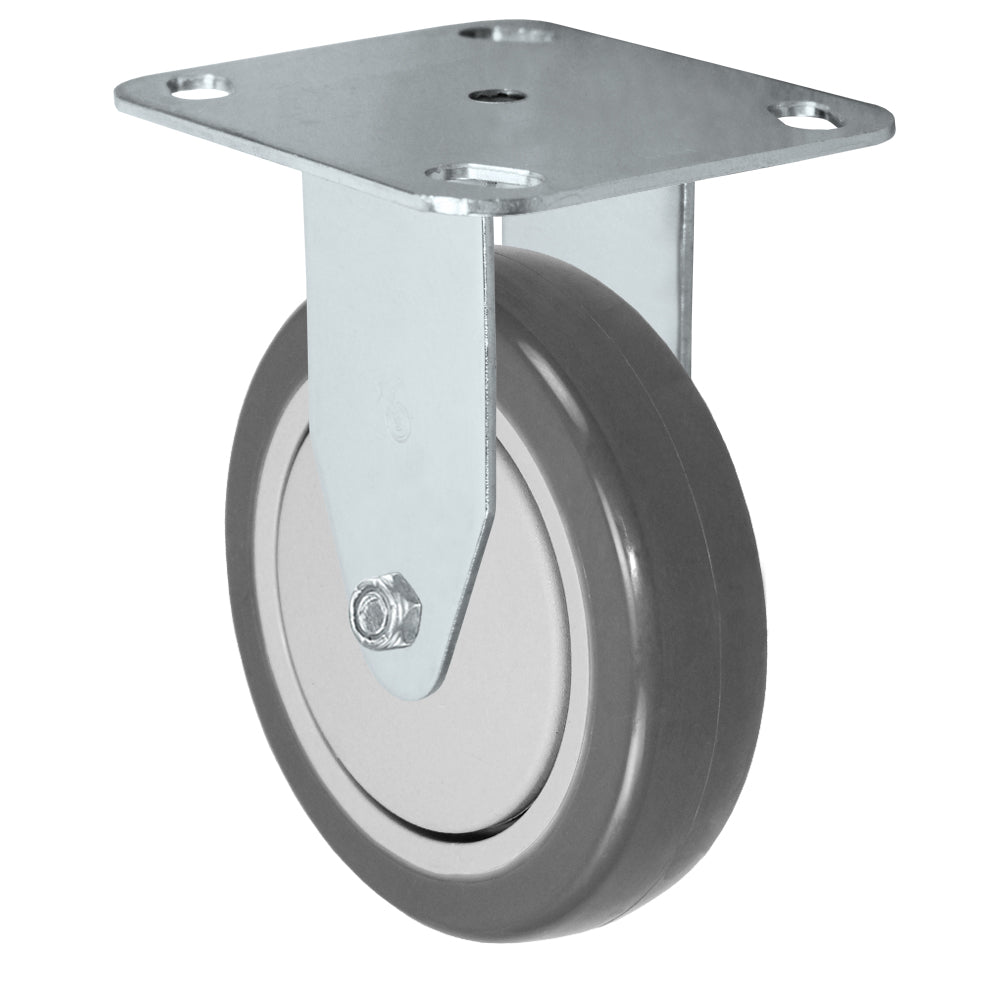

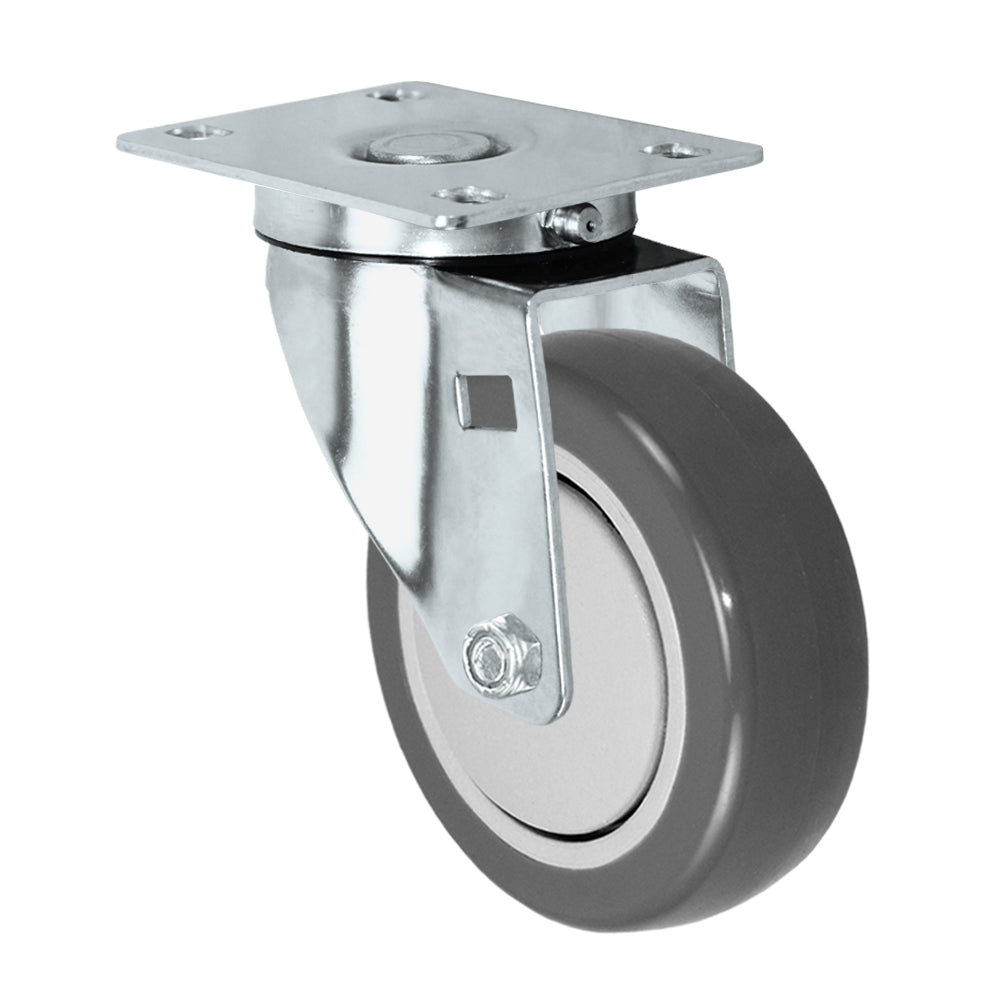

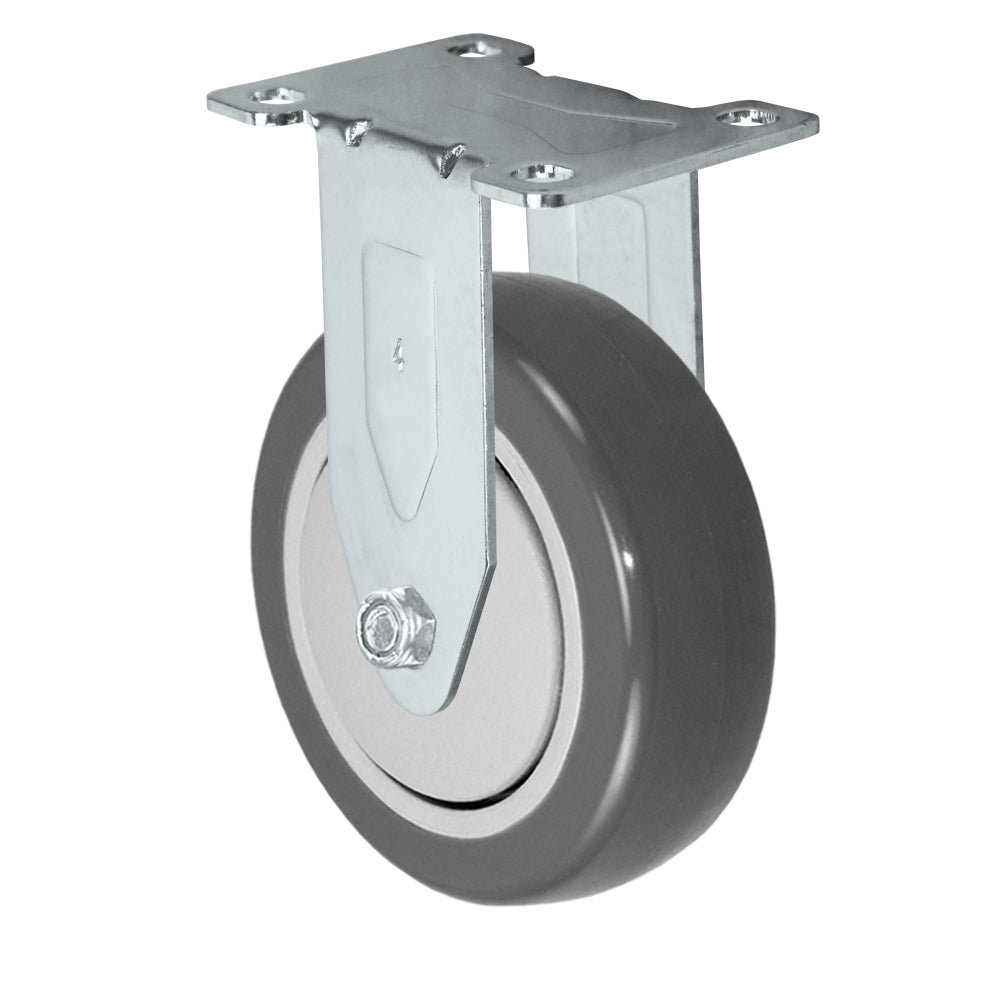

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Brake photos are from the matching zinc-plated caster; this caster is stainless. Rigid rolls straight only.
Top plate is 2-3/8 x 3-5/8 in. with slotted holes for 1-3/4 x 2-7/8 to 3 in. bolt patterns, 5/16 in. bolts.
