S24 Series · Plate caster· CasterHQ

Stainless Steel Donut Polyolefin Plate Caster 3 to 5 in. x 1-1/4 in. Wheel, 2-3/8 x 3-5/8 in. Plate, 300 to 350 lb

$24
$24
Sale Sold out
Shipping calculated at checkout.
Type
Wheel size
SpecificationsSKU S24CS314DPO83B-01
Brand
CasterHQ
Series
S24 Series
Type
Swivel
Load capacity
300 lb per caster
Wheel diameter
3"
Tread width
1-1/4"
Wheel
Polyolefin, crowned donut tread
Wheel color
Black
Overall height
4-3/16"
Axle diameter
3/8"
Mounting
Top plate
Top plate size
2-3/8 x 3-5/8"
Bolt hole spacing
1-3/4 x 2-7/8 to 3"
Mounting bolt size
5/16"
Bearing
Plain bore with bushing
Swivel radius
2-21/32"
Finish
Stainless steel
Warranty
1 year, defects in materials and workmanship
Top plate 2-3/8 x 3-5/8 in. with bolt hole spacing Tap to enlarge
Measure your bolt holes center to center and match them to this plate.
Top plate diagram, full size
Sizes · Swivelcapacity is per caster
SizeCapacityHeightPrice
3" x 1-1/4" 300 lb 4-3/16" $24
3-1/2" x 1-1/4" 325 lb 4-5/8" $28
4" x 1-1/4" 350 lb 5-1/8" $29
5" x 1-1/4" 350 lb 6-1/4" $30

Will it carry my load?

Enter your total weight to check the selected size.

1-1/4 in. wide stainless steel caster with a polyolefin, crowned donut tread wheel. Rated 300 to 350 lb per caster depending on wheel size.

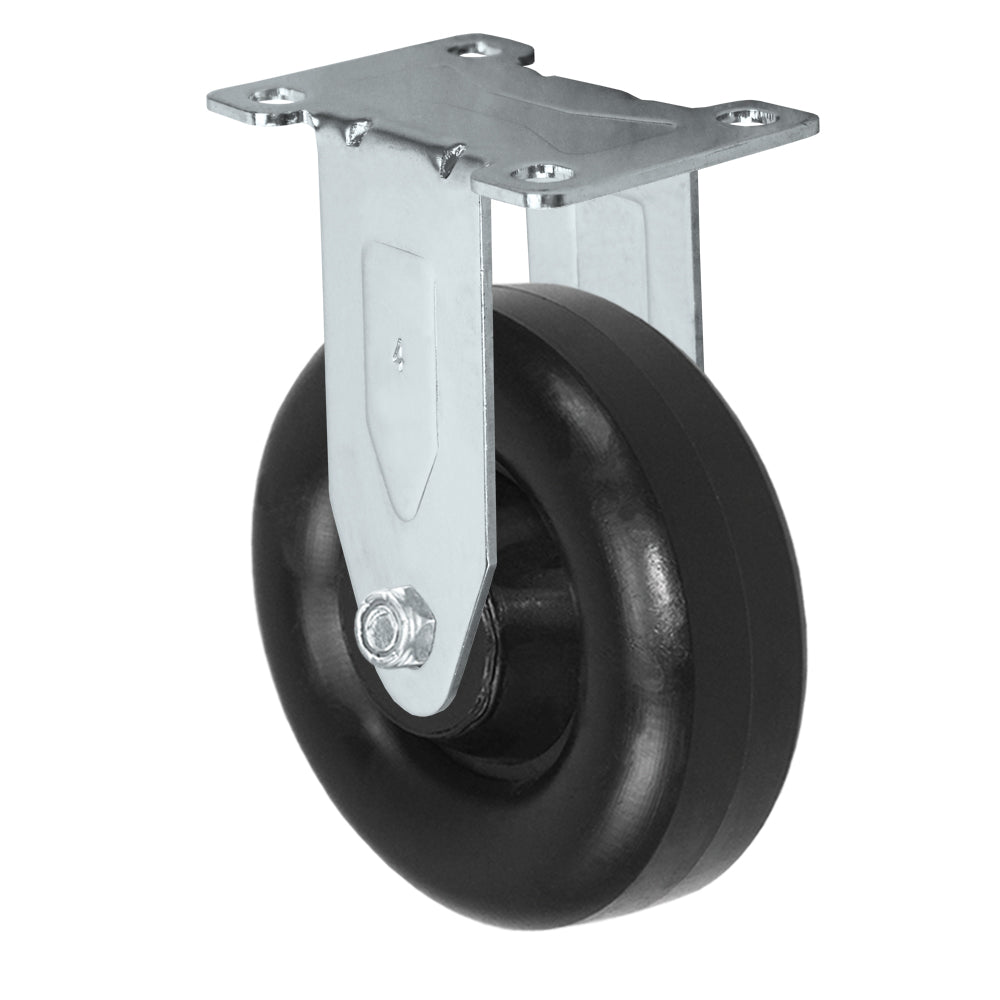

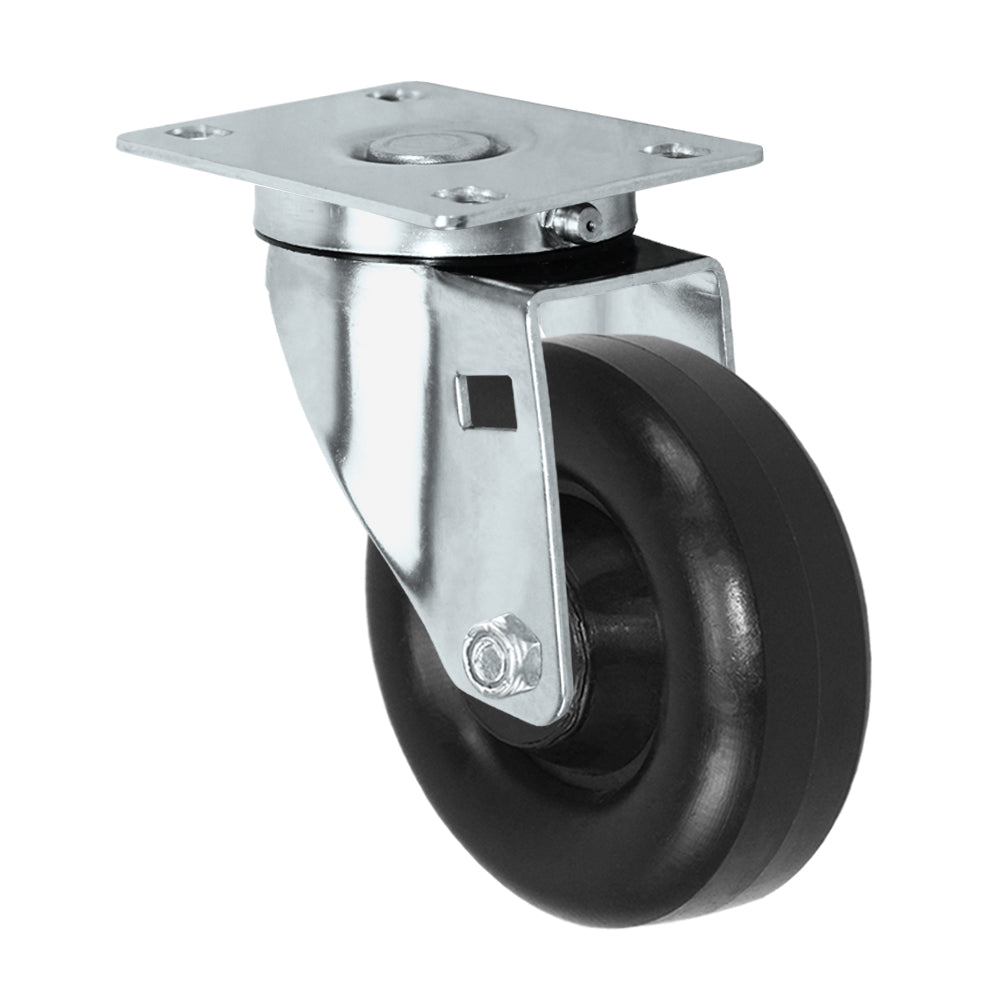

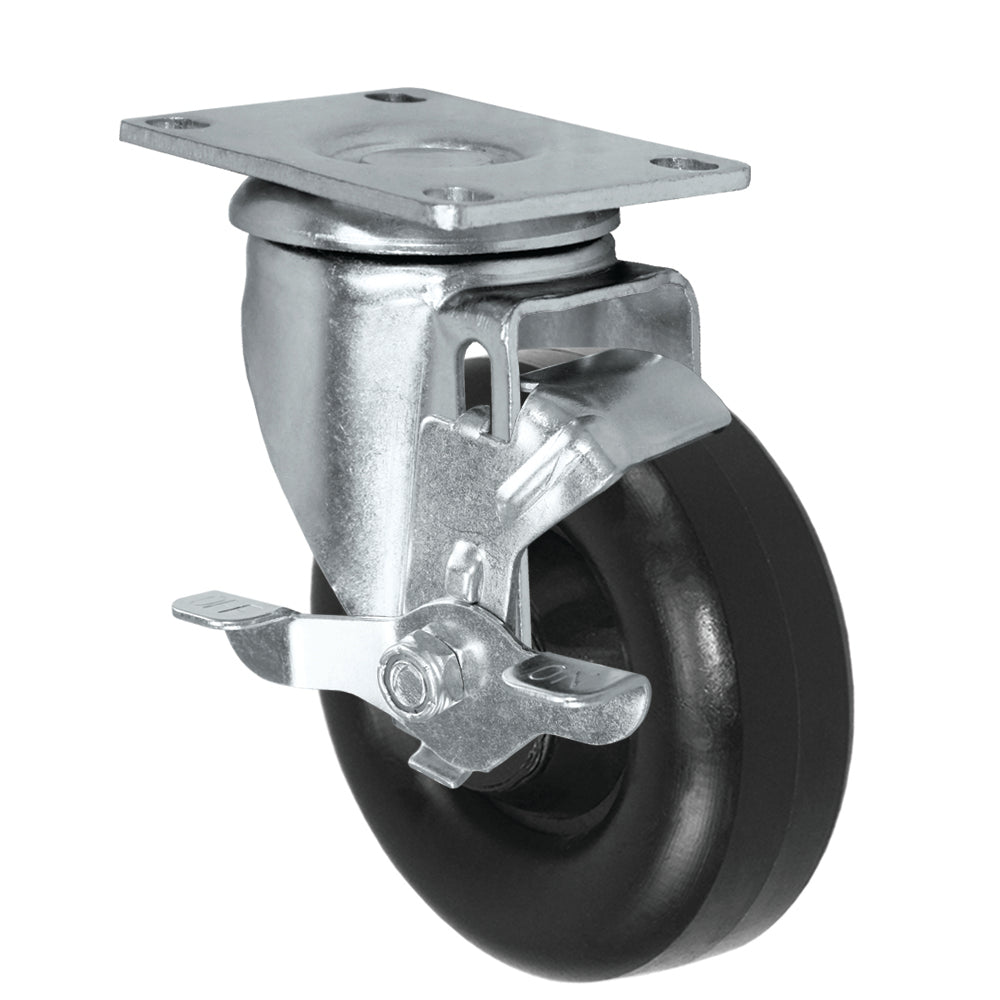

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Brake photos are from the matching zinc-plated caster; this caster is stainless. Rigid rolls straight only.

Top plate is 2-3/8 x 3-5/8 in. with slotted holes for 1-3/4 x 2-7/8 to 3 in. bolt patterns, 5/16 in. bolts.
