Low Profile HD Polyolefin Plate Caster 3 in. x 1-13/16 in. Wheel, 3 Plate Sizes, 500 lb
Regular price
$32
Regular price
Sale price
$32
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU 04CS3113HPO91B-01- Brand
- CasterHQ
- Series
- 04 Series
- Type
- Swivel
- Load capacity
- 500 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-13/16"
- Wheel
- Heavy-duty polyolefin
- Wheel color
- Black
- Overall height
- 4-1/4"
- Axle diameter
- 3/8"
- Mounting
- Top plate
- Top plate size
- 2-3/8 x 3-5/8"
- Bolt hole spacing
- 1-3/4 x 2-7/8 to 3"
- Mounting bolt size
- 5/16"
- Bearing
- Plain bore
- Swivel radius
- 2-3/8"
- Finish
- Zinc plated
- Warranty
- 1 year, defects in materials and workmanship
Tap to enlarge
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 3" x 1-13/16" | 500 lb | 4-1/4" | $32 |
| 3" x 1-13/16" | 500 lb | 4-1/4" | $32 |
| 3" x 1-13/16" | 500 lb | 4-1/4" | $32 |
| 3" x 1-13/16" | 500 lb | 4-1/4" | $27 |
| 3" x 1-13/16" | 500 lb | 4-1/4" | $27 |
| 3" x 1-13/16" | 500 lb | 4-1/4" | $27 |
Will it carry my load?
Enter your total weight to check the selected size.
1-13/16 in. wide caster with a heavy-duty polyolefin wheel. Rated 500 to 500 lb per caster depending on wheel size.
Swivel turns 360 degrees. Rigid rolls straight only.

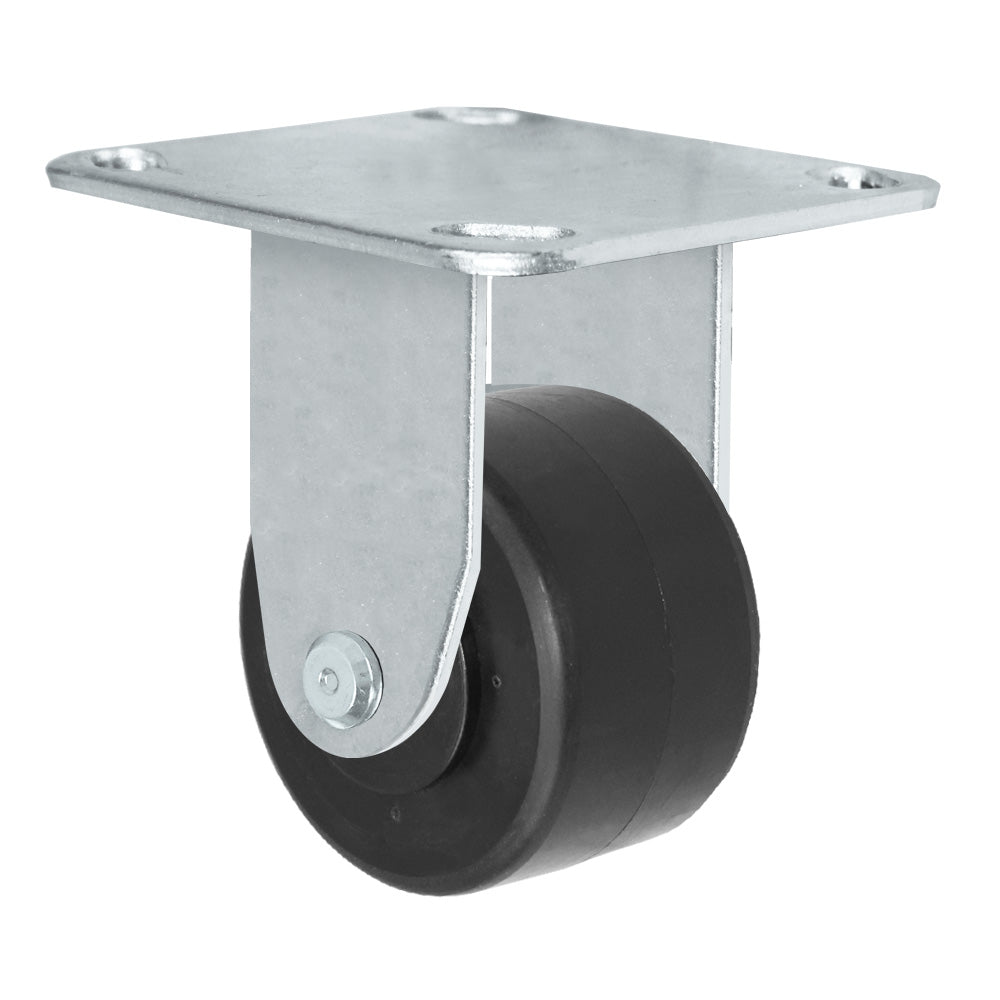

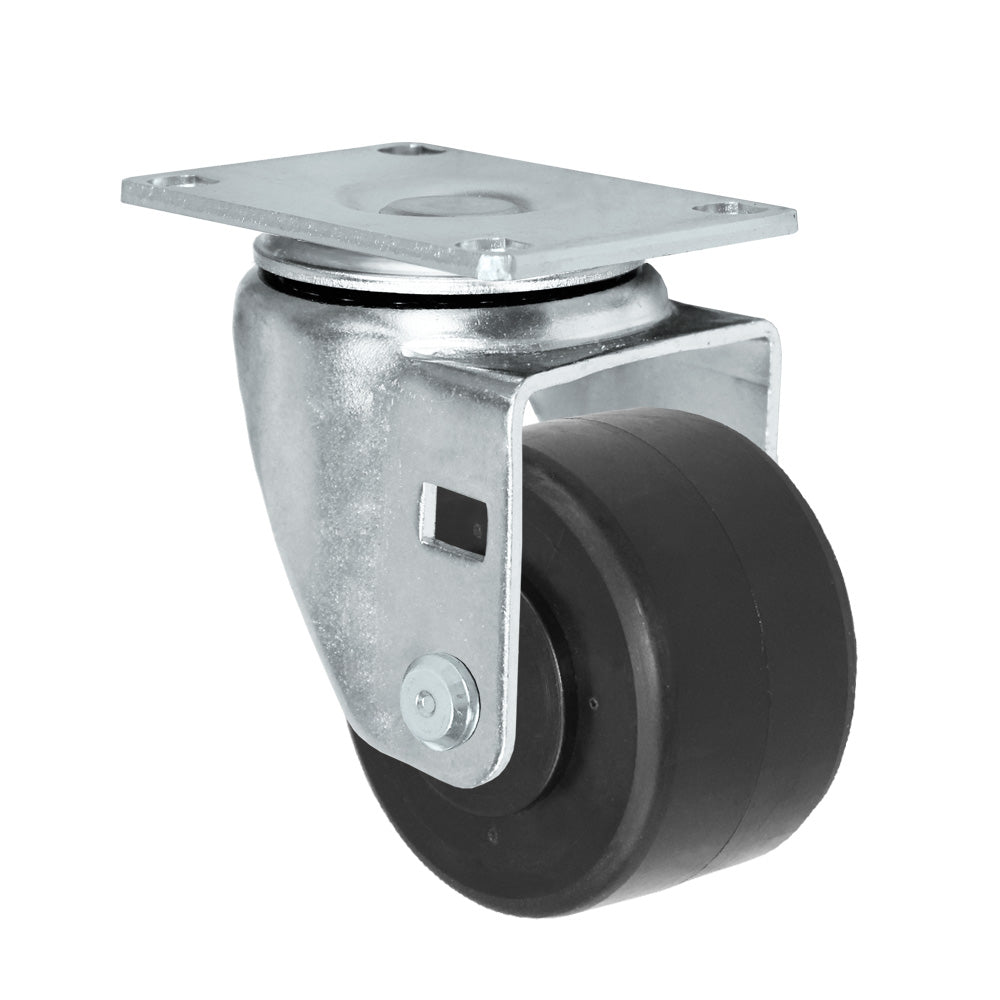

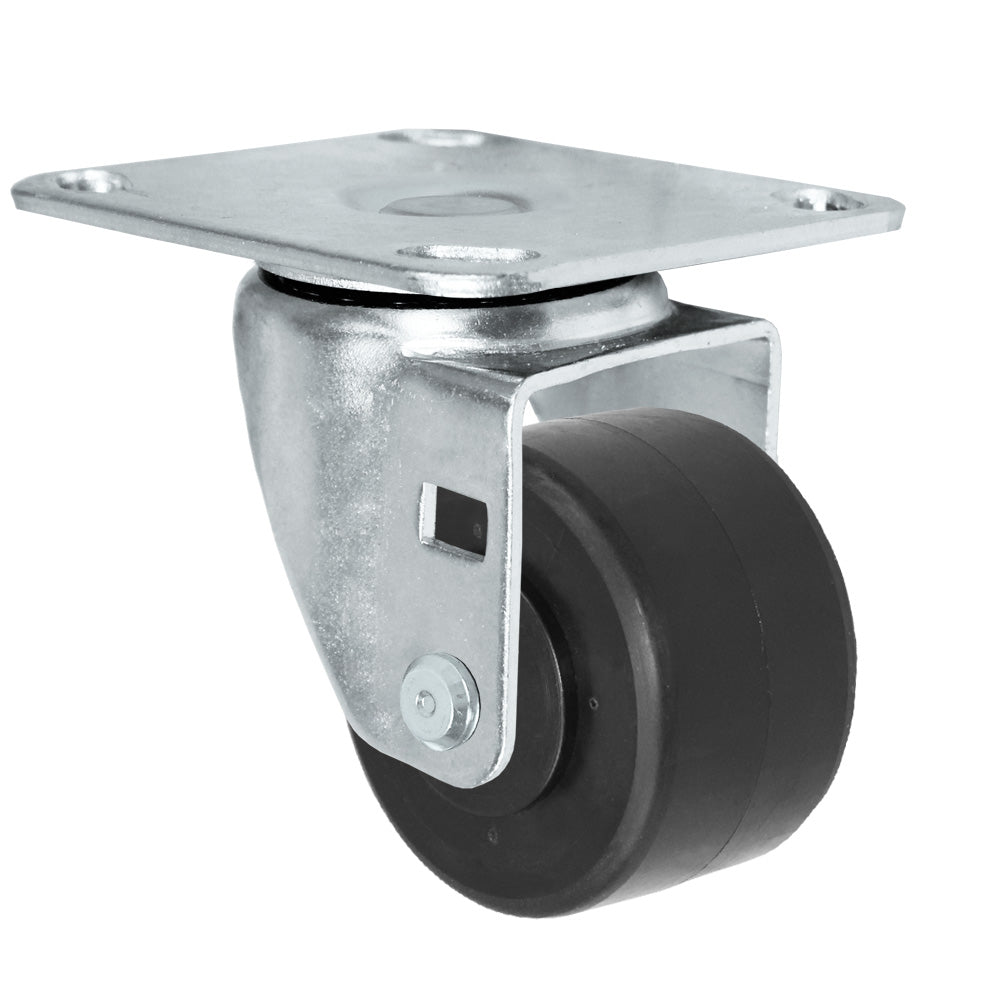

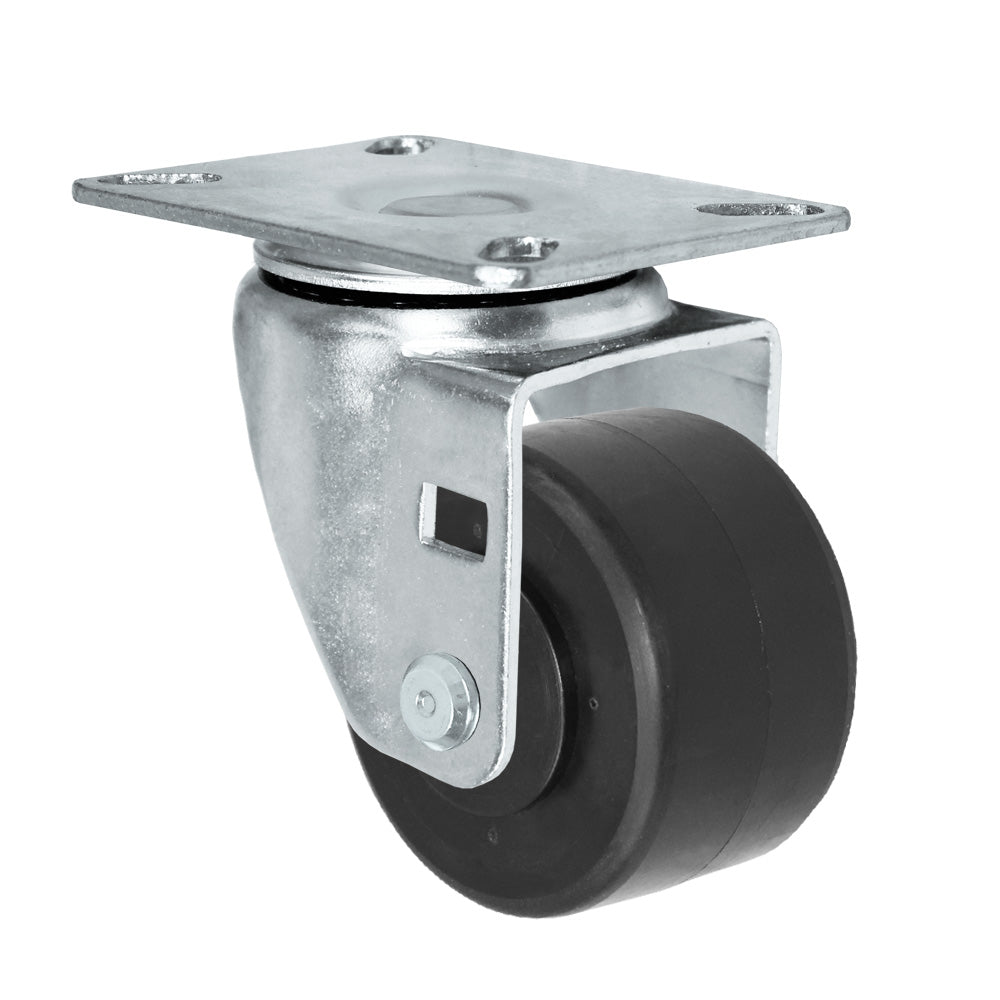

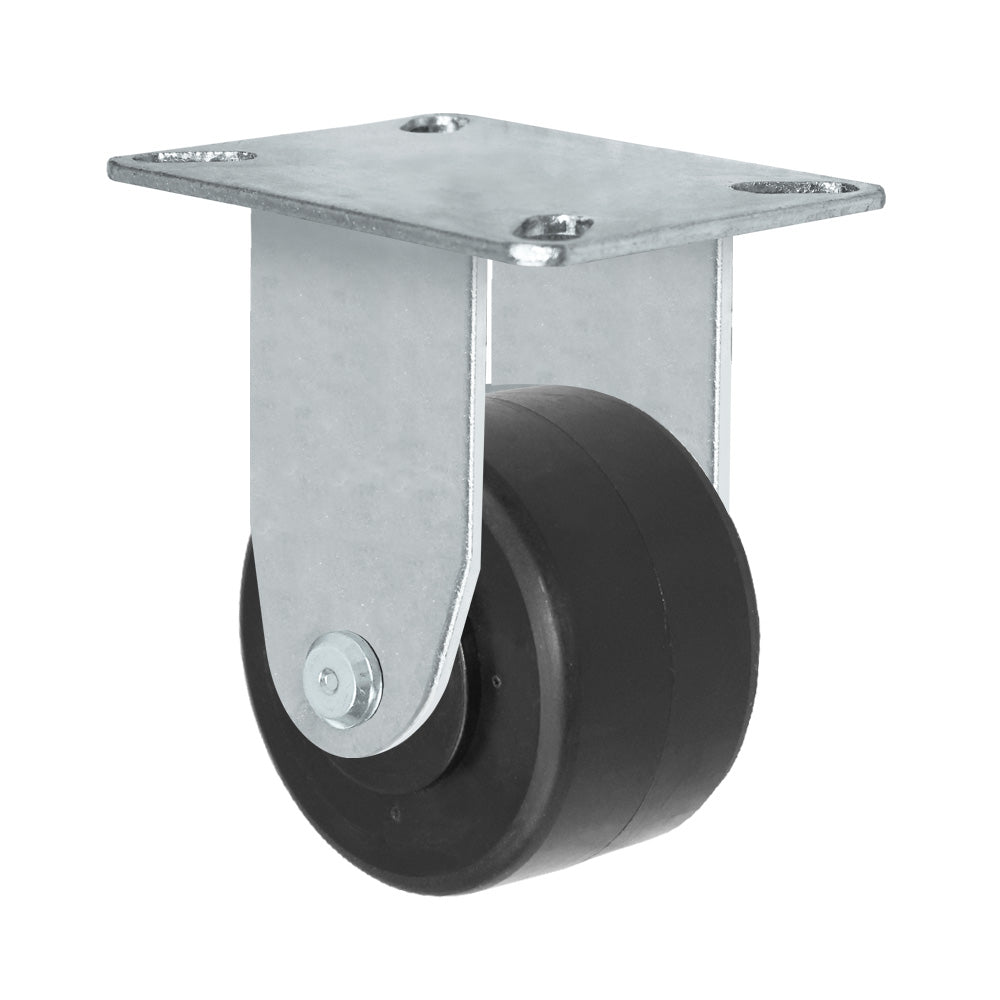

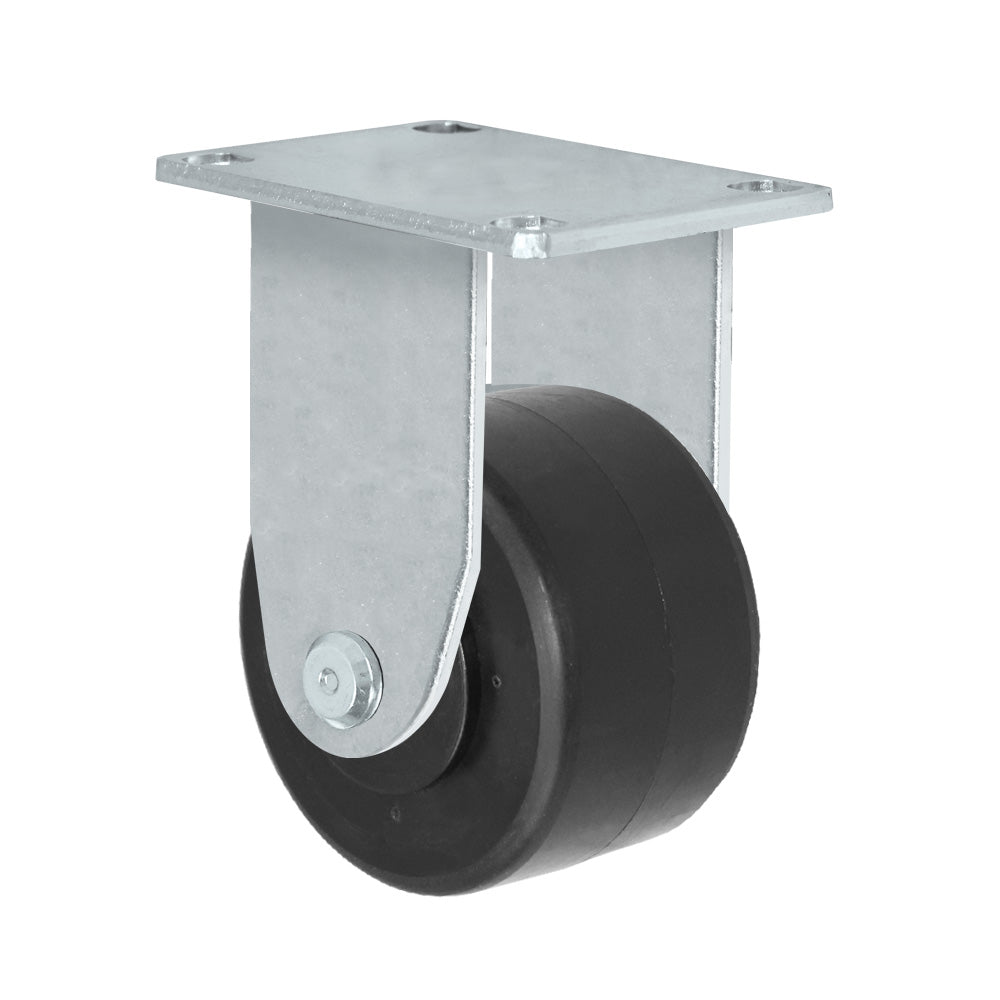

Choose your plate: 2-3/8 x 3-5/8 in. (bolts 1-3/4 x 2-7/8 to 3, 5/16 in.); 3-1/8 x 4-1/8 in. (bolts 1-3/4 x 2-15/16 to 2-3/8 x 3-3/8, 5/16 in.); 4 x 4-1/2 in. (bolts 2-5/8 x 3-5/8 to 3 x 3, 3/8 in.).
