04 Series · Threaded stem caster· CasterHQ

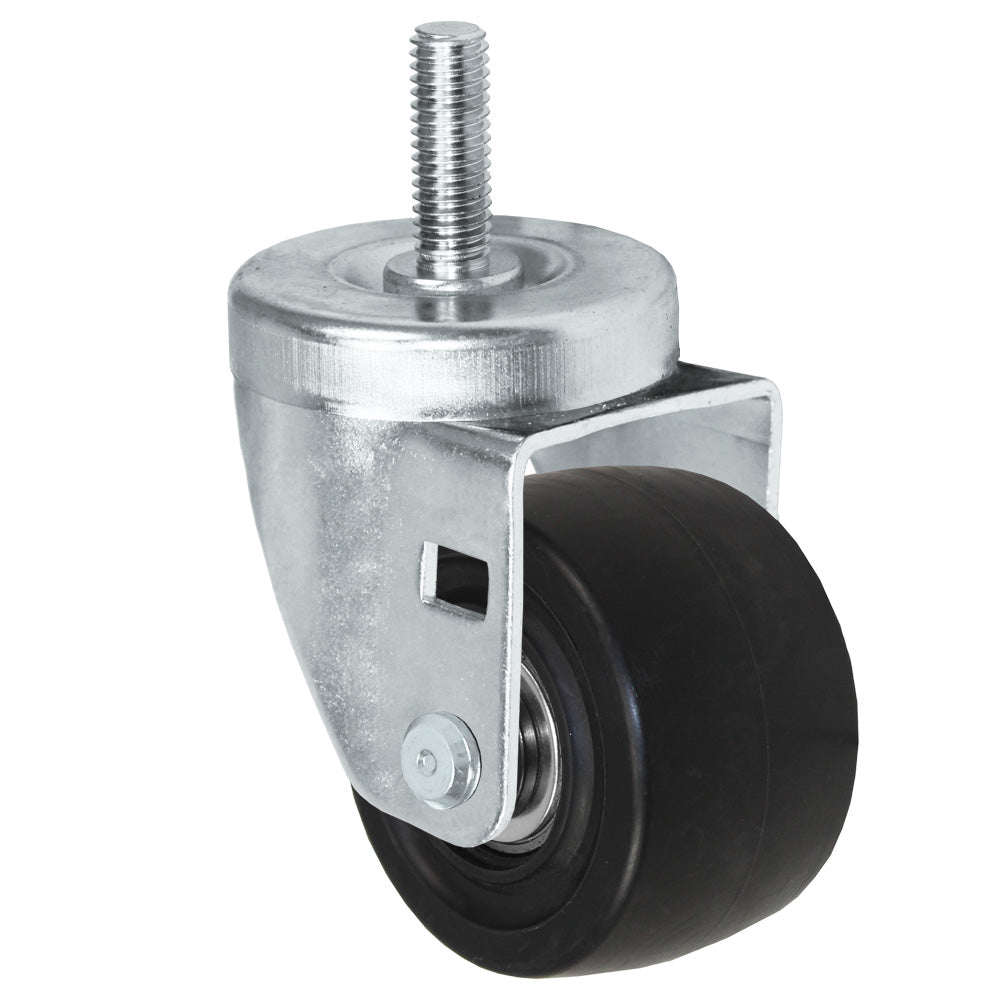

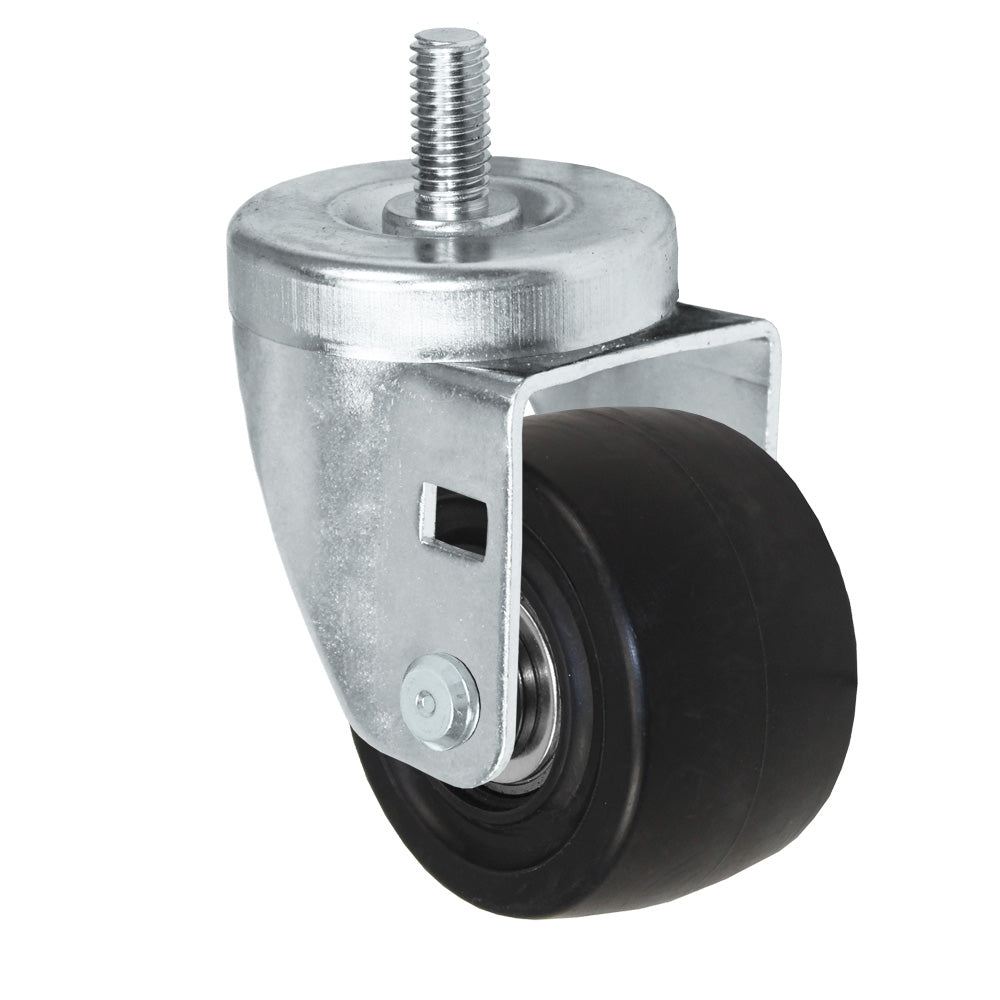

Low Profile Glass-Filled Nylon Threaded Stem Caster 3 in. x 1-13/16 in. Wheel, 2 Stem Sizes, 700 lb
Regular price
$32
Regular price
Sale price
$32
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU 04CS3113MA62B-41- Brand
- CasterHQ
- Series
- 04 Series
- Type
- Swivel
- Load capacity
- 700 lb per caster
- Wheel diameter
- 3"
- Tread width
- 1-13/16"
- Wheel
- Glass-filled nylon
- Wheel color
- Black
- Height, less stem
- 4-1/4"
- Axle diameter
- 3/8"
- Mounting
- Threaded stem
- Stem size
- 1/2-13 x 1"
- Bearing
- Precision ball
- Swivel radius
- 2-3/8"
- Finish
- Zinc plated
- Warranty
- 1 year, defects in materials and workmanship
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 3" x 1-13/16" | 700 lb | 4-1/4" | $32 |
| 3" x 1-13/16" | 700 lb | 4-1/4" | $32 |
| 3" x 1-13/16" | 700 lb | 4-1/4" | $38 |
| 3" x 1-13/16" | 700 lb | 4-1/4" | $38 |
Will it carry my load?
Enter your total weight to check the selected size.
1-13/16 in. wide caster with a glass-filled nylon wheel. Rated 700 to 700 lb per caster depending on wheel size.
Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Where the photo shows a swivel caster, the brake is not pictured.
Threaded stem mounts: thread into a tapped hole or nut. Match thread size and length. Stem casters come in the types shown.
