91 Series · Plate caster· CasterHQ
Heavy Duty Kingpinless Polyurethane on Nylon Plate Caster 6 to 10 in. x 3 in. Wheel, 4-1/2 x 6-1/4 in. Plate, 2,000 to 3,000 lb
Regular price
$120
Regular price
Sale price
$120
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU 91CS630MX25L-04- Brand
- CasterHQ
- Series
- 91 Series
- Type
- Swivel
- Load capacity
- 2000 lb per caster
- Wheel diameter
- 6"
- Tread width
- 3"
- Wheel
- Polyurethane tread on glass-filled nylon core
- Wheel color
- Blue
- Overall height
- 7-1/2"
- Axle diameter
- 3/4"
- Mounting
- Top plate
- Top plate size
- 4-1/2 x 6-1/4"
- Bolt hole spacing
- 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4"
- Mounting bolt size
- 1/2"
- Bearing
- 1 in. roller with spanner bushing
- Swivel radius
- 4-5/16"
- Finish
- Zinc plated
- Warranty
- 3 years, defects in materials and workmanship
Tap to enlarge
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|

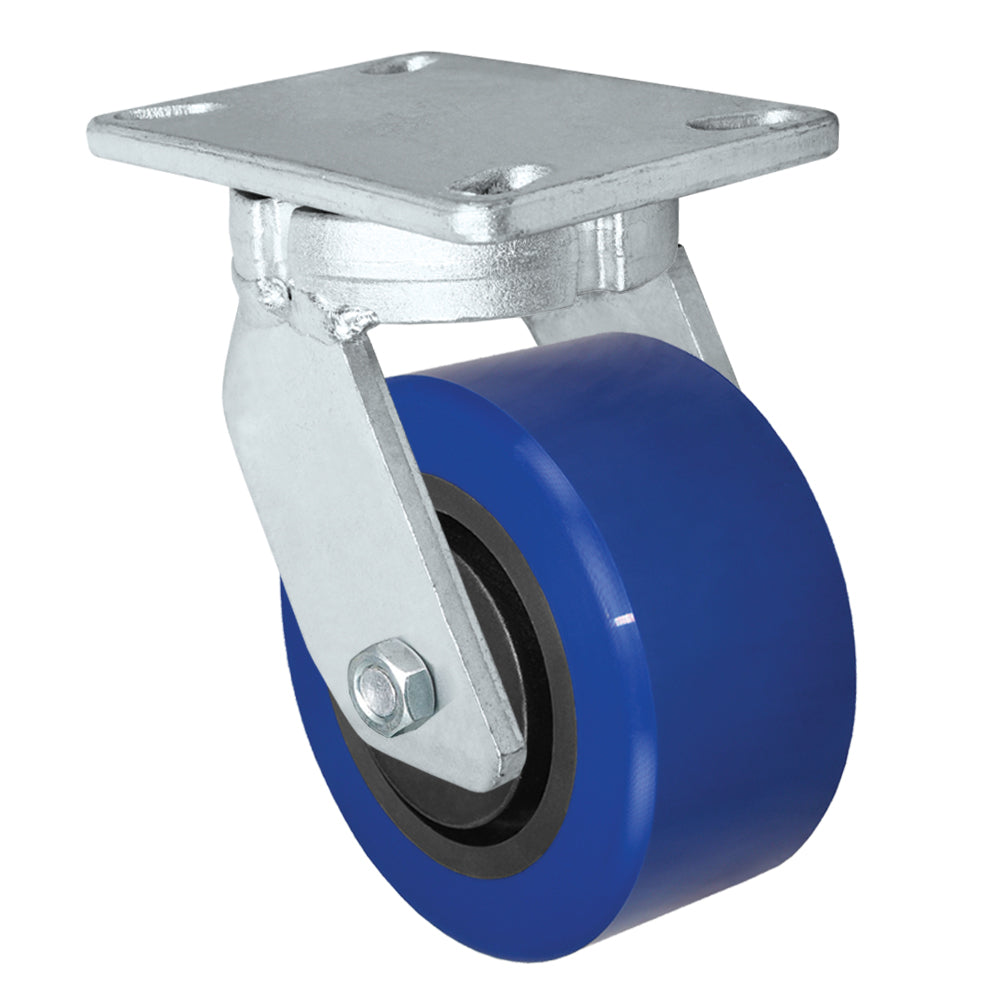

| 6" x 3" | 2000 lb | 7-1/2" | $120 |

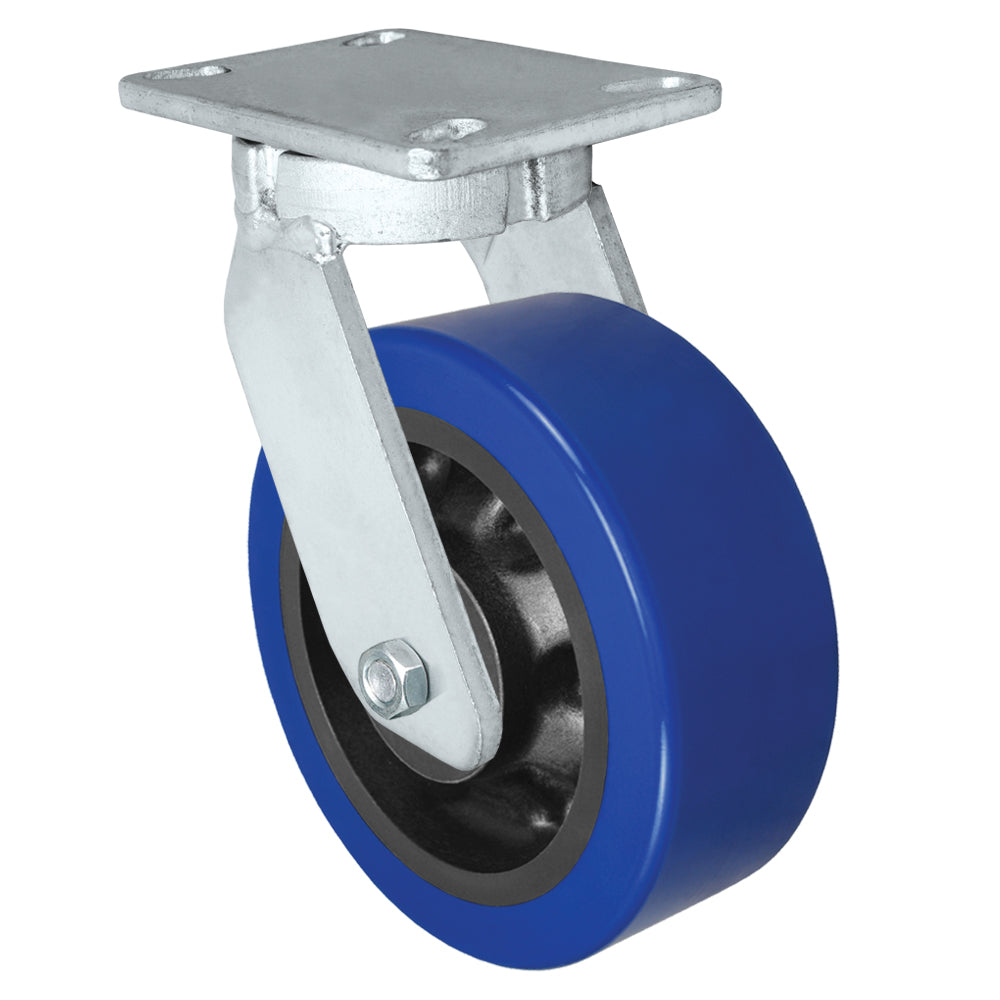

| 8" x 3" | 2500 lb | 10-1/8" | $128 |

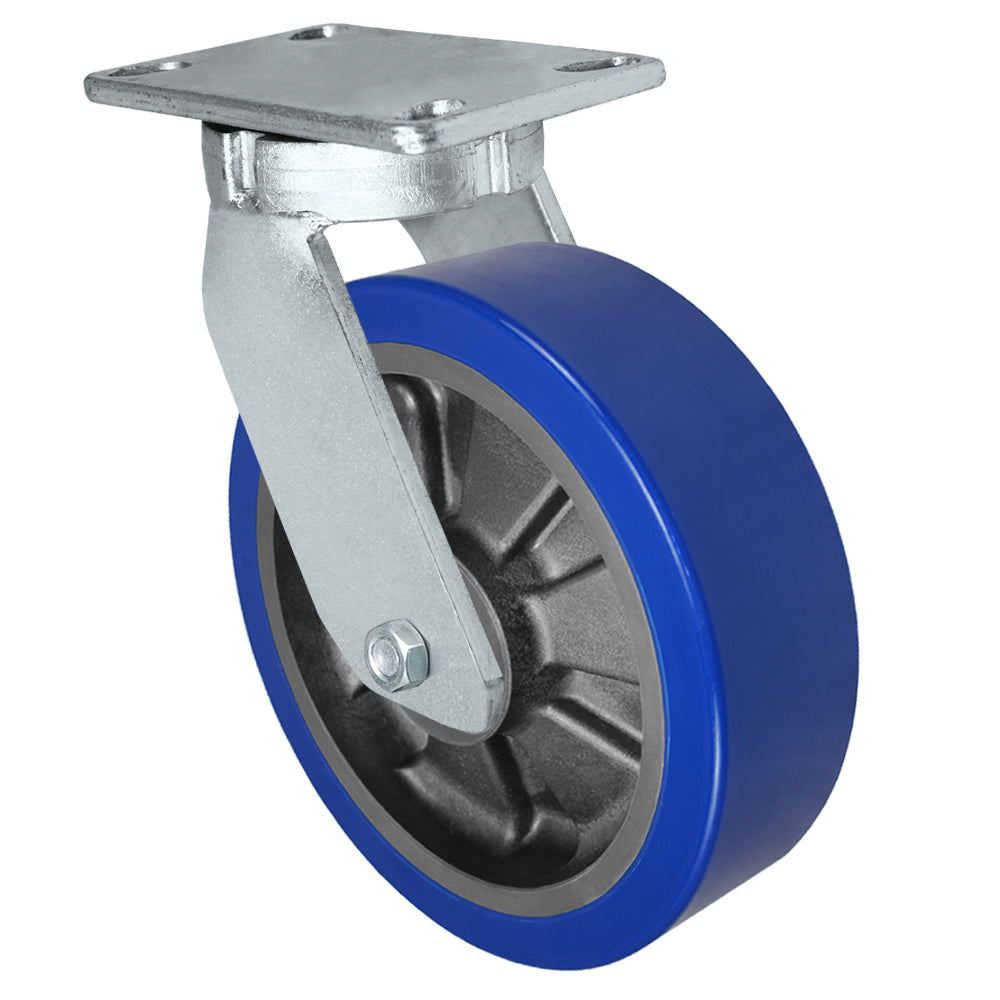

| 10" x 3" | 3000 lb | 11-1/2" | $150 |
| 6" x 3" | 2000 lb | 7-1/2" | $102 |
| 8" x 3" | 2500 lb | 10-1/8" | $109 |
| 10" x 3" | 3000 lb | 11-1/2" | $128 |
| 6" x 3" | 2000 lb | 7-1/2" | $194 |
| 8" x 3" | 2500 lb | 10-1/8" | $202 |
| 10" x 3" | 3000 lb | 11-1/2" | $224 |
Will it carry my load?
Enter your total weight to check the selected size.
3 in. wide kingpinless caster with a polyurethane tread on glass-filled nylon core wheel. Rated 2,000 to 3,000 lb per caster depending on wheel size.

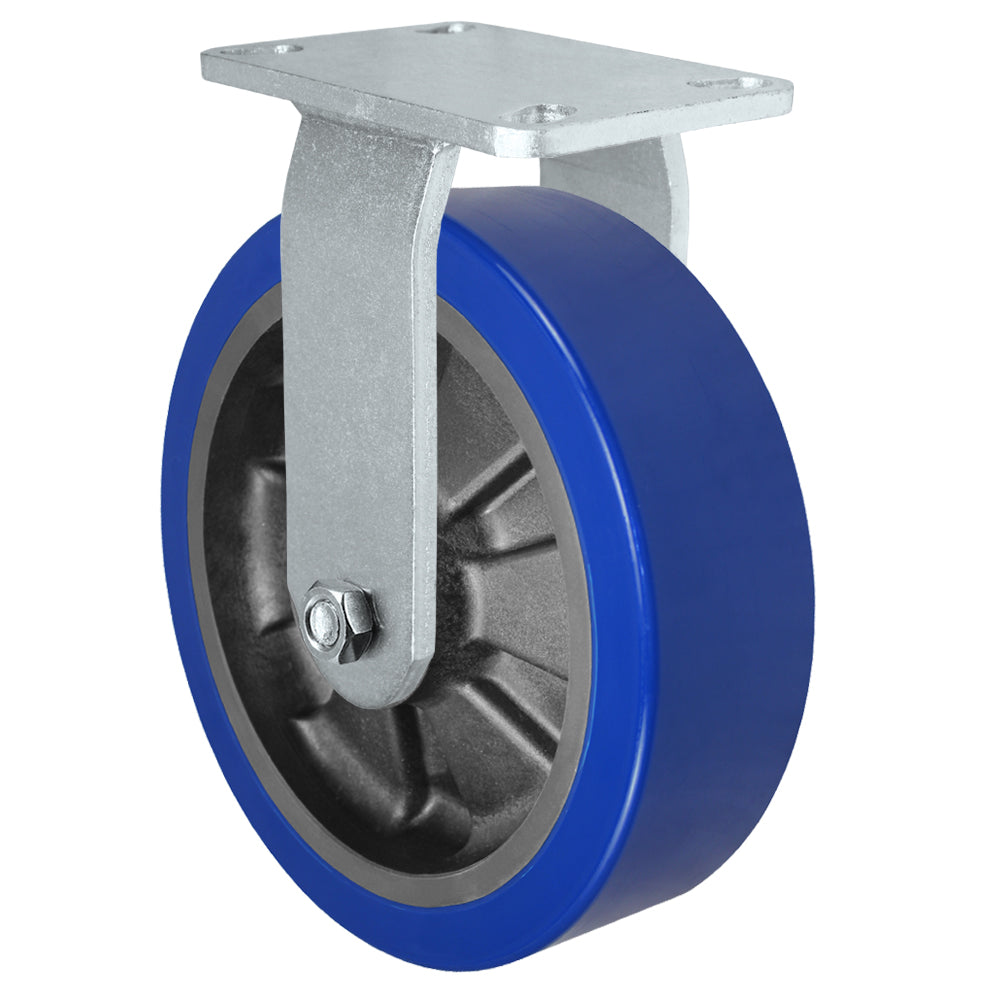

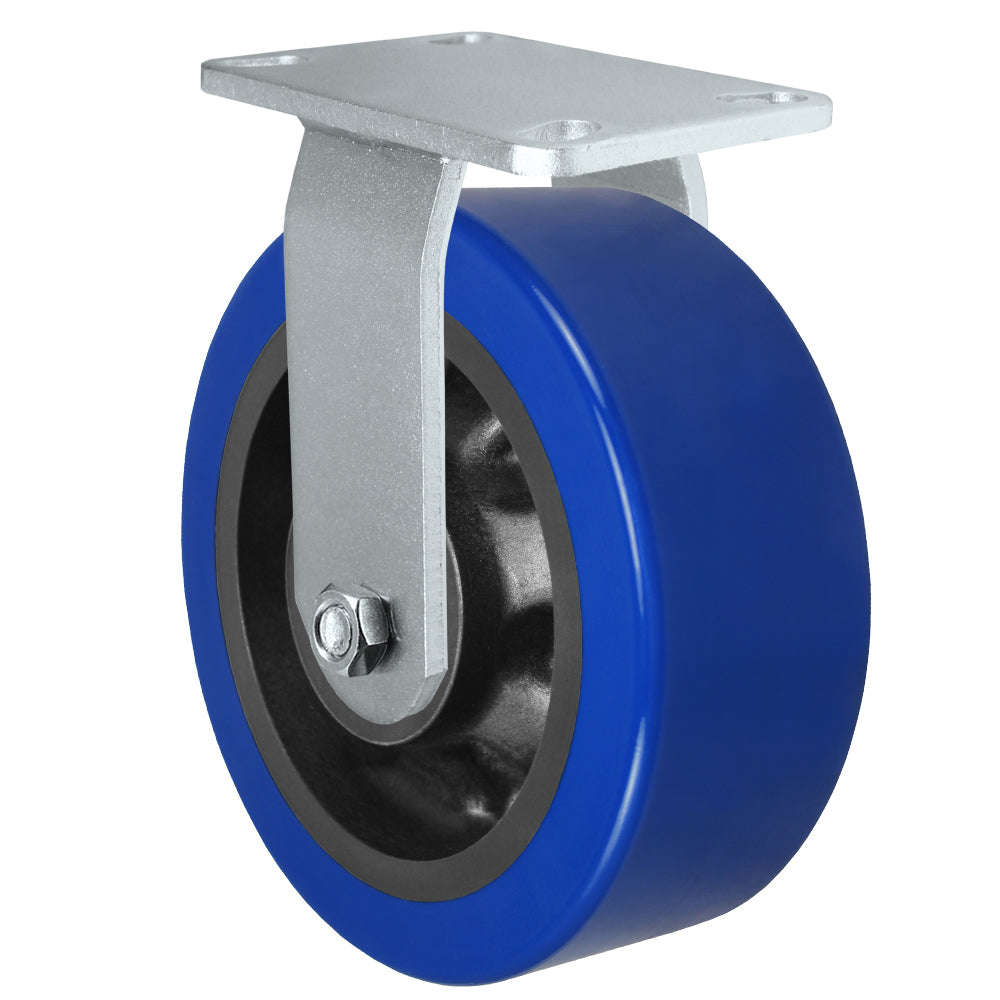

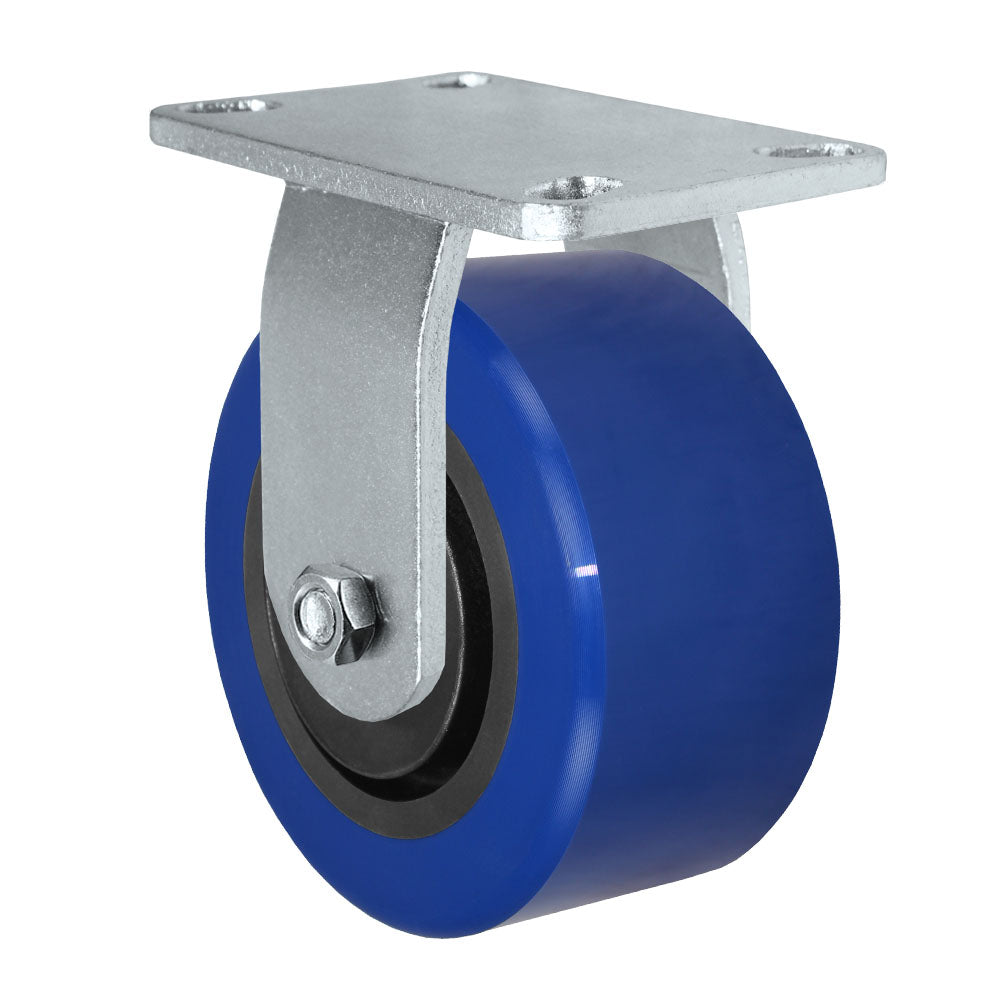

Swivel turns 360 degrees. Swivel + face-contact brake adds a foot-operated brake that presses on the wheel face. The brake is not shown in the photo. Where the photo shows a swivel caster, the brake is not pictured. Rigid rolls straight only.
Top plate is 4-1/2 x 6-1/4 in. with slotted holes for 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4 in. bolt patterns, 1/2 in. bolts.
