45 Series · Plate caster· CasterHQ
Heavy Duty Kingpinless HD Solid Polyurethane Plate Caster 4 to 8 in. x 2 in. Wheel, 2 Plate Sizes, 1,200 to 2,000 lb
Regular price
$80
Regular price
Sale price
$80
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU 45CS420HU23X-03- Brand
- CasterHQ
- Series
- 45 Series
- Type
- Swivel
- Load capacity
- 1200 lb per caster
- Wheel diameter
- 4"
- Tread width
- 2"
- Wheel
- Heavy-duty solid polyurethane on glass-filled nylon core
- Wheel color
- Gray
- Overall height
- 5-5/8"
- Axle diameter
- 1/2"
- Mounting
- Top plate
- Top plate size
- 4 x 4-1/2"
- Bolt hole spacing
- 2-5/8 x 3-5/8 to 3 x 3"
- Mounting bolt size
- 3/8"
- Bearing
- 3/4 in. roller with spanner bushing
- Swivel radius
- 3-1/8"
- Finish
- Zinc plated
- Warranty
- 1 year, defects in materials and workmanship
Tap to enlarge
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 4" x 2" | 1200 lb | 5-5/8" | $80 |
| 4" x 2" | 1200 lb | 5-5/8" | $85 |
| 5" x 2" | 1500 lb | 6-1/2" | $90 |
| 5" x 2" | 1500 lb | 6-1/2" | $95 |
| 6" x 2" | 1800 lb | 7-1/2" | $105 |
| 6" x 2" | 1800 lb | 7-1/2" | $110 |
| 8" x 2" | 2000 lb | 9-1/2" | $177 |
| 8" x 2" | 2000 lb | 9-1/2" | $182 |
| 4" x 2" | 1200 lb | 5-5/8" | $86 |
| 4" x 2" | 1200 lb | 5-5/8" | $91 |
| 5" x 2" | 1500 lb | 6-1/2" | $96 |
| 5" x 2" | 1500 lb | 6-1/2" | $101 |
| 6" x 2" | 1800 lb | 7-1/2" | $111 |
| 6" x 2" | 1800 lb | 7-1/2" | $116 |
| 8" x 2" | 2000 lb | 9-1/2" | $188 |
| 8" x 2" | 2000 lb | 9-1/2" | $193 |
| 4" x 2" | 1200 lb | 5-5/8" | $68 |
| 4" x 2" | 1200 lb | 5-5/8" | $73 |
| 5" x 2" | 1500 lb | 6-1/2" | $76 |
| 5" x 2" | 1500 lb | 6-1/2" | $81 |
| 6" x 2" | 1800 lb | 7-1/2" | $89 |
| 6" x 2" | 1800 lb | 7-1/2" | $94 |
| 8" x 2" | 2000 lb | 9-1/2" | $150 |
| 8" x 2" | 2000 lb | 9-1/2" | $155 |
Will it carry my load?
Enter your total weight to check the selected size.
2 in. wide kingpinless caster with a heavy-duty solid polyurethane on glass-filled nylon core wheel. Rated 1,200 to 2,000 lb per caster depending on wheel size.

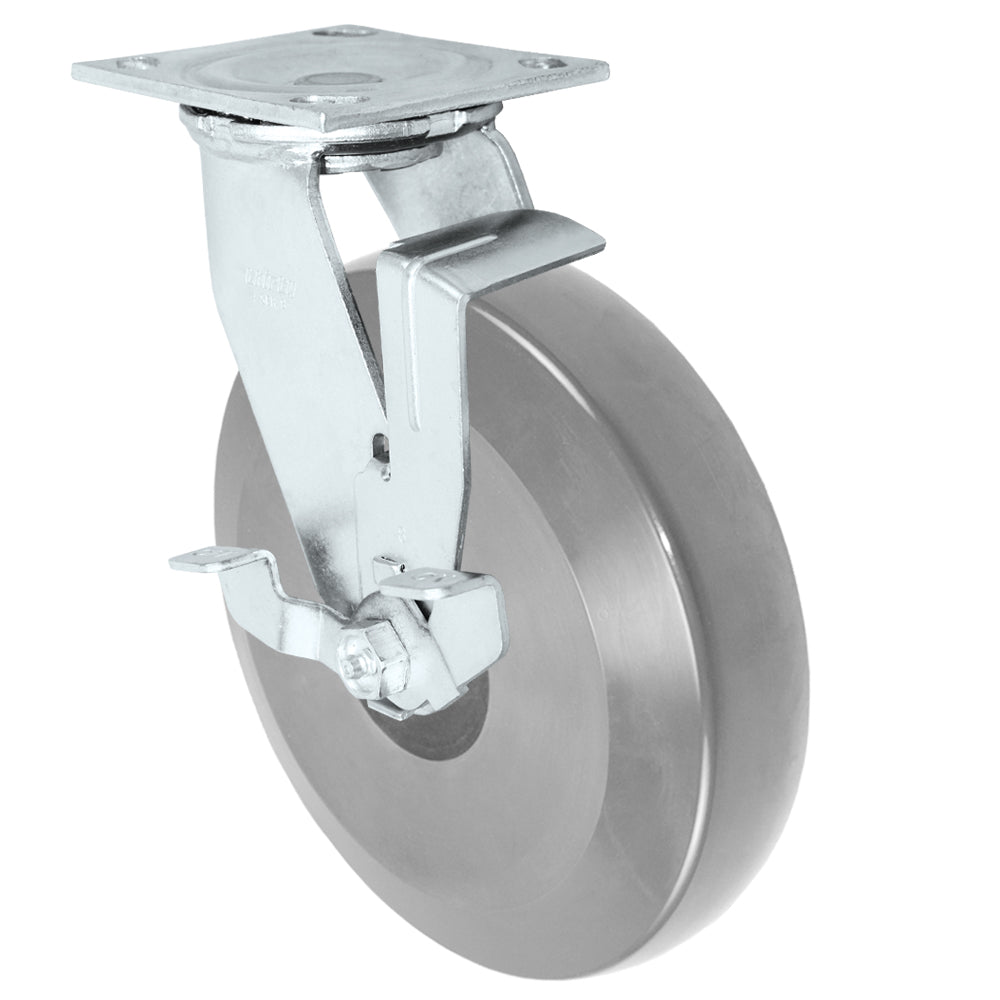

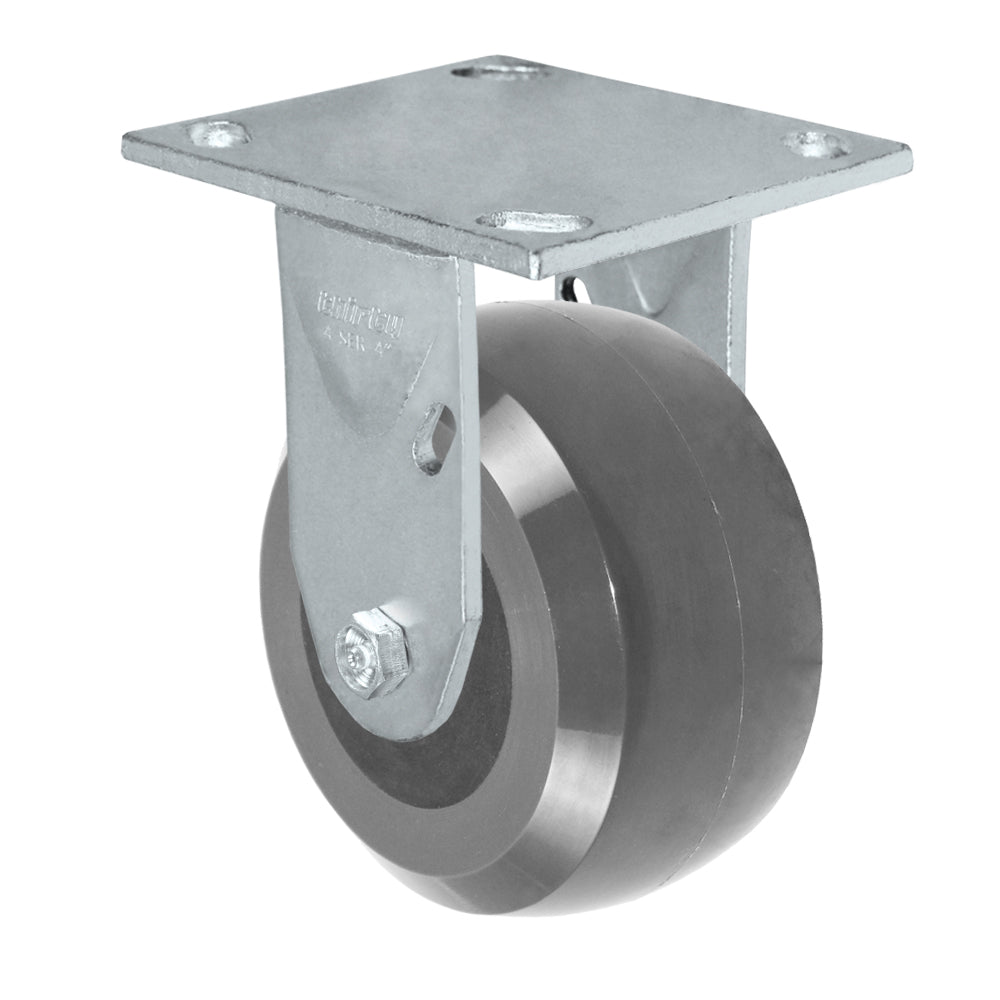

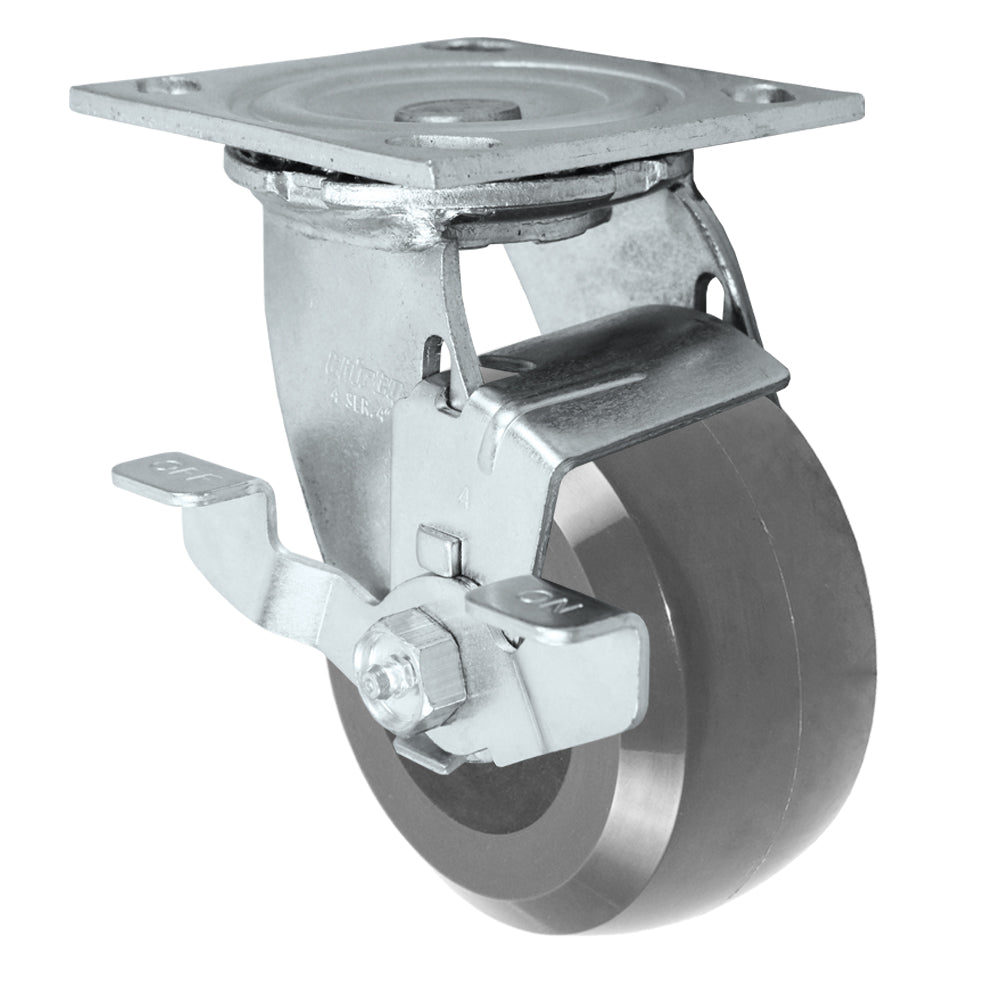

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Rigid rolls straight only.
Choose your plate: 4 x 4-1/2 in. (bolts 2-5/8 x 3-5/8 to 3 x 3, 3/8 in.); 4-1/2 x 6-1/4 in. (bolts 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4, 1/2 in.). Photos show the 4 x 4-1/2 in. plate.
