45 Series · Plate caster· CasterHQ
Heavy Duty Kingpinless Duratough Polyurethane Plate Caster 4 to 8 in. x 2 in. Wheel, 2 Plate Sizes, 700 to 1,000 lb
Regular price
$49
Regular price
Sale price
$49
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
SKU 45CS420PTU23J-03- Brand
- CasterHQ
- Series
- 45 Series
- Type
- Swivel
- Load capacity
- 700 lb per caster
- Wheel diameter
- 4"
- Tread width
- 2"
- Wheel
- Duratough polyurethane on polyolefin core
- Wheel color
- Maroon/Gray
- Overall height
- 5-5/8"
- Axle diameter
- 1/2"
- Mounting
- Top plate
- Top plate size
- 4 x 4-1/2"
- Bolt hole spacing
- 2-5/8 x 3-5/8 to 3 x 3"
- Mounting bolt size
- 3/8"
- Bearing
- 3/4 in. roller with spanner bushing
- Swivel radius
- 3-1/8"
- Finish
- Zinc plated
- Warranty
- 1 year, defects in materials and workmanship
Tap to enlarge
Sizes · Swivel
capacity is per caster| Size | Capacity | Height | Price |
|---|---|---|---|
| 4" x 2" | 700 lb | 5-5/8" | $49 |
| 4" x 2" | 700 lb | 5-5/8" | $54 |
| 5" x 2" | 750 lb | 6-1/2" | $51 |
| 5" x 2" | 750 lb | 6-1/2" | $56 |
| 6" x 2" | 900 lb | 7-1/2" | $53 |
| 6" x 2" | 900 lb | 7-1/2" | $58 |
| 8" x 2" | 1000 lb | 9-1/2" | $58 |
| 8" x 2" | 1000 lb | 9-1/2" | $63 |
| 4" x 2" | 700 lb | 5-5/8" | $55 |
| 4" x 2" | 700 lb | 5-5/8" | $60 |
| 5" x 2" | 750 lb | 6-1/2" | $56 |
| 5" x 2" | 750 lb | 6-1/2" | $61 |
| 6" x 2" | 900 lb | 7-1/2" | $59 |
| 6" x 2" | 900 lb | 7-1/2" | $64 |
| 8" x 2" | 1000 lb | 9-1/2" | $64 |
| 8" x 2" | 1000 lb | 9-1/2" | $69 |
| 4" x 2" | 700 lb | 5-5/8" | $42 |
| 4" x 2" | 700 lb | 5-5/8" | $47 |
| 5" x 2" | 750 lb | 6-1/2" | $42 |
| 5" x 2" | 750 lb | 6-1/2" | $47 |
| 6" x 2" | 900 lb | 7-1/2" | $45 |
| 6" x 2" | 900 lb | 7-1/2" | $50 |
| 8" x 2" | 1000 lb | 9-1/2" | $49 |
| 8" x 2" | 1000 lb | 9-1/2" | $54 |
Will it carry my load?
Enter your total weight to check the selected size.
2 in. wide kingpinless caster with a duratough polyurethane on polyolefin core wheel. Rated 700 to 1,000 lb per caster depending on wheel size.

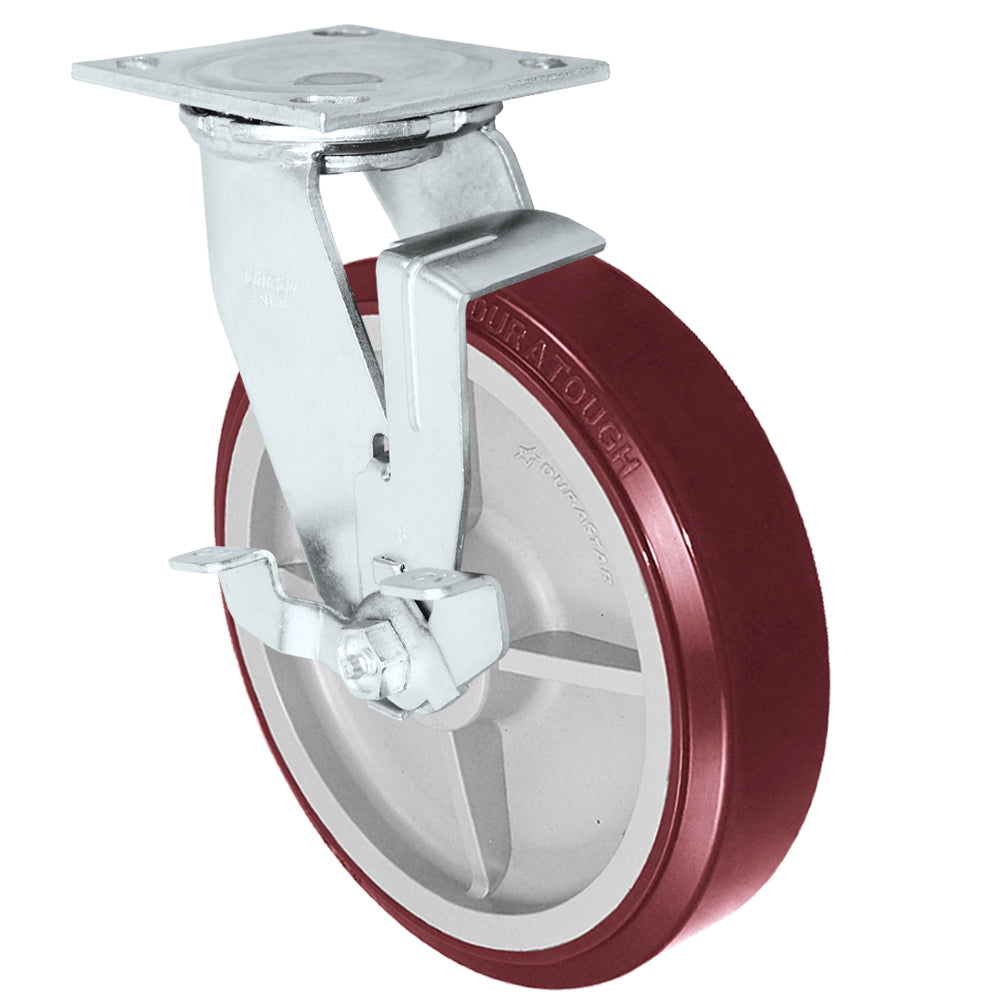

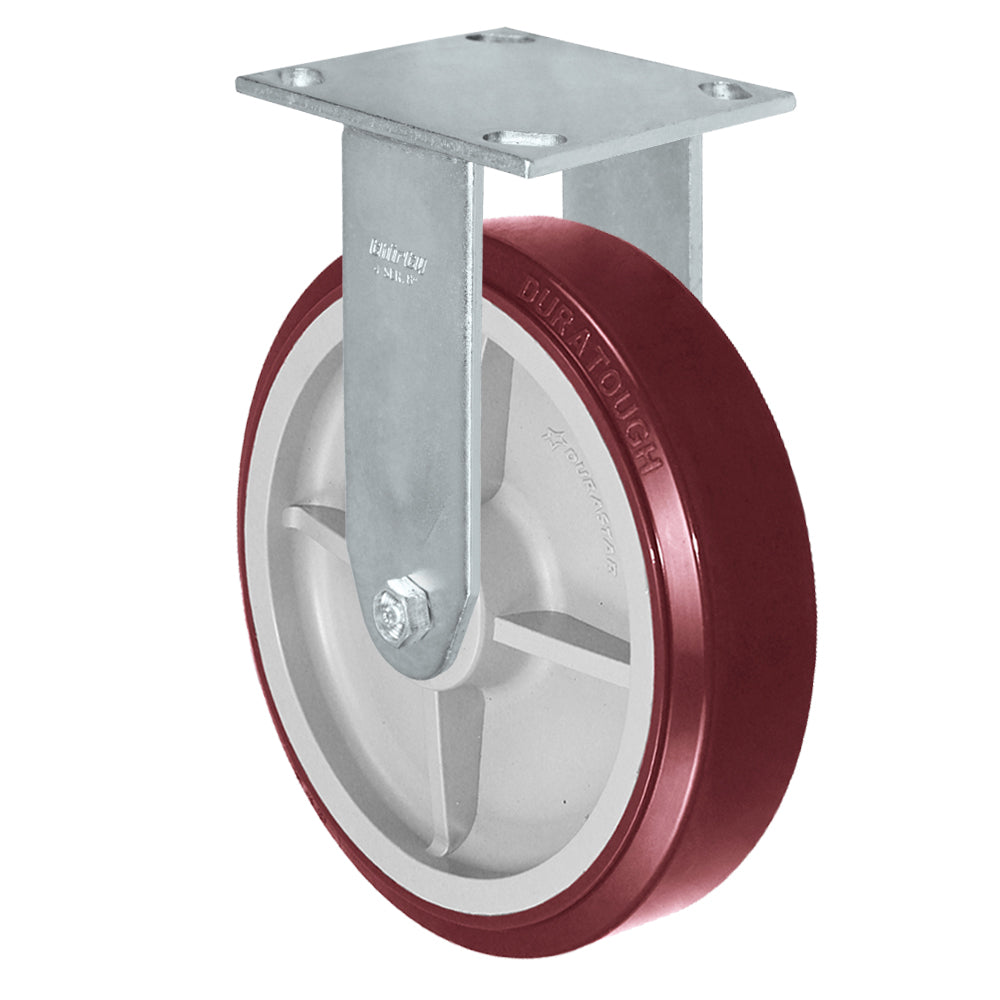

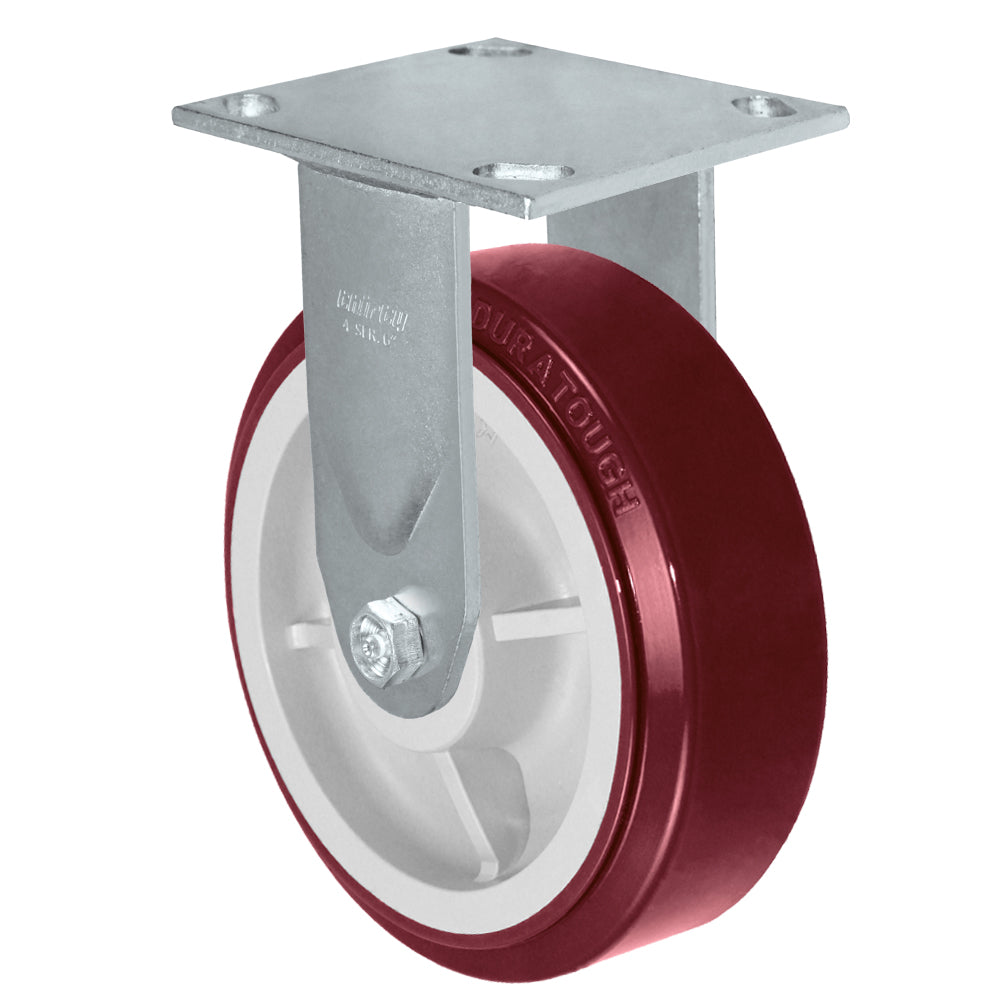

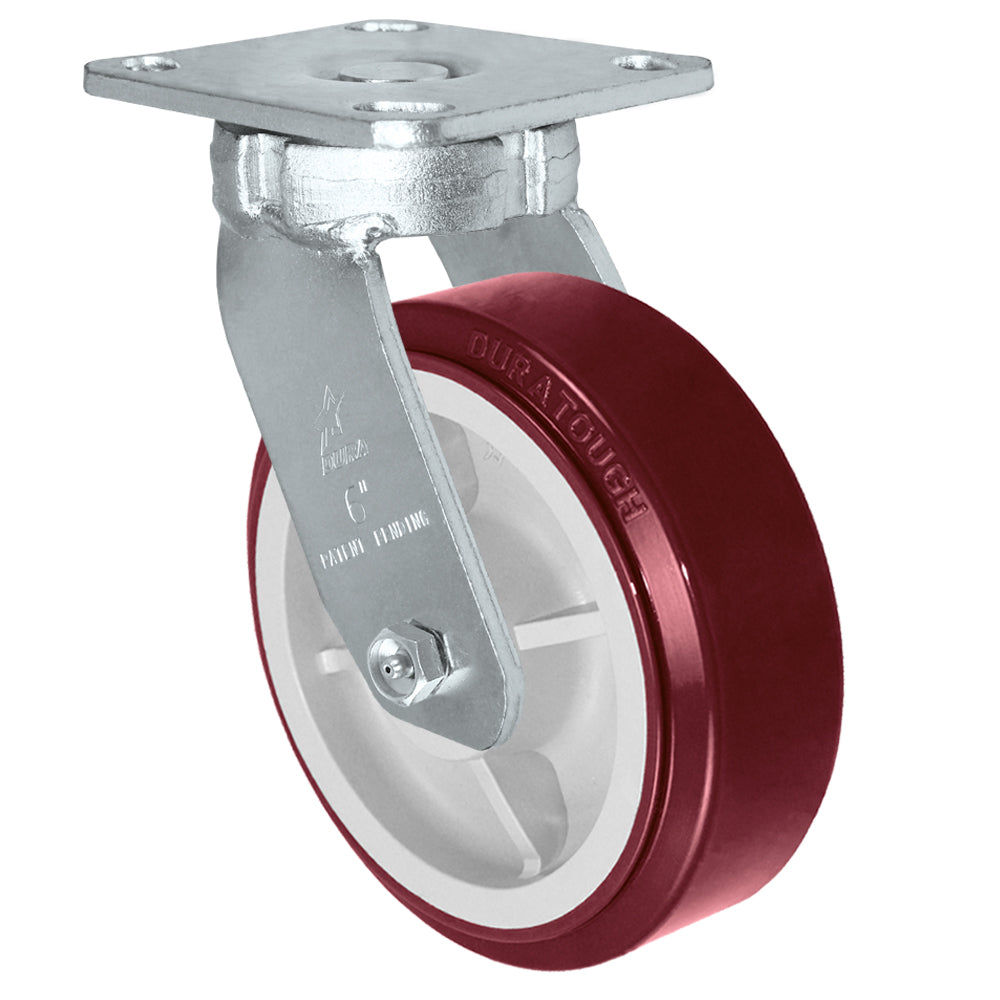

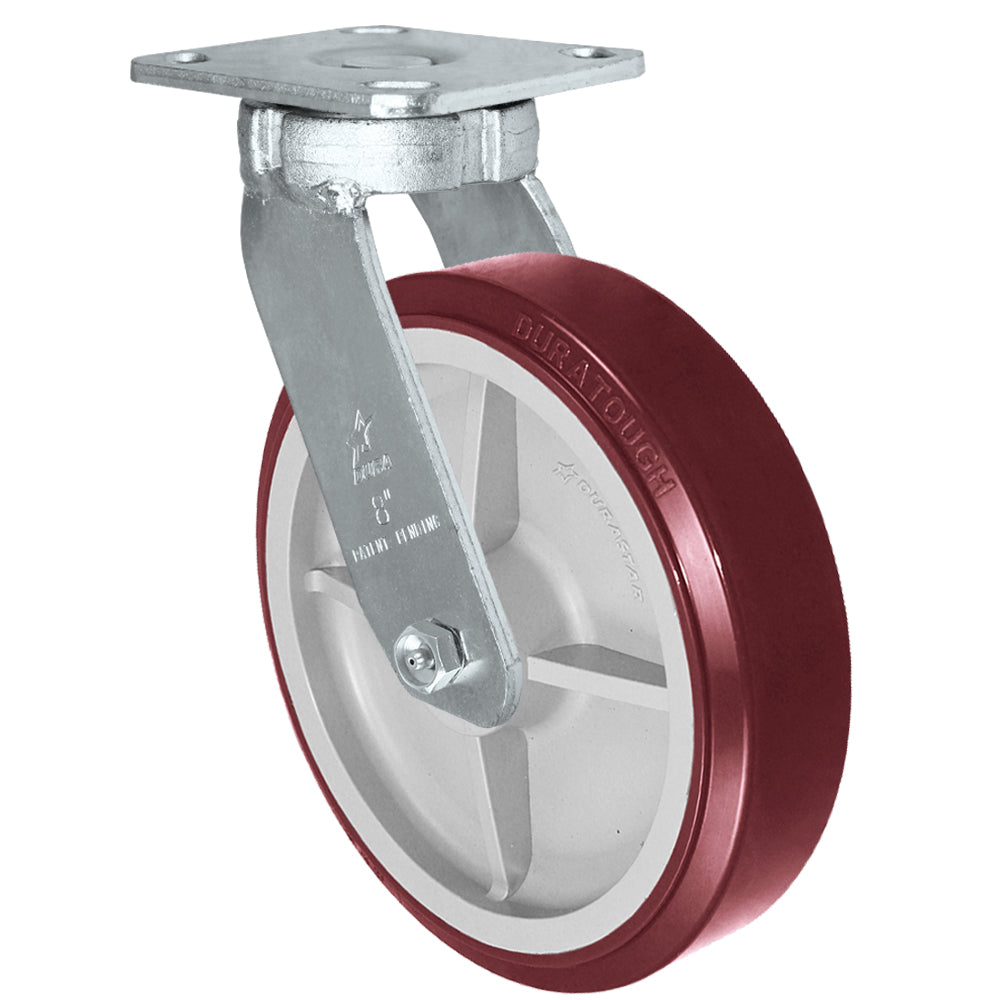

Swivel turns 360 degrees. Swivel + side brake adds a steel brake with a lever on the side of the fork: step the lever down to lock the wheel, lift it to release. Also called a top lock brake. Rigid rolls straight only.
Choose your plate: 4 x 4-1/2 in. (bolts 2-5/8 x 3-5/8 to 3 x 3, 3/8 in.); 4-1/2 x 6-1/4 in. (bolts 2-7/16 x 4-15/16 to 3-3/8 x 5-1/4, 1/2 in.). Photos show the 4 x 4-1/2 in. plate.
